Mafell 924401 Carpentry Planing Machine ZH 320 E up to machine no. 842746 Spare Parts

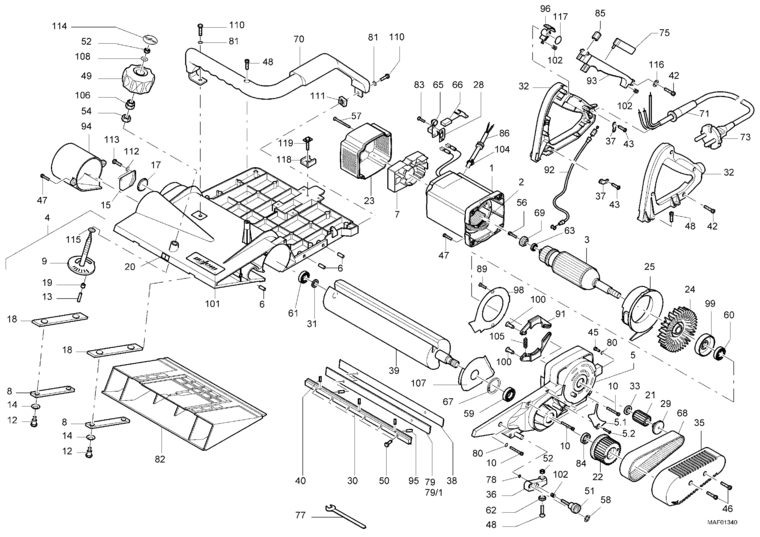

An exploded drawing and spare parts listing for the Mafell 924401 Carpentry Planing Machine ZH 320 E up to machine no. 842746

	Ex VAT	Inc VAT
1 - MOTOR CASING WITH INDUCTOR MAF-084511.A0 084511	£294.48	£353.38
2 - INDUCTOR WITH COIL MAF-084510.A1 084510	-
3 - ARMATURE, BALANCED MAF-088154.A1 088154	£305.95	£367.14
4 - MAIN BODY WITH FRONT BASE PLATE, ASSEMBLED MAF-202575.A0 202575	-
5 - END PLATE MAF-202302.A2 202302	£226.78	£272.13
5.1 - COVERING PLATE MAF-202288.A6 202288	£6.29	£7.55
5.2 - FLAT-HEAD SCREW MAF-005399.A26 005399	£1.27	£1.52
6 - CENTERING SLEEVE MAF-036054.A8 036054	-
7 - CONTROL MODULE MAF-077142.A8 077142	£181.20	£217.44
8 - CLAMPING BAR MAF-035152.A11 035152	-
9 - CAM DISK MAF-202401.A1 202401	£54.05	£64.86
10 - CYLINDRICAL OVAL-HEAD SCREW MAF-055100.A3 055100	-
12 - SHOULDER SCREW MAF-036853.A0 036853	£8.87	£10.64
13 - CYLINDRICAL PIN MAF-058125.A5 058125	£2.86	£3.43
14 - CUP SPRING MAF-066027.A8 066027	£1.75	£2.10
15 - COVER MAF-202297.A8 202297	-
17 - LID MAF-036034.A6 036034	-
18 - GUIDE RAIL MAF-036854.A11 036854	-
19 - JACKET MAF-036861.A3 036861	£20.88	£25.06
20 - ADHESIVE LABEL MAF-077651.A9 077651	-
21 - DRIVING WHEEL, SMALL MAF-202287.A0 202287	-
22 - DRIVING WHEEL, LARGE MAF-202286.A0 202286	-
23 - MOTOR COVER MAF-204037.A3 204037	-
24 - FAN MAF-035138.A1 035138	£13.09	£15.71
25 - AIR CONDUCTING RING MAF-035139.A6 035139	-
28 - PAD MAF-201872.A45 201872	-
29 - BOUNDARY DISK MAF-200680.A7 200680	-
30 - CLAMPING DEVICE MAF-202295.A1 202295	-
31 - SPACER DISK MAF-035994.A9 035994	-
32 - HANDLE SHELLS (PAIR) MAF-202518.A3 202518	-
33 - SPACER RING MAF-038484.A4 038484	-
35 - PROTECTIVE COVER MAF-035140.A8 035140	£42.32	£50.79
36 - LEVER MAF-035147.A7 035147	-
37 - CABLE CLAMP MAF-029584.A74 029584	-
38 - KNIFE SUPPORT MAF-091790.A0 091790	£91.81	£110.17
39 - CUTTER HEAD, BALANCED MAF-201578.A2 201578	-
40 - THREADED PIN MAF-005284.A27 005284	-
42 - CYLINDRICAL OVAL-HEAD SCREW MAF-055061.A153 055061	£1.71	£2.05
43 - SELF-TAPPING OVAL-HEAD SCREW MAF-055062.A45 055062	-
45 - CYLINDRICAL OVAL-HEAD SCREW MAF-055091.A7 055091	-
46 - OVAL-HEAD SCREW MAF-055082.A5 055082	£1.37	£1.64
47 - CYLINDRICAL OVAL-HEAD SCREW MAF-055086.A26 055086	-
48 - OVAL-HEAD SCREW MAF-055101.A11 055101	£2.04	£2.45
49 - HANDLE MAF-038970.A30 038970	£8.36	£10.03
50 - HEXAGON-HEAD SCREW MAF-035103.A5 035103	£2.95	£3.54
51 - KNURLED KNOB MAF-065029.A7 065029	£9.22	£11.06
52 - LOCKING NUT MAF-005979.A25 005979	£2.54	£3.05
54 - HEXAGONAL NUT MAF-005924.A27 005924	£1.67	£2.00
56 - CYLINDER-HEAD SCREW MAF-005505.A14 005505	-
57 - SELF-TAPPING OVAL-HEAD SCREW MAF-055124.A28 055124	-
58 - LOCKING WASHER MAF-061078.A11 061078	-
59 - GROOVED BALL BEARING MAF-006260.A31 006260	£18.15	£21.78
60 - GROOVED BALL BEARING MAF-006268.A2 006268	£15.30	£18.36
61 - GROOVED BALL BEARING MAF-006280.A49 006280	£13.65	£16.38
62 - GROOVED BALL BEARING MAF-006282.A40 006282	£14.68	£17.62
63 - GROOVED BALL BEARING MAF-062073.A40 062073	£14.28	£17.14
65 - BRUSH HOLDER MAF-063148.A35 063148	£10.30	£12.36
66 - CARBON BRUSH WITH AUTOMATIC CUT-OFF MAF-063147.A27 063147	£14.72	£17.67
67 - RETAINING RING MAF-007141.A8 007141	£3.56	£4.27
68 - TOOTHED BELT MAF-076488.A4 076488	£41.67	£50.00
69 - TACHOMETER CARRIER MAF-038975.A39 038975	£20.14	£24.17
70 - BOW HANDLE MAF-202298.A1 202298	-
71 - CABLE PROTECTING SLEEVE MAF-086065.A30 086065	£3.46	£4.15
73 - PART NAME NOT AVAILABLE MAF-087378.A0 087378	-
75 - 2-POLE SWITCH MAF-087599.A3 087599	£50.76	£60.91
77 - SINGLE-END SPANNER MAF-093258.A13 093258	£9.42	£11.31
78 - SEALING RING MAF-065004.A43 065004	£1.63	£1.96
79 - REVERSIBLE KNIVES PAIR MAF-091791.A0 091791	£38.32	£45.99
79/1 - REVERSIBLE KNIVES (3 x PAIRS) MAF-091889.A0 091889	£100.62	£120.74
80 - WASHER MAF-061015.A23 061015	-
81 - WASHER MAF-006101.A73 006101	£1.54	£1.85
82 - BASE PLATE, FRONT MAF-202574.A3 202574	£278.38	£334.05
83 - COUNTER-SUNK OVAL-HEAD SCREW MAF-053020.A49 053020	£2.01	£2.41
84 - SPACER RING MAF-039007.A8 039007	-
85 - HEXAGONAL NUT MAF-201147.A4 201147	£7.42	£8.91
86 - CONNECTING CABLE MAF-087800.A5 087800	-
89 - FLAT-HEAD SCREW MAF-005399.A29 005399	£1.27	£1.52
91 - BRAKE LEVER, CPL. MAF-201122.A6 201122	-
92 - BOWDEN CABLE, CPL. MAF-202301.A1 202301	-
93 - SWITCH LEVER MAF-201114.A20 201114	£13.23	£15.88
94 - CHIP EJECTOR MAF-202290.A7 202290	-
95 - SPRING DOWEL SLEEVE MAF-058144.A4 058144	£2.12	£2.54
96 - LOCKING LEVER MAF-201745.A22 201745	£6.02	£7.22
98 - INTERMEDIATE PLATE MAF-202289.A5 202289	-
99 - BRAKE DRUM MAF-202296.A7 202296	-
100 - SHOULDER SCREW MAF-055118.A24 055118	£2.41	£2.89
101 - STICKER MAF-077308.A15 077308	-
102 - PRESSURE SPRING MAF-066043.A100 066043	£3.04	£3.65
104 - CABLE BINDER MAF-076492.A12 076492	-
105 - RETRACTING SPRING MAF-066112.A5 066112	£5.52	£6.63
106 - HEXAGONAL NUT MAF-202403.A3 202403	-
107 - SHEET METAL AIR DEFLECTOR MAF-202299.A6 202299	-
108 - WASHER MAF-061028.A9 061028	-
110 - HEXAGON-HEAD SCREW MAF-005697.A13 005697	-
111 - SQUARE NUT MAF-005953.A30 005953	-
112 - WASHER MAF-006100.A31 006100	£2.01	£2.41
113 - HEXAGON-HEAD SCREW MAF-005677.A12 005677	£1.32	£1.58
114 - NAME PLATE MAF-201166.A37 201166	£8.13	£9.76
115 - SHIM RING MAF-006169.A10 006169	-
116 - WASHER MAF-061013.A43 061013	-
117 - SEALING RING MAF-006591.A24 006591	£1.65	£1.98
118 - CLIP CONNECTOR MAF-006172.A4 006172	-
119 - LOCKING SCREW WITH WASHER MAF-055155.A9 055155	-
