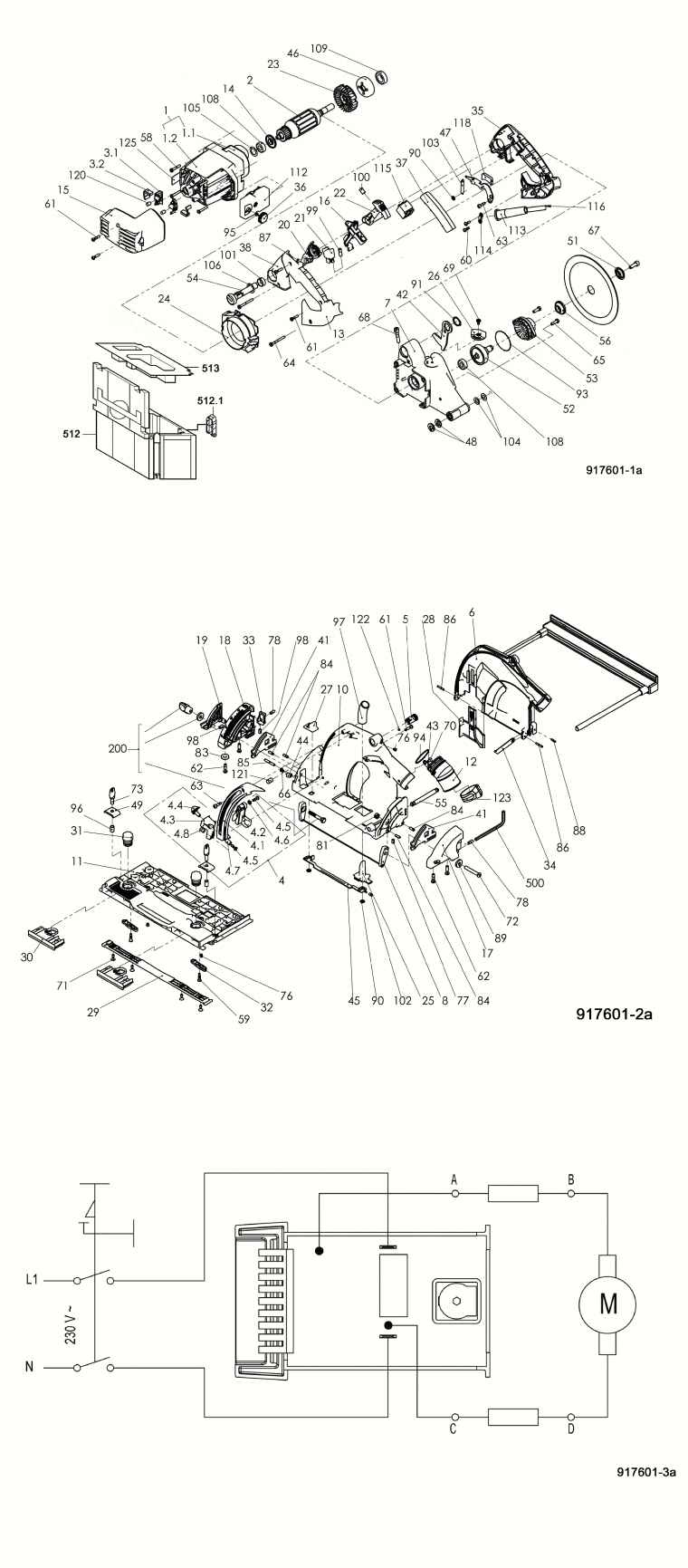

1 - MOTOR CASING WITH INDUCTOR 230 V
MAF-084620.A12
084620
|
£181.70
|
£218.04
|
|
|
1.1 - INDUCTOR WITH COIL 230 V
MAF-084618.A13
084618
|
£106.72
|
£128.07
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-204506.A14
204506
|
£56.42
|
£67.71
|
|
|
2 - ARMATURE
MAF-088224.A9
088224
|
-
|
|
|
|
3.1 - BRUSH HOLDER
MAF-063160.A19
063160
|
£10.07
|
£12.08
|
|
|
3.2 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063164.A35
063164
|
£12.41
|
£14.89
|
|
|
4 - DEPTH STOP
MAF-204487.A4
204487
|
£24.20
|
£29.04
|
|
|
4.1 - DEPTH SETTING
MAF-204496.A2
204496
|
£13.75
|
£16.50
|
|
|
4.2 - INDICATOR
MAF-204497.A9
204497
|
£12.29
|
£14.75
|
|
|
4.3 - SLIDING COVER
MAF-204511.A9
204511
|
£2.27
|
£2.72
|
|
|
4.4 - INDICATOR
MAF-204520.A13
204520
|
£9.00
|
£10.80
|
|
|
4.5 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A75
055233
|
£1.71
|
£2.05
|
|
|
4.6 - WASHER
MAF-061015.A36
061015
|
-
|
|
|
|
4.7 - PRESSURE SPRING
MAF-066043.A58
066043
|
£3.04
|
£3.65
|
|
|
4.8 - PRESSURE SPRING
MAF-006691.A12
006691
|
-
|
|
|
|
5 - LOCK
MAF-204488.A6
204488
|
£32.18
|
£38.61
|
|
|
6 - PROTECTIVE COVER
MAF-204523.A4
204523
|
£126.00
|
£151.20
|
|
|
7 - GEAR CASING
MAF-206084.A1
206084
|
£197.67
|
£237.20
|
|
|
8 - CLAMPING UNIT
MAF-204859.A6
204859
|
£18.20
|
£21.84
|
|
|
10 - TILTING SUPPORT
MAF-204482.A0
204482
|
£169.78
|
£203.74
|
|
|
11 - BASE PLATE
MAF-204389.A4
204389
|
£124.08
|
£148.89
|
|
|
12 - HOSE CONNECTOR
MAF-204485.A3
204485
|
£13.10
|
£15.72
|
|
|
13 - HANDLE SHELL
MAF-204486.A14
204486
|
£28.81
|
£34.57
|
|
|
14 - INSULATING DISK
MAF-204492.A7
204492
|
£8.58
|
£10.30
|
|
|
15 - MOTOR COVER
MAF-204493.A15
204493
|
£23.70
|
£28.44
|
|
|
16 - SWITCH TRIGGER
MAF-204494.A16
204494
|
£12.29
|
£14.75
|
|
|
17 - SEGMENT FOR TILTING
MAF-204495.A7
204495
|
£10.23
|
£12.28
|
|
|
18 - SEGMENT FOR TILTING
MAF-204502.A7
204502
|
£13.37
|
£16.04
|
|
|
19 - INDICATOR
MAF-204504.A5
204504
|
£10.67
|
£12.80
|
|
|
20 - LOCKING LEVER
MAF-204507.A7
204507
|
£10.30
|
£12.36
|
|
|
21 - LOCKING LEVER
MAF-204509.A15
204509
|
£8.07
|
£9.68
|
|
|
22 - LOCK-OFF BUTTON
MAF-204510.A15
204510
|
£11.48
|
£13.77
|
|
|
23 - FAN
MAF-204517.A8
204517
|
£12.33
|
£14.80
|
|
|
24 - AIR CONDUCTING RING
MAF-204518.A7
204518
|
£16.33
|
£19.60
|
|
|
25 - SPRING GUIDE
MAF-204519.A12
204519
|
£10.72
|
£12.87
|
|
|
26 - LOCKING LEVER
MAF-204522.A4
204522
|
-
|
|
|
|
27 - CAP
MAF-204524.A4
204524
|
-
|
|
|
|
28 - SLIDING COVER
MAF-204529.A2
204529
|
£15.24
|
£18.29
|
|
|
29 - INLAY
MAF-204861.A2
204861
|
£15.72
|
£18.86
|
|
|
30 - PANEL
MAF-204863.A1
204863
|
-
|
|
|
|
31 - SETTING WHEEL
MAF-204864.A0
204864
|
£7.28
|
£8.73
|
|
|
32 - INLAY
MAF-204867.A2
204867
|
£9.09
|
£10.91
|
|
|
33 - STOP PLATE
MAF-205053.A5
205053
|
-
|
|
|
|
34 - STOP CLIP
MAF-204868.A13
204868
|
-
|
|
|
|
35 - HANDLE SHELL
MAF-204490.A13
204490
|
-
|
|
|
|
36 - SETTING WHEEL
MAF-203729.A14
203729
|
-
|
|
|
|
37 - HANDLE INSERT
MAF-203877.A12
203877
|
£19.14
|
£22.97
|
|
|
38 - HANDLE SHELL COVER
MAF-204513.A16
204513
|
£11.76
|
£14.11
|
|
|
41 - SEGMENT
MAF-204501.A3
204501
|
£11.88
|
£14.26
|
|
|
42 - CLICK-IN METAL SHEET
MAF-204505.A3
204505
|
£9.00
|
£10.80
|
|
|
43 - CLIP
MAF-204512.A8
204512
|
£7.18
|
£8.62
|
|
|
44 - INDICATOR
MAF-204530.A6
204530
|
£6.19
|
£7.43
|
|
|
45 - ADJUSTABLE SHEET METAL
MAF-205051.A1
205051
|
-
|
|
|
|
46 - BRAKE DRUM
MAF-201452.A10
201452
|
£13.66
|
£16.39
|
|
|
47 - BRAKE LEVER
MAF-202347.A12
202347
|
£6.25
|
£7.50
|
|
|
48 - WASHER
MAF-205466.A0
205466
|
-
|
|
|
|
49 - CLAMPING CLAWS
MAF-200050.A12
200050
|
£4.32
|
£5.18
|
|
|
51 - FLANGE
MAF-204388.A17
204388
|
£16.58
|
£19.90
|
|
|
52 - SAW SHAFT
MAF-205676.A3
205676
|
-
|
|
|
|
53 - BEARING COVER
MAF-205663.A4
205663
|
£55.60
|
£66.72
|
|
|
54 - PUSH-BUTTON
MAF-204516.A9
204516
|
£30.69
|
£36.83
|
|
|
55 - BOLT
MAF-204528.A8
204528
|
-
|
|
|
|
56 - FLANGE
MAF-203999.A12
203999
|
£16.18
|
£19.41
|
|
|
58 - OVAL-HEAD SCREW
MAF-055069.A29
055069
|
£2.16
|
£2.59
|
|
|
59 - HEADLESS SCREW
MAF-204869.A0
204869
|
-
|
|
|
|
60 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055246.A12
055246
|
-
|
|
|
|
61 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A117
055061
|
£1.71
|
£2.05
|
|
|
62 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055195.A7
055195
|
-
|
|
|
|
63 - SELF-TAPPING SCREW
MAF-055230.A45
055230
|
-
|
|
|
|
64 - OVAL-HEAD SCREW
MAF-055257.A21
055257
|
-
|
|
|
|
65 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055188.A27
055188
|
-
|
|
|
|
66 - CHEESE-HEAD SCREW
MAF-053036.A3
053036
|
-
|
|
|
|
67 - CYLINDER-HEAD SCREW
MAF-055096.A13
055096
|
£2.11
|
£2.53
|
|
|
68 - CYLINDER-HEAD SCREW
MAF-055263.A8
055263
|
-
|
|
|
|
69 - SHOULDER SCREW
MAF-055118.A25
055118
|
£2.41
|
£2.89
|
|
|
70 - FLAT-HEAD SCREW
MAF-053031.A30
053031
|
£1.72
|
£2.07
|
|
|
71 - FLAT-HEAD SCREW
MAF-053029.A20
053029
|
£2.84
|
£3.41
|
|
|
72 - CHEESE-HEAD SCREW
MAF-053035.A6
053035
|
-
|
|
|
|
73 - WING SCREW
MAF-079082.A8
079082
|
-
|
|
|
|
76 - THREADED PIN
MAF-052016.A6
052016
|
-
|
|
|
|
77 - THREADED PIN
MAF-005284.A44
005284
|
-
|
|
|
|
78 - THREADED PIN
MAF-005248.A7
005248
|
-
|
|
|
|
81 - HEXAGON SAFETY NUT
MAF-059017.A6
059017
|
-
|
|
|
|
83 - LOCKING WASHER
MAF-006179.A23
006179
|
£1.53
|
£1.84
|
|
|
84 - CYLINDRICAL PIN
MAF-058218.A4
058218
|
-
|
|
|
|
85 - CYLINDRICAL PIN
MAF-058156.A29
058156
|
£3.46
|
£4.15
|
|
|
86 - SPIRAL DOWEL SLEEVE
MAF-058186.A19
058186
|
-
|
|
|
|
87 - RIBBED PIN
MAF-058219.A8
058219
|
-
|
|
|
|
88 - SPIRAL DOWEL SLEEVE
MAF-058123.A3
058123
|
-
|
|
|
|
89 - WASHER
MAF-061172.A16
061172
|
-
|
|
|
|
90 - LOCKING WASHER
MAF-061069.A16
061069
|
£1.49
|
£1.79
|
|
|
91 - RETAINING RING
MAF-007163.A13
007163
|
-
|
|
|
|
93 - SEALING RING
MAF-065063.A10
065063
|
-
|
|
|
|
94 - SEALING RING
MAF-078173.A15
078173
|
-
|
|
|
|
95 - SEALING RING
MAF-065004.A39
065004
|
£1.63
|
£1.96
|
|
|
96 - PRESSURE SPRING
MAF-066043.A86
066043
|
£3.04
|
£3.65
|
|
|
97 - PRESSURE SPRING
MAF-066166.A6
066166
|
£3.58
|
£4.30
|
|
|
98 - PRESSURE SPRING
MAF-066053.A3
066053
|
£2.54
|
£3.05
|
|
|
99 - PRESSURE SPRING
MAF-066154.A17
066154
|
-
|
|
|
|
100 - PRESSURE SPRING
MAF-066043.A63
066043
|
£3.04
|
£3.65
|
|
|
101 - PRESSURE SPRING
MAF-066096.A19
066096
|
£4.25
|
£5.10
|
|
|
102 - PRESSURE SPRING
MAF-006641.A3
006641
|
-
|
|
|
|
103 - RETRACTING SPRING
MAF-066092.A10
066092
|
£4.98
|
£5.97
|
|
|
104 - CUP SPRING
MAF-006693.A10
006693
|
-
|
|
|
|
105 - FEDERSCHEIBE
MAF-061132.A16
061132
|
-
|
|
|
|
106 - SHIM RING
MAF-006160.A36
006160
|
£1.65
|
£1.98
|
|
|
108 - GROOVED BALL BEARING
MAF-006282.A56
006282
|
£14.68
|
£17.62
|
|
|
109 - GROOVED BALL BEARING
MAF-006280.A43
006280
|
£13.65
|
£16.38
|
|
|
112 - CONTROL MODULE
MAF-077671.A12
077671
|
£70.80
|
£84.96
|
|
|
113 - CABLE PROTECTING SLEEVE
MAF-086064.A51
086064
|
£3.37
|
£4.04
|
|
|
114 - CABLE CLAMP
MAF-205830.A3
205830
|
-
|
|
|
|
115 - 2-POLE SWITCH
MAF-087851.A11
087851
|
£18.18
|
£21.82
|
|
|
116 - MAINS CABLE 4 M (13.1 FT)
MAF-087323.A30
087323
|
£39.41
|
£47.29
|
|
|
118 - BRAKE LINING
MAF-202429.A16
202429
|
-
|
|
|
|
120 - PRESSURE BIT
MAF-202378.A27
202378
|
-
|
|
|
|
121 - STOP BUFFER
MAF-203207.A6
203207
|
-
|
|
|
|
122 - STEEL BALL
MAF-062104.A8
062104
|
-
|
|
|
|
123 - HOOK-AND-LOOP FASTENER BELT
MAF-205049.A7
205049
|
£5.39
|
£6.47
|
|
|
125 - STICKER
MAF-170221.A1
170221
|
-
|
|
|
|
200 - CLAMPING UNIT
MAF-205411.A0
205411
|
£17.90
|
£21.48
|
|
|
500 - ALLEN KEY
MAF-093034.A14
093034
|
-
|
|
|
|
512 - CARRYING CASE MAFELL-MAX
MAF-095043.A11
095043
|
-
|
|
|
|
512.1 - LATCH
MAF-095074.A27
095074
|
-
|
|
|
|
513 - PLASTIC TRAY FOR TK MAX
MAF-095159.A0
095159
|
£20.51
|
£24.61
|
|
