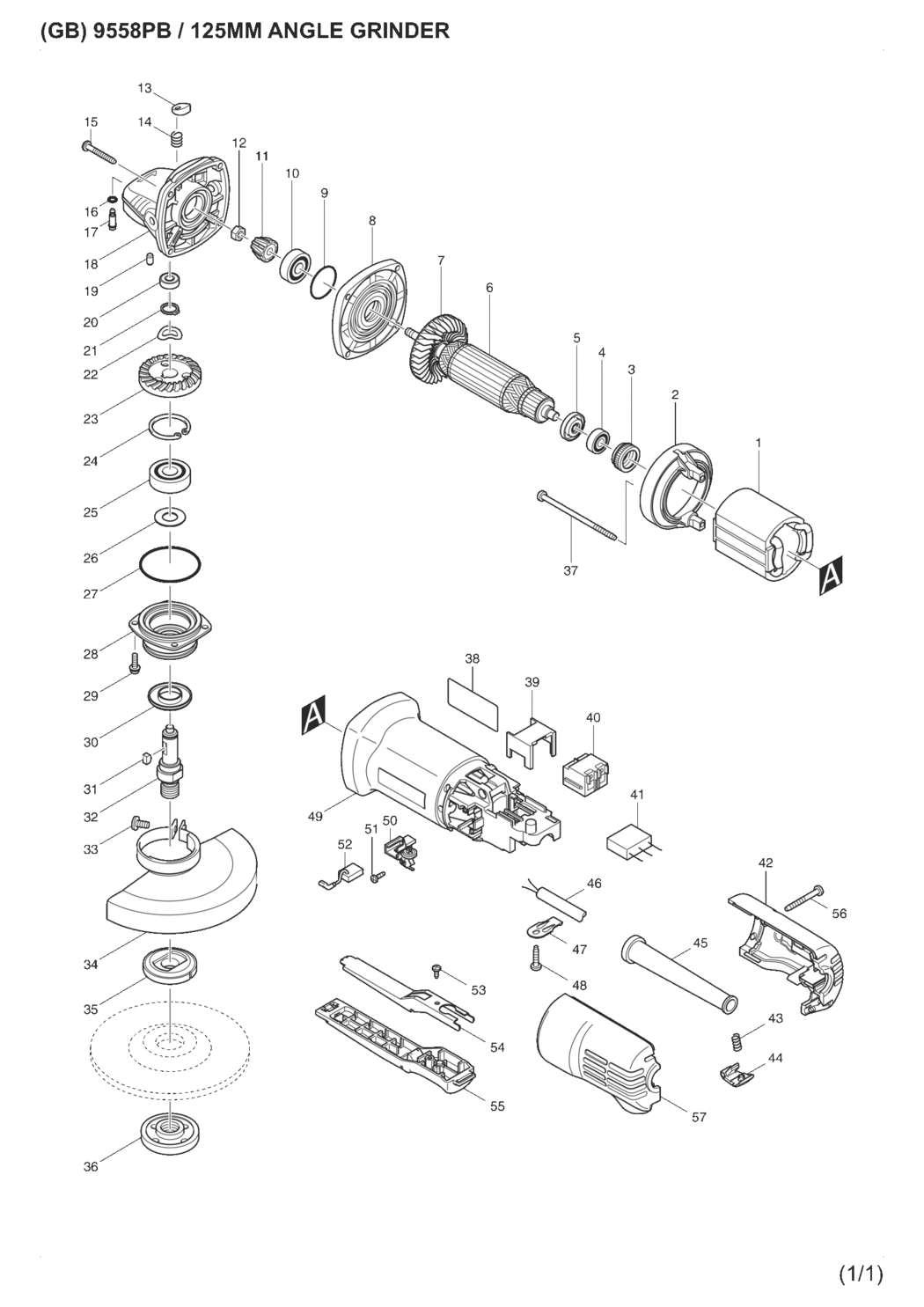

An exploded drawing and spare parts listing for the Makita 9558PB Angle Grinder
Ex VAT Inc VAT
1 - FIELD 110V 9556NB-9558NB MSP-621706-3.A8 621706-3 £14.35 £17.22
1 - FIELD 240V 9556NB-9558NB&PB MSP-621708-9.A1 621708-9 £14.35 £17.22
2-1 - BAFFLE PLATE 9556-58NB/PB/GD0 MSP-457791-8.A8 457791-8 £1.44 £1.73
3 - LABYRINTH RUBBER RING JS1602 MSP-421868-5.A21 421868-5 £1.44 £1.73
4 - BALL BEARING 607LLB 9553/9555 MSP-210034-7.A24 210034-7 £3.33 £4.00
5-1 - INSULATION WASHER MT814/815 MSP-681636-0.A34 681636-0 £2.18 £2.62
6 - ARMATURE ASS 240V 9556-58NB&P MSP-515613-9.A0 515613-9 £32.69 £39.23
6 - ARMATURE ASS 110V 9556-58NB&P MSP-518869-3.A5 518869-3 £32.69 £39.23
7 - FAN 56 JS1602/9553-9558NB MSP-240076-7.A0 240076-7 £1.44 £1.73
8 - GEAR HOUSING COVER BPJ140/180 MSP-317821-6.A15 317821-6 £3.74 £4.49
9 - O-RING 26 BPJ140/BPJ180/BGA45 MSP-213445-5.A31 213445-5 £1.44 £1.73
10-2 - BALL BEARING 629LLB BPJ140/18 MSP-210042-8.A43 210042-8 £4.19 £5.03
11-1 - *SPIRAL BEVEL GEAR 10 DGA454/5 MSP-227541-3.A25 227541-3 £4.33 £5.20
11 - SPIRAL BEVEL GEAR 10 9553-955 MSP-227541-3.A41 227541-3 £4.33 £5.20
12 - HEX NUT M6 BUC250/GA4034/9553 MSP-252186-8.A13 252186-8 £1.44 £1.73
13 - PIN CAP BPJ140/180/PC5000/01C MSP-417771-6.A32 417771-6 £1.71 £2.05
14 - COMPRESSION SPRING 8 SMA900 MSP-233376-2.A0 233376-2 £1.44 £1.73
15 - TAPPING SCREW 4X30 BGA454/504 MSP-266361-0.A58 266361-0 £1.44 £1.73
15-1 - PT SCREW 4X30 BUC121/122 MSP-266050-7.A39 266050-7 £1.44 £1.73
16 - O RING 5 DGA463/DGA467/DGA513 MSP-213032-0.A52 213032-0 £1.44 £1.73
17 - SHOUDER PIN 4 9553-9558NB MSP-256486-8.A4 256486-8 £1.44 £1.73
18-1 - GEAR HOUSING DGA452/DGA450 MSP-318051-2.A7 318051-2 £7.29 £8.75
18 - GEAR HOUSING 9553-9558NB MSP-318051-2.A35 318051-2 £7.29 £8.75
19 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A205 263002-9 £1.44 £1.73
20 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A16 210033-9 £2.53 £3.04
21 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A107 961052-5 £1.44 £1.73
22 - WAVE WASHER 12 9553-9558NB MSP-267794-2.A4 267794-2 £1.44 £1.73
23-1 - SPIRAL BEVEL GEAR 37 9554/5NB MSP-227542-1.A4 227542-1 £6.40 £7.68
24 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A49 962151-6 £1.44 £1.73
25 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A14 211129-9 £10.14 £12.17
26 - FLAT WASHER 12 BGA450/MT952 MSP-267238-2.A5 267238-2 £1.49 £1.79
27 - O RING 45 BGS450/BPJ140/BPJ180 MSP-213622-9.A29 213622-9 £1.44 £1.73
28-1 - BEARING BOX 9553NB/9556NB&PB MSP-318331-6.A13 318331-6 £3.59 £4.31
29 - PAN HD SCREW M4X14 9553-9555N MSP-265099-4.A10 265099-4 £1.44 £1.73
30 - LABYRINTH RING PC5000/01C/GA5 MSP-345464-4.A15 345464-4 £1.44 £1.73
31 - WOODRUFF KEY 4-8 BGA450/5603R MSP-254011-9.A22 254011-9 £1.44 £1.73
32 - SPINDLE BGA450/9553NB-9555 MSP-324489-1.A12 324489-1 £3.28 £3.93
32-1 - SPINDLE BGA450/9553NB-9555 MSP-324489-1.A23 324489-1 £3.28 £3.93
33-1 - PAN HD SCREW M5X16 GA5021/955 MSP-911224-2.A78 911224-2 £1.44 £1.73
33 - *PAN HD SCREW M5X14 BGA450/MT MSP-265103-9.A6 265103-9 £1.44 £1.73
34-2 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A84 213009-5 £1.44 £1.73
34-1 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A99 213009-5 £1.44 £1.73
34-2 - WHEEL COVER 9555/GA MODELS MSP-123099-9.A1 123099-9 £8.73 £10.48
36 - LOCKNUT PC5000/01C/GA5020/21 MSP-224554-5.A49 224554-5 £5.50 £6.60
37 - *TAPPING SCREW M4X80 MSP-266345-8.A8 266345-8 £1.44 £1.73
37-1 - BIND TAPPING SCREW M4X80 9556 MSP-266623-6.A5 266623-6 £1.44 £1.73
38 - NAME PLATE 9558PB MSP-861318-2 861318-2 £1.44 £1.73
39 - SPACER 9556-58NB/GD0602/GA403 MSP-418729-8.A6 418729-8 £1.44 £1.73
40 - SWITCH DPX-2110-R 9553NB/9554N MSP-650560-8.A8 650560-8 £4.17 £5.00
41-1 - NOISE SUPPRESSOR 9553-9555NB MSP-638740-6.A8 638740-6 £2.81 £3.37
42 - REAR COVER SET 9556PB-9558PB MSP-183943-2.A3 183943-2 £3.59 £4.31
43 - COMPRESSION SPRING 6 9005B MSP-231252-4.A1 231252-4 £1.44 £1.73
44 - LOCK ON BUTTON 9556PB-9558PB MSP-418842-2.A1 418842-2 £1.44 £1.73
45 - CORD GUARD 10 GD0801C/GD0811C MSP-682566-8.A115 682566-8 £1.60 £1.92
46 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A62 692527-0 £29.38 £35.25
46 - POWER SUPPLY CORD 1.0-2-2.5 MSP-665918-8.A68 665918-8 £12.01 £14.41
47 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A66 687169-3 £1.44 £1.73
48 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A495 266326-2 £1.44 £1.73
48-1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1032 265995-6 £1.44 £1.73
49 - MOTOR HOUSING 9556PB-9558PB MSP-418838-3.A2 418838-3 £6.08 £7.30
50 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A50 643760-7 £3.28 £3.93
51 - PT SCREW 3X10 TRILOBULAR/MS248 MSP-266007-8.A47 266007-8 £1.44 £1.73
52 - CARBON BRUSH CB-325 9553-9555 MSP-194074-2.A17 194074-2 £4.94 £5.93
53 - TF SCREW 3X8 GD0801C/GD0811C MSP-265954-0.A8 265954-0 £1.44 £1.73
54 - PLATE GD0600 GD0801C/GD0811C MSP-345504-8.A1 345504-8 £1.44 £1.73
55 - SWITCH LEVER B CO GD0801C/811 MSP-154584-1.A8 154584-1 £1.44 £1.73
56-2 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A27 266053-1 £1.44 £1.73
56-1 - TAPPING SCREW 4X35 BHR262/HR2 MSP-266351-3.A12 266351-3 £1.44 £1.73
57 - REAR COVER SET 9556PB-9558PB MSP-183943-2.A2 183943-2 £3.59 £4.31
58 - LABEL/CLEAR HR28102811 MSP-819355-0.A2 819355-0 £1.44 £1.73
58-2 - LABEL/CLEAR HR2811F MSP-805W67-9.A0 805W67-9 £1.44 £1.73
A01 - GRIP 36 BGA450/9553-9558 MSP-153489-2.A0 153489-2 £3.42 £4.11
A02-1 - LOCK NUT WRENCH 35 GA5020/9554 MSP-782423-1.A48 782423-1 £3.54 £4.25
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A65 654091-9 £1.44 £1.73
