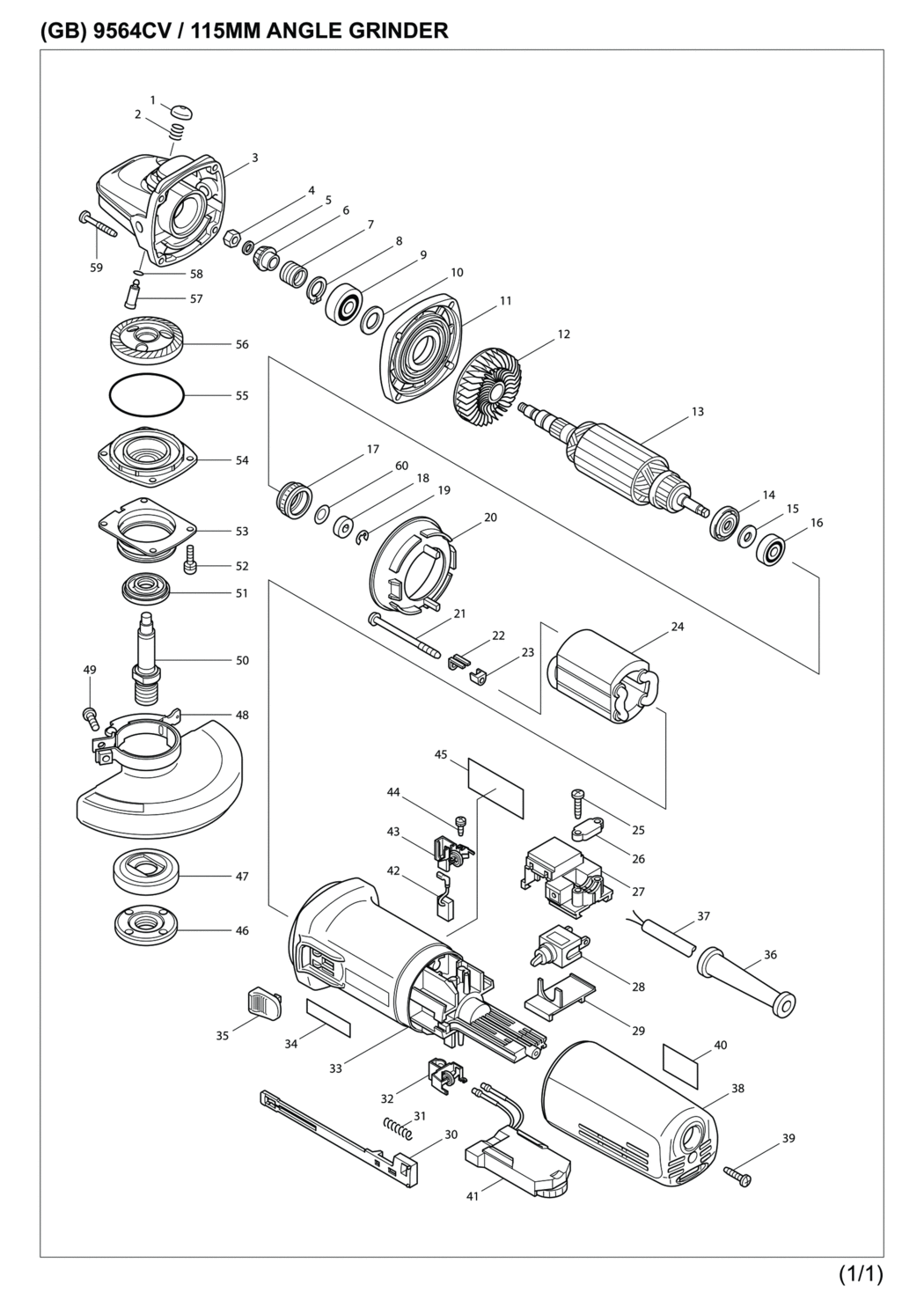

An exploded drawing and spare parts listing for the Makita 9564CV Angle Grinder
Ex VAT Inc VAT
1-1 - PIN CAP 9564/65CV/DZ/H/9565CV MSP-418067-8.A13 418067-8 £1.44 £1.73
1 - PIN CAP 9564/65CV&DZ MSP-417236-8.A3 417236-8 £1.44 £1.73
2 - COMPRESSION SPRING 8 BGA450 MSP-233072-2.A38 233072-2 £1.71 £2.05
3-3 - GEAR HOUSING 9564/65CV/D MSP-153488-4.A13 153488-4 £29.38 £35.25
4 - HEX NUT M6 9564/65CV/DZ&H MSP-931303-0.A22 931303-0 £1.44 £1.73
5 - NARROW WASHER 6 4300BV/9564DZ MSP-253077-6.A26 253077-6 £1.44 £1.73
7 - LOCK SPRING 12 GD0801C/GD0811 MSP-233901-9.A16 233901-9 £3.90 £4.68
8 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A106 961052-5 £1.44 £1.73
9 - BALL BEARING 6001LLB 9565H/CV MSP-211142-7.A22 211142-7 £6.08 £7.30
10 - THIN WASHER 12 8419B/9565H MSP-253084-9.A26 253084-9 £1.44 £1.73
11 - GEAR HOUSING COVER BO6040/956 MSP-317359-1.A13 317359-1 £5.62 £6.74
12 - FAN 57 9564/65CV/DZ&H/SG1250 MSP-240033-5.A11 240033-5 £4.68 £5.62
13-1 - ARMATURE ASSY 240V 9564/65CV MSP-515228-2.A2 515228-2 £57.55 £69.06
13B2 - ARMATURE ASSY 110V 9564/65CV MSP-515335-1.A4 515335-1 £85.68 £102.82
14 - INSULATION WASHER/PO6000C MSP-681656-4.A15 681656-4 £1.44 £1.73
15 - THIN BLUE WASHER BHS630/JS160 MSP-253823-7.A26 253823-7 £1.44 £1.73
16 - BALL BEARING 627DDW BO6040 MSP-210027-4.A12 210027-4 £3.28 £3.93
17 - LABYRINTH RUBBER RING 22 BO60 MSP-421738-8.A9 421738-8 £9.05 £10.86
18 - MAGNET SLEEVE GD0801C/GD0811 MSP-688117-5.A33 688117-5 £4.18 £5.02
19-1 - SELF LOCK 6 GD0801C/811C MSP-259039-2.A4 259039-2 £1.44 £1.73
19 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A46 961011-9 £1.44 £1.73
20 - BAFFLE PLATE GD0800C/810C/BO6 MSP-413076-2.A0 413076-2 £1.44 £1.73
21 - TAPPING SCREW 4X70 9564/65CV& MSP-266258-3.A17 266258-3 £1.44 £1.73
22 - RETAINER GD0801C/811C/MT814 MSP-344871-8.A0 344871-8 £1.44 £1.73
23 - INSULATION COVER MT814/GD080 MSP-417237-6.A16 417237-6 £1.44 £1.73
24A - FIELD 110V SG1250/9565CVL MSP-626501-6.A2 626501-6 £46.33 £55.60
25 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A361 265995-6 £1.44 £1.73
26B2 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A33 687053-2 £1.44 £1.73
26 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A104 687063-9 £1.44 £1.73
26B1 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A131 687063-9 £1.44 £1.73
26-1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A53 687052-4 £1.44 £1.73
26B - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A32 687053-2 £1.44 £1.73
27 - SWITCH BLOCK GD0800C/810C/BO6 MSP-632945-0.A6 632945-0 £9.82 £11.79
28 - SWITCH ST115A-40 GA4540/5450R MSP-651418-4.A16 651418-4 £9.82 £11.79
29 - COVER GD0800C/810C/BO6040/956 MSP-687113-0.A4 687113-0 £1.44 £1.73
30 - SWITCH LEVER 9564/65CV/DZ&H MSP-417186-7.A0 417186-7 £1.44 £1.73
31 - COMPRESSION SPRING 4 9542 MSP-233071-4.A12 233071-4 £1.44 £1.73
32-1 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A19 643760-7 £3.28 £3.93
33-3 - MOTOR HOUSING 9564/9565 MSP-418512-3.A6 418512-3 £17.86 £21.43
33-5 - MOTOR HOUSING 9564CV-9566CV MSP-453276-2.A0 453276-2 £25.20 £30.24
34 - LABEL/MAKITA 43046831DW5093 MSP-819080-3.A4 819080-3 £1.44 £1.73
35-1 - SWITCH KNOB 9564/65Z&H/SG1250 MSP-417813-6.A8 417813-6 £1.44 £1.73
36-1 - CORD GUARD 10 GD0801C/GD0811C MSP-682566-8.A1 682566-8 £1.60 £1.92
37F1 - POWER SUPPLY CORD 1.5-2-2.5 MSP-663839-8.A1 663839-8 £12.01 £14.41
37F2 - POWER SUPPLY CORD HS6100/7100 MSP-695217-4.A24 695217-4 £12.48 £14.98
37E - POWER SUPPLY CORD 1.0-2-2.5 MSP-692021-2.A2 692021-2 £9.05 £10.86
37E1 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A142 692527-0 £29.38 £35.25
38 - REAR COVER GD0800C/810C/BO604 MSP-417185-9.A6 417185-9 £9.20 £11.04
39 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A360 265995-6 £1.44 £1.73
40-1 - LABEL/INDICATION 956465CV MSP-816504-0.A1 816504-0 £5.78 £6.93
41A - CONTROLLER 110V 9564/65CV/CVL MSP-631383-3.A0 631383-3 £87.07 £104.48
41 - CONTROLLER 240V 9564/65CV/CVL MSP-631384-1.A2 631384-1 £87.07 £104.48
42-1 - CARBON BRUSH CB-318 AC/PO6000C MSP-191978-9.A8 191978-9 £10.92 £13.10
43-1 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A20 643760-7 £3.28 £3.93
44 - PT SCREW 3X10 W. CAPTIVE WASH MSP-266256-7.A11 266256-7 £1.44 £1.73
45 - *NAME PLATE 9564CV MSP-852385-8 852385-8 £1.44 £1.73
46 - LOCKNUT PC5000/01C/GA5020/21 MSP-224554-5.A3 224554-5 £5.50 £6.60
48-4 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A50 213009-5 £1.44 £1.73
48-3 - *TOOL-LESS WHEEL COVER 115 AS MSP-122894-4.A0 122894-4 £10.92 £13.10
48-3 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A51 213009-5 £1.44 £1.73
48-4 - TOOLLESS WHEEL COVER 115AK A MSP-123144-0.A8 123144-0 £13.26 £15.91
49-1 - PAN HD SCREW M5X16 GA5021/955 MSP-911224-2.A22 911224-2 £1.44 £1.73
49 - PAN HEAD SCREW M5X16 9540/954 MSP-251391-4.A13 251391-4 £1.44 £1.73
50-1 - SPINDLE 9564/65CV/DZ&H/9565CV MSP-324035-0.A10 324035-0 £11.39 £13.67
50 - SPINDLE 9564/65CV/DZ&H/9565CV MSP-324035-0.A13 324035-0 £11.39 £13.67
51 - LABYRINTH RING 9540/9541/9565 MSP-415300-9.A12 415300-9 £1.44 £1.73
52-1 - HEX SOCKET HD BOLT M4X16 MSP-265490-6.A1 265490-6 £1.44 £1.73
54-2 - BEARING BOX 9 SG1250/SG1251J MSP-318302-3.A5 318302-3 £4.83 £5.80
54-3 - BEARING BOX 9564/65CV/DZ&H MSP-318334-0.A0 318334-0 £38.30 £45.96
55 - O RING 52 9564/65CV/DZ&H/SG12 MSP-213673-2.A7 213673-2 £1.44 £1.73
57 - PIN 9564/65CV/DZ&H/SG1251J MSP-256459-1.A4 256459-1 £1.44 £1.73
58 - O RING 6 9564/65CV/DZ&H/1251 MSP-213048-5.A4 213048-5 £1.44 £1.73
59 - TAPPING SCREW 4X28 VC3211M/95 MSP-266257-5.A11 266257-5 £1.44 £1.73
60 - WAVE WASHER TM3000C/9564&65CV MSP-267756-0.A0 267756-0 £1.44 £1.73
63 - BEARING RETAINER 9564/65CV/DZ MSP-285841-7.A4 285841-7 £1.44 £1.73
64 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A115 211129-9 £10.14 £12.17
A01-1 - GRIP 36 BGA450/9553-9558 MSP-153489-2.A40 153489-2 £3.42 £4.11
A02 - GRINDING WHEEL A24R115X6X22.2 MSP-D-18459.A4 D-18459 £1.20 £1.44
A03-1 - LOCK NUT WRENCH 35 GA5020/9554 MSP-782423-1.A14 782423-1 £3.54 £4.25
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A304 654091-9 £1.44 £1.73
