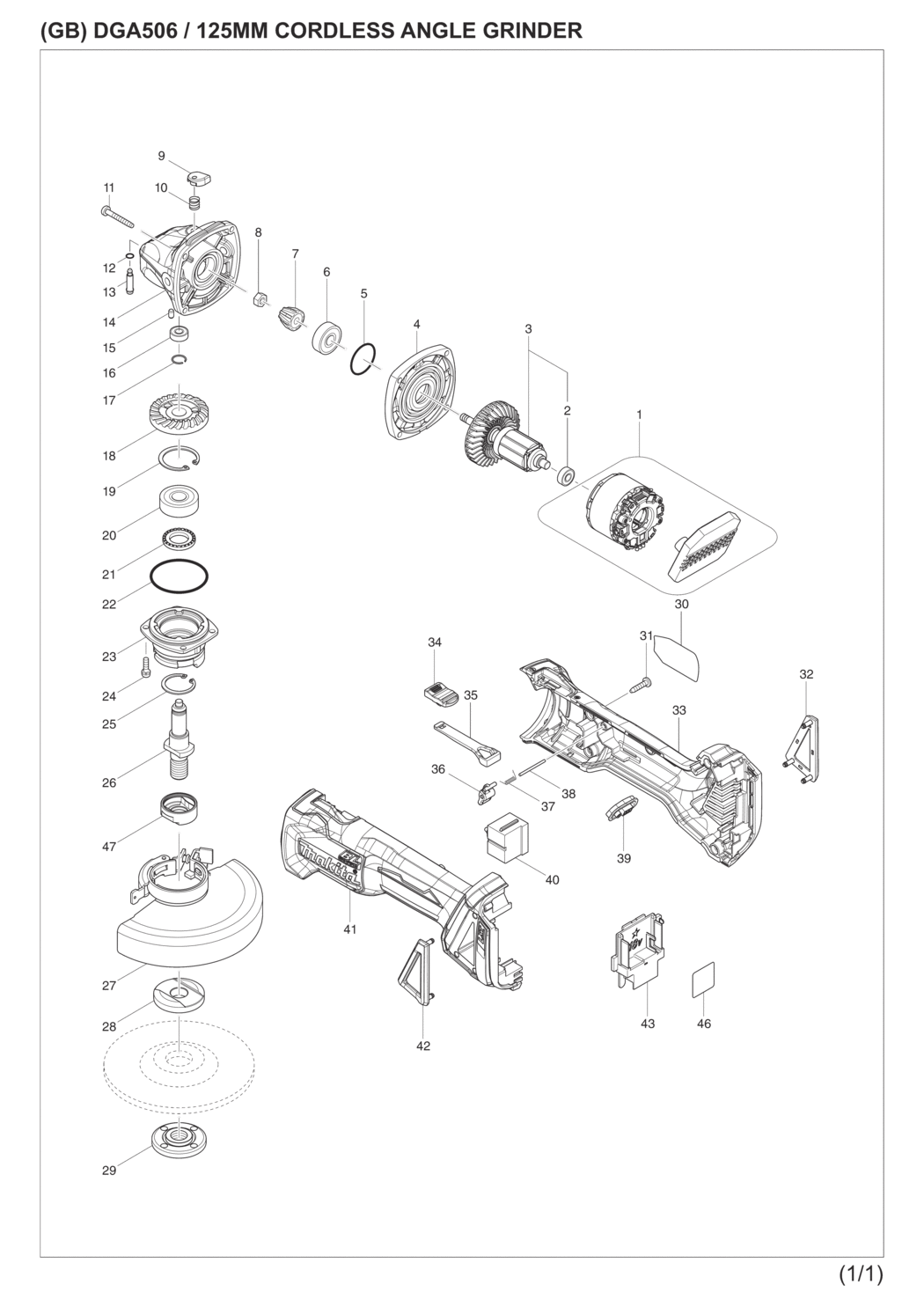

An exploded drawing and spare parts listing for the Makita DGA506Z Cordless Angle Grinder
Ex VAT Inc VAT
1 - STATOR DGA456 MSP-629201-7.A1 629201-7 £131.40 £157.68
2 - BALL BEARING 607LLB 9553/9555 MSP-210034-7.A34 210034-7 £3.33 £4.00
2-1 - BALL BEARING 607LLB MSP-210169-4.A22 210169-4 £3.33 £4.00
3-1 - ROTOR ASSY DGA456/DGA458 MSP-510329-1.A8 510329-1 £25.34 £30.41
4 - GEAR HOUSING COVER DGA454/504 MSP-319214-3.A2 319214-3 £6.71 £8.05
5 - O-RING 26 BPJ140/BPJ180/BGA45 MSP-213445-5.A64 213445-5 £1.44 £1.73
6 - BALL BEARING 629LLB BPJ140/18 MSP-210042-8.A18 210042-8 £4.19 £5.03
7 - *SPIRAL BEVEL GEAR 10 DGA454/5 MSP-227541-3.A12 227541-3 £4.33 £5.20
8 - HEX NUT M6 BUC250/GA4034/9553 MSP-252186-8.A60 252186-8 £1.44 £1.73
9 - PIN CAP BPJ140/180/PC5000/01C MSP-417771-6.A61 417771-6 £1.71 £2.05
10 - COMPRESSION SPRING 8 BGA450 MSP-233072-2.A30 233072-2 £1.71 £2.05
11 - TAPPING SCREW 4X30 BGA454/504 MSP-266361-0.A33 266361-0 £1.44 £1.73
12 - O RING 5 DGA463/DGA467/DGA513 MSP-213032-0.A45 213032-0 £1.44 £1.73
13 - SHOULDER PIN 4 DGA454/504/508 MSP-256546-6.A0 256546-6 £1.71 £2.05
14 - GEAR HOUSING DGA454/504/508 MSP-319213-5.A11 319213-5 £10.92 £13.10
15 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A354 263002-9 £1.44 £1.73
16 - BALL BEARING 696ZZ DGA454/504 MSP-210033-9.A129 210033-9 £2.53 £3.04
17 - RING SPRING 11 BPJ140/180/GA MSP-233950-6.A24 233950-6 £1.44 £1.73
18 - *SPIRAL BEVEL GEAR 37 DGA454/5 MSP-226862-0.A16 226862-0 £9.21 £11.05
19 - RETAINING RING R-32 BPJ140/81 MSP-962151-6.A43 962151-6 £1.44 £1.73
20 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A21 211129-9 £10.14 £12.17
21 - FELT RING 16 GA7050 GA9050 MSP-262153-5.A5 262153-5 £1.44 £1.73
22 - O RING 45 BGS450/BPJ140/BPJ180 MSP-213622-9.A39 213622-9 £1.44 £1.73
23 - BEARING BOX DGA456/458/508 MSP-319399-5.A2 319399-5 £6.24 £7.49
24 - PAN HD SCREW M4X14 9BGA450/45 MSP-911121-2.A14 911121-2 £1.44 £1.73
25 - INTERNAL RETAINING RING-26/51 MSP-962105-3.A54 962105-3 £1.44 £1.73
26 - SPINDLE DGA456/458/508/DGA508 MSP-326672-6.A13 326672-6 £8.73 £10.48
27 - O RING 4 DGA463-DGA517/KP0810 MSP-213009-5.A32 213009-5 £1.44 £1.73
27 - PAN HD SCREW M5X16 GA5021/955 MSP-911224-2.A69 911224-2 £1.44 £1.73
27 - TOOLLESS WHEEL COVER 125AK A MSP-123145-8.A3 123145-8 £12.95 £15.54
28 - INNER FLANGE 42B GA4541/5041 MSP-224447-6.A17 224447-6 £7.96 £9.55
29 - LOCKNUT PC5000/01C/GA5020/21 MSP-224554-5.A56 224554-5 £5.50 £6.60
31 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A515 266326-2 £1.44 £1.73
32 - DUST COVER R DGA454/504/508 MSP-455450-8.A14 455450-8 £4.52 £5.43
33 - MOTOR H0USING SET DGA454/504 MSP-187998-9.A1 187998-9 £15.75 £18.90
33 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A666 263005-3 £1.44 £1.73
34 - SWITCH KNOB DGA454/DGA504 MSP-455447-7.A6 455447-7 £1.44 £1.73
35 - SWITCH LEVER DGA454/DGA504 MSP-455446-9.A6 455446-9 £1.44 £1.73
36 - LEVER DGA454/DGA504/DSC250 MSP-455448-5.A6 455448-5 £1.44 £1.73
37 - TORSION SPRING 2 DGA454/DGA50 MSP-231679-8.A7 231679-8 £1.44 £1.73
38 - PIN 2 DGA454/DGA504/DSC250 MSP-268330-7.A4 268330-7 £1.44 £1.73
39 - INDICATOR PANEL CO DGA454/504 MSP-142901-7.A20 142901-7 £1.44 £1.73
40 - SWITCH 1246.3223 DJS160/DSC250 MSP-650579-7.A31 650579-7 £10.14 £12.17
41 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A667 263005-3 £1.44 £1.73
41 - MOTOR H0USING SET DGA454/504 MSP-187998-9.A0 187998-9 £15.75 £18.90
42 - DUST COVER L DGA454/504/508 MSP-455449-3.A9 455449-3 £4.52 £5.43
43 - TERMINAL BCV01/02 DGA454/504 MSP-643899-6.A13 643899-6 £4.37 £5.24
47 - LEAD FLANGE GA4541/41C/5041&C MSP-310514-4.A12 310514-4 £14.51 £17.41
A01 - DEPRESSED C WHEEL 5 WA36N MSP-A-80656.A4 A-80656 £1.93 £2.32
A02 - GRIP 36 DGA454/504/508 MSP-158237-4.A10 158237-4 £3.02 £3.62
A03 - LOCK NUT WRENCH 35 GA5020/9554 MSP-782423-1.A55 782423-1 £3.54 £4.25
