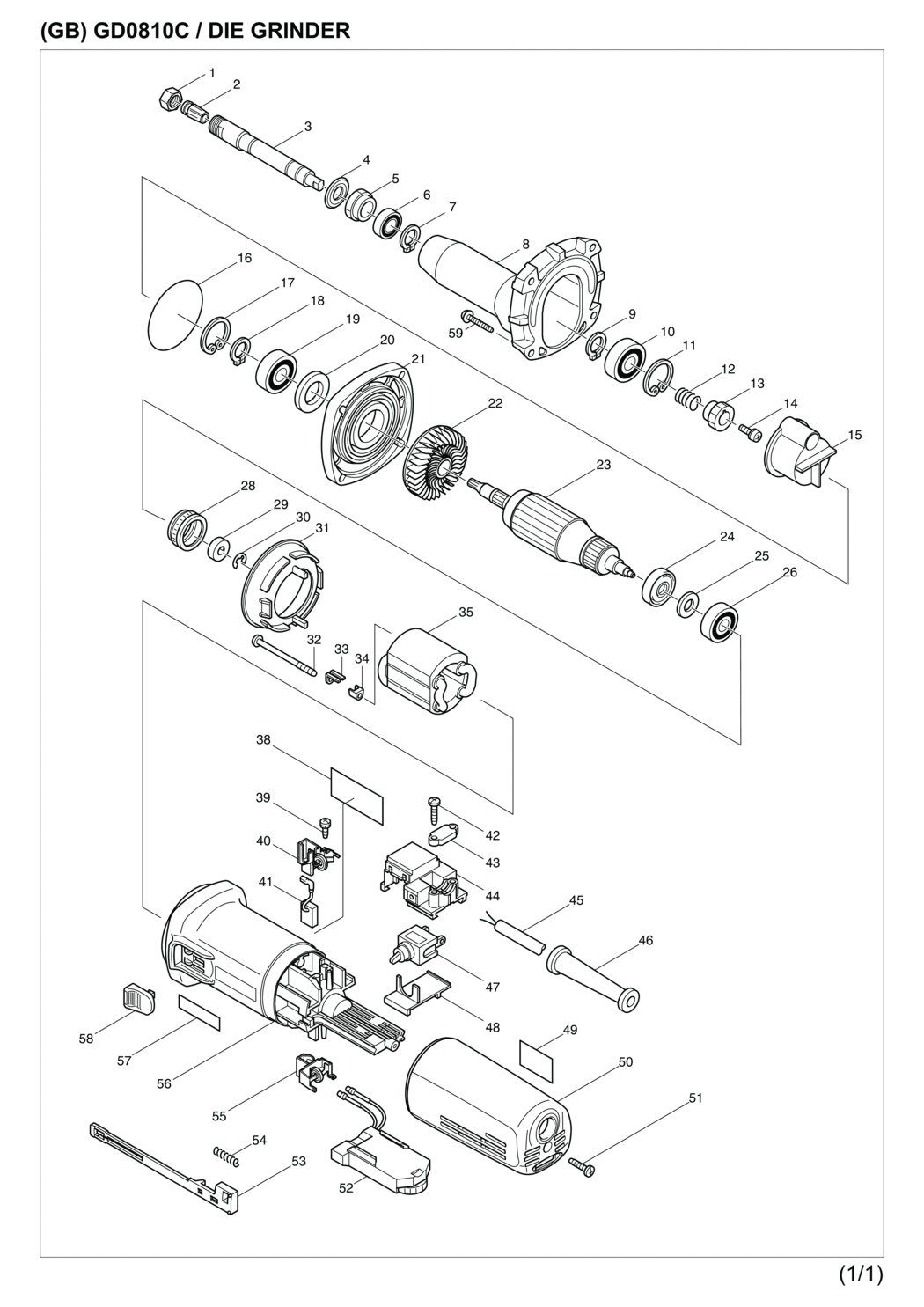

An exploded drawing and spare parts listing for the Makita GD0810C Die Grinder
Ex VAT Inc VAT
1 - COLLET NUT GD0801C/GD0811C MSP-763645-2.A2 763645-2 £2.49 £2.99
2A1 - COLLET CONE 6MM WITH NUT MSP-193012-1.A0 193012-1 £15.44 £18.53
2A1 - COLLET SLEEVE 6MM FOR GD MSP-763646-0.A0 763646-0 £11.15 £13.38
2A - COLLET CONE 1/4 WITH NUT MSP-193143-6.A1 193143-6 £20.59 £24.71
3 - SPINDLE FOR GD MODELS MSP-324042-3.A1 324042-3 £30.96 £37.15
4 - OIL SEAL 16 GD0801C/GD0811C MSP-213209-7.A1 213209-7 £2.18 £2.62
5 - BEARING RETAINER GD0801C/0811 MSP-285700-5.A0 285700-5 £10.14 £12.17
6 - BALL BEARING 6901LLB MSP-211141-9.A0 211141-9 £7.18 £8.61
7 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A3 961052-5 £1.44 £1.73
8 - BARREL GD0810C/GD0811C MSP-317369-8.A0 317369-8 £43.60 £52.32
9 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A2 961052-5 £1.44 £1.73
10-1 - BALL BEARING 6001ZZ/EN4951SH MSP-211148-5.A2 211148-5 £5.92 £7.11
10 - BALL BEARING 6001LLB 9565H/CV MSP-211142-7.A18 211142-7 £6.08 £7.30
11 - INTERNAL RETAINING RING-28 MSP-962106-1.A8 962106-1 £1.44 £1.73
12 - LOCK SPRING 12 GD0801C/GD0811 MSP-233901-9.A14 233901-9 £3.90 £4.68
13 - HELICAL GEAR 25 GD0810C/GD081 MSP-226531-3.A0 226531-3 £18.72 £22.46
14 - PAN HD SCREW M4X8 GD0800C MSP-265082-1.A1 265082-1 £1.44 £1.73
15 - GEAR COVER GD0810C/GD0811D MSP-417363-1.A1 417363-1 £3.28 £3.93
16 - O RING GD0810C/GD0811C MSP-213611-4.A2 213611-4 £1.44 £1.73
17 - INTERNAL RETAINING RING-28 MSP-962106-1.A26 962106-1 £1.44 £1.73
18 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A123 961052-5 £1.44 £1.73
19-1 - BALL BEARING 6001ZZ/EN4951SH MSP-211148-5.A22 211148-5 £5.92 £7.11
19 - BALL BEARING 6001LLB 9565H/CV MSP-211142-7.A0 211142-7 £6.08 £7.30
20 - THIN WASHER 12 8419B/9565H MSP-253084-9.A4 253084-9 £1.44 £1.73
21 - BEARING BOX FOR GD MODELS MSP-317367-2.A0 317367-2 £20.30 £24.36
22 - FAN GD0800C GD0801C/GD0811C MSP-240036-9.A1 240036-9 £4.37 £5.24
23B2 - ARMATURE ASSY 110V GD0810C MSP-518148-9 518148-9 £77.11 £92.53
24 - INSULATION WASHER/PO6000C MSP-681656-4.A31 681656-4 £1.44 £1.73
25 - THIN BLUE WASHER BHS630/JS160 MSP-253823-7.A51 253823-7 £1.44 £1.73
26 - BALL BEARING 627DDW MSP-210023-2.A47 210023-2 £3.59 £4.31
28 - LABYRINTH RUBBER RING 22 MSP-421770-2.A1 421770-2 £10.92 £13.10
29 - MAGNET SLEEVE GD0801C/GD0811 MSP-688117-5.A22 688117-5 £4.18 £5.02
30-1 - SELF LOCK 6 GD0801C/811C MSP-259039-2.A10 259039-2 £1.44 £1.73
30 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A21 961011-9 £1.44 £1.73
31 - BAFFLE PLATE GD0800C/810C/BO6 MSP-413076-2.A10 413076-2 £1.44 £1.73
32 - PT SCREW 4X60 MSP-266259-1.A0 266259-1 £1.44 £1.73
33 - RETAINER GD0801C/811C/MT814 MSP-344871-8.A19 344871-8 £1.44 £1.73
34 - INSULATION COVER MT814/GD080 MSP-417237-6.A3 417237-6 £1.44 £1.73
35C1 - FIELD 110V GD0810C MSP-626526-0 626526-0 £48.58 £58.29
38 - *NAME PLATE GD0810C MSP-852418-9 852418-9 £1.44 £1.73
39 - PT SCREW 3X10 W. CAPTIVE WASH MSP-266256-7.A6 266256-7 £1.44 £1.73
40-1 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A1 643760-7 £3.28 £3.93
41-1 - CARBON BRUSH CB-318 AC/PO6000C MSP-191978-9.A2 191978-9 £10.92 £13.10
42 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A233 265995-6 £1.44 £1.73
43 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A108 687063-9 £1.44 £1.73
43A1 - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A127 687063-9 £1.44 £1.73
43A - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A166 687052-4 £1.44 £1.73
43A2 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A169 687052-4 £1.44 £1.73
43-1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A185 687052-4 £1.44 £1.73
44A - SWITCH BLOCK GD0800C/810C/BO6 MSP-632945-0.A9 632945-0 £9.82 £11.79
45J1 - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A98 692527-0 £29.38 £35.25
45A1 - POWER SUPPLY CORD 1.00-2-2.5 MSP-663926-3.A20 663926-3 £12.17 £14.60
45A2 - POWER SUPPLY CORD 1.0-2-2.5 MSP-665918-8.A11 665918-8 £12.01 £14.41
45J - POWER SUPPLY CORD 1.0-2-2.5 MSP-692021-2.A39 692021-2 £9.05 £10.86
46A1 - CORD GUARD 10 GD0801C/GD0811C MSP-682566-8.A29 682566-8 £1.60 £1.92
47 - SWITCH ST115A-40 GA4540/5450R MSP-651418-4.A28 651418-4 £9.82 £11.79
48 - COVER GD0800C/810C/BO6040/956 MSP-687113-0.A8 687113-0 £1.44 £1.73
49 - LABEL/INDICATION GD0810C MSP-816803-0 816803-0 £1.44 £1.73
50 - REAR COVER GD0800C/810C/BO604 MSP-417185-9.A4 417185-9 £9.20 £11.04
51 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A234 265995-6 £1.44 £1.73
52A - CONTROLLER 240V GD0800C/BO604 MSP-631391-4.A2 631391-4 £71.44 £85.73
52 - CONTROLLER 110V GD0810C/800C MSP-631390-6.A0 631390-6 £68.54 £82.25
53 - SWTICH LEVER GD0810C MSP-417187-5.A2 417187-5 £2.18 £2.62
54 - COMPRESSION SPRING 4 9542 MSP-233071-4.A19 233071-4 £1.44 £1.73
55-1 - BRUSH HOLDER BO6040/GD0800C MSP-643974-8.A2 643974-8 £5.15 £6.18
55A1 - BRUSH HOLDER BO6040/GD0801C MSP-643760-7.A0 643760-7 £3.28 £3.93
56-2 - MOTOR HOUSING GD0800/810C/BO MSP-417812-8.A0 417812-8 £16.28 £19.53
57 - LABEL/MAKITA 6071DWGD0800C MSP-819720-3.A3 819720-3 £1.44 £1.73
58-1 - SWITCH KNOB 9564/65Z&H/SG1250 MSP-417813-6.A4 417813-6 £1.44 £1.73
59 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A99 265999-8 £1.44 £1.73
A01 - SPANNER 13 FOR GD MODELS MSP-781203-2.A2 781203-2 £1.23 £1.48
A02 - SPANNER 19 FOR GE MODELS MSP-781206-6.A1 781206-6 £1.93 £2.32
A03 - GRIP BASE GD0801C/GD0811C MSP-415485-1.A8 415485-1 £4.99 £5.99
A03 - SIDE HANDLE SET GD0801C/0811C MSP-192985-5.A0 192985-5 £10.48 £12.58
A03 - BOLT M8X110 GD0801 MSP-921919-9.A5 921919-9 £2.02 £2.43
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A217 654091-9 £1.44 £1.73
