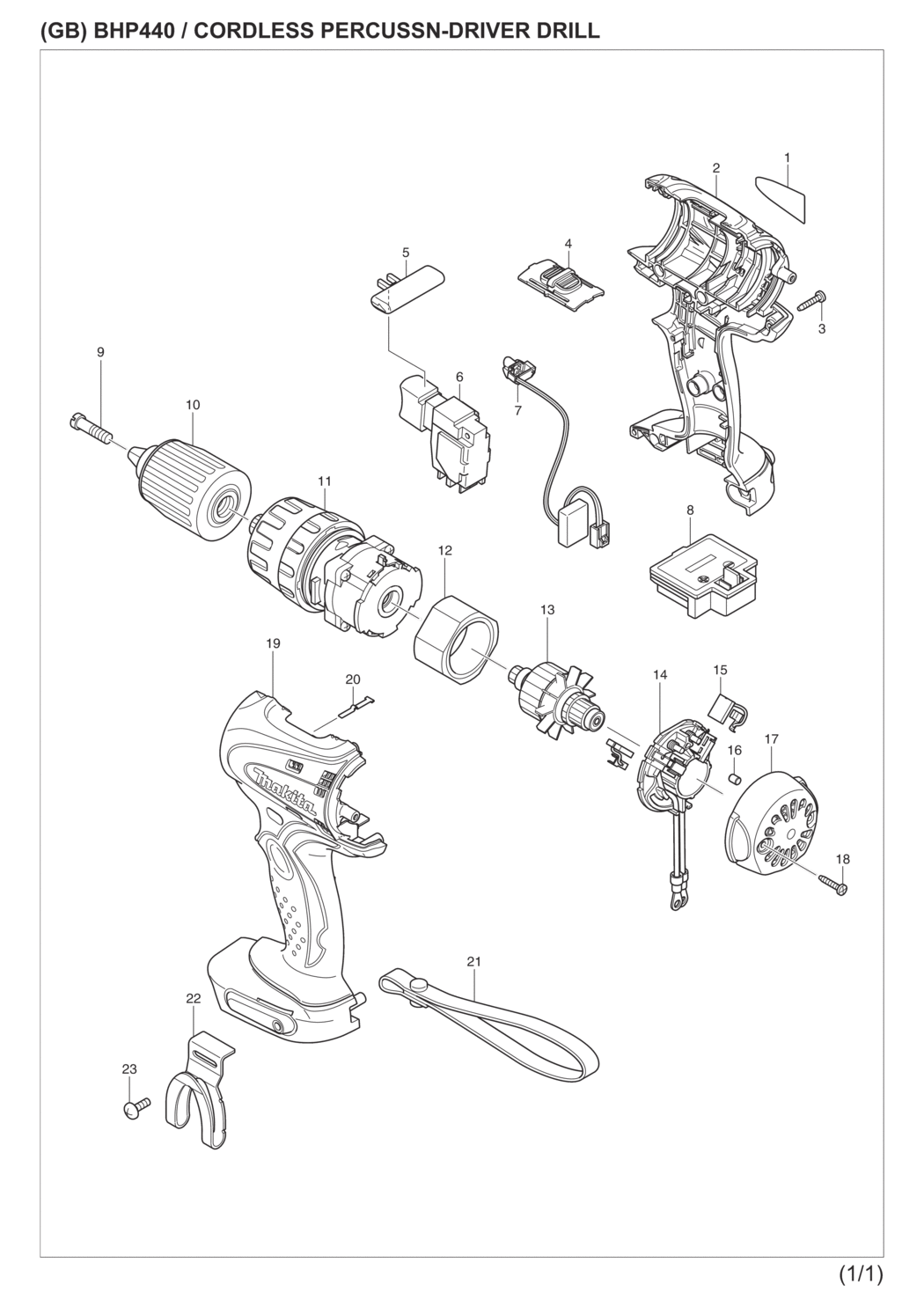

An exploded drawing and spare parts listing for the Makita BHP440SFE Cordless Hammer Driver Drill
Ex VAT Inc VAT
1 - NAME PLATE BHP440 MSP-861668-5.A2 861668-5 £1.44 £1.73
2-1 - HOUSING SET BHP440 MSP-188266-3.A10 188266-3 £30.96 £37.15
3 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A89 266130-9 £1.44 £1.73
4 - SPEED CHANGE LEVER ASSY DDF34 MSP-125310-5.A7 125310-5 £1.44 £1.73
4 - COMPRESSION SPRING 4 MSP-231433-0.A27 231433-0 £1.44 £1.73
5 - F/R CHANGE LEVER BTD043/063/1 MSP-419041-9.A57 419041-9 £1.44 £1.73
6 - SWITCH TG553FSB-3 BHP440 MSP-650569-0.A2 650569-0 £35.86 £43.03
7 - LIGHT CIRCUIT BTD130F/BTP130 MSP-631631-0.A9 631631-0 £17.86 £21.43
8 - *TERMINAL 14.4V MODELS ONLY MSP-643811-6.A0 643811-6 £4.06 £4.87
9 - SPECIAL BOLT M6X22 LTH MSP-251464-3.A14 251464-3 £1.44 £1.73
10-1 - KEYLESS DRILL CHUCK 13 DHP482 MSP-766027-7.A48 766027-7 £15.36 £18.43
11 - GEAR ASSY BHP440 MSP-125311-3.A1 125311-3 £53.07 £63.68
12 - YOKE UNIT BHP440 MSP-638423-8.A6 638423-8 £19.58 £23.50
13 - ARMATURE BHP440 MSP-619161-1.A0 619161-1 £25.20 £30.24
14-1 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A22 231697-6 £1.44 £1.73
14-1 - BRUSH HOLDER BHP440/BTP1 MSP-638857-5.A11 638857-5 £11.86 £14.23
14 - TORSION SPRING L BFS440/BTD13 MSP-231697-6.A21 231697-6 £1.44 £1.73
14-1 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A15 231696-8 £1.44 £1.73
14-1 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A42 688161-2 £1.44 £1.73
14 - TORSION SPRING R BFS440/BTD13 MSP-231696-8.A14 231696-8 £1.44 £1.73
15-1 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A91 194427-5 £5.83 £7.00
15-2 - CARBON BRUSH CB-440 BTD043/06 MSP-194427-5.A126 194427-5 £5.83 £7.00
16 - RUBBER PIN 4 BTD043/063/103 MSP-263032-0.A41 263032-0 £1.44 £1.73
17 - REAR COVER BDF450/BHP450/BTD1 MSP-418981-8.A15 418981-8 £7.80 £9.36
18 - TAPPING SCREW BIND 3 X 16 L14 MSP-266130-9.A88 266130-9 £1.44 £1.73
19-1 - HOUSING SET BHP440 MSP-188266-3.A9 188266-3 £30.96 £37.15
20 - LEAF SPRING DHP480/DDF480 MSP-232182-2.A12 232182-2 £1.44 £1.73
22-2 - HOOK BTD136/147/BFS441/451/ MSP-346317-0.A132 346317-0 £1.93 £2.32
23 - SPECIAL PAN HD SCREW M4X12 MSP-251314-2.A82 251314-2 £1.44 £1.73
A04 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A51 419216-0 £1.44 £1.73
A04 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A76 417724-5 £1.20 £1.44
A04 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A23 419215-2 £7.18 £8.61
A04 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A50 324207-7 £2.18 £2.62
A04 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A3 413098-2 £1.44 £1.73
A05 - LABEL/PLASTIC CASE BHP440SFE MSP-803601-1 803601-1 £4.83 £5.80
A04-1 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A77 417724-5 £1.20 £1.44
A04-1 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A56 419215-2 £7.18 £8.61
A04-3 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A72 419215-2 £7.18 £8.61
A04-1 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A50 419216-0 £1.44 £1.73
A04-3 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A74 417724-5 £1.20 £1.44
A04-1 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A4 413098-2 £1.44 £1.73
A04-1 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A74 324207-7 £2.18 £2.62
A04-2 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A99 324207-7 £2.18 £2.62
A04-3 - SHAFT BTP140/BTD132/144/BDF45 MSP-324207-7.A107 324207-7 £2.18 £2.62
A04-2 - LATCH FOR 824650-5 PL CASE MSP-417724-5.A75 417724-5 £1.20 £1.44
A04-2 - PLASTIC CASE LID BST221/BTP13 MSP-419215-2.A24 419215-2 £7.18 £8.61
A04-2 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A92 419216-0 £1.44 £1.73
A04-3 - HANDLE HP1641/BTD140/DTW251 MSP-419216-0.A102 419216-0 £1.44 £1.73
A04-2 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A60 413098-2 £1.44 £1.73
A04-3 - PLATE BST221/BTD140SFE/BHR162 MSP-413098-2.A67 413098-2 £1.44 £1.73
A07 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A20 450128-8 £1.20 £1.44
