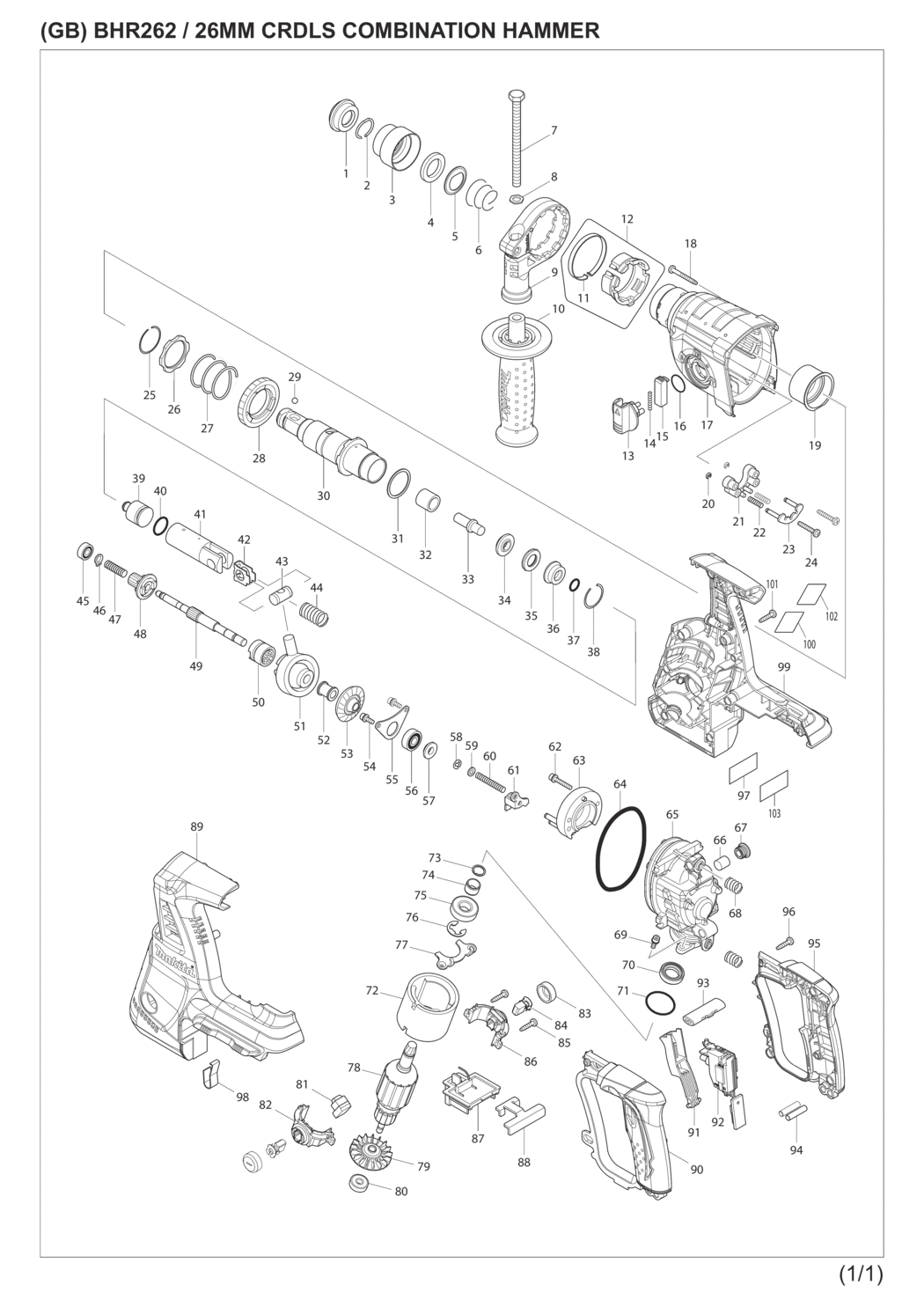

An exploded drawing and spare parts listing for the Makita BHR262RDE Cordless Combination Hammer
Ex VAT Inc VAT
1 - CAP 35 DHR164/DHR165/2440/245 MSP-286263-4.A54 286263-4 £1.71 £2.05
2 - RING SPRING 19 DHR164/165 HR MSP-233940-9.A46 233940-9 £1.44 £1.73
3 - CHUCK COVER BHR262/HR2020/244 MSP-417629-9.A8 417629-9 £2.15 £2.58
4 - RING 21 DHR164/DHR165/HR1830 MSP-257241-1.A24 257241-1 £1.44 £1.73
5 - GUIDE WASHER DHR164/DHR165 MSP-345187-4.A60 345187-4 £1.44 £1.73
6 - CONICAL SPRING 21-29 DHR MSP-233916-6.A25 233916-6 £1.66 £1.99
7 - *HEX BOLT M8X120 DHR164/DHR165 MSP-265583-9.A56 265583-9 £5.78 £6.93
8 - HEX WASHER BHR262/HP1641/51 MSP-345280-4.A46 345280-4 £1.44 £1.73
9 - GRIP BASE BHR262/HP1641/2450/ MSP-417630-4.A36 417630-4 £3.38 £4.06
10 - GRIP 36 BHR262/DHR165/165 MSP-158057-6.A15 158057-6 £4.28 £5.13
13 - CHANGE LEVER BHR261/262/BHR26 MSP-450980-4.A5 450980-4 £4.83 £5.80
14 - COMPRESSION SPRING 4 BHR262 MSP-233279-0.A12 233279-0 £1.44 £1.73
15 - LOCK BUTTON BHR262/BHR262T/BH MSP-453706-3.A3 453706-3 £1.44 £1.73
16 - O RING 17 DHR164/DHR165/2440 MSP-213278-8.A20 213278-8 £1.44 £1.73
17 - GEAR HOUSING BHR262/BHR2 MSP-158945-7.A10 158945-7 £15.44 £18.53
17 - O RING 25 BHR240/BHR262 MSP-213345-9.A36 213345-9 £1.44 £1.73
18 - TAPPING SCREW 4X35 BHR262/HR2 MSP-266351-3.A15 266351-3 £1.44 £1.73
19 - NEEDLE BEARNG CO BHR262/HR202 MSP-153290-5.A33 153290-5 £4.99 £5.99
20 - EXT E-RING JIS JE-3 BPJ140/81 MSP-961017-7.A90 961017-7 £1.44 £1.73
21 - GUIDE BASE BHR262/HR2450/HR24 MSP-417796-0.A14 417796-0 £1.44 £1.73
22 - COMPRESSION SPRING 4 BHR262/H MSP-233344-5.A15 233344-5 £1.44 £1.73
23 - LOCK PLATE BHR262/HR2450 MSP-163430-7.A30 163430-7 £2.18 £2.62
24 - TAPPING SCREW 4X25 M9001/TD022 MSP-266374-1.A21 266374-1 £1.44 £1.73
25 - RING SPRING BHR262/HR2450T/70 MSP-233929-7.A11 233929-7 £1.44 £1.73
26 - WASHER 31 BHR262/H2470/BHR202 MSP-267460-1.A11 267460-1 £1.44 £1.73
27 - COMPRESSION SPRING BHR262/HR2 MSP-233401-9.A8 233401-9 £1.44 £1.73
28 - SPUR GEAR 51 HR2450T/BHR262/ MSP-227109-5.A8 227109-5 £12.32 £14.79
29 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A53 216022-2 £1.66 £1.99
30 - TOOL HOLDER CO HR2470/BHR262 MSP-158574-6.A16 158574-6 £37.44 £44.93
31 - FLAT WASHER 28 BHR262/HR2020/ MSP-267229-3.A40 267229-3 £1.44 £1.73
32 - SLEEVE 9 BHR262/HR2230/2460/7 MSP-331769-8.A9 331769-8 £2.34 £2.81
33 - IMPACT BOLT BHR262/HR2230/246 MSP-324669-9.A17 324669-9 £2.65 £3.18
34 - RING 10 HR2450T/BHR262/BHR262 MSP-324402-9.A2 324402-9 £1.44 £1.73
35 - CUSHION RING 13 BHR240/262/BH MSP-421955-0.A7 421955-0 £1.44 £1.73
36 - O RING CASE HR2020/2440/2450 MSP-324216-6.A6 324216-6 £6.55 £7.86
37 - O RING 9 HR2020/2440/2450/243 MSP-213073-6.A45 213073-6 £1.44 £1.73
38 - RING SPRING 28 HR2020/2440/24 MSP-233917-4.A22 233917-4 £1.46 £1.75
39 - STRIKER HR2020/2440/2450/2432 MSP-324214-0.A4 324214-0 £2.65 £3.18
40 - O RING 16 HK0500/HR2450/2432 MSP-213227-5.A17 213227-5 £1.44 £1.73
41 - PISTON CYLINDER HR2470/BHR202 MSP-318132-2.A25 318132-2 £14.35 £17.22
42 - GUIDE PLATE BHR261/262/BHR262 MSP-346036-8.A28 346036-8 £1.44 £1.73
43 - PISTON JOINT HR2020/2440/2450 MSP-324215-8.A60 324215-8 £1.44 £1.73
44 - COMPRESSION SPRING 14 BHR261/ MSP-234098-7.A0 234098-7 £1.44 £1.73
45 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A107 211012-0 £13.88 £16.66
46 - EXT DIN 471 CIRCLIP-7 BTM50 MSP-961003-8.A42 961003-8 £1.44 £1.73
47 - COMPRESSION SPRING 7 BHR262 MSP-233343-7.A25 233343-7 £1.44 £1.73
48 - SPUR GEAR HR2470/BHR202/BHR26 MSP-227179-4.A25 227179-4 £20.30 £24.36
49 - CAM SHAFT BHR261/262/BHR262T/ MSP-325976-3.A1 325976-3 £10.30 £12.36
50 - CLUTCH CAM BHR262/BHR262T/BHR MSP-331992-5.A24 331992-5 £8.89 £10.67
51 - SWASH BEARING 10 BHR200S/HR20 MSP-219014-0.A24 219014-0 £46.33 £55.60
52 - SLEEVE 9 BHR261/262 MSP-325640-6.A9 325640-6 £1.44 £1.73
53 - SPIRAL BEVEL GEAR 26 BHR261/2 MSP-227549-7.A8 227549-7 £8.42 £10.11
54 - HEX S H BOLT M4X12 HR2020/244 MSP-266273-7.A36 266273-7 £1.44 £1.73
55 - BEARING RETAINER B BHR261/2/B MSP-346038-4.A14 346038-4 £1.44 £1.73
56 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A97 211032-4 £9.05 £10.86
57 - RING 8 HR2020/2440/2450/2432 MSP-324212-4.A47 324212-4 £5.92 £7.11
58 - EXT E-RING JIS E-4 EA3201 MSP-961011-9.A42 961011-9 £1.44 £1.73
59 - FLAT WASHER 5 DIN125-A/GN420 MSP-941102-2.A2 941102-2 £1.44 £1.73
60 - COMPRESSION SPRING 6 HR2450 MSP-233342-9.A9 233342-9 £1.44 £1.73
61 - CHANGE PLATE BHR261/2/BHR262T MSP-345220-2.A14 345220-2 £1.44 £1.73
62 - HEX SOCKET HD BOLT M4X25 HR52 MSP-922148-7.A6 922148-7 £1.44 £1.73
63 - INNER SUPPORT BHR261/2 B MSP-158944-9.A10 158944-9 £8.89 £10.67
64 - O RING 68 HR2630T/HR2630 MSP-213728-3.A20 213728-3 £1.44 £1.73
65 - INNER HOUSING BHR261/2/BHR262 MSP-318392-6.A0 318392-6 £23.62 £28.34
66 - FILTER BHR261/2/BHR262T/BHR26 MSP-443143-9.A9 443143-9 £1.44 £1.73
67 - CAP BHR261/2/BHR262T/BHR262TD MSP-424185-2.A9 424185-2 £1.44 £1.73
68 - COMPRESSION SPRING 10 BHR261/ MSP-234097-9.A10 234097-9 £1.44 £1.73
69 - HEX S H BOLT M4X12 HR2020/244 MSP-266273-7.A37 266273-7 £1.44 £1.73
70 - OIL SEAL 15 BHR262/HM1203/BHR MSP-213231-4.A1 213231-4 £7.64 £9.17
71 - O RING 28 AG125/BHR262 MSP-213437-4.A2 213437-4 £1.44 £1.73
72 - YOKE UNIT 5621RD/LS800DWB/BHR MSP-632828-4.A26 632828-4 £25.20 £30.24
73 - RETAINING RING WR12 BHR261/2 MSP-961082-6.A2 961082-6 £1.44 £1.73
74 - SLEEVE 12 HR4500C/4511C/BHR26 MSP-331596-3.A1 331596-3 £5.46 £6.55
75 - BALL BEARING 6001DDW HS7100 MSP-211131-2.A5 211131-2 £7.80 £9.36
76 - EXT E-RING JIS JE-10 BHR262 MSP-961016-9.A20 961016-9 £1.44 £1.73
77 - BEARING RETAINER A BHR261/2/B MSP-346037-6.A0 346037-6 £1.44 £1.73
78 - ARMATURE ASSY 36V BHR261/2/BH MSP-519235-7.A10 519235-7 £39.17 £47.00
79 - FAN 44 BHR261/2/BHR262T/BHR26 MSP-240037-7.A22 240037-7 £4.68 £5.62
80 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A2 210022-4 £3.59 £4.31
81 - LIGHT CIRCUIT BHR261/2/BHR262 MSP-631850-8.A0 631850-8 £13.42 £16.10
82 - BRUSH HOLDER BHR262/BHR2 MSP-638945-8.A10 638945-8 £14.67 £17.60
82 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A79 688165-4 £1.44 £1.73
82 - LINEFILTER UK360/DHR164/UR180D MSP-688172-7.A19 688172-7 £1.20 £1.44
83 - HOLDER CAP BJR182/BSS611/BHR2 MSP-643829-7.A25 643829-7 £1.44 £1.73
84 - CARBON BRUSH CB-442 BUH550RD/ MSP-194928-3.A3 194928-3 £8.27 £9.92
85 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A184 266326-2 £1.44 £1.73
86 - LINE FILTER UK360/BUB360/TD12 MSP-688165-4.A78 688165-4 £1.44 £1.73
86 - BRUSH HOLDER BHR262/BHR2 MSP-638945-8.A11 638945-8 £14.67 £17.60
86 - LINEFILTER UK360/DHR164/UR180D MSP-688172-7.A20 688172-7 £1.20 £1.44
87 - TERMINAL UNIT BHR262/BHR262T/ MSP-638978-3.A1 638978-3 £7.64 £9.17
88 - SUPPORT PLATE BUH550RD/BUB360 MSP-346039-2.A3 346039-2 £1.44 £1.73
89 - RUBBER PIN BHR262/BUH550RD MSP-263025-7.A2 263025-7 £1.44 £1.73
89 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A20 263005-3 £1.44 £1.73
89 - HOUSING SET BHR261/2/BHR262T/ MSP-187231-9.A16 187231-9 £31.68 £38.02
90 - HANDLE SET BHR261/2/BHR262T/B MSP-188639-0.A1 188639-0 £11.39 £13.67
91 - SWITCH LEVER BHR261/2/BHR262T MSP-450981-2.A1 450981-2 £1.44 £1.73
92 - SWITCH C3HZ-2A-PBLM BHR262/BH MSP-650619-1.A2 650619-1 £53.07 £63.68
93 - F/R CHANGE LEVER BHR261/2/BHR MSP-450979-9.A1 450979-9 £1.44 £1.73
94 - PIN 6 BHR262 MSP-256261-2.A2 256261-2 £1.44 £1.73
95 - HANDLE SET BHR261/2/BHR262T/B MSP-188639-0.A0 188639-0 £11.39 £13.67
96 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A183 266326-2 £1.44 £1.73
98 - VIBRATION ISOLATOR PLATE BHR2 MSP-344903-1.A16 344903-1 £1.44 £1.73
99 - HOUSING SET BHR261/2/BHR262T/ MSP-187231-9.A17 187231-9 £31.68 £38.02
99 - RUBBER PIN BHR262/BUH550RD MSP-263025-7.A3 263025-7 £1.44 £1.73
99 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A19 263005-3 £1.44 £1.73
100 - NAME PLATE BHR262 MSP-897459-8.A0 897459-8 £1.44 £1.73
101 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A182 266326-2 £1.44 £1.73
102 - LABEL/CLEAR BHR262BHR262TBH MSP-893038-0.A1 893038-0 £1.44 £1.73
103 - LABEL/CLEAR BHR262BHR262TBH MSP-893072-0.A14 893072-0 £1.44 £1.73
A02 - DEPTH GAUGE BHR262/HP1641/40/5 MSP-324219-0.A8 324219-0 £1.66 £1.99
A01-1 - GREASE VESSEL SET FOR HAMMERS MSP-198993-4.A15 198993-4 £6.86 £8.23
A03 - CLOTH BHR262/HR4011C/4001C MSP-443122-7.A6 443122-7 £3.59 £4.31
A05 - BATTERY COVER FOR 194873-2 MSP-451153-2.A2 451153-2 £2.18 £2.62
A06 - DC36RA 25.2V-36V CHARGER LI-IO MSP-***DC36RA.A1 ***DC36RA -
A07 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A23 162271-8 £1.20 £1.44
A07 - HANDLE HM1203/DKP180 MSP-450990-1.A7 450990-1 £2.50 £3.00
A07 - PLASTIC CASE BHR262T MSP-141407-2.A1 141407-2 £57.86 £69.43
A07 - SHAFT BHR261 MSP-325636-7.A5 325636-7 £2.18 £2.62
