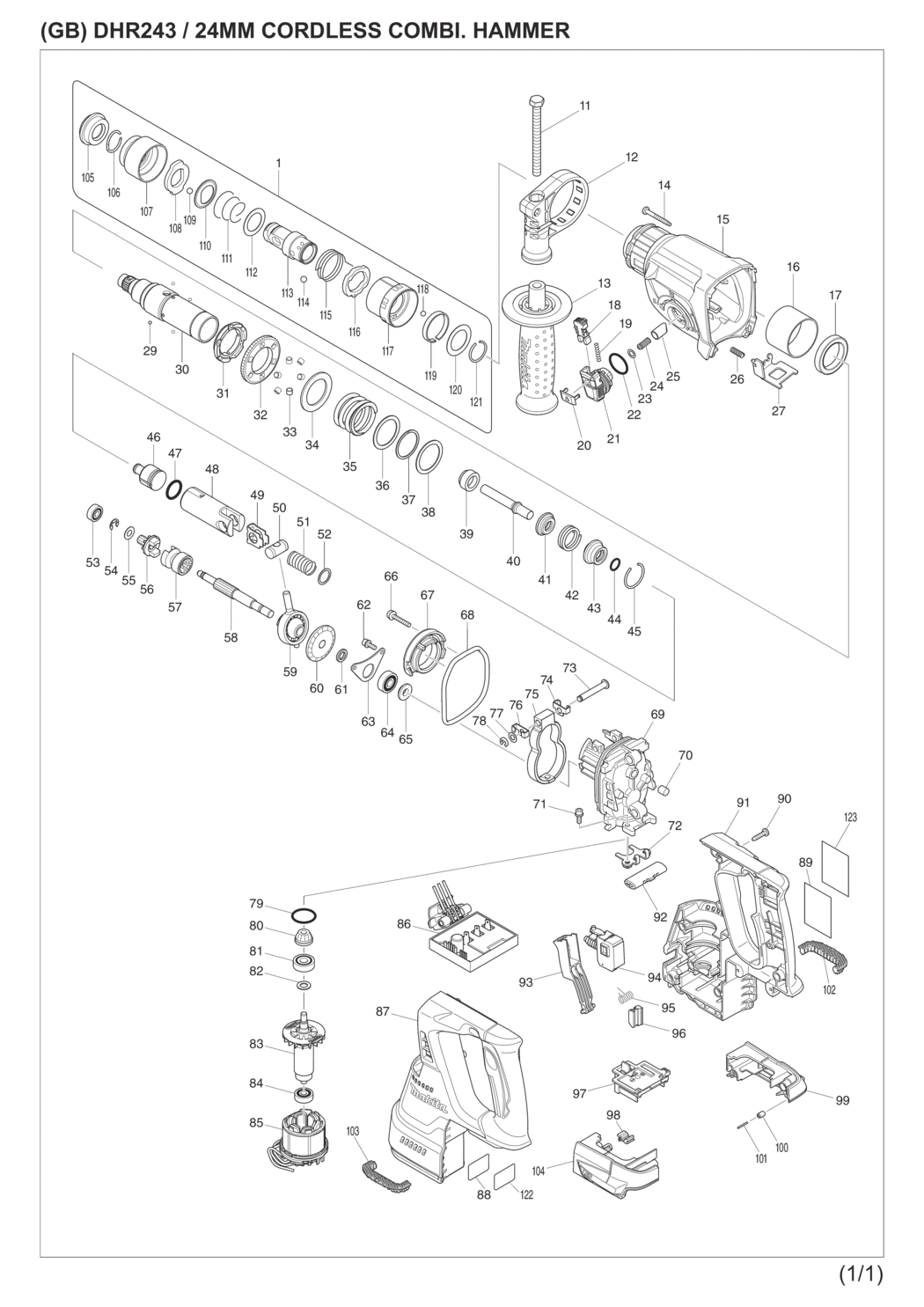

An exploded drawing and spare parts listing for the Makita DHR243RMJ Cordless Combination Hammer
Ex VAT Inc VAT
1 - TOOL HOLDER SET HR MODELS BHR2 MSP-194080-7.A14 194080-7 £24.30 £29.16
11 - HEX BOLT M8X90 BHR242/243 MSP-266745-2.A4 266745-2 £1.44 £1.73
12 - GRIP BASE BHR242/243 MSP-453129-5.A9 453129-5 £1.44 £1.73
13 - GRIP 36 BHR262/DHR165/165 MSP-158057-6.A36 158057-6 £4.28 £5.13
14 - TAPPING SCREW 4X35 BHR262/HR2 MSP-266351-3.A37 266351-3 £1.44 £1.73
15 - O RING 25 BHR240/BHR262 MSP-213345-9.A51 213345-9 £1.44 £1.73
15-1 - O RING 25 BHR240/BHR262 MSP-213345-9.A56 213345-9 £1.44 £1.73
15-1 - GEAR HOUSING DHR242/D243 MSP-144354-6.A4 144354-6 £8.58 £10.30
16 - CUP SLEEVE HR2300/26/2611 MSP-331890-3.A18 331890-3 £3.74 £4.49
17 - BALL BEARING 6806LLU HR2300 MSP-211294-4.A15 211294-4 £12.48 £14.98
18 - LOCK BUTTON BHR242/243 MSP-454112-5.A1 454112-5 £1.44 £1.73
19 - COMPRESSION SPRING 3 BHR242/ MSP-234264-6.A11 234264-6 £1.44 £1.73
20 - CHANGE LEVER COVER BHR242/243 MSP-453131-8.A0 453131-8 £1.44 £1.73
21 - CHANGE LEVER BHR242/243 MSP-453125-3.A0 453125-3 £2.45 £2.94
22 - O RING 21 HR3511 MSP-213381-5.A14 213381-5 £3.74 £4.49
23 - THIN WASHER 6 AN451/4300SB MSP-253308-3.A0 253308-3 £1.44 £1.73
24 - COMPRESSION SPRING 5 HR2300 MSP-234147-0.A7 234147-0 £1.44 £1.73
25-1 - PUSH CORN HR2300/26/2611 MSP-326850-8.A10 326850-8 £1.66 £1.99
26 - COMPRESSION SPRING 4 MT240 MSP-233360-7.A1 233360-7 £1.44 £1.73
27 - LOCK PLATE BHR242/243 MSP-346537-6.A8 346537-6 £1.44 £1.73
29 - STEEL BALL 3 HR1840/M8701 MSP-216019-1.A170 216019-1 £1.44 £1.73
30 - TOOL HOLDER GUIDE CO HR2601/F MSP-140266-1.A1 140266-1 £34.28 £41.13
31-1 - DRIVING FLANGE ***MODIFIED PART*** USE WITH MSP-227360-7 MSP-332139-4.A20 332139-4 £5.62 £6.74
32-1 - SPUR GEAR 51 ***MODIFIED PART*** USE WITH MSP-332139-4 MSP-227360-7.A6 227360-7 £7.02 £8.42
33 - PIN 6 HK1820/L DHR242/DHR243 MSP-268226-2.A15 268226-2 £5.46 £6.55
35 - COMPRESSION SPRING 31 HR2300 MSP-234148-8.A19 234148-8 £2.02 £2.43
36 - FLAT WASHER 30 HR2300/2601/26 MSP-267153-0.A40 267153-0 £1.44 £1.73
37 - SPIRO LOCK WASHER 30 HR2300-1 MSP-257932-4.A10 257932-4 £4.83 £5.80
38 - FLAT WASHER 30 HR2300/2601/26 MSP-267153-0.A39 267153-0 £1.44 £1.73
39 - SLEEVE 9B HR2601/2610T/2611FT MSP-325783-4.A12 325783-4 £1.44 £1.73
40 - IMPACT BOLT B HR2601T/2611FT MSP-325791-5.A4 325791-5 £2.18 £2.62
41 - WASHER 10 HR2610T/2611FT MSP-325792-3.A9 325792-3 £1.96 £2.35
42 - COMPRESSION SPRING 20 HR2610T MSP-234149-6.A8 234149-6 £1.44 £1.73
43 - O RING CASE B HR2601/2611FT MSP-325793-1.A10 325793-1 £2.65 £3.18
44 - O RING 9 HR2020/2440/2450/243 MSP-213073-6.A59 213073-6 £1.44 £1.73
45 - RING SPRING 28 HR23/2600/2601 MSP-233979-2.A19 233979-2 £1.44 £1.73
46 - STRIKER BHR242/243 MSP-326139-4.A9 326139-4 £4.83 £5.80
47 - O RING 17.5 HR2210/HR2630T MSP-213258-4.A7 213258-4 £2.34 £2.81
48 - PISTON CYLINDER HR2300/26/261 MSP-310345-1.A28 310345-1 £10.30 £12.36
49 - GUIDE PLATE BHR261/262/BHR262 MSP-346036-8.A41 346036-8 £1.44 £1.73
50 - PISTON JOINT HR2020/2440/2450 MSP-324215-8.A42 324215-8 £1.44 £1.73
51 - COMPRESSION SPRING 14 BHR261/ MSP-234098-7.A12 234098-7 £1.44 £1.73
52 - FLAT WASHER 14 HR2300/2601/26 MSP-267447-3.A30 267447-3 £1.44 £1.73
53 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A65 211012-0 £13.88 £16.66
54 - EXT E-RING JIS U-6J HR2630 MSP-257336-0.A8 257336-0 £1.44 £1.73
55 - THIN WASHER 7 HR160D/LF1000 MSP-253186-1.A2 253186-1 £1.44 £1.73
56 - SPUR GEAR 10 HR2610T/2611FT MSP-227231-8.A1 227231-8 £26.92 £32.31
57 - *CLUTCH CAM A HR2601T/2611FT MSP-331814-9.A11 331814-9 £5.78 £6.93
57-1 - CLUTCH CAM A HR2601T/2611FT MSP-326849-3.A6 326849-3 £5.92 £7.11
58 - CAM SHAFT BHR242/243 MSP-326140-9.A0 326140-9 £7.18 £8.61
59 - SWASH BEARING 10 HR2300/2611 MSP-219020-5.A2 219020-5 £34.99 £41.99
60 - SPIRAL BEVEL GEAR 32 BHR242/2 MSP-227588-7.A8 227588-7 £7.96 £9.55
61 - RING 8BHR242/243 MSP-257323-9.A3 257323-9 £1.44 £1.73
62 - CAP HD SCREW M4X12 4300D MSP-922118-6.A21 922118-6 £1.44 £1.73
63 - BEARING RETAINER B BHR261/2/B MSP-346038-4.A20 346038-4 £1.44 £1.73
64 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A81 211032-4 £9.05 £10.86
65 - RING 8 HR2020/2440/2450/2432 MSP-324212-4.A36 324212-4 £5.92 £7.11
66 - CAP HD SCREW M4X25 MSP-922147-9.A9 922147-9 £1.44 £1.73
67 - INNER SUPPORT BHR242/243 MSP-141230-5.A0 141230-5 £4.37 £5.24
68 - O RING 75 BHR242/243 MSP-213767-3.A2 213767-3 £1.44 £1.73
69 - INNER HOUSING BHR242/243 MSP-318810-4.A0 318810-4 £21.89 £26.27
70 - FELT HR2300/2600/2601/2610/11 MSP-443153-6.A12 443153-6 £1.44 £1.73
71 - CAP HD SCREW M4X12 4300D MSP-922118-6.A16 922118-6 £1.44 £1.73
72 - BEARING RETAINER A BHR242/243 MSP-346536-8.A0 346536-8 £1.44 £1.73
73 - FLAT FILLISTER HD PIN 6 BHR24 MSP-256536-9.A0 256536-9 £1.44 £1.73
74 - WEIGHT HOLDER GUIDE BHR242/24 MSP-346538-4.A5 346538-4 £1.44 £1.73
75 - COUNTER WEIGHT BHR242/243 MSP-313224-2.A0 313224-2 £4.21 £5.05
76 - WEIGHT HOLDER GUIDE BHR242/24 MSP-346538-4.A4 346538-4 £1.44 £1.73
77 - HARD WASHER 6 JV2000/BFL080/1 MSP-253726-5.A6 253726-5 £1.44 £1.73
78 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A67 961018-5 £1.64 £1.97
79 - O RING 22.4 HR140D/HR171D MSP-213008-7.A6 213008-7 £1.44 £1.73
80 - SPIRAL BEVEL GEAR 11 BHR MSP-141458-5.A9 141458-5 £6.24 £7.49
81 - BALL BEARING 608 2RS HR5001C MSP-210024-0.A8 210024-0 £3.28 £3.93
82 - FLAT WASHER 8 GA5020/GA5021 MSP-253835-0.A26 253835-0 £1.44 £1.73
83 - ROTOR BHR243 MSP-619293-4.A7 619293-4 £63.50 £76.20
84 - BALL BEARING 626DDW 9911/BHR MSP-210022-4.A19 210022-4 £3.59 £4.31
85-2 - STATOR ASSY DHR242/DHR243 MSP-529187-4.A5 529187-4 £18.14 £21.77
86 - CONTROLLER BHR242/243 MSP-620241-8.A2 620241-8 £135.00 £162.00
87-2 - HOUSING SET DHR242Z MSP-183C02-0.A4 183C02-0 £21.46 £25.75
90 - TAPPING SCREW M4X18 EBH253/EB3 MSP-266326-2.A58 266326-2 £1.44 £1.73
91-2 - HOUSING SET DHR242Z MSP-183C02-0.A5 183C02-0 £21.46 £25.75
92 - F/R CHANGE LEVER BHR242/243 MSP-453124-5.A11 453124-5 £1.44 £1.73
93 - SWITCH LEVER BHR242/243 MSP-453123-7.A0 453123-7 £1.44 £1.73
94 - SWITCH C3JW-1-P BHR242/243 MSP-650709-0.A7 650709-0 £16.99 £20.39
95 - TORSION SPRING 6 BHR242/243 MSP-233598-4.A4 233598-4 £1.44 £1.73
96 - OPENER BHR242/243 MSP-313226-8.A11 313226-8 £1.44 £1.73
97 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A21 644808-8 £4.28 £5.14
98 - CUSHION DHR242/243/DTW251 MSP-424476-1.A20 424476-1 £1.44 £1.73
99 - BATTERY HOUSING SET BHR242/24 MSP-187377-1.A4 187377-1 £8.42 £10.11
99 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A283 263005-3 £1.44 £1.73
100 - RUBBER PIN 5 BTD/DTM51/TW1001 MSP-263036-2.A33 263036-2 £1.44 £1.73
101 - PIN 1.5 BTD/BTM40/DTM51/DTW285 MSP-268184-2.A51 268184-2 £1.44 £1.73
102 - CUSHION RUBBER BTM40/50/BHR24 MSP-424473-7.A20 424473-7 £2.34 £2.81
103 - CUSHION RUBBER BTM40/50/BHR24 MSP-424473-7.A39 424473-7 £2.34 £2.81
104 - BATTERY HOUSING SET BHR242/24 MSP-187377-1.A15 187377-1 £8.42 £10.11
104 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A770 263005-3 £1.44 £1.73
105 - CAP 35 DHR164/DHR165/2440/245 MSP-286263-4.A58 286263-4 £1.71 £2.05
106 - RING SPRING 19 DHR164/165 HR MSP-233940-9.A51 233940-9 £1.44 £1.73
107 - CHUCK COVER HR2450T/HR2610T/1 MSP-418217-5.A6 418217-5 £1.44 £1.73
108 - STOPPER HR2450T/2601/2611FT/B MSP-345333-9.A14 345333-9 £1.44 £1.73
109 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A83 216022-2 £1.66 £1.99
110 - GUIDE WASHER DHR164/DHR165 MSP-345187-4.A56 345187-4 £1.44 £1.73
111 - CONICAL SPRING 21-29 DHR MSP-233916-6.A21 233916-6 £1.66 £1.99
112 - FLAT WASHER 21 HR2450T/GA4540 MSP-267279-8.A9 267279-8 £1.44 £1.73
113 - TOOL HOLDER HR2450T/HR2610/F MSP-324355-2.A15 324355-2 £51.61 £61.93
114 - STEEL BALL 6 BHR262T/BHR MSP-216013-3.A5 216013-3 £1.44 £1.73
115 - TORSION SPRING HR2450T/HR281 MSP-231669-1.A7 231669-1 £1.44 £1.73
116 - CHANGE RING HR2450T/HR2811FT MSP-345334-7.A2 345334-7 £1.44 £1.73
117 - CHANGE COVER HR2450T/HR2811F MSP-418218-3.A12 418218-3 £1.44 £1.73
118 - STEEL BALL 5.0 HP1641/6796 MSP-216018-3.A78 216018-3 £1.44 £1.73
119 - LEAF SPRING HR2450T/HR2811FT MSP-345335-5.A16 345335-5 £1.44 £1.73
120 - FLAT WASHER 24 HR2450T/HR281 MSP-267270-6.A10 267270-6 £1.44 £1.73
121 - RING SPRING 21 HR2450T/HR281 MSP-233924-7.A1 233924-7 £1.44 £1.73
122 - LABEL/CLEAR BHR262BHR262TBH MSP-893072-0.A11 893072-0 £1.44 £1.73
123 - LABEL/CLEAR BHR242243 MSP-890994-5.A5 890994-5 £1.44 £1.73
124 - SPONGE DHR242 MSP-424734-5.A8 424734-5 £1.44 £1.73
A01 - DEPTH GAUGE BHR262/HP1641/40/5 MSP-324219-0.A60 324219-0 £1.66 £1.99
A02 - SCREW M6X22 DP4700/6013BR MSP-251425-3.A3 251425-3 £1.44 £1.73
A02 - CHUCK HOLDER FOR 194079-2/BHR MSP-324353-6.A6 324353-6 £1.44 £1.73
A02 - QUICK CHANGE DRILL CHUCK HR245 MSP-194079-2.A17 194079-2 £60.26 £72.31
A02 - SPACER FOR 194079-2/BHR262T/ MSP-418216-7.A10 418216-7 £1.44 £1.73
A02-1 - CHUCK HOLDER FOR 194079-2/BHR MSP-324353-6.A7 324353-6 £1.44 £1.73
A03 - DC18RC COMPACT CHARGER MSP-***DC18RC.A190 ***DC18RC -
A02-1 - SPACER FOR 194079-2/BHR262T/ MSP-418216-7.A11 418216-7 £1.44 £1.73
A02-1 - QUICK CHANGE DRILL CHUCK HR245 MSP-194079-2.A16 194079-2 £60.26 £72.31
A05 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A178 450128-8 £1.20 £1.44
A04-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A45 197265-4 £173.82 £208.58
A06 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A90 453974-8 £1.71 £2.05
A06 - STACKING CASE TYPE 4 315MM MSP-821552-6.A3 821552-6 £47.12 £56.55
A07 - MAKPAC INNER TRAY TYPE 4 DHR24 MSP-837649-1.A1 837649-1 £7.34 £8.81
