Makita DHR400ZK Cordless Rotary Hammer Spare Parts

Home Details Reviews Delivery

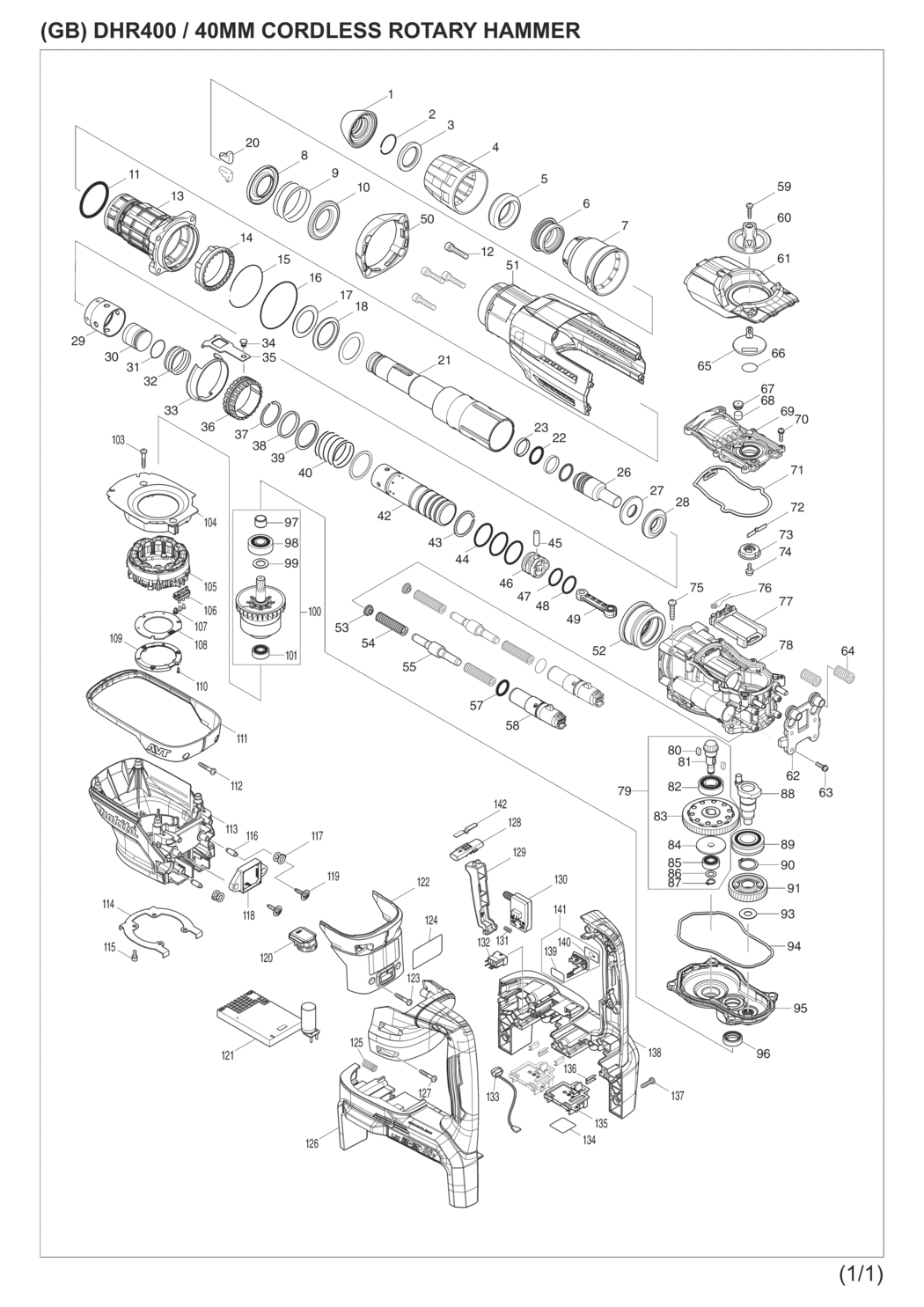

An exploded drawing and spare parts listing for the Makita DHR400ZK Cordless Rotary Hammer

	Ex VAT	Inc VAT
1 - TOOL HOLDER CAP HR4013/HR5212 MSP-286292-7.A0 286292-7	£2.49	£2.99
2 - RING SPRING 25 HM1110/1111 MSP-233948-3.A6 233948-3	£1.66	£1.99
3 - RING 28 HM1110/1111 MSP-257308-5.A3 257308-5	£2.49	£2.99
4 - CHUCK COVER HR4013 MSP-454330-5.A1 454330-5	£2.49	£2.99
5 - RUBBER RING 30 HR4013C MSP-262167-4.A0 262167-4	£7.80	£9.36
6 - CHUCK RING HR4013C MSP-326272-2.A2 326272-2	£9.49	£11.39
7 - RELEASE COVER HR4013C MSP-454331-3.A0 454331-3	£3.25	£3.90
8 - SPRING GUIDE HR4013C MSP-346670-4.A4 346670-4	£1.66	£1.99
9 - COMPRESSION SPRING 46 HR4013C MSP-234288-2.A2 234288-2	£1.66	£1.99
10 - SPRING GUIDE HR4013C MSP-346670-4.A5 346670-4	£1.66	£1.99
11 - O RING 46 HR3000C MSP-213615-6.A0 213615-6	£1.66	£1.99
12 - CAP HD SCREW M6X30 8900N/LF10 MSP-922351-0.A5 922351-0	£1.66	£1.99
13 - O RING HR4013C MSP-213246-1.A2 213246-1	£2.49	£2.99
13 - BARREL HR4013C MSP-141956-9.A0 141956-9	£54.43	£65.32
13 - O RING 32 HM1110/1111.HR5211C MSP-213492-6.A3 213492-6	£2.49	£2.99
13 - OIL SEAL MSP-213490-0.A0 213490-0	£3.64	£4.37
14 - LOCK SLEEVE HR4013C MSP-454337-1.A2 454337-1	£2.49	£2.99
15 - RING SPRING 59 HR4013C MSP-234290-5.A2 234290-5	£1.66	£1.99
16 - O RING 65 HM1303/HR1800/AN635H MSP-213707-1.A8 213707-1	£1.66	£1.99
17 - FLAT WASHER 32 HR4013C MSP-267469-3.A3 267469-3	£1.66	£1.99
18 - RUBBER RING 32 HR4013C MSP-262168-2.A2 262168-2	£3.51	£4.21
20 - TOOL RETAINER HR3540/HR3541 MSP-310257-8.A4 310257-8	£5.46	£6.55
21 - TOOL HOLDER HR4013C MSP-326268-3.A2 326268-3	£117.77	£141.32
22 - O RING 20 HM1110/1111/HR4500C MSP-213317-4.A3 213317-4	£1.66	£1.99
23 - FLUORIDE RING 25 HM1110/1111 MSP-213392-0.A2 213392-0	£7.80	£9.36
26 - IMPACT BOLT HR4013C MSP-326269-1.A0 326269-1	£8.84	£10.61
27 - RING 17 HR4013C MSP-326274-8.A2 326274-8	£3.90	£4.68
28 - RUBBER RING 18 HR4013C MSP-262166-6.A2 262166-6	£8.32	£9.98
29 - SLIDE SLEEVE HR4013C MSP-454347-8.A2 454347-8	£2.49	£2.99
30 - STRIKER HR4013C MSP-326270-6.A2 326270-6	£4.16	£4.99
31 - O RING 22 HR4013C MSP-213695-2.A1 213695-2	£5.20	£6.24
32 - COMPRESSION SPRING 33 HR4013C MSP-234289-0.A0 234289-0	£1.66	£1.99
33 - GUIDE RING HR4013C MSP-346673-8.A2 346673-8	£6.37	£7.64
34 - FLAT HD PIN 6 HR4013C/HR5212 MSP-256548-2.A3 256548-2	£1.66	£1.99
35 - LINK PLATE HR4013C MSP-346671-2.A0 346671-2	£1.66	£1.99
36 - DRIVING SLEEVE HR4013C MSP-313255-1.A2 313255-1	£12.10	£14.52
37 - RETAINING RING WR-32.5 MSP-257991-8.A4 257991-8	£1.66	£1.99
38 - RING 33 HR4013C MSP-257340-9.A2 257340-9	£2.49	£2.99
39 - FLAT WASHER 33 HR4013C MSP-267470-8.A0 267470-8	£2.49	£2.99
40 - COMPRESSION SPRING 34 MSP-234287-4.A0 234287-4	£1.66	£1.99
42 - CYLINDER 28.5 HR4013C MSP-332063-1.A2 332063-1	£61.88	£74.26
43 - RETAINING RING WR-32.5 MSP-257991-8.A5 257991-8	£1.66	£1.99
44 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A0 213406-5	£1.66	£1.99
45 - PIN 7 JR3020/HR4000C MSP-256197-5.A2 256197-5	£1.66	£1.99
46 - PISTON HR4011C/4001C MSP-419004-5.A2 419004-5	£1.66	£1.99
47 - O RING 21 AG125 MSP-213379-2.A5 213379-2	£1.66	£1.99
48 - O RING 22 HR4013C MSP-213695-2.A0 213695-2	£5.20	£6.24
49 - CONNECTING ROD HR4013C MSP-454317-7.A2 454317-7	£7.15	£8.58
50 - HOUSING CAP HR4013C MSP-424560-2.A2 424560-2	£2.49	£2.99
51 - HOUSING COVER A HR4013C MSP-141957-7.A2 141957-7	£22.77	£27.32
52 - SPIRAL BEVEL GEAR 26 HR4013C MSP-227613-4.A0 227613-4	£19.91	£23.89
53 - SPRING PLATE HR4013C MSP-454342-8.A2 454342-8	£1.66	£1.99
54 - COMPRESSION SPRING 11 HR4013C MSP-234286-6.A3 234286-6	£1.66	£1.99
55 - COUNTER WEIGHT HR4013C MSP-326273-0.A0 326273-0	£3.51	£4.21
57 - O RING 19 CC300/CC301 MSP-213325-5.A12 213325-5	£1.66	£1.99
58 - HOLDER HR4013C MSP-142289-5.A0 142289-5	£8.32	£9.98
59 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A322 265995-6	£1.66	£1.99
60 - CHANGE LEVER HR4013C/HR5212C MSP-454326-6.A3 454326-6	£2.49	£2.99
63 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A121 911128-8	£1.66	£1.99
64 - COMPRESSION SPRING 12 HR4013C MSP-234282-4.A2 234282-4	£1.66	£1.99
65 - CRANK LEVER HR4013C/HR5212C MSP-454345-2.A3 454345-2	£2.49	£2.99
66 - O RING 16 BFS440/AN942/BFR540 MSP-213262-3.A19 213262-3	£1.66	£1.99
67 - FILTER CAP HR4013C MSP-424556-3.A0 424556-3	£1.66	£1.99
68 - FILTER HR4013C MSP-443182-9.A2 443182-9	£1.66	£1.99
69 - CRANK CAP HR4013C MSP-454319-3.A2 454319-3	£4.68	£5.62
70 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A120 911128-8	£1.66	£1.99
71 - SEAL RING B HR4013C MSP-424559-7.A0 424559-7	£2.49	£2.99
72 - LEAF SPRING HR4013C/HR5212 MSP-232280-2.A4 232280-2	£1.66	£1.99
74 - PAN HEAD SCREW M4X10 HR4011C MSP-911511-9.A4 911511-9	£1.66	£1.99
75 - PT SCREW 5X25 KP0810C KP0810 MSP-266041-8.A54 266041-8	£1.66	£1.99
76 - TORSION SPRING 7 HR4013C MSP-233603-7.A0 233603-7	£1.66	£1.99
77 - LINK GUIDE HR4013C MSP-454338-9.A0 454338-9	£2.49	£2.99
78 - CRANK HOUSING A HR4013C MSP-141953-5.A0 141953-5	£64.37	£77.24
79 - TORQUE LIMITER ASSY HR4013C MSP-126290-8.A0 126290-8	£116.71	£140.05
80 - KEY 4 HR3000C MSP-254239-9.A0 254239-9	£1.66	£1.99
81 - SPIRAL BEVEL GEAR 7 HR4013C MSP-227612-6.A2 227612-6	£3.38	£4.06
82 - BALL BEARING 6002LLU HK1800 MSP-211232-6.A0 211232-6	£4.94	£5.93
83 - TORQUE LIMITTER HR4013C MSP-141959-3.A0 141959-3	£73.55	£88.26
84 - SHOULDER WASHER 8 HR4013C MSP-324727-1.A3 324727-1	£5.85	£7.02
85 - BALL BEARING 608DDW GA5020 MSP-210005-4.A57 210005-4	£7.02	£8.42
86 - THIN WASHER 8 HR5212C/UC3530A MSP-253215-0.A27 253215-0	£1.66	£1.99
87 - EXT DIN CIRCLIP-8 HM1317C/CB MSP-961004-6.A1 961004-6	£1.66	£1.99
88 - CRANK SHAFT HR4013C MSP-326271-4.A0 326271-4	£12.87	£15.44
90 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A0 961060-6	£1.66	£1.99
91 - HELICAL GEAR 37 HR4013C MSP-227772-4.A0 227772-4	£10.27	£12.32
93 - WASHER 10 6906/BO3710/3711 MSP-253180-3.A9 253180-3	£1.66	£1.99
94 - SEAL RING A HR4013C MSP-424558-9.A2 424558-9	£2.49	£2.99
95 - GEAR HOUSING HR4013C MSP-141955-1.A2 141955-1	£43.89	£52.67
96 - OIL SEAL 15 BHR262/HM1203/BHR MSP-213231-4.A3 213231-4	£6.37	£7.64
97 - SLEEVE 12 HR4500C/4511C/BHR26 MSP-331596-3.A4 331596-3	£4.55	£5.46
98 - BALL BEARING 6201LLU HM0860C MSP-211137-0.A11 211137-0	£4.16	£4.99
99 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A111 253744-3	£1.66	£1.99
101 - BALL BEARING 608DDW GA5020 MSP-210005-4.A58 210005-4	£7.02	£8.42
103 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A63 265999-8	£1.66	£1.99
105 - STATOR DHR400 MSP-629335-6.A0 629335-6	£64.48	£77.37
106 - LEAD UNIT DHR400 MSP-632L39-3.A0 632L39-3	£4.68	£5.62
110 - TAPPING SCREW PT 2X6 DJV MSP-266490-9.A38 266490-9	£1.66	£1.99
111 - GUARD 40 HR4013C MSP-454348-6.A0 454348-6	£10.92	£13.10
112 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A62 265999-8	£1.66	£1.99
115 - HEX SOCKET HEAD BOLT M4X10 90 MSP-922111-0.A6 922111-0	£1.66	£1.99
118 - ACCELEROMETER CIRCUIT DHR400 MSP-620797-1.A1 620797-1	£42.46	£50.95
120 - DIAL CIRCUIT DHR400 MSP-620796-3.A0 620796-3	£21.67	£26.00
121 - CONTROLLER DHR400 MSP-620794-7.A1 620794-7	£177.34	£212.81
123 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A61 265999-8	£1.66	£1.99
126-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A115 263005-3	£1.66	£1.99
127 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A60 265999-8	£1.66	£1.99
130 - SWITCH C3XA-1PSPM DSP600 MSP-651083-9.A9 651083-9	£21.01	£25.21
133 - LED CIRCUIT DHP483/DDF483 MSP-620549-0.A10 620549-0	£3.90	£4.68
135 - TERMINAL DJR186/DUR187/DUR188 MSP-644809-6.A11 644809-6	£3.51	£4.21
136 - PLATE DHR263/264 MSP-346783-1.A1 346783-1	£1.66	£1.99
137 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A321 265995-6	£1.66	£1.99
138-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A114 263005-3	£1.66	£1.99
139-1 - O RING 16 2414K/HK1820L MSP-213218-6.A2 213218-6	£1.66	£1.99
139 - *O RING 18 HM0871C/AN510/620 MSP-213275-4.A30 213275-4	£1.66	£1.99
142 - LEAF SPRING HR4013C/HR5212 MSP-232280-2.A5 232280-2	£1.66	£1.99
A01 - SIDE GRIP ASSY FOR 195866-2 MSP-123138-5.A0 123138-5	£22.32	£26.79
A02 - SIDE HANDLE 73 SET HR4013C MSP-196792-8.A2 196792-8	£21.01	£25.21
A03 - GREASE VESSEL SET FOR HAMMERS MSP-198993-4.A19 198993-4	£6.86	£8.23
A04 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A19 162271-8	£1.20	£1.44
A05 - DEPTH GUIDE FOR 195866-2 MSP-331955-1.A3 331955-1	£4.81	£5.77
A07 - CLOTH BHR262/HR4011C/4001C MSP-443122-7.A7 443122-7	£2.49	£2.99
