Makita HM1200K Demolition Hammer Spare Parts

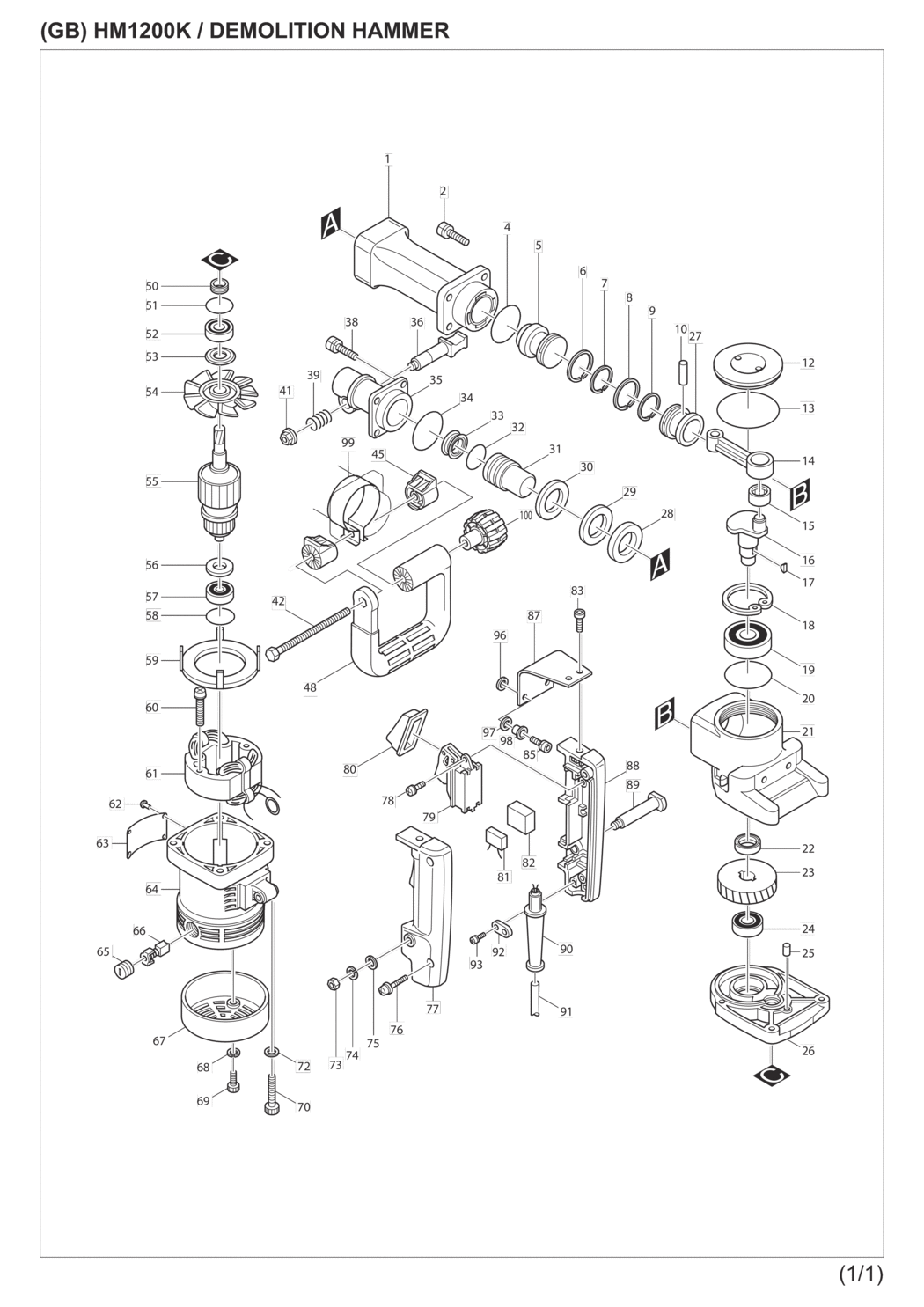

An exploded drawing and spare parts listing for the Makita HM1200K Demolition Hammer

	Ex VAT	Inc VAT
1-2 - BARREL FOR HM1200K MSP-151310-9 151310-9	£136.08	£163.30
2-1 - HEX SOCKET HD BOLT M8 X 30 MSP-922451-6.A6 922451-6	£1.44	£1.73
4 - O RING 56 VC3211/HR3500/DVC863 MSP-213655-4.A4 213655-4	£1.44	£1.73
5 - STRIKER HM1200K MSP-321732-9 321732-9	£23.62	£28.34
6 - PISTON RING 40 HM1200K MSP-412049-2.A3 412049-2	£18.72	£22.46
7 - INNER RING 36 HM1200K MSP-341862-0.A0 341862-0	£5.92	£7.11
8 - PISTON RING 40 HM1200K MSP-412049-2.A2 412049-2	£18.72	£22.46
9 - INNER RING 36 HM1200K MSP-341862-0.A1 341862-0	£5.92	£7.11
10 - PIN 10 HM1200K/HR5000K MSP-256120-0.A0 256120-0	£4.37	£5.24
12-3 - LABEL/CAUTION FOR 414218-1 MSP-810712-5.A2 810712-5	£1.44	£1.73
12-4 - CRANK CAP HM1200K/HR5000K MSP-414218-1.A1 414218-1	£21.89	£26.27
13 - O RING 71 HM1200K MSP-213754-2.A1 213754-2	£2.50	£3.00
14 - CONNECTING ROD HM1200K/HR5000 MSP-315419-3.A1 315419-3	£29.38	£35.25
15 - NEEDLE BEARING 1516 HM1200K/H MSP-212208-6.A1 212208-6	£18.72	£22.46
16 - CRANK SHAFT HM1200K MSP-152180-9 152180-9	£35.86	£43.03
17 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A2 254001-2	£1.44	£1.73
18 - RETAINING RING R-52 HM1200K MSP-962251-2.A2 962251-2	£2.18	£2.62
19-1 - BALL BEARING 6304LLU HR5000K/ MSP-211327-5.A2 211327-5	£7.49	£8.99
20 - O RING 53 BO3710/3711/HM0860C MSP-213656-2.A8 213656-2	£1.44	£1.73
21-1 - CRANK HOUSING HM1200K MSP-156863-3 156863-3	£66.40	£79.68
22 - OIL SEAL 20 HM1200K MSP-213306-9 213306-9	£4.68	£5.62
23 - HELICAL GEAR 50 HM1200K MSP-221701-9 221701-9	£29.38	£35.25
24 - BALL BEARING 6202 HM1800 MSP-211209-1.A0 211209-1	£9.05	£10.86
25 - PIN 6 HM1303B/HM1304/JN1600 MSP-256111-1.A7 256111-1	£1.44	£1.73
26 - GEAR HOUSING HM1200K MSP-157072-7 157072-7	£43.30	£51.96
27 - PISTON HM1200K MSP-321441-0.A1 321441-0	£21.89	£26.27
28-2 - FLAT WASHER 32 HM1200K MSP-267059-2 267059-2	£12.01	£14.41
29 - NYLON WASHER 33 HM1200K MSP-261069-1 261069-1	£6.71	£8.05
30 - FLAT WASHER 33 HM1200K MSP-253976-2 253976-2	£8.42	£10.11
31-1 - IMPACT BOLT HM1200K MSP-322256-8 322256-8	£48.58	£58.29
32 - O RING 32 HM1200K MSP-213468-3 213468-3	£12.32	£14.79
33-2 - X RING 28 HM0810 MSP-213428-5.A2 213428-5	£21.89	£26.27
34 - O RING 50 HR2210/6915DW/HR451 MSP-213604-1.A9 213604-1	£2.18	£2.62
35 - TOOL HOLDER HM1200K MSP-321932-1 321932-1	£120.08	£144.09
36 - TOOL RETAINER HM1200K MSP-331132-5.A1 331132-5	£27.65	£33.18
38-1 - HEX SOCKET HD BOLT M8 X 30 MSP-922451-6.A7 922451-6	£1.44	£1.73
39 - COMPRESSION SPRING 15 HM1200 MSP-231281-7.A0 231281-7	£1.44	£1.73
41-1 - FULL HEX NUT M8-13 MSP-252046-4.A0 252046-4	£1.44	£1.73
42-2 - HEX HD BOLT M8X150/HR5212C MSP-265439-6.A10 265439-6	£2.18	£2.62
42-1 - SPLIT COTTER PIN 3-20 BS1574 MSP-952257-8.A3 952257-8	£1.44	£1.73
45-2 - HANDLE BASE HM1200K MSP-416397-1.A0 416397-1	£3.28	£3.93
45 - GRIP BASE HM1200K MSP-342987-3 342987-3	£4.06	£4.87
48-2 - SIDE HANDLE HR4500/4511/5211 MSP-417003-1.A8 417003-1	£12.32	£14.79
48 - SIDE HANDLE HM1200K MSP-342988-1 342988-1	£18.72	£22.46
50 - SEAL HM1200K MSP-331180-4 331180-4	£5.62	£6.74
51 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A8 213460-9	£2.18	£2.62
52 - BALL BEARING 6202LLB/LF1000 MSP-211206-7.A21 211206-7	£3.90	£4.68
53 - DUST SEAL 15 MSP-213202-1.A3 213202-1	£1.44	£1.73
54 - FAN 94 HM1200K MSP-241638-4 241638-4	£9.05	£10.86
55E2 - ARMATURE 110V HM1200K MSP-514776-8.A1 514776-8	£114.28	£137.14
55G1 - ARMATURE 240V HM1200K MSP-514779-2.A0 514779-2	£114.28	£137.14
55G2 - ARMATURE 240V HM1200K MSP-514779-2.A1 514779-2	£114.28	£137.14
55E1 - ARMATURE 110V HM1200K MSP-514776-8.A0 514776-8	£114.28	£137.14
56-1 - INSULATION WASHER HM1200K/HM1 MSP-681635-2.A1 681635-2	£1.44	£1.73
57-3 - BALL BEARING VC3211M/KP0810/C MSP-211087-9.A44 211087-9	£9.67	£11.61
57-2 - BALL BEARING 6200LLB MSP-211066-7.A3 211066-7	£5.92	£7.11
58 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A6 213406-5	£1.44	£1.73
59 - BAFFLE PLATE HM1200K/HR3850 MSP-410163-8.A0 410163-8	£2.50	£3.00
60-2 - HEX HD SCREW M5X45 W/WASHER MSP-265347-1.A2 265347-1	£1.44	£1.73
61E1 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A1 654502-4	£1.44	£1.73
61E1 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A1 654020-2	£1.44	£1.73
61E1 - FIELD 110V HM1200K/HR3850 MSP-524631-6.A0 524631-6	£44.88	£53.86
61F1 - FIELD 240V HM1200K/HR3850 MSP-524634-0 524634-0	£44.88	£53.86
61F1 - TERMINAL RING CONNECTOR 2.00 MSP-654502-4.A0 654502-4	£1.44	£1.73
61F1 - TERMINAL RING FOR FIELD CB-5 MSP-654020-2.A0 654020-2	£1.44	£1.73
62 - RIVET 0-5 9402/1806B MSP-953106-2.A21 953106-2	£1.44	£1.73
63 - NAME PLATE HM1200K MSP-855544-3 855544-3	£2.18	£2.62
64-1 - SET SCREW (STOPPER PIN) M5X8 MSP-913206-0.A15 913206-0	£1.44	£1.73
64-2 - SET SCREW (STOPPER PIN) M5X8 MSP-913206-0.A22 913206-0	£1.44	£1.73
64-1 - BRUSH HOLDER CB-5 6.5=13.5 MSP-643653-8.A36 643653-8	£3.74	£4.49
64-2 - BRUSH HOLDER CB-5 6.5=13.5 MSP-643653-8.A37 643653-8	£3.74	£4.49
64-1 - MOTOR HOUSING HM1200K/HR3850 MSP-159034-1.A2 159034-1	£51.61	£61.93
64-2 - MOTOR HOUSING HM1200K/HR3850 MSP-159034-1.A3 159034-1	£51.61	£61.93
65-1 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A39 643650-4	£1.44	£1.73
65 - BRUSH HOLDER CAP CB-5/HS6100 MSP-643650-4.A54 643650-4	£1.44	£1.73
66 - CARBON BRUSH CB-155 (TIB143) MSP-181048-2.A1 181048-2	£12.32	£14.79
67 - REAR COVER HM1200K/HR3850 MSP-284055-5.A2 284055-5	£10.92	£13.10
68-1 - M5 SPRING RING DIN128 CC300D MSP-253427-5.A1 253427-5	£1.44	£1.73
69-3 - CAP HD SCREW M5X16 HM1200 MSP-922221-3.A25 922221-3	£1.44	£1.73
69-2 - CAP HD SCREW M5X16 HM1200K MSP-922222-1.A1 922222-1	£1.44	£1.73
70-1 - CAP HD SCREW M6X50 HM0810 MSP-922371-4.A5 922371-4	£1.44	£1.73
72-1 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A138 941151-9	£1.44	£1.73
73 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A60 931302-2	£1.44	£1.73
74 - M6 SPRING RING DIN128 BHS630 MSP-253428-3.A89 253428-3	£1.44	£1.73
75 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A137 941151-9	£1.44	£1.73
76 - PAN HD SCREW M5X25 W/CP WASHE MSP-911243-8.A12 911243-8	£1.44	£1.73
77-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A242 263002-9	£1.44	£1.73
77-1 - HANDLE SET HR5000K MSP-182077-8.A0 182077-8	£18.72	£22.46
78 - PAN HEAD SCREW M4X16 8406C MSP-911129-6.A1 911129-6	£1.44	£1.73
79-1 - SWITCH C3D-H-MS 8900N/HM120 MSP-651145-3.A3 651145-3	£32.69	£39.23
80 - DUST COVER FOR HANDLE COMPLET MSP-421265-5.A1 421265-5	£2.34	£2.81
81E1 - NOISE SUPPRESSOR 110V MSP-645253-0.A1 645253-0	£4.99	£5.99
83-3 - CAP HD SCREW M6X14 MSP-922316-2.A4 922316-2	£1.44	£1.73
85-4 - CAP HD SCREW M5X25 HM1100C MSP-265914-2.A5 265914-2	£1.44	£1.73
87-1 - CUSHION PLATE HM1200K MSP-343755-7 343755-7	£6.08	£7.30
88-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A243 263002-9	£1.44	£1.73
88-1 - HANDLE SET HR5000K MSP-182077-8.A1 182077-8	£18.72	£22.46
89 - HANDLE SHAFT HM1200K/HR3850 MSP-321210-9.A4 321210-9	£2.34	£2.81
90B1 - CORD GUARD 10-90 HS6100/7100 MSP-682505-8.A40 682505-8	£1.44	£1.73
90B - CORD GUARD HS6100/7100/MT852 MSP-682540-6.A53 682540-6	£1.44	£1.73
91P - POWER SUPPLY CORD 1.00-2-5.0 MSP-692541-6.A22 692541-6	£27.50	£33.00
92C - STRAIN RELIEF HK1820L/3601B MSP-687031-2.A4 687031-2	£1.44	£1.73
93-1 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A50 911133-5	£1.44	£1.73
96 - RUBBER RING 9 6MM HMO810 MSP-262051-3.A4 262051-3	£5.46	£6.55
97 - RUBBER RING 9 3MM HMO810 MSP-262052-1.A1 262052-1	£2.65	£3.18
98 - SLEEVE 6 HMO810 MSP-257636-8.A4 257636-8	£2.18	£2.62
99-1 - HANDLE SPRING HM1200K MSP-344560-5 344560-5	£5.46	£6.55
100 - WING NUT M8 HM1100C/HM1200K MSP-252640-2.A9 252640-2	£5.92	£7.11
101-1 - HANDLE BASE HM1200K MSP-416397-1.A1 416397-1	£3.28	£3.93
102 - SIDE HANDLE CAM HR4511/5211C MSP-417002-3.A16 417002-3	£1.44	£1.73
103 - LABEL/MAKITA 500 4305HR160DW MSP-819063-3.A23 819063-3	£1.44	£1.73
400 - HEX WRENCH 4 DUR/X360/DBC260L MSP-783202-0.A24 783202-0	£1.20	£1.44
404-4 - PLASTIC CASE HM1200K MSP-150583-1 150583-1	£35.53	£42.64
404-4 - LATCH/PLASTIC CASE 824697-9 MSP-163467-4.A22 163467-4	£1.47	£1.76
404-4 - MAKITA LOGO LEBEL 4112HS MSP-819145-1.A13 819145-1	£1.44	£1.73
404-4 - LATCH/PLASTIC CASE 150676-4) MSP-416401-6.A0 416401-6	£1.20	£1.44
500-1 - SIDE HANDLE 48 ASSY HM1200K MSP-134944-3 134944-3	£35.86	£43.03
