Makita HM1317C Electric Breaker Spare Parts

Home Details Reviews Delivery

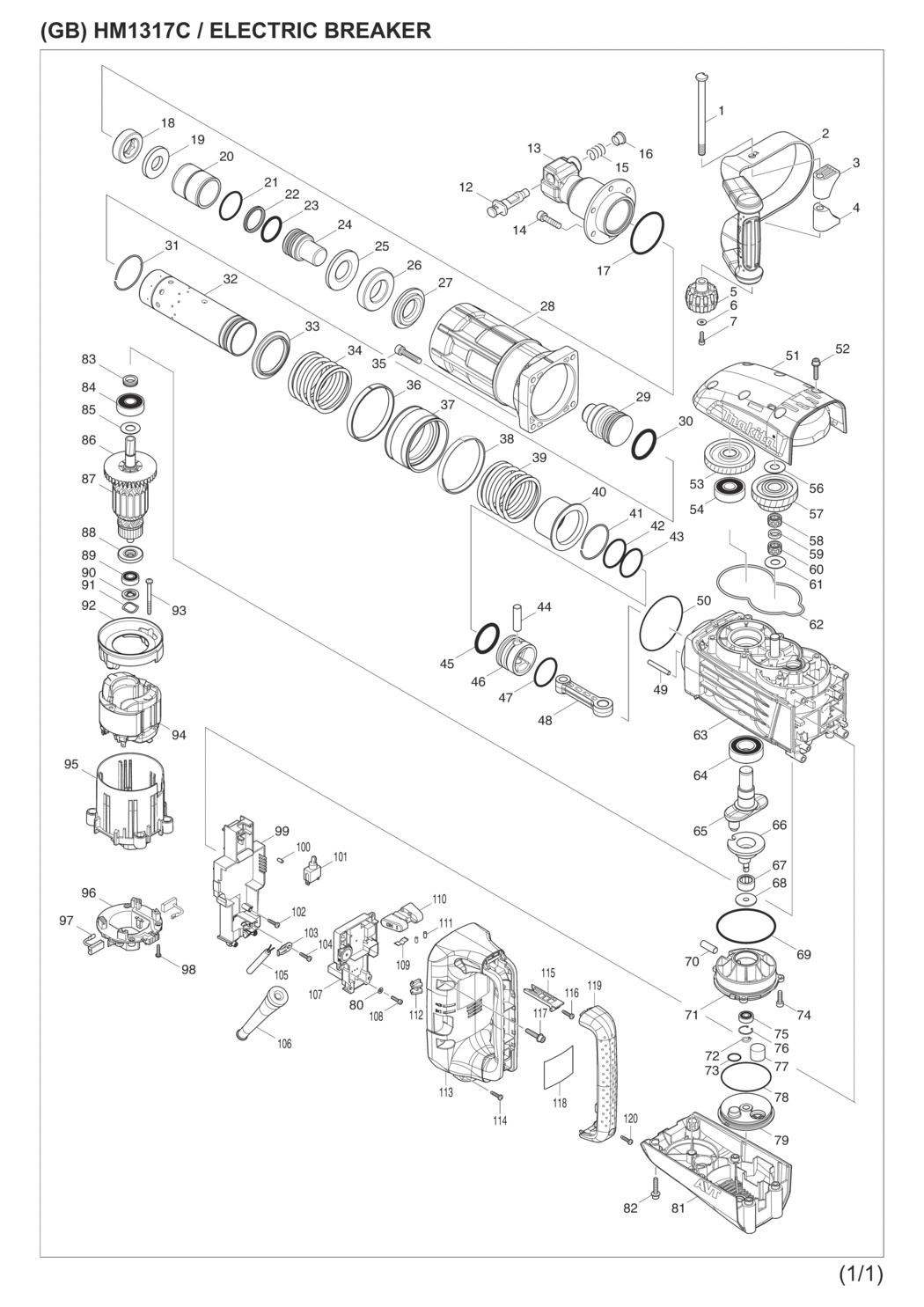

An exploded drawing and spare parts listing for the Makita HM1317C Electric Breaker

	Ex VAT	Inc VAT
1 - SET BOLT M10X142 HM1317C/CB MSP-266512-5.A1 266512-5	£10.77	£12.92
2 - SIDE HANDLE HM1317C/CB MSP-163506-0.A0 163506-0	£37.44	£44.93
3 - HANDLE BASE HM1317C/CB MSP-451331-4.A1 451331-4	£1.44	£1.73
4 - HANDLE BASE HM1317C/CB MSP-451331-4.A2 451331-4	£1.44	£1.73
5 - THUMB NUT M10 HM1317C/CB MSP-252654-1.A0 252654-1	£5.62	£6.74
6 - WASHER 5 HM1317C/CB/KP0810C/K MSP-253194-2.A14 253194-2	£1.44	£1.73
7 - CAP HD SCREW M5X16 HM1200 MSP-922221-3.A1 922221-3	£1.44	£1.73
12 - TOOL RETAINER HM1317C/HM1304 MSP-324099-4.A1 324099-4	£29.38	£35.25
13 - TOOL HOLDER HM1317C MSP-331866-0 331866-0	£272.16	£326.59
14 - HEX SOCKET HD BOLT M8X35 HM13 MSP-266011-7.A0 266011-7	£2.34	£2.81
15 - COMPRESSION SPRING 16 HM1317C MSP-233309-7.A1 233309-7	£2.18	£2.62
16 - RETAINER SLEEVE HM1317C/HM130 MSP-324135-6.A1 324135-6	£5.46	£6.55
17 - O RING 67 GA7050/GA9050/ MSP-213720-9.A5 213720-9	£1.44	£1.73
18 - URETHAN RING HM1317C MSP-262150-1 262150-1	£10.92	£13.10
19 - FLAT WASHER 24 HM1317C MSP-267401-7 267401-7	£15.55	£18.66
20 - SLEEVE 43 HM1317C MSP-257782-7 257782-7	£26.07	£31.28
21 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A4 213569-7	£1.44	£1.73
22 - X RING 36 HM1317C-CB MSP-213192-8.A0 213192-8	£9.67	£11.61
23 - O-RING 36 HM1317C-CB MSP-213150-4.A0 213150-4	£2.81	£3.37
24 - IMPACT BOLT HM1317C MSP-325682-0 325682-0	£48.58	£58.29
25 - WASHER 30 HM1317C-CB MSP-325683-8.A0 325683-8	£20.30	£24.36
26 - RUBBER RING 36 HM1317C-CB MSP-424206-0.A0 424206-0	£19.58	£23.50
27 - SHOULDER RING 32 HM1317C-CB MSP-325684-6.A0 325684-6	£25.20	£30.24
28 - BARREL HM1317C/CB MSP-318458-2.A1 318458-2	£89.97	£107.96
29 - STRIKER HM1317C/CB MSP-325685-4.A0 325685-4	£22.90	£27.48
30 - O RING 42 HM1317C/CB MSP-213193-6.A2 213193-6	£4.52	£5.43
31 - RING SPRING 55 HM1317C/CB MSP-233977-6.A0 233977-6	£1.44	£1.73
32 - CYLINDER 52 HM1317C/CB MSP-331870-9.A0 331870-9	£161.88	£194.26
33 - SHOULDER SLEEVE HM1317C/CB MSP-451168-9.A0 451168-9	£3.90	£4.68
34 - COMPRESSION SPRING 66 HM1317C MSP-234111-1.A2 234111-1	£21.17	£25.40
35 - HEX SOCKET HD BOLT M8X40 HM13 MSP-265367-5.A1 265367-5	£2.02	£2.43
36 - WEIGHT GUIDE HM1317C/CB MSP-451169-7.A3 451169-7	£2.34	£2.81
37 - COUNTER WEIGHT HM1317C/CB MSP-331867-8.A0 331867-8	£21.17	£25.40
38 - WEIGHT GUIDE HM1317C/CB MSP-451169-7.A2 451169-7	£2.34	£2.81
39 - COMPRESSION SPRING 66 HM1317C MSP-234111-1.A3 234111-1	£21.17	£25.40
40 - SLIDE SLEEVE HM1317C/CB MSP-331868-6.A1 331868-6	£15.55	£18.66
41 - RING SPRING 55 HM1317C/CB MSP-233977-6.A1 233977-6	£1.44	£1.73
42 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A7 213569-7	£1.44	£1.73
43 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A10 213569-7	£1.44	£1.73
44 - PIN 12 HM1317C-CB/HM1303/B MSP-256238-7.A1 256238-7	£3.28	£3.93
45 - O RING 42 HM1317C/CB MSP-213193-6.A3 213193-6	£4.52	£5.43
46 - PISTON HM1317C/CB MSP-318459-0.A0 318459-0	£40.03	£48.04
47 - O RING 45 HM1317C-CB/AN621 MSP-213569-7.A3 213569-7	£1.44	£1.73
48 - CONNECTING ROD HM1317C/CB MSP-451164-7.A0 451164-7	£6.40	£7.68
49 - PIN 6 HM1317C/CB MSP-268241-6.A0 268241-6	£1.44	£1.73
50 - O RING 90 HM1317C-CB/HR2510 MSP-213806-9.A4 213806-9	£2.34	£2.81
51 - GEAR COVER HM1317C/CB MSP-318462-1.A0 318462-1	£55.31	£66.37
52 - HEX BOLT M6X30 HM1317C-CB/121 MSP-266499-1.A2 266499-1	£1.44	£1.73
53 - HELICAL GEAR 47 HM1317C/CB MSP-227709-1.A0 227709-1	£47.92	£57.50
54 - BALL BEARING 6204LLB HM1317CC MSP-211306-3.A2 211306-3	£12.17	£14.60
56 - FLAT WASHER 14 HM1317C-CB/HM MSP-267166-1.A1 267166-1	£1.44	£1.73
57 - GEAR 31-43 HM1317C/CB MSP-226156-3.A1 226156-3	£97.15	£116.58
58 - NEEDLE CAGE 1412 HM1317C-CB/H MSP-212159-3.A1 212159-3	£7.18	£8.61
59 - NYLON RING 14 HM1317C/CB MSP-262157-7.A1 262157-7	£1.44	£1.73
60 - NEEDLE CAGE 1412 HM1317C-CB/H MSP-212159-3.A0 212159-3	£7.18	£8.61
61 - FLAT WASHER 14 HM1317C-CB/HM MSP-267166-1.A2 267166-1	£1.44	£1.73
62 - SEAL RING HM1317CB MSP-424207-8.A0 424207-8	£1.44	£1.73
63 - CRANK HOUSING HM1317C/CB MSP-140056-2.A0 140056-2	£306.12	£367.34
64 - BALL BEARING 6205LLU HM1317CC MSP-211373-8.A2 211373-8	£11.86	£14.23
65 - CRANK SHAFT HM1317C/CB MSP-331871-7.A0 331871-7	£21.17	£25.40
66 - COUNTER SHAFT HM1317C/CB MSP-331869-4.A0 331869-4	£78.50	£94.20
67 - NEEDLE BEARING 1813 HM1317C/C MSP-212264-6.A0 212264-6	£19.58	£23.50
68 - SHOULDER WASHER 8 HM1317C/CB MSP-325686-2.A0 325686-2	£3.59	£4.31
69 - O RING 87 HM1317C-CB/AN942/94 MSP-213809-3.A0 213809-3	£2.65	£3.18
70 - PIN 10 HM1317C/CB MSP-268240-8.A1 268240-8	£2.34	£2.81
71 - BEARING BOX HM1317C/CB MSP-140057-0.A1 140057-0	£39.17	£47.00
72 - EXT DIN CIRCLIP-8 HM1317C/CB MSP-961004-6.A63 961004-6	£1.44	£1.73
73 - O RING 17 HM1317C-CB/HR2410/ MSP-213261-5.A5 213261-5	£1.44	£1.73
74 - HEX SOCKET BOLT M6/20 HM1317C MSP-265844-7.A0 265844-7	£1.44	£1.73
75 - BALL BEARING 608ZZCNM/2A BUR1 MSP-211032-4.A42 211032-4	£9.05	£10.86
76 - RETAINING RING S22 HM1317C-CB MSP-962112-6.A14 962112-6	£1.44	£1.73
77 - FILTER HM1317C-B/HM1203/HM121 MSP-443127-7.A3 443127-7	£1.44	£1.73
78 - O RING 74 HM1317C/CB MSP-213758-4.A1 213758-4	£4.37	£5.24
79 - CRANK CAP COVER HM1317C/CB MSP-451166-3.A0 451166-3	£4.68	£5.62
80-1 - *PLATE HM1214C/HM1317C/HM1317 MSP-346546-5.A0 346546-5	£1.44	£1.73
80 - FLAT WASHER 4 DIN125 - B BHX2 MSP-941051-3.A24 941051-3	£1.44	£1.73
81 - REAR COVER HM1317C/CB MSP-451167-1.A1 451167-1	£28.51	£34.21
82 - HEX BOLT M6X30 HM1317C-CB/121 MSP-266499-1.A1 266499-1	£1.44	£1.73
83 - SEALING SCREW HM1317C-B/HM121 MSP-331855-5.A0 331855-5	£1.44	£1.73
84 - BALL BEARING 6000DDW HM1317C- MSP-211249-9.A1 211249-9	£15.70	£18.84
85 - FLAT WASHER 15 HM1317C-CB/HM1 MSP-267397-2.A0 267397-2	£1.44	£1.73
86 - FAN 80 HM1317C-CB/2702/LF1000 MSP-240003-4.A9 240003-4	£3.59	£4.31
87 - ARMATURE ASSY 110V HM1317C-CB MSP-517785-6.A1 517785-6	£145.56	£174.67
88 - INSULATION WASHER HM1317C-CB/ MSP-681642-5.A12 681642-5	£10.77	£12.92
89 - BALL BEARING 6000DDW 2RDCM MSP-210059-1.A30 210059-1	£3.74	£4.49
90 - WASHER GUIDE HM1317C-B/HM1214 MSP-451107-9.A1 451107-9	£2.18	£2.62
91 - WAVE WASHER 19 158581-9 MSP-267809-5.A0 267809-5	£1.44	£1.73
92 - BAFFLE PLATE HM1317C/1214C/13 MSP-451111-8.A0 451111-8	£4.68	£5.62
93 - PT SCREW 5X60 HS7100/HM1317C MSP-266044-2.A3 266044-2	£2.34	£2.81
94 - FIELD 110V HR1317C/CB MSP-636331-7.A1 636331-7	£43.30	£51.96
95 - MOTOR HOUSING HM1317C-CB/HM12 MSP-451117-6.A0 451117-6	£27.65	£33.18
96-1 - BRUSH HOLDER UNIT HR1317C-CB/ MSP-632D00-2.A3 632D00-2	£9.67	£11.61
97-1 - CARBON BRUSH CB-175 MSP-195844-2.A2 195844-2	£9.67	£11.61
98 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A793 265995-6	£1.44	£1.73
99-1 - CONTROLLER COVER HM1317C MSP-158986-3.A2 158986-3	£15.91	£19.09
100 - RUBBER PIN 4 HM1317C-CB/HM086 MSP-263027-3.A6 263027-3	£1.44	£1.73
101 - SWITCH BTM/3707F/3708F/DTM51 MSP-651423-1.A14 651423-1	£11.39	£13.67
102 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A794 265995-6	£1.44	£1.73
103 - STRAIN RELIEF GA/GD/SG125 MSP-687169-3.A41 687169-3	£1.44	£1.73
104 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A795 265995-6	£1.44	£1.73
105 - POWER SUPPLY CORD 1.5-2-4.0 MSP-692623-4.A3 692623-4	£32.69	£39.23
106 - CORD GUARD 10 HM1317C/CB/HR30 MSP-682560-0.A10 682560-0	£2.34	£2.81
107-2 - CONTROLLER HM1317C/CB 110V MSP-620229-8.A1 620229-8	£105.46	£126.55
108-1 - HEX SOCKET HD BOLT M4X18 MSP-266834-3.A1 266834-3	£1.44	£1.73
108 - HEX SOCKET HD BOLT M4X16 MSP-265490-6.A17 265490-6	£1.44	£1.73
109 - LEAF SPRING HM1110/HM1317C/CB MSP-232209-8.A0 232209-8	£1.44	£1.73
110 - SLIDE LEVER HM1317C/CB/HM1203 MSP-451112-6.A1 451112-6	£5.62	£6.74
111 - RUBBER PIN 4 HM1317C-CB/HM086 MSP-263027-3.A7 263027-3	£1.44	£1.73
112 - LENSE HM1317C-CB/1214C/1203C MSP-451105-3.A1 451105-3	£2.97	£3.56
113 - HANDLE HM1317C-CB/1214C/1203C MSP-451118-4.A1 451118-4	£50.02	£60.03
114 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A792 265995-6	£1.44	£1.73
115 - SWITCH LEVER HM1317C-CB/1214C MSP-451106-1.A0 451106-1	£3.90	£4.68
116 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A796 265995-6	£1.44	£1.73
117 - HEX BOLT M6X30 HM1317C-CB/121 MSP-266499-1.A0 266499-1	£1.44	£1.73
118 - NAME PLATE HM1317C MSP-867300-9 867300-9	£1.44	£1.73
119 - HANDLE COVER HM1214C/1317C-CB MSP-451119-2.A0 451119-2	£27.65	£33.18
120 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A797 265995-6	£1.44	£1.73
121 - *DOUBLE SIDED TAPE HM1317C MSP-442180-0.A1 442180-0	£1.44	£1.73
A02 - LATCH FOR HM1203/1203/1214 MSP-162271-8.A10 162271-8	£1.20	£1.44
A02 - PLASTIC CASE HM1317C/CB MSP-824897-1.A1 824897-1	£152.96	£183.55
A01-1 - BULL POINT 400MM HEX SHANK MSP-D-15285 D-15285	£11.59	£13.91
A03 - LABEL/PLASTIC CASE HM1317C MSP-809555-0 809555-0	£1.44	£1.73
E02 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A132 654091-9	£1.44	£1.73
