Makita HM1800 Electric Breaker Spare Parts

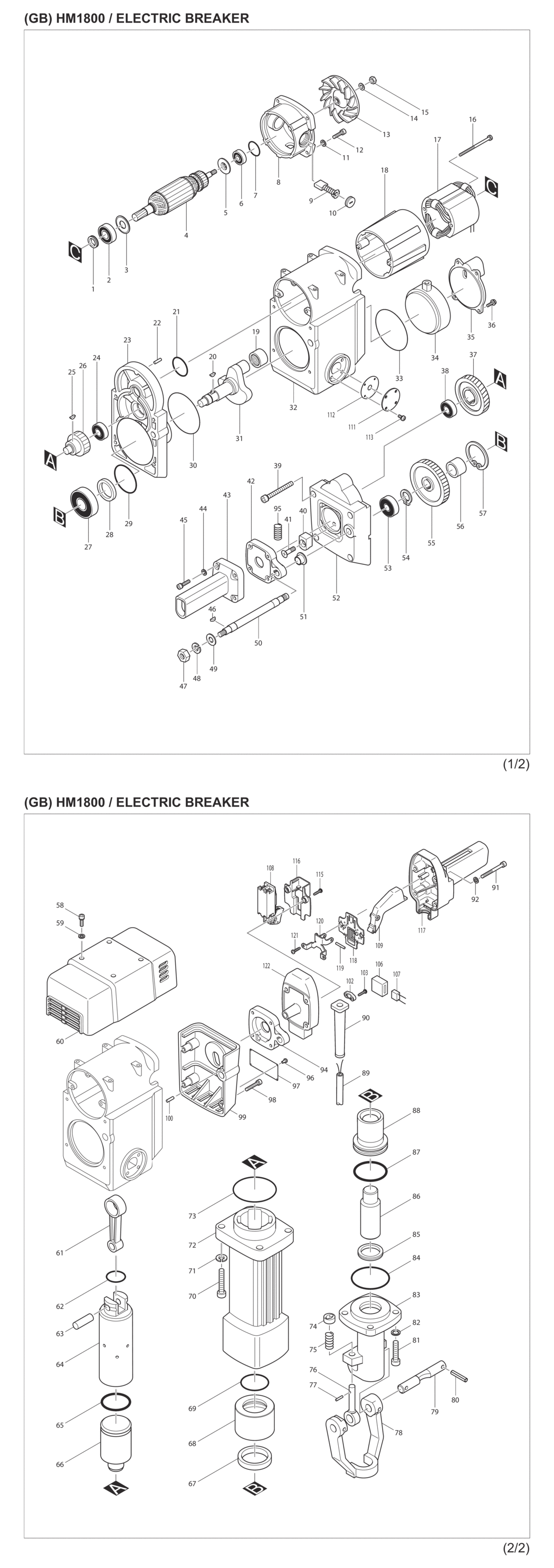

An exploded drawing and spare parts listing for the Makita HM1800 Electric Breaker

	Ex VAT	Inc VAT
1 - SCREW SEAL HM1800/HM1810 MSP-322566-3.A0 322566-3	£4.37	£5.24
2 - BALL BEARING 6203LLB HM1810 MSP-211256-2.A8 211256-2	£12.48	£14.98
3 - WASHER 17 HM1800 MSP-267706-5.A0 267706-5	£2.65	£3.18
4 - *ARMATURE ASSY 110V HM1800 MSP-514990-6 514990-6	-
4C - *ARMATURE ASSY 240V HM1800 MSP-514994-8 514994-8	£194.52	£233.42
5-1 - INSULATION WASHER HM1200K/HM1 MSP-681635-2.A5 681635-2	£1.44	£1.73
5-2 - INSULATION WASHER HM1800/HM18 MSP-681646-7.A0 681646-7	£8.27	£9.92
6 - BALL BEARING 6200LLB MSP-211066-7.A23 211066-7	£5.92	£7.11
7 - O RING 30 VC3211M/HR5000/HM13 MSP-213406-5.A20 213406-5	£1.44	£1.73
8 - SET RING HM1303/HM1304 MSP-414665-6.A2 414665-6	£1.44	£1.73
8 - BRUSH HOLDER HM1303/1304 MSP-643711-0.A2 643711-0	£8.89	£10.67
8 - MOTOR HOUSING B HM18 MSP-159530-9 159530-9	£66.40	£79.68
9 - CARBON BRUSH CB-204/M9001 MSP-191957-7.A3 191957-7	£14.82	£17.78
10 - BRUSH HOLDER CAP 7-18 GA7050/ MSP-643700-5.A32 643700-5	£1.44	£1.73
10-1 - BRUSH HOLDER CAP 9029 ANTISLI MSP-643710-2.A2 643710-2	£1.44	£1.73
11 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A2 941151-9	£1.44	£1.73
12 - CAP HD SCREW M6X25 HM0870/71C MSP-922341-3.A1 922341-3	£1.44	£1.73
12-1 - CAP HD SCREW M5X25 HM1100C MSP-265914-2.A2 265914-2	£1.44	£1.73
13-1 - FAN 100 HM1800 MSP-240024-6.A0 240024-6	£13.58	£16.29
14 - M8 SPRING RING DIN 128 LF1000 MSP-942201-3.A0 942201-3	£1.44	£1.73
14-1 - WASHER 8 6904/LF1000/HR5211C MSP-253165-9.A8 253165-9	£1.44	£1.73
15-1 - HEX FULLNUT M8 LS1013/HR1840 MSP-931402-8.A24 931402-8	£1.44	£1.73
15 - NYLON INSERT NUT M8-13 LS800D MSP-252105-4.A15 252105-4	£1.44	£1.73
16 - HEX HD SCREW M5X85 HM1800 MSP-265344-7.A0 265344-7	£2.81	£3.37
17E - FIELD 240V HM1800 MSP-624954-3 624954-3	£64.94	£77.93
18 - MOTOR HOUSING HM1800 MSP-414787-2.A0 414787-2	£32.69	£39.23
19 - NEEDLE BEARING 2520 MSP-212358-7.A1 212358-7	£11.86	£14.23
20 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A9 254001-2	£1.44	£1.73
21 - O RING 40 BTD134/136/144/146/ MSP-213507-9.A17 213507-9	£3.74	£4.49
22 - PIN 5 HM1800/HM1810 MSP-256151-9.A0 256151-9	£2.18	£2.62
24 - BALL BEARING 6202 HM1800 MSP-211209-1.A3 211209-1	£9.05	£10.86
25 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A8 254001-2	£1.44	£1.73
26 - SPUR GEAR 22 HM1800 MSP-226251-9.A0 226251-9	£68.54	£82.25
27 - BALL BEARING 6305LLB HM1800 MSP-211361-5.A0 211361-5	£21.89	£26.27
28 - OIL SEAL 35 HM1800 MSP-213476-4.A0 213476-4	£7.80	£9.36
29 - O RING 61 HM1800/HM1304B MSP-213721-7.A5 213721-7	£7.80	£9.36
30 - O RING 90 HM1317C-CB/HR2510 MSP-213806-9.A0 213806-9	£2.34	£2.81
32-2 - CRANK HOUSING HM1800 MSP-316550-8 316550-8	£311.52	£373.82
33 - O RING 90 HM1317C-CB/HR2510 MSP-213806-9.A1 213806-9	£2.34	£2.81
34 - CRANK HOUSING CAP HM1800 MSP-414785-6 414785-6	£14.82	£17.78
35 - CAP COVER HM1800 MSP-414786-4 414786-4	£13.58	£16.29
36 - PAN HD SCREW M5X18 HM1800 MSP-251390-6 251390-6	£1.44	£1.73
37 - HELICAL GEAR 50 HM1800 MSP-221793-8.A1 221793-8	£68.54	£82.25
38 - BALL BEARING 6202 HM1800 MSP-211209-1.A4 211209-1	£9.05	£10.86
39 - HEX SOCKET HD BOLT M8X75 HM1 MSP-922496-4.A0 922496-4	£3.59	£4.31
40-1 - PLASTIC SLEEVE HM1800 MSP-262538-5 262538-5	£4.52	£5.43
41 - COUNTERSUNK HD SCREW M8X28 MSP-251389-1 251389-1	£2.18	£2.62
42-2 - HANDLE BASE HM1800 MSP-324062-7.A0 324062-7	£91.48	£109.77
43-1 - SIDE HANDLE HM1800/HM1810 MSP-418415-1.A1 418415-1	£10.77	£12.92
44 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A55 941152-7	£1.44	£1.73
45 - CAP HD SCREW M6X25 HM0870/71C MSP-922341-3.A0 922341-3	£1.44	£1.73
46 - WOODRUFF KEY 4 9609B/EB7660TH MSP-254001-2.A10 254001-2	£1.44	£1.73
47-1 - HEX FULLNUT M12 MSP-931602-0 931602-0	£1.44	£1.73
48 - M12 SPRING RING DIN 127 HM181 MSP-942301-9.A0 942301-9	£1.44	£1.73
49 - FLAT WASHER 12 DIN125-B 2116 MSP-941301-6 941301-6	£1.44	£1.73
50 - HANDLE SHAFT HM1800 MSP-322565-5 322565-5	£59.92	£71.91
51 - *NYLON BUSH 15 HM1800 MSP-415148-9 415148-9	£2.18	£2.62
52-1 - GEAR HOUSING COVER HM1800 MSP-316792-4 316792-4	£108.61	£130.33
53 - BALL BEARING 6302 HM1400K/HM1 MSP-211214-8.A0 211214-8	£10.77	£12.92
54 - EXT DIN 471 CIRCLIP-20 VC3211 MSP-961060-6.A14 961060-6	£1.44	£1.73
55 - SPUR GEAR 47 HM1800/HM1810 MSP-226242-0.A1 226242-0	£82.91	£99.49
56 - SLEEVE 25 HM1800/HM1810 MSP-331416-1.A1 331416-1	£6.55	£7.86
57 - RETAINING RING R-62 HM1800/10 MSP-962301-3.A0 962301-3	£2.65	£3.18
58 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A16 922331-6	£1.44	£1.73
59 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A56 941152-7	£1.44	£1.73
60-1 - MOTOR HOUSING COVER HM1800/1 MSP-419324-7.A0 419324-7	£29.38	£35.25
61 - CONNECTING ROD HM1800 MSP-322476-4.A0 322476-4	£46.33	£55.60
62 - O RING 35 HM1300 MSP-213469-1 213469-1	£7.02	£8.42
63-1 - SLEEVE 8 HM1800 MSP-268061-8 268061-8	£9.82	£11.79
64 - PISTON CYLINDER HM1800 MSP-322480-3 322480-3	£404.04	£484.85
65 - O RING 52 HM1800 MSP-213666-9.A2 213666-9	£12.79	£15.35
66 - *STRIKER HM1800 MSP-322563-9 322563-9	£97.15	£116.58
67 - RUBBER RING 54 HM1800/HM1810 MSP-262050-5.A0 262050-5	£6.55	£7.86
68 - CYLINDER B HM1800/HM1810 MSP-322548-5.A1 322548-5	£85.68	£102.82
69 - O RING 53 HM1800/HM1810 MSP-213660-1.A1 213660-1	£3.90	£4.68
70 - HEX SOCKET BOLT M12X55 HM1800 MSP-922677-0.A0 922677-0	£2.97	£3.56
71 - M12 SPRING RING DIN 127 HM181 MSP-942301-9.A1 942301-9	£1.44	£1.73
72 - CYLINDER A HM1800 MSP-316313-2 316313-2	£346.92	£416.30
74 - RETAINER RING HM1317CB/4B/181 MSP-322560-5.A5 322560-5	£16.70	£20.04
75-1 - COMPRESSION SPRING 12 HM1317C MSP-233083-7.A0 233083-7	£2.02	£2.43
76 - TOOL RETAINER HM1317CB/HM1800 MSP-322477-2.A4 322477-2	£37.44	£44.93
77 - PIN 4 HM1317CB/HM1303B/HR3000 MSP-256219-1.A5 256219-1	£1.44	£1.73
78-1 - TOOL RETAINER HM1800/HM1810 MSP-324236-0.A2 324236-0	£202.32	£242.78
78 - TOOL RETAINER HM1303B/1304B MSP-322478-0.A1 322478-0	£244.92	£293.90
79 - TOOL RETAINER SHAFT HM1303B/0 MSP-322550-8.A0 322550-8	£34.28	£41.13
79-1 - TOOL RETAINER SHAFT HM1317CB/ MSP-324238-6.A0 324238-6	£33.70	£40.44
80 - TENSION PIN 8-40 DIN 1481 HM1 MSP-951272-9.A1 951272-9	£1.44	£1.73
81 - HEX SOCKET BOLT M12X45 HM1800 MSP-265989-1.A2 265989-1	£3.59	£4.31
82 - SAFE RING WASHER 12 HM1800 MSP-253989-3.A1 253989-3	£1.44	£1.73
83A - TOOL HOLDER HM1800 MSP-322479-8 322479-8	£547.08	£656.50
84 - O RING 75 HM1400/BO4900V/5021 MSP-213755-0.A1 213755-0	£2.18	£2.62
85 - X RING 40 8600N/HM1810 MSP-213517-6.A1 213517-6	£21.89	£26.27
86 - IMPACT BOLT HM1800 MSP-322564-7 322564-7	£50.02	£60.03
87 - O RING 60 AN942/HM1800/HM1810 MSP-213667-7.A0 213667-7	£14.82	£17.78
88 - IMPACT BOLT HOLDER HM1800 MSP-322549-3 322549-3	£85.68	£102.82
89C1 - POWER SUPPLY CORD PC5000/01C MSP-695237-8.A1 695237-8	£32.69	£39.23
89D1 - POWER SUPPLY CORD 1.00-2-5.0 MSP-692541-6.A5 692541-6	£27.50	£33.00
90 - CORD GUARD 12-125 HM1800/1810 MSP-682546-4.A1 682546-4	£4.37	£5.24
91 - CAP HD SCREW M6X25 HM0870/71C MSP-922341-3.A2 922341-3	£1.44	£1.73
91-1 - HEX SOCKET HD BOLT M6 X 60 MSP-922381-1 922381-1	£1.44	£1.73
92 - FLAT WASHER 6 DIN125-A HR3500 MSP-941152-7.A57 941152-7	£1.44	£1.73
94-2 - HANDLE BASE HM1800 MSP-324062-7.A1 324062-7	£91.48	£109.77
95-1 - COMPRESSION SPRING 12 HM1800 MSP-233149-3 233149-3	£15.29	£18.35
96 - RIVET 0-5 9402/1806B MSP-953106-2.A12 953106-2	£1.44	£1.73
97 - NAME PLATE HM1800 MSP-857090-2 857090-2	£2.50	£3.00
98 - CAP HD SCREW M6X35 MSP-922356-0.A0 922356-0	£1.44	£1.73
99 - REAR CASE HM1800 MSP-316312-4 316312-4	£120.08	£144.09
100 - PIN 5 HM1800/HM1810 MSP-256151-9.A1 256151-9	£2.18	£2.62
102 - STRAIN RELIEF 110V UK360/HS61 MSP-687053-2.A62 687053-2	£1.44	£1.73
102E1 - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A143 687052-4	£1.44	£1.73
102E - STRAIN RELIEF UH4570/55/5580/ MSP-687063-9.A17 687063-9	£1.44	£1.73
103-1 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1094 265995-6	£1.44	£1.73
105 - PAN HD SCREW M5X28 W/CP WASHE MSP-911248-8.A5 911248-8	£1.44	£1.73
106A - SPONGE SHEET RP1110C/8406/362 MSP-685722-9.A4 685722-9	£1.44	£1.73
106 - SPONGE SHEET BO3700/4320/HM18 MSP-685725-3.A5 685725-3	£1.44	£1.73
107B - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A51 645141-1	£3.21	£3.85
107A - NOISE SUPPRESSOR/CONDENSOR 64 MSP-645105-5.A6 645105-5	£2.34	£2.81
108 - AC/DC SWITCH C3D-15MS 8600N MSP-651131-4.A2 651131-4	£25.20	£30.24
109-1 - SWITCH LEVER HM1800/HM1810 MSP-418332-5.A0 418332-5	£3.90	£4.68
111 - MOTOR HOUSING COVER HM1303B MSP-341397-1.A2 341397-1	£1.44	£1.73
112 - MOTOR HOUSING PACKING HM1303B MSP-442009-0.A1 442009-0	£1.44	£1.73
113 - PAN HD SCREW M5X12 W/SP WASHE MSP-911211-1.A17 911211-1	£1.44	£1.73
115 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1093 265995-6	£1.44	£1.73
116 - SWITCH COVER HM1800 MSP-418331-7 418331-7	£3.59	£4.31
117 - HANDLE HM1800/HM1810 MSP-418333-3.A1 418333-3	£15.75	£18.90
118 - DUST PLATE HM1800/HM1810 MSP-421850-4.A1 421850-4	£5.62	£6.74
119 - PIN 4 BST220/1/4399DW/HM1810 MSP-256206-0.A7 256206-0	£1.44	£1.73
120 - SUPPORT HM1800/HM1810 MSP-345355-9.A0 345355-9	£6.55	£7.86
121 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1095 265995-6	£1.44	£1.73
122-1 - HANDLE SUB BASE HM1800/HM1810 MSP-419044-3.A0 419044-3	£4.37	£5.24
A01 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A19 783203-8	£1.20	£1.44
