Makita HR2430 Rotary Hammer with Dust Extraction Spare Parts

Home Details Reviews Delivery

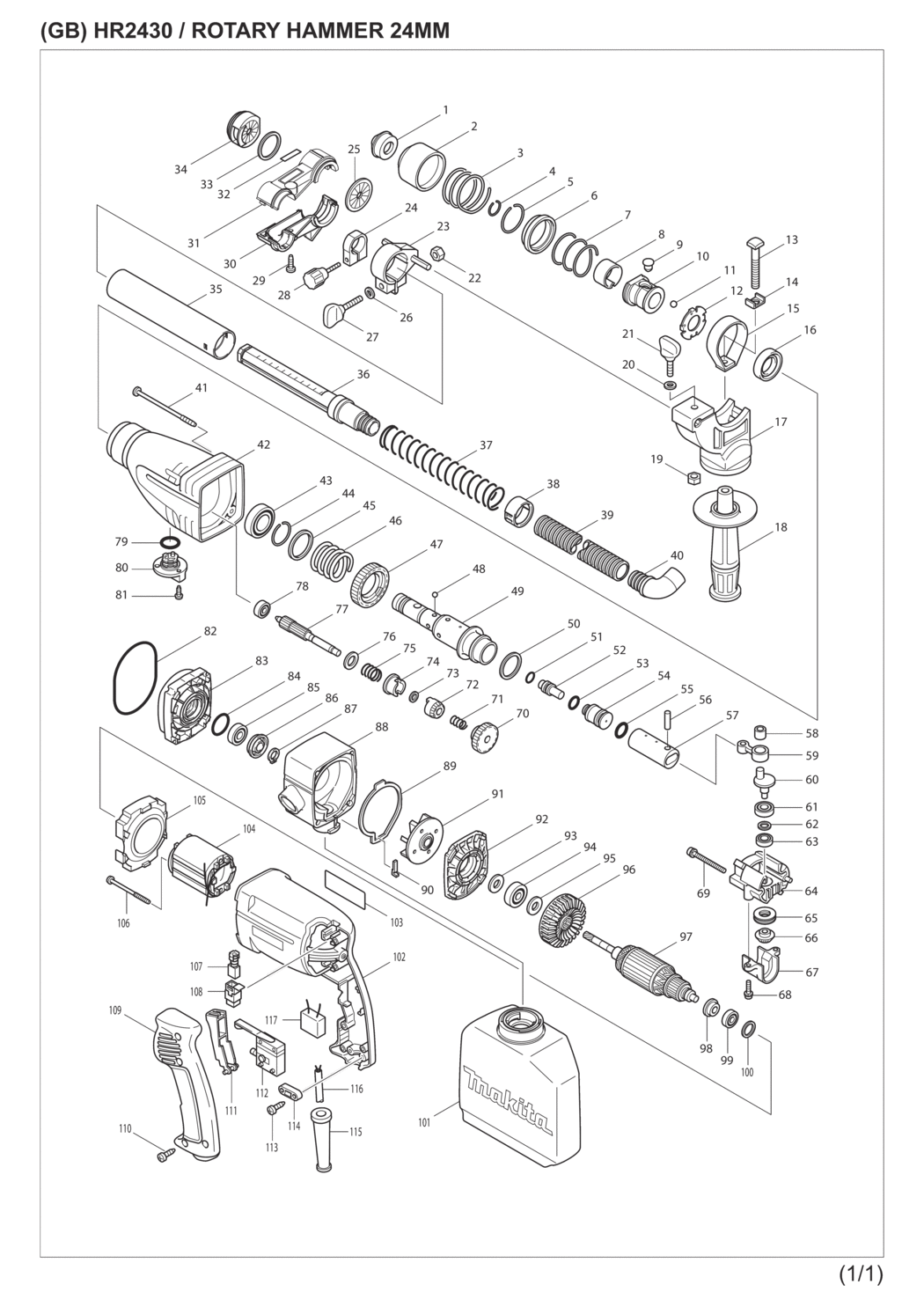

An exploded drawing and spare parts listing for the Makita HR2430 Rotary Hammer with Dust Extraction

	Ex VAT	Inc VAT
1-1 - CAP 31 HR160DW/HR2410/2420 MSP-286265-0.A3 286265-0	£1.44	£1.73
2 - CHUCK COVER HR160DW/HR2410/24 MSP-416410-5.A1 416410-5	£1.44	£1.73
3 - COMPRESSION SPRING 38 HR160DW MSP-233203-3.A17 233203-3	£1.44	£1.73
4 - RING SPRING 19 HR160DW/HR2420 MSP-231979-6.A11 231979-6	£1.44	£1.73
5 - RING SPRING 30.5 HR3000C/HR20 MSP-231936-4.A0 231936-4	£1.44	£1.73
6 - SPRING GUIDE HR2410/2420//HR3 MSP-323819-3.A8 323819-3	£2.18	£2.62
7 - COMPRESSION SPRING 35 HR2420 MSP-233234-2.A11 233234-2	£1.44	£1.73
8 - LEAF SPRING 26 BHR200S/HR2430 MSP-232190-3.A4 232190-3	£2.18	£2.62
9 - PIN 8 HR160DW/2410/HR3000C MSP-256447-8.A3 256447-8	£2.50	£3.00
10 - CHUCK RING HR2410/2420/HR3000 MSP-323820-8.A8 323820-8	£15.70	£18.84
11 - STEEL BALL 7.0 M3601/M8701 MSP-216022-2.A69 216022-2	£1.66	£1.99
12 - GUIDE WASHER HR2410/2420/2430 MSP-344690-2.A7 344690-2	£1.44	£1.73
13 - SQUARE BOLT M8X60 HR2430 MSP-266092-1.A2 266092-1	£1.44	£1.73
14 - SQUARE WASHER 9 HR2430 MSP-267719-6.A1 267719-6	£1.44	£1.73
15 - BELT HR2430 MSP-344205-5.A2 344205-5	£1.44	£1.73
16 - OIL SEAL 20 HR2410/HR2420 MSP-213313-2.A1 213313-2	£9.98	£11.98
19 - HEX FULL NUT M5 RP0900/AN510 MSP-931202-6.A84 931202-6	£1.44	£1.73
20 - *FLAT WASHER 5 DIN125-B RP0900 MSP-941101-4.A4 941101-4	£1.44	£1.73
21 - WING SCREW M5X20 MT361/RP09/K MSP-251878-6.A8 251878-6	£1.44	£1.73
22 - HEX FULL NUT M6 LF1000/DST111 MSP-931302-2.A1 931302-2	£1.44	£1.73
23 - PIPE HOLDER HR2430/HR2432 MSP-417156-6.A0 417156-6	£7.02	£8.42
24 - STOPPER RING HR2430/HR2432 MSP-414795-3.A0 414795-3	£9.05	£10.86
25 - SEALING CAP/DUST EXTRACTION MSP-421384-7.A0 421384-7	£2.18	£2.62
26 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A4 941151-9	£1.44	£1.73
27 - THUMB SCREW M6X30 HR2430/243 MSP-265705-1.A0 265705-1	£1.44	£1.73
28 - KNOB SCREW M4X24 HR2430/HR24 MSP-265706-9.A1 265706-9	£3.74	£4.49
29 - TF SCREW 4X16 TRILBULAR HR243 MSP-265926-5.A0 265926-5	£1.44	£1.73
30 - COLLECTOR 25L HR2430/HR2432 MSP-414800-6.A0 414800-6	£8.73	£10.48
31 - COLLECTOR 25R HR2430/HR2432 MSP-414799-5.A1 414799-5	£8.73	£10.48
32 - LABEL/MAKITA HR2430HR2432 MSP-819071-4.A0 819071-4	£1.44	£1.73
33 - FLAT WASHER 28 HR2430/HR2432 MSP-267091-6.A0 267091-6	£5.92	£7.11
34 - FITTING RUBBER HR2430 MSP-421726-5 421726-5	£1.44	£1.73
35 - SUPPORT PIPE HR2430/2432 MSP-414797-9.A0 414797-9	£6.71	£8.05
36 - SLIDE PIE HR2430/2432 MSP-414796-1.A1 414796-1	£8.42	£10.11
37 - COMPRESSION SPRING 25 HR2430 MSP-233015-4.A0 233015-4	£3.28	£3.93
38 - SPRING STOPPER HR2430/2432 MSP-414794-5.A1 414794-5	£6.55	£7.86
39 - HOSE 19 HR2430/2432 MSP-414898-3.A1 414898-3	£3.90	£4.68
40 - CUFFS 19-22 HR2430/HR2432 MSP-417153-2.A0 417153-2	£3.28	£3.93
41 - PT SCREW 4X90 HR2430 MSP-266243-6 266243-6	£2.34	£2.81
42 - COMPRESSION SPRING 3.5 MSP-231234-6.A2 231234-6	£1.44	£1.73
42 - GEAR HOUSING HR2410/2420 MSP-150965-7.A0 150965-7	£12.17	£14.60
43 - BALL BEARING 6904LLU HR2000/H MSP-211323-3.A0 211323-3	£11.39	£13.67
44 - RING SPRING 26 HR2410/HR2420 MSP-231962-3.A10 231962-3	£1.44	£1.73
45 - SPECIAL RING WASHER 29 HR2410 MSP-267132-8.A0 267132-8	£2.50	£3.00
46 - COMPRESSION SPRING 29 HR2410 MSP-233109-5.A4 233109-5	£2.34	£2.81
47 - SPUR GEAR 48 HR2410/HR2420 MSP-226290-9.A1 226290-9	£30.96	£37.15
48 - STEEL BALL 5.6/DTW285 MSP-216041-8.A31 216041-8	£1.44	£1.73
49 - TOOL HOLDER HR2410/2420 MSP-323822-4.A0 323822-4	£50.02	£60.03
50 - NARROW BLUE WASHER 27 HR2410 MSP-267129-7.A1 267129-7	£1.44	£1.73
52 - IMPACT BOLT HR2410/2420/2430 MSP-323818-5.A1 323818-5	£3.59	£4.31
53 - O RING 11 HR2410/HR2420/HR1840 MSP-213117-2.A2 213117-2	£2.18	£2.62
54 - STRIKER HR2410/HR2420/2430 MSP-322740-3.A1 322740-3	£9.05	£10.86
55 - O RING 16 HR1800/HR160DWH/HR MSP-213214-4.A2 213214-4	£3.59	£4.31
56 - PIN 6 HR2210/HR2410/HR2420 MSP-256099-5.A0 256099-5	£1.44	£1.73
57 - PISTON CYLINDER HR2410/HR2420 MSP-331446-2.A0 331446-2	£23.62	£28.34
58 - NEEDLE BEARING 810 HR2430 MSP-212005-0.A6 212005-0	£2.81	£3.37
59 - CONNECTING ROD HR2410/HR2420 MSP-331447-0.A1 331447-0	£8.42	£10.11
60 - CRANK SHAFT HR2410/HR2420/30 MSP-322741-1.A0 322741-1	£23.62	£28.34
61 - BALL BEARING 699ZZ HR2410/243 MSP-211098-4.A0 211098-4	£8.73	£10.48
62 - BLUE WASHER 9 HR2410/BHR162 MSP-267130-2.A4 267130-2	£1.44	£1.73
63 - BALL BEARING 689ZZ HR2410 MSP-211099-2.A1 211099-2	£9.05	£10.86
64 - CRANK HOUSING HR2410 MSP-159761-0.A1 159761-0	£35.86	£43.03
65 - THRUST NEEDLE 1224 6701B/HR24 MSP-212110-3.A0 212110-3	£10.14	£12.17
66 - STRAIGHT BEVEL GEAR 12 HR2410 MSP-226726-8.A0 226726-8	£23.62	£28.34
67 - GEAR COVER HR2410/HR2420/2431 MSP-415630-8.A2 415630-8	£1.44	£1.73
68 - PAN HD SCREW M4X16 HR2410 MSP-911526-6.A5 911526-6	£1.44	£1.73
69 - PAN HD SCREW M4X50 HR2410 MSP-911576-1.A2 911576-1	£1.44	£1.73
70 - HELICAL GEAR 31 HR2410/HR2420 MSP-226434-1.A2 226434-1	£14.51	£17.41
71 - COMPRESSION SPRING 8 RP0900/H MSP-233110-0.A3 233110-0	£1.44	£1.73
72 - STRAIGHT BEVEL GEAR 14 HR2410 MSP-226725-0.A1 226725-0	£42.48	£50.98
73 - NARROW BLUE WASHER 8 HR2410 MSP-267131-0.A1 267131-0	£1.44	£1.73
74 - CLUTCH CAM HR2410/HR2420 MSP-322743-7.A0 322743-7	£15.11	£18.13
75 - COMPRESSION SPRING 12 HR2420 MSP-233089-5.A1 233089-5	£1.44	£1.73
76 - HARD WASHER 12 2414/BGA450 MSP-253744-3.A18 253744-3	£1.44	£1.73
77 - SPUR GEAR 10 HR2410/HR2420 MSP-226293-3.A0 226293-3	£30.96	£37.15
78 - BALL BEARING 606ZZ HR2410/DH MSP-211012-0.A18 211012-0	£13.88	£16.66
79 - O RING 17 HM1317C-CB/HR2410/ MSP-213261-5.A10 213261-5	£1.44	£1.73
80 - CHANGE LEVER HR2410 MSP-152471-8.A2 152471-8	£3.90	£4.68
81 - PAN HD SCREW M4X11 HR2400 MSP-251392-2.A2 251392-2	£1.44	£1.73
82 - O RING 67 GA7050/GA9050/ MSP-213720-9.A0 213720-9	£1.44	£1.73
84 - O RING 24 HR2430/DHR164/DHR16 MSP-213953-6.A10 213953-6	£1.44	£1.73
85 - BALL BEARING 609LLU HR2420 MSP-210060-6.A12 210060-6	£4.52	£5.43
86 - DUST GUARD HR2430 MSP-317332-1 317332-1	£9.82	£11.79
87 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A44 961006-2	£1.44	£1.73
91 - FAN HR2430 MSP-241664-3 241664-3	£14.20	£17.04
92 - DUST COVER HR2430 MSP-317334-7 317334-7	£15.58	£18.70
93 - THIN BLUE WASHER 10 HR2430 MSP-267213-8.A3 267213-8	£1.44	£1.73
94 - BALL BEARING 6000LLU HM1100C MSP-210054-1.A0 210054-1	£6.08	£7.30
95 - THIN BLUE WASHER 10 HR2430 MSP-267213-8.A2 267213-8	£1.44	£1.73
99 - BALL BEARING HP1631/607LLB/43 MSP-211021-9.A40 211021-9	£8.42	£10.11
100 - THIN NARROW BLUE WASHER 14 MSP-253842-3.A0 253842-3	£1.44	£1.73
101 - FRAME CAP HR2432 MSP-417154-0.A0 417154-0	£1.44	£1.73
101 - DUST BAG ASSY HR2430 MSP-122614-6 122614-6	£18.69	£22.43
101 - FASTENER PJ7000/KP0810C/KP0810 MSP-410602-8.A37 410602-8	£1.66	£1.99
102 - MOTOR HOUSING HR2410/2430 MSP-416970-7.A2 416970-7	£34.28	£41.13
104A - FIELD 110V HR2430/HR2410 MSP-639341-3.A1 639341-3	£17.86	£21.43
105 - BAFFLE PLATE HR2410/HR2420 MSP-415628-5.A1 415628-5	£2.34	£2.81
106 - PT SCREW 4X60 TRILOBULAR HR24 MSP-266052-3.A17 266052-3	£1.44	£1.73
107 - CARBON BRUSH CB-419 SET HP164 MSP-191962-4.A44 191962-4	£4.79	£5.75
108 - BRUSH HOLDER UH4860/4304/4305 MSP-643923-5.A3 643923-5	£1.89	£2.27
109 - HANDLE COVER HR2410/2430 MSP-415627-7.A1 415627-7	£12.79	£15.35
110 - PT SCREW 4X20 TRILOBULAR 6833 MSP-266045-0.A18 266045-0	£1.44	£1.73
111 - SWITCH LEVER HR2410/HR2420 MSP-415629-3.A1 415629-3	£2.50	£3.00
112A3 - SWITCH JIMK711W HR2420 MSP-650514-5.A1 650514-5	£32.69	£39.23
112-3 - SWITCH JIMK711W HR2420 MSP-650514-5.A4 650514-5	£32.69	£39.23
113 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A1118 265995-6	£1.44	£1.73
114B - STRAIN RELIEF HS7100/BO5041 MSP-687052-4.A144 687052-4	£1.44	£1.73
115 - CORD GUARD 9.3-85 MT814/815 MSP-682516-3.A43 682516-3	£1.44	£1.73
116G - LEAD WIRE HS7100/GD0801C/HP16 MSP-692527-0.A54 692527-0	£29.38	£35.25
116C - POWER SUPPLY CORD 1.0-2-2.5 MSP-665918-8.A63 665918-8	£12.01	£14.41
117 - NOISE SUPPRESSOR 4100KB HS7611 MSP-645141-1.A60 645141-1	£3.21	£3.85
A02 - CAP HR2430/HR2432 MSP-421727-3.A0 421727-3	£1.44	£1.73
A03 - LATCH FOR 824575-3/824544-4 MSP-417059-4.A6 417059-4	£1.20	£1.44
E03 - *NON INSULATED TERMINAL GD0801 MSP-654091-9.A14 654091-9	£1.44	£1.73
