Makita PLM5600N Petrol Lawn Mower Spare Parts

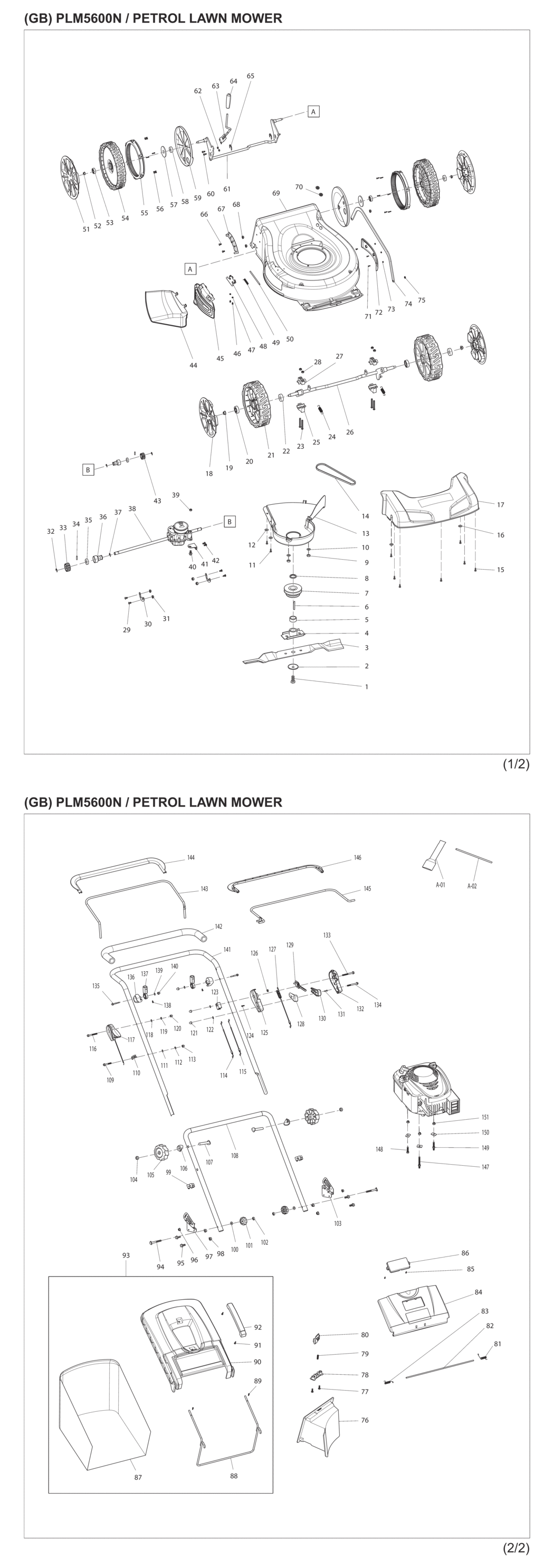

An exploded drawing and spare parts listing for the Makita PLM5600N Petrol Lawn Mower

	Ex VAT	Inc VAT
4 - BLADE SUPPORT PLM4631N MSP-DA00000857.A1 DA00000857	£14.35	£17.22
18 - WHEEL COVER PLM4817PLM5113N MSP-DA00000536.A0 DA00000536	£3.59	£4.31
53 - BEARING PLM4631N/PLM4817 MSP-DA00000538.A3 DA00000538	£4.21	£5.05
94 - FLAT HEAD BOLT M8X35 PLM5113N MSP-DA00000880.A1 DA00000880	£1.44	£1.73
101 - KNOB PM4631/PM4817/PLM5113N MSP-DA00000564.A5 DA00000564	£1.44	£1.73
102 - HEXAGON NUT PLM4631N/PLM4817 MSP-DA00000563.A7 DA00000563	£1.44	£1.73
104 - HEXAGON NUT PLM4631N/PLM4817 MSP-DA00000563.A8 DA00000563	£1.44	£1.73
113 - LID SHAPE NUT PLM4631N/PLM4817 MSP-DA00000575.A4 DA00000575	£1.44	£1.73
121 - LID SHAPE NUT PLM4631N/PLM4817 MSP-DA00000575.A7 DA00000575	£1.44	£1.73
123 - CORD FIXING BLOCK PLM4817 MSP-DA00000573.A1 DA00000573	£1.44	£1.73
130 - VARIABLE SPEED ADJUSTMENT HAND MSP-DA00000869 DA00000869	£1.44	£1.73
133 - BOLT PLM5600/PLM4817/PLM4626N MSP-DA00000572.A1 DA00000572	£1.44	£1.73
140 - LID SHAPE NUT PLM4631N/PLM4817 MSP-DA00000575.A1 DA00000575	£1.44	£1.73

Attribute Name	Value
Brand	Makita
