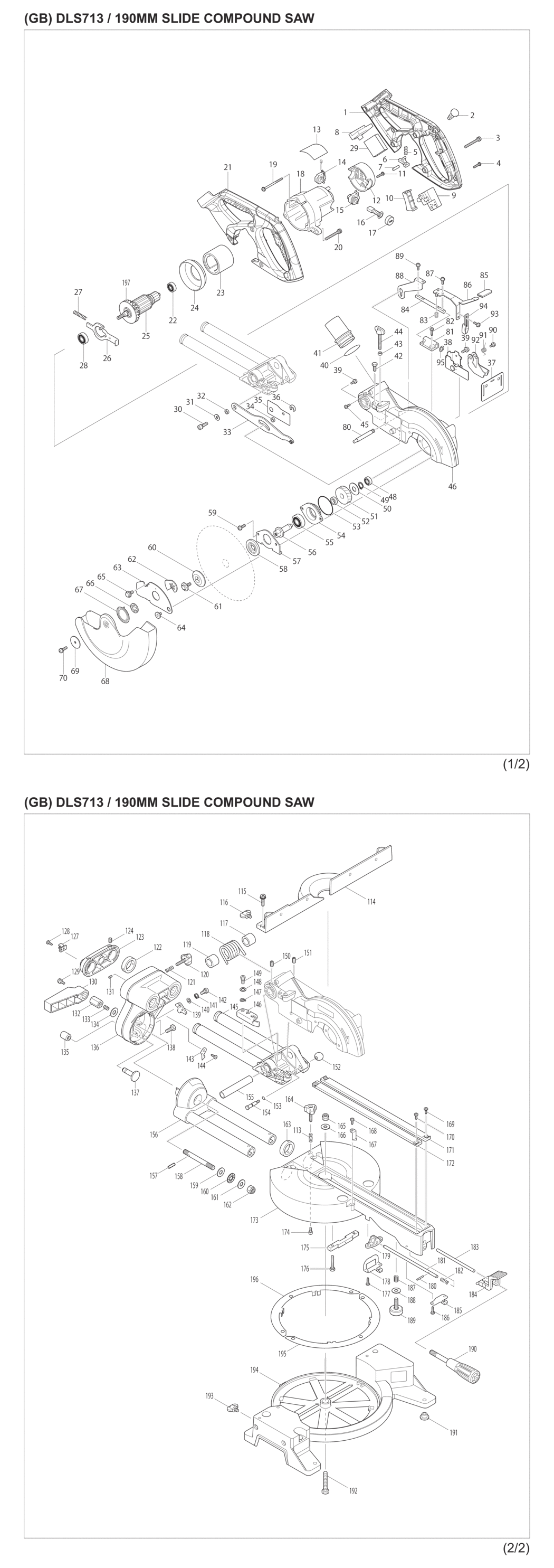

An exploded drawing and spare parts listing for the Makita DLS713RME Cordless Slide Compound Miter Saw
Ex VAT Inc VAT
1 - HANDLE SET BLS713 MSP-188961-5.A2 188961-5 £62.04 £74.45
2 - SWITCH BUTTON 2414B/NB/BLS713 MSP-417113-4.A4 417113-4 £1.44 £1.73
3 - PAN HD SCREW M 5X45 W/CP WASH MSP-911268-2.A14 911268-2 £1.44 £1.73
4 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A163 265995-6 £1.44 £1.73
5 - COMPRESSION SPRING 4 8402D MSP-231026-3.A2 231026-3 £1.44 £1.73
6 - LOCK OFF LEVER LS800D/BLS820 MSP-416533-9.A3 416533-9 £1.44 £1.73
7 - PIN 5 BLS710/HR1800/BUC250 MSP-256123-4.A3 256123-4 £1.44 £1.73
8 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A9 644808-8 £4.28 £5.14
9 - SWITCH TG72BD BUC122/BSS501 MSP-651956-6.A5 651956-6 £14.51 £17.41
10 - SWITCH LEVER BLS713 MSP-452130-7.A0 452130-7 £5.78 £6.93
11 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A164 265995-6 £1.44 £1.73
12 - REAR COVER 5621RD/LS800D/BSR7 MSP-416639-3.A1 416639-3 £3.28 £3.93
14 - BRUSH HOLDER SET BLS713 MSP-643864-5.A0 643864-5 £6.55 £7.86
15 - BRUSH HOLDER BLS713 MSP-643863-7.A2 643863-7 £6.55 £7.86
16 - CARBON BRUSH CB-441 MSP-194435-6.A5 194435-6 £6.40 £7.68
17 - HOLDER CAP BHS630/5621RD/LS80 MSP-643941-3.A31 643941-3 £2.58 £3.09
18 - MOTOR HOUSING LS800D/BLS820 MSP-416909-0.A0 416909-0 £17.13 £20.56
19 - PT SCREW 4X60 W. CAPTIVE MSP-266209-6.A3 266209-6 £1.44 £1.73
20 - PAN HD SCREW M 5X45 W/CP WASH MSP-911268-2.A15 911268-2 £1.44 £1.73
21 - HANDLE SET BLS713 MSP-188961-5.A3 188961-5 £62.04 £74.45
22 - BALL BEARING 627DDW MSP-210023-2.A46 210023-2 £3.59 £4.31
22-1 - BALL BEARING 627DDW BSS611 MSP-210045-2.A1 210045-2 £3.87 £4.64
23 - YOKE UNIT 5621RD/LS800DWB/BHR MSP-632828-4.A20 632828-4 £25.20 £30.24
24 - BAFFLE PLATE LS800D/BSR730S MSP-416907-4.A1 416907-4 £1.44 £1.73
25 - ARMATURE ASSY 18V BL713 MSP-519269-0.A1 519269-0 £40.03 £48.04
26 - SHAFT LOCK BHS630/5621RD/LS80 MSP-344681-3.A1 344681-3 £2.65 £3.18
27 - COMPRESSION SPRING 5 LS800DWB MSP-233092-6.A3 233092-6 £1.44 £1.73
28 - BALL BEARING 6000DDW MSP-211088-7.A9 211088-7 £5.92 £7.11
29 - CONTROLLER BLS713/LXSL01 MSP-620263-8.A1 620263-8 £39.46 £47.35
30 - CAP HD SCREW M6X20 HM1800/181 MSP-922331-6.A20 922331-6 £1.44 £1.73
31 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A57 253804-1 £1.44 £1.73
32 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A17 257461-7 £1.66 £1.99
33 - LINK PLATE DLS714/FL/LS0 MSP-154643-1.A4 154643-1 £15.62 £18.75
34 - *RING 6 LS1013/LS800D/BLS820 MSP-257461-7.A18 257461-7 £1.66 £1.99
35 - LINK COVER BLS713/DLS714 MSP-346330-8.A2 346330-8 £1.44 £1.73
36 - EXT E-RING JIS JE-5 DLS714 MSP-961018-5.A59 961018-5 £1.64 £1.97
37 - GUARD LS0714/DLS714 MSP-421626-9.A3 421626-9 £1.88 £2.25
38 - GUARD PLATE CO LS0714.BLS713 MSP-165414-1.A2 165414-1 £3.52 £4.23
39 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A54 911113-1 £1.44 £1.73
40 - O RING 35 HM1303B/LS800DWB/HR MSP-213460-9.A1 213460-9 £2.18 £2.62
41 - DUST NOZZLE LS1013/LS800D/BLS8 MSP-419277-0.A11 419277-0 £2.82 £3.39
42 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266757-5.A7 266757-5 £1.44 £1.73
43 - URETHANE RING 5 TW0250/6905B MSP-262190-9.A15 262190-9 £1.44 £1.73
44 - WING SCREW M6X43 LS1013/DLS7 MSP-265717-4.A10 265717-4 £2.50 £3.00
45 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A53 266026-4 £1.44 £1.73
46-1 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A420 263002-9 £1.44 £1.73
46 - RUBBER PIN 4 GA7050/9050/5021 MSP-263002-9.A447 263002-9 £1.44 £1.73
46-1 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A200 263005-3 £1.44 £1.73
46-1 - BLADE CASE DLS714/BLS713 MSP-143350-1.A1 143350-1 £130.32 £156.38
46 - LABEL/CAUTION LS1230LS800DW MSP-810968-0.A6 810968-0 £1.44 £1.73
46 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A201 263005-3 £1.44 £1.73
48 - BALL BEARING HP1631/607LLB/43 MSP-211021-9.A3 211021-9 £8.42 £10.11
49 - EXT DIN 471 CIRCLIP-12 EM2651 MSP-961052-5.A158 961052-5 £1.44 £1.73
50 - LARGE WASHER 12 5012B MSP-253813-0.A1 253813-0 £1.44 £1.73
51 - HELICAL GEAR LS800D/BSR730S MSP-226512-7.A2 226512-7 £10.14 £12.17
52 - RING 12 LS800DW/DD2011/BLS82 MSP-257011-8.A0 257011-8 £1.44 £1.73
53 - O RING 46 LF1000/DLS714 MSP-213623-7.A3 213623-7 £1.44 £1.73
54 - BEARING BOX BLS820/DLS714 MSP-317193-9.A1 317193-9 £8.58 £10.30
55 - BALL BEARING 6201DDW BPJ140/8 MSP-211129-9.A101 211129-9 £10.14 £12.17
56 - SPINDLE LS820/713/DLS714 MSP-323798-5.A3 323798-5 £14.35 £17.22
57 - BEARING RETAINER DLS714/BLS71 MSP-285736-4.A1 285736-4 £2.02 £2.43
58 - INNER FLANGE 40 MT582/5704R MSP-224370-5.A2 224370-5 £5.46 £6.55
59 - PAN HD SCREW 5X16 W/CP/DLS714 MSP-911223-4.A12 911223-4 £1.44 £1.73
60 - OUTER FLANGE 40 MT582/5704R MSP-224275-9.A3 224275-9 £11.08 £13.29
61 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266733-9.A2 266733-9 £2.45 £2.94
62 - CENTRE PLATE LS800D/BLS820/L MSP-345585-2.A3 345585-2 £2.34 £2.81
63 - CENTRE COVER BLS713/DLS714 MSP-346232-8.A1 346232-8 £9.98 £11.98
64 - PIVOT SCREW M6 DLS/LS/DLS110 MSP-265985-9.A13 265985-9 £3.28 £3.93
65 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266732-1.A4 266732-1 £1.44 £1.73
66 - CENTRE WASHER LS0713/DLS714 MSP-345589-4.A5 345589-4 £2.48 £2.97
67 - SPIRAL SPRING 24 LS800DWB/M24 MSP-231934-8.A1 231934-8 £3.59 £4.31
68 - SAFETY COVER BLS713/DLS714 MSP-453298-2.A1 453298-2 £34.28 £41.13
69 - LARGE WASHER 5 LS800D/DLS714 MSP-267136-0.A1 267136-0 £1.44 £1.73
70-1 - HEX SOCKET HD BOLT M5X16 DA40 MSP-265491-4.A2 265491-4 £1.66 £1.99
80 - LOCK PIN LS0714/FL/DLS714 MSP-324455-8.A2 324455-8 £2.81 £3.37
81 - ROD HOLDER BLS713/DLS714 MSP-452134-9.A2 452134-9 £5.92 £7.11
82 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A117 266034-5 £1.44 £1.73
83 - COMPRESSION SPRING 7/DLS714 MSP-231316-4.A13 231316-4 £1.44 £1.73
84 - ROD 8 BLS713/DLS714 MSP-325980-2.A1 325980-2 £2.18 £2.62
85 - CAP LS1013/LS800D/BLS820/LS10 MSP-421589-9.A3 421589-9 £1.44 £1.73
86 - LOCK LEVER BLS713/DLS714 MSP-346320-1.A2 346320-1 £4.06 £4.87
87 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A82 911113-1 £1.44 £1.73
88 - LOCK PLATE BLS713/DLS714 MSP-346322-7.A2 346322-7 £1.44 £1.73
89 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A81 911113-1 £1.44 £1.73
90 - PAN HD SCREW M4X10/DLS714 MSP-911114-9.A13 911114-9 £1.44 £1.73
91 - TORSION SPRING LS0714/DLS714 MSP-231690-0.A3 231690-0 £1.44 £1.73
92 - GUARD LS0714/DLS714 MSP-346550-4.A4 346550-4 £2.40 £2.88
93 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A80 911113-1 £1.44 £1.73
94 - SUB LEVER BLS713/DLS714 MSP-346321-9.A1 346321-9 £1.44 £1.73
95 - THIN WASHER 8 HR5212C/UC3530A MSP-253215-0.A26 253215-0 £1.44 £1.73
113 - COMPRESSION SPRING 6 LS0714/F MSP-231325-3.A15 231325-3 £1.59 £1.91
114-1 - GUIDE FENCE BLS713/DLS713/DLS MSP-319193-5.A1 319193-5 £41.98 £50.37
115 - HEX HD BOLT M6X25 DLS714/LS07 MSP-922344-7.A3 922344-7 £1.44 £1.73
116 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A63 251887-5 £2.34 £2.81
117 - SLEEVE 17 LS0714/FL/DLS714 MSP-416535-5.A8 416535-5 £1.44 £1.73
118 - TORSION SPRING 28 LS0714/FL MSP-231638-2.A3 231638-2 £6.08 £7.30
119 - SLEEVE 17 LS0714/FL/DLS714 MSP-416535-5.A9 416535-5 £1.44 £1.73
120 - THUMB SCREW M6X28/DLS714 MSP-265790-4.A0 265790-4 £1.44 £1.73
121 - COMPRESSION SPRING 6 LS0714/F MSP-231325-3.A16 231325-3 £1.59 £1.91
122 - RING 26 DLS714/FL BFL713/LS0 MSP-257214-4.A9 257214-4 £9.20 £11.04
123 - PIPE HOLDER BLS713/DLS714 MSP-318651-8.A2 318651-8 £11.70 £14.04
124 - HSS BOLT M6X8 BHS630/LS0714/ MSP-266208-8.A10 266208-8 £1.44 £1.73
127 - CORD CLAMP DLS714/BLS713/LS71 MSP-687045-1.A2 687045-1 £1.44 £1.73
128 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A22 266026-4 £1.44 £1.73
129 - PAN HEAD SCREW M4X10 DLS714 MSP-911113-1.A79 911113-1 £1.44 £1.73
130 - LEVER 100 LS1013/LS800D/BLS82 MSP-416006-2.A3 416006-2 £5.82 £6.99
131 - CUP POINT GRUB-SCREW M4X8/DLS MSP-913106-4.A2 913106-4 £1.44 £1.73
132 - HEX NUT M10-17 LS1013/LS800DW MSP-252144-4.A8 252144-4 £4.68 £5.62
133 - COMPRESSION SPRING 5/DLS714 MSP-231266-3.A6 231266-3 £1.44 £1.73
134 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A10 253024-7 £1.44 £1.73
135 - CAP 16 LC1230/DLS714 MSP-286236-7.A3 286236-7 £1.44 £1.73
136 - ARM BLS713/DLS714 MSP-140609-7.A1 140609-7 £117.18 £140.62
136 - CAP LS0714/FL/DLS714 MSP-344638-4.A9 344638-4 £1.44 £1.73
136 - LINEAR BALL BEARING 2560 LS0 MSP-211376-2.A5 211376-2 £29.38 £35.25
136 - FELT RING 25 DLS714/FL/LS714 MSP-262077-5.A0 262077-5 £2.18 £2.62
136 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A76 263005-3 £1.44 £1.73
137 - RELEASE PIN LS0714/FL BLS71 MSP-324295-4.A2 324295-4 £2.34 £2.81
138 - HEX HD BOLT M6X16 DLS714/LS07 MSP-266757-5.A11 266757-5 £1.44 £1.73
139 - STOPPER PLATE DLS714/FL/LS07 MSP-345299-3.A2 345299-3 £1.44 £1.73
140 - HARD WASHER 6 JV2000/BFL080/1 MSP-253726-5.A2 253726-5 £1.44 £1.73
141 - TORSION SPRING 8 LS0714/FL MSP-231663-3.A4 231663-3 £1.44 £1.73
142 - PAN HEAD SCREW M5 LS0714/FL MSP-265113-6.A0 265113-6 £1.44 £1.73
143 - POINTER LS0714/FL/DLS714 MSP-343678-9.A2 343678-9 £1.44 £1.73
144 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A21 266026-4 £1.44 £1.73
145 - FONT ARM BLS713/DLS714 MSP-140608-9.A2 140608-9 £94.25 £113.10
146 - STOPPER ARM DLS714/LS0714/FL MSP-344643-1.A2 344643-1 £1.44 £1.73
147 - WAVE WASHER 8 UM140DST/DLS714 MSP-253948-7.A13 253948-7 £1.44 £1.73
148 - FLAT WASHER 8 GA5020/GA5021 MSP-253835-0.A34 253835-0 £1.44 £1.73
149 - PAN HD SHOULDER SCREW M6 2400 MSP-251267-5.A5 251267-5 £1.44 £1.73
150 - SOCKET FLAT GRUB SCREW M6X10 MSP-251961-9.A22 251961-9 £1.44 £1.73
151 - SOCKET FLAT GRUB SCREW M6X10 MSP-251961-9.A27 251961-9 £1.44 £1.73
152 - KNOB 20 LS1030/LS800D/BLS820 MSP-271601-3.A16 271601-3 £2.04 £2.45
153 - O RING 5 BTM40/50/620/711/DLS MSP-213021-5.A5 213021-5 £1.44 £1.73
154 - STOPPER PIN LS1013/DLS714 MSP-324183-5.A0 324183-5 £2.40 £2.88
155 - PIN 16-90 LS1030/DLS714 MSP-331350-5.A1 331350-5 £6.40 £7.68
156 - LABEL/BEVEL SCALE LS0714FL MSP-816392-5.A4 816392-5 £1.44 £1.73
156 - ARM HOLDER BLS713/DLS714 MSP-140610-2.A2 140610-2 £88.58 £106.29
157 - PIN 5 BLS710/HR1800/BUC250 MSP-256123-4.A0 256123-4 £1.44 £1.73
158 - SCREW M10 LS0714/FL BLS713 MSP-266320-4.A4 266320-4 £4.37 £5.24
159 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A12 253024-7 £1.44 £1.73
160 - THRUST NEEDLE GAUGE 1023/LF10 MSP-216413-7.A0 216413-7 £2.34 £2.81
161 - FLAT WASHER 10 LS1013/LF1000 MSP-253024-7.A11 253024-7 £1.44 £1.73
162 - NYLON INSERT NUT M10X17 2414B MSP-252130-5.A3 252130-5 £1.44 £1.73
163 - RING 26 DLS714/FL BFL713/LS0 MSP-257214-4.A8 257214-4 £9.20 £11.04
164 - THUMB SCREW M6X28/DLS714 MSP-265790-4.A1 265790-4 £1.44 £1.73
165 - NYLON INSERT NUT M8-13 LS800D MSP-252105-4.A4 252105-4 £1.44 £1.73
166 - HARD WASHER 8 LS800D/DLS714 MSP-253731-2.A17 253731-2 £1.44 £1.73
167 - INDICATION PLATE LS800D/BLS8 MSP-416355-7.A0 416355-7 £1.44 £1.73
168 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A203 266026-4 £1.44 £1.73
169 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A206 266026-4 £1.44 £1.73
170 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A216 266026-4 £1.44 £1.73
171 - KERF BOARD BLS713/DLS714 MSP-419103-3.A0 419103-3 £2.57 £3.08
172 - KERF BOARD BLS713/DLS714 MSP-419103-3.A7 419103-3 £2.57 £3.08
173 - CAP LS0714/FL/DLS714 MSP-344638-4.A10 344638-4 £1.44 £1.73
173 - LABEL/CAUTION LC1216 MSP-810495-7.A2 810495-7 £1.44 £1.73
173 - LABEL/CAUTION LS1013BLS820 MSP-817283-3.A17 817283-3 £1.44 £1.73
173 - FELT RING 25 DLS714/FL/LS714 MSP-262077-5.A1 262077-5 £2.18 £2.62
173 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A75 263005-3 £1.44 £1.73
173 - TURN BASE BLS713/DLS714 MSP-140614-4.A2 140614-4 £140.04 £168.05
173 - LINEAR BALL BEARING 2560 LS0 MSP-211376-2.A4 211376-2 £29.38 £35.25
174 - HEX SOCKET HEAD BOLT M4X10 90 MSP-922111-0.A7 922111-0 £1.44 £1.73
175 - SQUARE ROD DLS714/FL/LS0 MSP-153580-6.A2 153580-6 £12.32 £14.79
175 - RUBBER PIN 6 DUR/DHR/DTW/DG MSP-263005-3.A74 263005-3 £1.44 £1.73
176 - HEX BOLT M5X30 DLS714/FL/DLS7 MSP-925251-3.A4 925251-3 £1.44 £1.73
177 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A119 266034-5 £1.44 £1.73
178 - LOCK PLATE LS800D/BLS820/DLS7 MSP-344601-7.A2 344601-7 £1.44 £1.73
179 - PIN HOLDER LS0714/FL/DLS714 MSP-317616-7.A4 317616-7 £8.73 £10.48
180 - PIN 3 BCV01/6835DWA/BLS820/JR MSP-256158-5.A32 256158-5 £1.44 £1.73
181 - LOCK PIN LS0714/FL/DLS714 MSP-324288-1.A2 324288-1 £3.59 £4.31
182 - COMPRESSION SPRING 6 LS0714/F MSP-231325-3.A14 231325-3 £1.59 £1.91
183 - ROD 6 LS0714/FL/DLS714 MSP-324289-9.A2 324289-9 £2.08 £2.49
184 - LOCK LEVER LS800D/BLS820/DLS7 MSP-416450-3.A2 416450-3 £3.65 £4.38
185 - LOCK LEVER PLATE LS0714/FL MSP-345272-3.A6 345272-3 £2.08 £2.50
186 - CT SCREW M4X16 HS6100/DLS714 MSP-266034-5.A120 266034-5 £1.44 £1.73
187 - COMPRESSION SPRING 9 LC1230 MSP-231418-6.A3 231418-6 £1.44 £1.73
188 - HARD WASHER 8 LS800D/DLS714 MSP-253731-2.A18 253731-2 £1.44 £1.73
189 - ADJUST BOLT M8X27 LS0714/FL MSP-266432-3.A2 266432-3 £2.18 £2.62
190 - GRIP 32 BLS713/DLS714 MSP-273658-0.A0 273658-0 £8.72 £10.47
191 - CAP 20 LS1030/LC1230/LS800DWB MSP-286212-1.A18 286212-1 £1.44 £1.73
192 - HEX BOLT M8X50 UM401DW/DLS714 MSP-921472-5.A0 921472-5 £1.44 £1.73
193 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A60 251887-5 £2.34 £2.81
194 - LABEL/CAUTION LC1216/ LS1019&L MSP-810486-8.A9 810486-8 £1.44 £1.73
194 - BASE BLS713/DLS714 MSP-140612-8.A1 140612-8 £104.20 £125.04
194 - MITER SCALE PLATE LS0714/FL MSP-816339-9.A2 816339-9 £4.68 £5.62
195 - SLIDE PLATE LS800D/BLS820 MSP-344646-5.A2 344646-5 £2.50 £3.00
196 - SLIDE PLATE LS800D/BLS820 MSP-344646-5.A7 344646-5 £2.50 £3.00
197 - FAN DP4003 MSP-241873-4.A2 241873-4 £2.65 £3.18
A01 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A87 253804-1 £1.44 £1.73
A01 - PAN HD SHOULDER SCREW M5 LS80 MSP-251370-2.A4 251370-2 £1.44 £1.73
A01 - VISE ARM LS1030/LS800D/BLS82 MSP-316938-2.A7 316938-2 £25.20 £30.24
A01 - VISE ROD LS1030/LS800D/BLS820 MSP-322313-2.A8 322313-2 £8.73 £10.48
A01 - VICE ASSY LS800D/BLS820/DLS714 MSP-122571-8.A0 122571-8 £11.36 £13.63
A01 - THUMB SCREW M16X60 LS800D/BL MSP-265733-6.A0 265733-6 £6.40 £7.68
A01 - VISE PLATE LS1030/LS800D/BLS8 MSP-343651-9.A16 343651-9 £1.44 £1.73
A01 - WING SCREW M6X10 LS800D/LS121 MSP-251887-5.A61 251887-5 £2.34 £2.81
A02 - DUST BAG ASSY LS1019/LS1019L MSP-122852-0.A5 122852-0 £8.32 £9.99
A02 - FASTENER PJ7000/KP0810C/KP0810 MSP-410602-8.A2 410602-8 £1.66 £1.99
A03 - TRIANGLE LS1019/2030/LF1000 MSP-762001-3.A24 762001-3 £1.20 £1.44
A04 - HOLDER DLS714 MSP-322312-4.A1 322312-4 £9.98 £11.98
A05 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A55 783203-8 £1.20 £1.44
A06 - TCT BLADE 190X20X40T BLS713 MSP-A-86147.A1 A-86147 £40.56 £48.67
A07 - DC18RC COMPACT CHARGER MSP-***DC18RC.A23 ***DC18RC -
A08-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A35 197265-4 £173.82 £208.58
A09 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A100 450128-8 £1.20 £1.44
E01 - SUB FENCE BLS713/DLS713 MSP-142811-8.A2 142811-8 £22.18 £26.61
E02 - NYLON INSERT NUT M6-10 LS1013 MSP-252014-7.A15 252014-7 £1.44 £1.73
E03 - CT SCREW M4X8 JN1601/DLS714 MSP-266061-2.A8 266061-2 £1.44 £1.73
E04 - SUB FENCE PLATE LS0714/BLS713 MSP-345359-1.A3 345359-1 £1.44 £1.73
E05 - COUNTERSUNK SCREW M6X35 MSP-912357-6.A7 912357-6 £1.44 £1.73
E06 - BLUE WASHER 6 CS DST112/DLS71 MSP-253804-1.A88 253804-1 £1.44 £1.73

Recently Viewed


x
Powered by kartris
