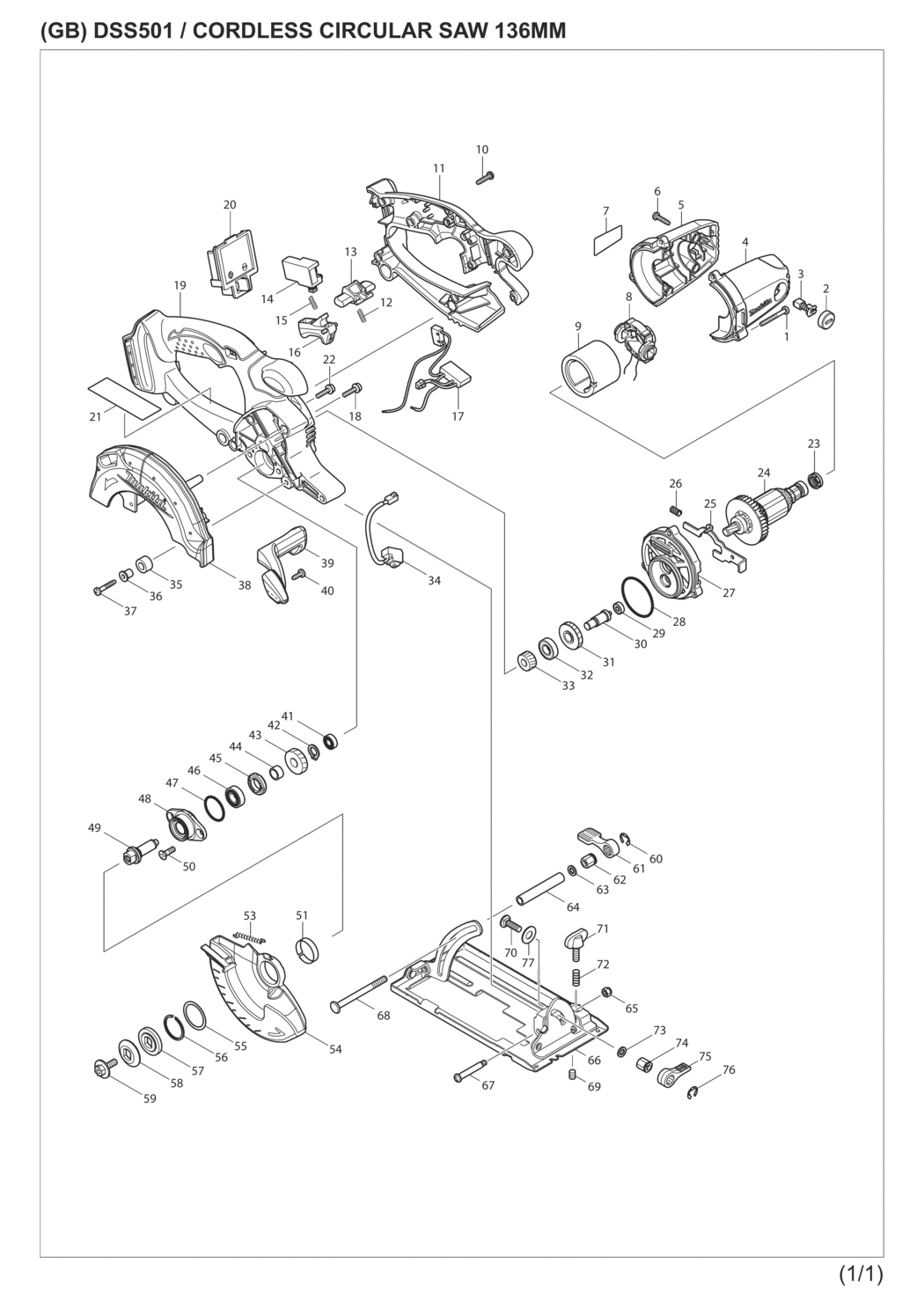

An exploded drawing and spare parts listing for the Makita DSS501RMJ Cordless Circular Saw
Ex VAT Inc VAT
1 - PT SCREW 4X35 VC3211M/BSS501 MSP-266053-1.A31 266053-1 £1.44 £1.73
2 - HOLDER CAP 6347D/BSS500/BSS50 MSP-643807-7.A4 643807-7 £1.54 £1.85
3 - CARBON BRUSH SET CB-430 MSP-191971-3.A44 191971-3 £5.78 £6.93
4 - HOUSING SET BCS550/BSS500/501 MSP-188209-5.A6 188209-5 £11.86 £14.23
5 - HOUSING SET BCS550/BSS500/501 MSP-188209-5.A9 188209-5 £11.86 £14.23
6 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A965 265995-6 £1.44 £1.73
7 - NAME PLATE DSS501 MSP-815T90-8.A2 815T90-8 £1.44 £1.73
8 - ENDBELL BCS550/BSS500/50 MSP-638925-4.A0 638925-4 £4.52 £5.43
9 - YOKE UNIT DPB180/CS550/BSS500 MSP-638420-4.A4 638420-4 £30.96 £37.15
10 - PT SCREW 4X18 UH4570/55/65/55 MSP-265995-6.A964 265995-6 £1.44 £1.73
11 - *HANDLE L BCS550/BSS500/BSS501 MSP-453426-9.A4 453426-9 £21.60 £25.92
12 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A44 231469-9 £1.44 £1.73
13 - LOCK OFF LEVER BCS550/DKP180 MSP-419664-3.A30 419664-3 £1.44 £1.73
14 - SWITCH TG72BD BUC122/BSS501 MSP-651956-6.A3 651956-6 £14.51 £17.41
15 - COMPRESSION SPRING 4/PM7651H MSP-231469-9.A45 231469-9 £1.44 £1.73
16 - SWITCH LEVER BHS630/DCS550/DK MSP-419665-1.A2 419665-1 £1.44 £1.73
18 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A9 911133-5 £1.44 £1.73
19 - *HANDLE R BCS550/BSS501 MSP-453154-6.A3 453154-6 £25.06 £30.07
20 - TERMINAL DUR182/DHR165/DKP180 MSP-644808-8.A77 644808-8 £4.28 £5.14
22 - PAN HD SCREW M4X18 KP0810C MSP-911133-5.A8 911133-5 £1.44 £1.73
23 - RUBBER RING 13 BPJ140/BPJ180 MSP-421977-0.A17 421977-0 £1.44 £1.73
24 - ARMATURE DSS501 MSP-619202-3.A1 619202-3 £23.48 £28.17
25 - SHAFT LOCK DCS550/BSS500/501 MSP-345643-4.A0 345643-4 £1.44 £1.73
26 - COMPRESSION SPRING 6 BHS630/P MSP-233117-6.A15 233117-6 £1.44 £1.73
27 - GEAR HOUSING BCS550/BSS500/50 MSP-419656-2.A2 419656-2 £3.90 £4.68
28 - O RING 44 HS6100/7100/BSS500 MSP-213560-5.A2 213560-5 £1.44 £1.73
29 - BALL BEARING 604ZZ CC300D/BCS MSP-210036-3.A10 210036-3 £3.74 £4.49
30 - GEAR SHAFT BCS550/BSS500/501 MSP-324729-7.A4 324729-7 £1.44 £1.73
31 - HELICAL GEAR 35 BSS500/BSS501 MSP-226643-2.A4 226643-2 £4.99 £5.99
32 - BALL BEARING 6900ZZ BCS550 MSP-210080-0.A0 210080-0 £6.08 £7.30
33 - HELICAL GEAR 15 BCS550/BSS500 MSP-226635-1.A5 226635-1 £5.46 £6.55
34 - LED CIRCUIT BCS550/BSS500-501 MSP-631550-0.A6 631550-0 £10.14 £12.17
35 - RUBBER SLEEVE 6 BCS550/BSS500 MSP-262566-0.A3 262566-0 £1.44 £1.73
36 - SLEEVE 4 DCS550/BSS500/BSS501 MSP-262563-6.A4 262563-6 £1.44 £1.73
37 - PT SCREW 4X25 VC3211M/BSS500 MSP-265999-8.A14 265999-8 £1.44 £1.73
38 - BLADE CASE BSS500/501 MSP-318152-6.A1 318152-6 £11.39 £13.67
39 - BLOWER NOZZLE BSS500/501 MSP-419935-8.A3 419935-8 £2.81 £3.37
40 - CT SCREW M4X12 UC3530A/KP0810 MSP-266026-4.A128 266026-4 £1.44 £1.73
41 - BALL BEARING 696ZZ GA4541/BU MSP-210006-2.A24 210006-2 £3.28 £3.93
42 - EXT DIN 471 CIRCLIP-10 KP0810 MSP-961006-2.A32 961006-2 £1.44 £1.73
43 - HELICAL GEAR 23 BCS550/BSS500 MSP-226640-8.A0 226640-8 £5.46 £6.55
44 - SLEEVE 10 DCS550/BSS500/BSS50 MSP-257760-7.A4 257760-7 £1.44 £1.73
45 - BEARING RETAINER 14-23 BHS630 MSP-285847-5.A17 285847-5 £4.68 £5.62
46 - BALL BEARING 6900DDW BHS630 MSP-210069-8.A2 210069-8 £6.55 £7.86
47 - O RING 26 CC300D/HR3000/BSS50 MSP-213435-8.A11 213435-8 £1.44 £1.73
48 - BEARING BOX BCS550/BSS500-501 MSP-318087-1.A4 318087-1 £3.59 £4.31
49 - SPINDLE DCS550/DCS500/BSS501 MSP-324730-2.A2 324730-2 £3.59 £4.31
50 - COUNTERSUNK HD SCREW M5X16 MSP-265034-2.A16 265034-2 £1.44 £1.73
51 - THICKNESS RING BHS630/DCS550 MSP-345470-9.A1 345470-9 £1.44 £1.73
53 - TENSION SPRING 4 BSS500/501 MSP-231835-0.A2 231835-0 £2.18 £2.62
54 - SAFETY COVER BSS500/501 MSP-419933-2.A1 419933-2 £4.52 £5.43
55 - NARROW BLUE WASHER 26 BHS630 MSP-267127-1.A9 267127-1 £1.44 £1.73
56 - RETAINING RING WR-26 (EXT) MSP-257938-2.A4 257938-2 £1.44 £1.73
57 - INNER FLANGE 30 BCS550/BSS500 MSP-224391-7.A2 224391-7 £1.44 £1.73
58 - OUTER FLANGE 30 BCS550/BSS500 MSP-224404-4.A5 224404-4 £3.28 £3.93
59 - HEX SOCKET HD BOLT M6X18 BHS6 MSP-266458-5.A7 266458-5 £1.44 £1.73
60 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A36 961014-3 £1.44 £1.73
61 - LEVER 40 BSS500/BSS501/3901/ MSP-272229-0.A10 272229-0 £4.52 £5.43
62 - HEX NUT M6 BPJ140/180/BSS500/ MSP-252159-1.A22 252159-1 £2.34 £2.81
63 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A33 941151-9 £1.44 £1.73
64 - PIPE 6 BCS550/BSS500/BSS501 MSP-331733-9.A2 331733-9 £1.44 £1.73
65 - HEX LOCK NUT M5-8 BO3710/3711 MSP-252103-8.A4 252103-8 £1.58 £1.89
66 - BASE BSS500/501 MSP-158252-8.A3 158252-8 £21.89 £26.27
67 - SHOULDER SCREW M5 CC300D/BSS5 MSP-265056-2.A22 265056-2 £1.44 £1.73
68 - FLAT H SQ NECK BOLT M6X75 BCS MSP-266405-6.A2 266405-6 £1.44 £1.73
69 - HEX SOCKET HEAD SET BSS500/50 MSP-266225-8.A1 266225-8 £1.44 £1.73
70 - SQ NECK SETSCREW M6X20 BCS550 MSP-251919-8.A2 251919-8 £1.66 £1.99
71 - WING SCREW M5X20 BSS500/8406C MSP-251896-4.A24 251896-4 £2.34 £2.81
72 - COMPRESSION SPRING 6 BCS500 MSP-231007-7.A16 231007-7 £1.44 £1.73
73 - FLAT WASHER 6 DIN125-B BHS630 MSP-941151-9.A32 941151-9 £1.44 £1.73
74 - SPECIAL HEX NUT M6-10 3901 MSP-252133-9.A6 252133-9 £4.06 £4.87
75 - LEVER 30 BSS500/BSS501/BSS61 MSP-272251-7.A0 272251-7 £1.97 £2.36
76 - EXT E-RING JIS JE-8 BPJ140/18 MSP-961014-3.A37 961014-3 £1.44 £1.73
77 - FLAT WASHER 9 BSS500-501/2450 MSP-267231-6.A15 267231-6 £1.44 £1.73
78 - CONTROLLER BSS500/BSS501/BCS5 MSP-620260-4.A6 620260-4 £41.62 £49.94
A01 - GUIDE RULE BHS630/BSS500/BSS50 MSP-164095-8.A29 164095-8 £4.20 £5.04
A02 - DUST NOZZLE SET DSS500/501 MSP-194415-2.A3 194415-2 £2.01 £2.41
A02 - PAN HEAD SCREW M4X16 BHX2501 MSP-911128-8.A6 911128-8 £1.44 £1.73
A03 - DC18RC COMPACT CHARGER MSP-***DC18RC.A206 ***DC18RC -
A04-2 - BATTERY BL1840B/DGA508/DTW285 MSP-197265-4.A52 197265-4 £173.82 £208.58
A05 - HEX WRENCH 5 BHS630/PC5000/01C MSP-783203-8.A29 783203-8 £1.20 £1.44
A06 - STACKING CASE TYPE 3 210MM MSP-821551-8.A28 821551-8 £39.40 £47.28
A06 - LATCH FOR STACKING CASE MACPA MSP-453974-8.A88 453974-8 £1.71 £2.05
A07 - MAKPAC TRAY TYPE 3 DSS500/501 MSP-837628-9.A1 837628-9 £7.34 £8.81
A08 - TCT BLADE CCC13616E BSS500/501 MSP-B-10643.A3 B-10643 £28.20 £33.84
A09 - BATTERY COVER BDG800/DTW251 MSP-450128-8.A206 450128-8 £1.20 £1.44
E01 - LINE FILTER VC3211M/TD0101F MSP-688131-1.A52 688131-1 £1.44 £1.73
E02 - LINE FILTER BTD/DTM51/DVC861L MSP-688161-2.A83 688161-2 £1.44 £1.73
