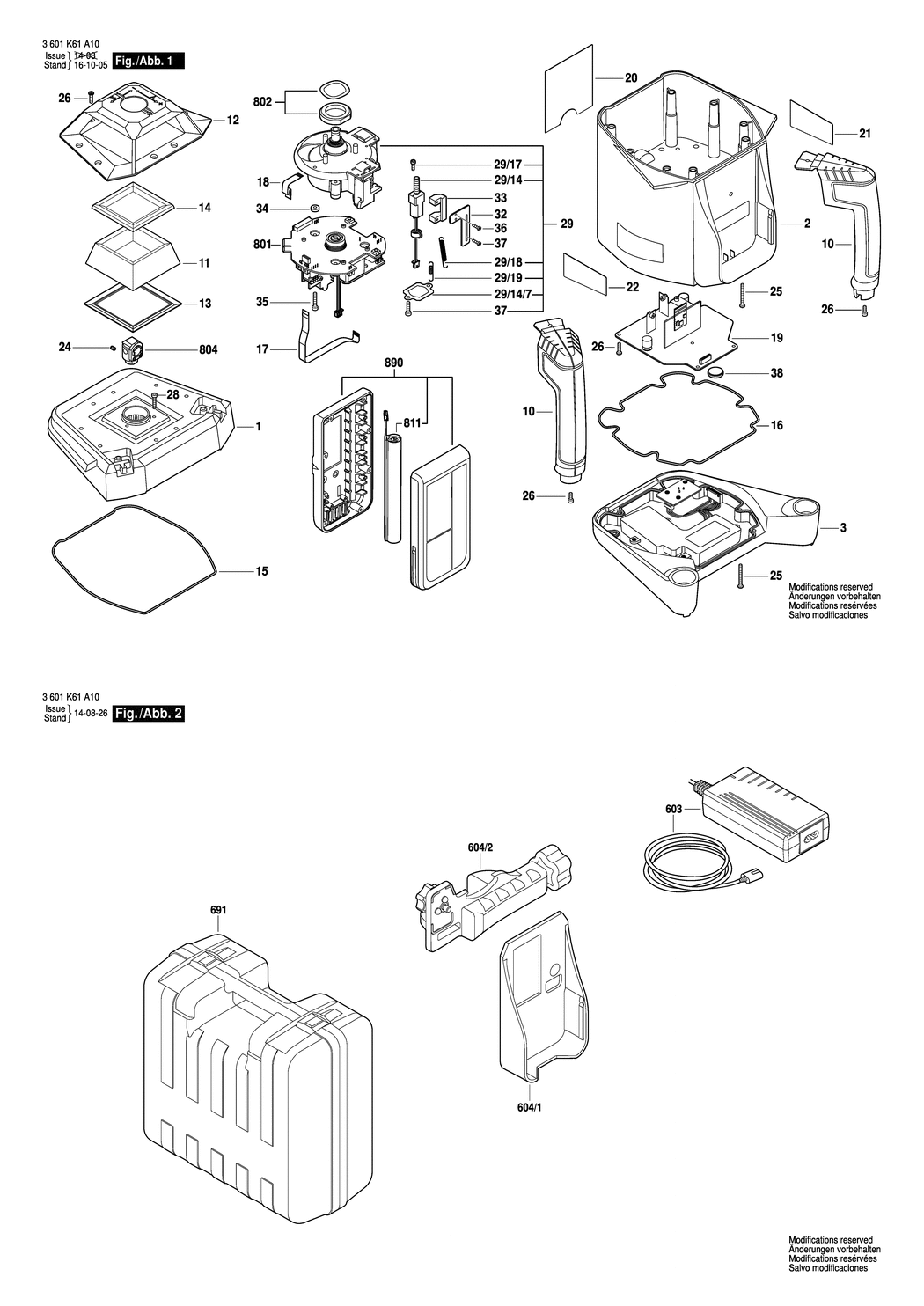

An exploded drawing and listing for the Bosch GRL 500 H / 3601K61B40 / ---
Ex VAT Inc VAT
1 - UPPER HOUSING BSD-2610A15836.A1 2610A15836 £14.91 £17.89
2 - HOUSING ASSEMBLY BSD-2610A16109.A2 2610A16109 £135.25 £162.30
3 - HOUSING ASSEMBLY BSD-2610A15840.A2 2610A15840 £156.22 £187.46
10 - HANDLE BSD-2610A15846.A1 2610A15846 £9.49 £11.39
11 - WINDOW BSD-2610A14201.A1 2610A14201 £37.72 £45.27
12 - CAGE BSD-2610A15857.A1 2610A15857 £21.68 £26.01
13 - RUBBER GASKET BSD-2610A14928.A3 2610A14928 £2.80 £3.36
14 - RUBBER GASKET BSD-2610A14929.A1 2610A14929 £2.52 £3.02
15 - MAT SEAL BSD-2610A15869.A3 2610A15869 £3.72 £4.47
16 - MAT SEAL BSD-2610A15870.A1 2610A15870 £3.72 £4.47
17 - CABLE BSD-2610A16107.A3 2610A16107 £1.75 £2.10
18 - FLEXIBLE PCB BSD-2610A12359.A11 2610A12359 £3.34 £4.01
19 - PRINTED-BOARD ASSEMBLY BSD-2610A16487.A0 2610A16487 £195.26 £234.31
24 - SET SCREW BSD-2610A12270.A0 2610A12270 £1.75 £2.10
25 - SCREW BSD-2610A07331.A5 2610A07331 £1.75 £2.10
26 - SCREW BSD-2610A14967.A7 2610A14967 £1.75 £2.10
28 - HEX SOCKET HEAD CAP SCREW BSD-2610A12284.A9 2610A12284 £1.75 £2.10
29 - MOTOR HOUSING BSD-2610A14673.A6 2610A14673 £306.81 £368.17
29/14 - MOTOR-GEARBOX ASSEMBLY BSD-2610A13249.A6 2610A13249 £33.74 £40.49
29/14/7 - MOTOR PLATE BSD-2610A12302.A3 2610A12302 -
29/17 - HEX SOCKET HEAD CAP SCREW BSD-2610A12275.A5 2610A12275 £1.75 £2.10
29/18 - EXTENSION SPRING BSD-2610A12283.A10 2610A12283 £1.75 £2.10
29/19 - EXTENSION SPRING BSD-2610A13065.A8 2610A13065 £1.75 £2.10
32 - LIMIT SWITCH BSD-2610A13397.A7 2610A13397 £1.75 £2.10
33 - LIMIT SWITCH BSD-2610A13399.A7 2610A13399 £1.75 £2.10
34 - SPECIAL WASHER BSD-2610A12269.A15 2610A12269 £2.61 £3.13
35 - HEX SOCKET HEAD CAP SCREW BSD-2610A12284.A15 2610A12284 £1.75 £2.10
36 - HEX SOCKET HEAD CAP SCREW BSD-2610A12272.A11 2610A12272 £1.75 £2.10
37 - TAPPING SCREW BSD-2610A12301.A23 2610A12301 £1.75 £2.10
38 - BATTERY CR2032 BSD-2610A16656.A3 2610A16656 £2.16 £2.59
603 - POWER SUPPLY UNIT AUS 240V BSD-2610A16714.A0 2610A16714 £59.53 £71.44
604/1 - MOUNTING BRACKET BSD-2610A15904.A3 2610A15904 £12.04 £14.45
604/2 - CLAMP BRACKET BSD-2610A14830.A3 2610A14830 -
801 - ASSEMBLY BSD-1600A01NL7.A1 1600A01NL7 -
802 - BALL SLEEVE BSD-2610A16051.A3 2610A16051 £8.67 £10.41
804 - PRISM SUPPORT BSD-2610A16472.A4 2610A16472 £93.88 £112.65
811 - BATTERY PACK BSD-2610A15826.A4 2610A15826 -
890 - LASER DETECTOR BSD-2609199929.A3 2609199929 -
