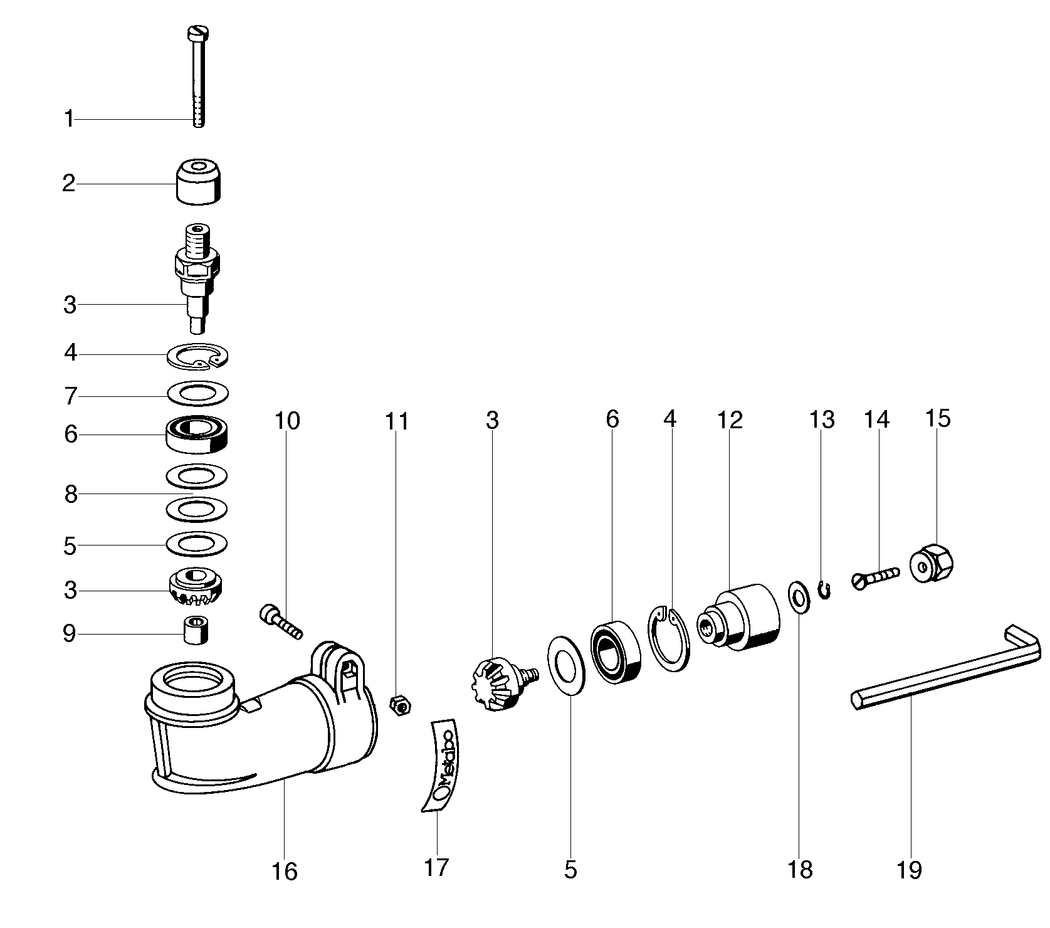

An exploded diagram and spare parts listing for the Metabo Angle drill.and screwdriv.attachment / 31078000 / -
Ex VAT Inc VAT
1 - CHEESE-HEAD SCREW MET-341701940.A150 341701940 £3.20 £3.84
2 - BIT RETAINING BUSH MET-631281000.A24 631281000 -
3 - SPINDLE MET-316010020.A0 316010020 £55.90 £67.08
4 - RETAINING RING MET-141180380.A0 141180380 £3.20 £3.84
5 - WASHER MET-141151520.A0 141151520 £3.20 £3.84
6 - BALL BEARING 15X32X8 MET-143110780.A0 143110780 £22.61 £27.13
7 - WASHER MET-141151430.A0 141151430 £3.20 £3.84
8 - WASHER MET-141151590.A0 141151590 £1.50 £1.80
9 - NEEDLE SLEEVE MET-143111480.A9 143111480 £5.62 £6.75
10 - CAP SCREW MET-141113890.A41 141113890 £3.20 £3.84
11 - HEXAGONAL NUT MET-141130100.A49 141130100 £1.50 £1.80
12 - CARRIER MET-341160160.A0 341160160 £26.35 £31.62
13 - RETAINING RING MET-141180020.A49 141180020 £1.50 £1.80
14 - COUNTERSUNK SCREW MET-141122180.A0 141122180 £3.20 £3.84
15 - HEX NUT MET-341101840.A0 341101840 £3.82 £4.59
16 - HOUSING MET-315414870.A0 315414870 £36.59 £43.91
17 - METABO LABEL MET-338103240.A0 338103240 £3.20 £3.84
18 - WASHER MET-141151040.A23 141151040 £3.20 £3.84
19 - CRANKED WRENCH KEY MET-344161520.A36 344161520 £3.20 £3.84
