Metabo BAS 260 SWIFT / 0090025118 11 / CH 230V Spare Parts

Metabo BAS 260 SWIFT / 0090025118 11 / CH 230V Spare Parts
Home Details Reviews Delivery

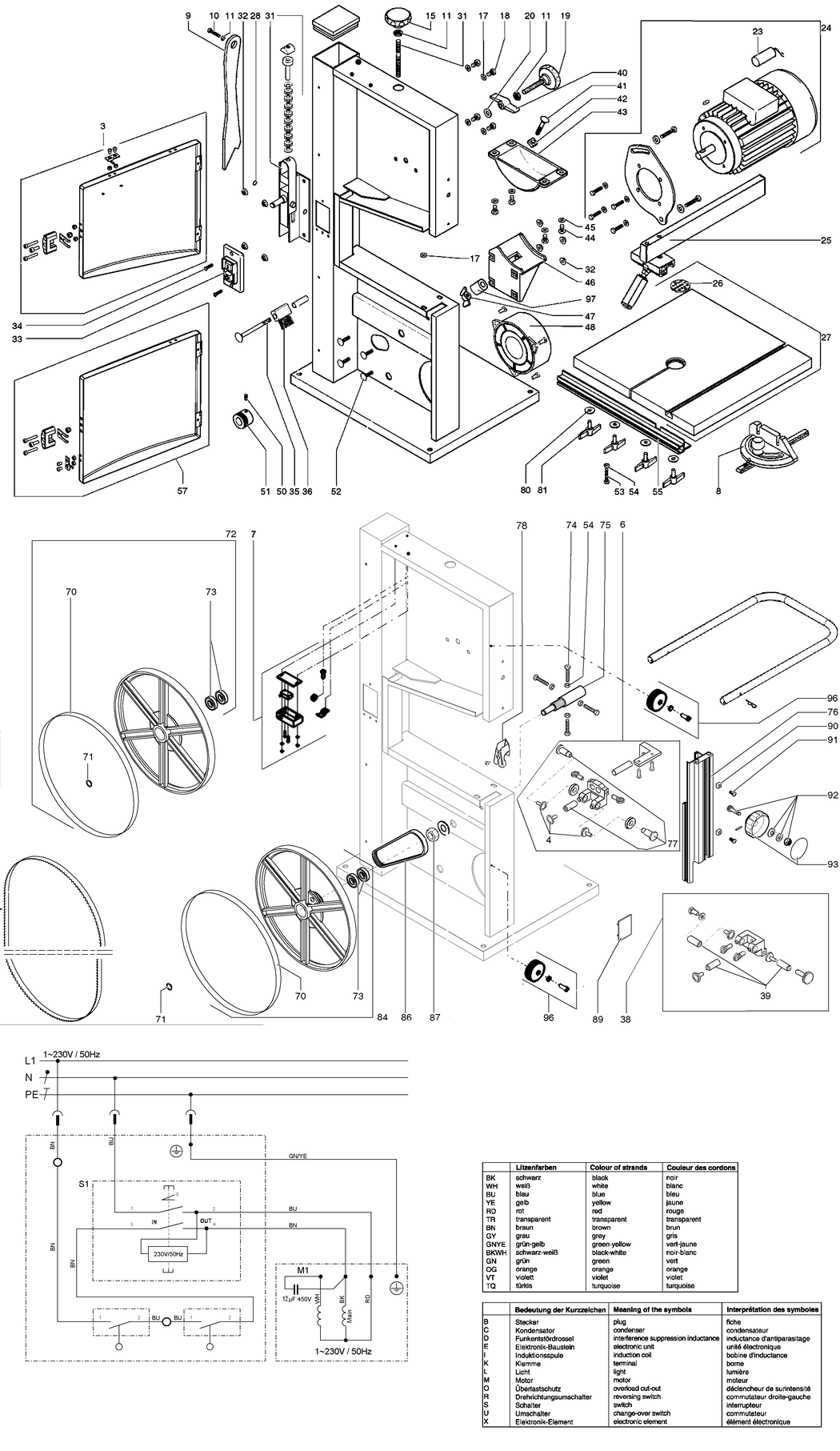

An exploded diagram and spare parts listing for the Metabo BAS 260 SWIFT / 0090025118 11 / CH 230V
Ex VAT Inc VAT
3 - DOOR UPPER BAS 260 SWIFT ET MET-1009720665.A2 1009720665 -
4 - THRUST BEARING BAS 260 SWIFT MET-1009720606.A5 1009720606 £9.62 £11.54
6 - THREE-ROLLER GUIDE BAS 260 SWIFT MET-1009720592.A2 1009720592 £17.95 £21.54
7 - SAFETY SWITCH MIT KABEL BAS 317 PRECISIO MET-1009719748.A3 1009719748 £9.62 £11.54
8 - MITRE FENCE BAS 260 SWIFT ET MET-1009720657.A2 1009720657 £32.88 £39.45
9 - PUSH STICK MET-343433180.A34 343433180 -
10 - HEXAGON HEAD SCREW MET-141110320.A37 141110320 £3.20 £3.84
11 - HEXAGONAL NUT MET-141131010.A44 141131010 £1.50 £1.80
15 - STARKNOB NUT M 8 (DIN 934) VERZINKT MET-7000028937.A27 7000028937 £3.82 £4.59
17 - WASHER MET-141151940.A101 141151940 £1.50 £1.80
18 - HEX HEAD SCREW MET-6103001127.A6 6103001127 £1.50 £1.80
19 - STARKNOB SCREW M 8X40 RD 35 VERZINKT MET-7001087619.A3 7001087619 £6.38 £7.65
20 - WASHER MET-141151340.A63 141151340 £1.50 £1.80
21 - HEX HEAD SCREW MET-6103001178.A81 6103001178 £1.50 £1.80
23 - CAPACITOR 12UF MET-343255040.A13 343255040 £7.92 £9.50
24 - MOTOR 230V ET MET-1009681090.A4 1009681090 £105.54 £126.65
25 - PARALLELANSCHLAG BAS 260 SWIFT ET MET-1009720649.A5 1009720649 £36.59 £43.91
26 - TABLE INSERT RD 38X3 5 ET MET-1381680920.A5 1381680920 £1.50 £1.80
27 - TABLE TOP MET-315419100.A2 315419100 -
28 - RETAINING RING MET-141180020.A57 141180020 £1.50 £1.80
30 - FAN WING+FAN COVER BAS 260 ET MET-1009726507.A5 1009726507 £9.62 £11.54
31 - CLAMPING DEVICE COMPL. MET-316095920.A7 316095920 £22.96 £27.55
32 - FLANGE NUT MET-6209114230.A18 6209114230 £1.50 £1.80
33 - SWITCH ET MET-1009680833.A3 1009680833 £19.18 £23.02
34 - CROSS RECESSED FLAT HEAD SCREW M 4X10 VE MET-6131001540.A1 6131001540 -
35 - TRUSS HEAD SCREW MET-6110000667.A5 6110000667 £3.20 £3.84
36 - BRUSH STRIP MET-9132081414.A21 9132081414 £11.78 £14.13
38 - BEARING BUSH BAS 260 SWIFT ET MET-1009720614.A3 1009720614 -
39 - BEARING BUSH BAS 260 SWIFT ET MET-1009720622.A4 1009720622 £8.37 £10.04
40 - THUMB-NUT MET-7005135529.A9 7005135529 £3.20 £3.84
41 - CUP SQUARE NECK SCREW M 6X50 VERZ. MET-6110052292.A9 6110052292 £2.94 £3.53
42 - GLIDE SEGMENT ET MET-1381680947.A3 1381680947 £1.50 £1.80
43 - TABLE TRUNNION BACK MET-315419810.A7 315419810 -
44 - HEXAGON HEAD SCREW MET-141113290.A75 141113290 £1.50 £1.80
45 - SERRATED LOCK WASHER MET-141150410.A69 141150410 £3.20 £3.84
46 - TABLE TRUNNION MET-315419800.A2 315419800 £13.63 £16.36
47 - STARKNOB NUT RD40/M 6 (DIN 934) VERZINKT MET-7000025458.A18 7000025458 £3.20 £3.84
48 - ADAPTOR SUCTION PORT BAS 317 PRECISION MET-1009719853.A4 1009719853 -
50 - HEX. SOCKET SET SCREW FLAT PT M 6X12 VE MET-6161050910.A1 6161050910 £1.50 £1.80
51 - TAPER GROOVE PULLEY CPL. MET-316096040.A4 316096040 £5.62 £6.75
52 - CUP SQUARE NECK SCREW MET-6110000594.A41 6110000594 £1.50 £1.80
53 - HEXAGON HEAD SCREW MET-141110290.A24 141110290 £3.20 £3.84
54 - HEXAGONAL NUT MET-141130100.A44 141130100 £1.50 £1.80
55 - GUIDE EXTRUSION BAS 260 SWIFT ET MET-1009720630.A2 1009720630 £30.06 £36.07
57 - DOOR LOWER BAS 260 SWIFT ET MET-1009720673.A2 1009720673 -
70 - BANDSAW TYRE MET-344101940.A6 344101940 £17.55 £21.06
71 - RETAINING RING MET-141180040.A38 141180040 £1.50 £1.80
72 - BANDSAW WHEEL UPPER MET-316064160.A8 316064160 £36.59 £43.91
73 - DEEP GROOVE BALL BEARING MET-143115740.A16 143115740 £6.38 £7.65
74 - HEXAGON HEAD SCREW MET-6103121416.A44 6103121416 £1.54 £1.85
75 - BEARING SHAFT ET MET-1385681085.A5 1385681085 -
76 - BLADE GUIDE TUBE EXTRUSION MET-1383680960.A3 1383680960 £30.06 £36.07
77 - BEARING BUSH BAS 260 SWIFT ET MET-1009720681.A5 1009720681 £22.61 £27.13
78 - SAWBAND GUARD BAS 260 SWIFT ET MET-1009722285.A3 1009722285 £8.37 £10.04
80 - WASHER MET-6305002486.A97 6305002486 -
81 - THUMB SCREW RED M 8X18 MET-6150421509.A25 6150421509 -
84 - BANDSAW WHEEL UPPER MET-316064160.A9 316064160 £36.59 £43.91
86 - DRIVING BELT MET-344260420.A4 344260420 £17.55 £21.06
87 - HEXAGON THIN NUT MET-6205088367.A5 6205088367 -
89 - LATERAL SLIDE ET MET-1381680998.A4 1381680998 -
90 - GUIDE PIECE ET MET-1381681021.A4 1381681021 £3.20 £3.84
91 - CROSS RECD PAN HEAD TAP.SCRE ST 4 8X32- MET-6172065544.A5 6172065544 -
92 - SHAFT WITH GEARWHEEL ET MET-1388681035.A8 1388681035 £3.20 £3.84
93 - STARKNOB ET MET-1381681013.A3 1381681013 £3.20 £3.84
96 - LATCH COMPL. MET-316061740.A1 316061740 -
97 - SPACER SLEEVE RD 15/6X18 MET-6442025779.A5 6442025779 £1.50 £1.80
98 - RATING PLATE MET-338063890.A2 338063890 -
