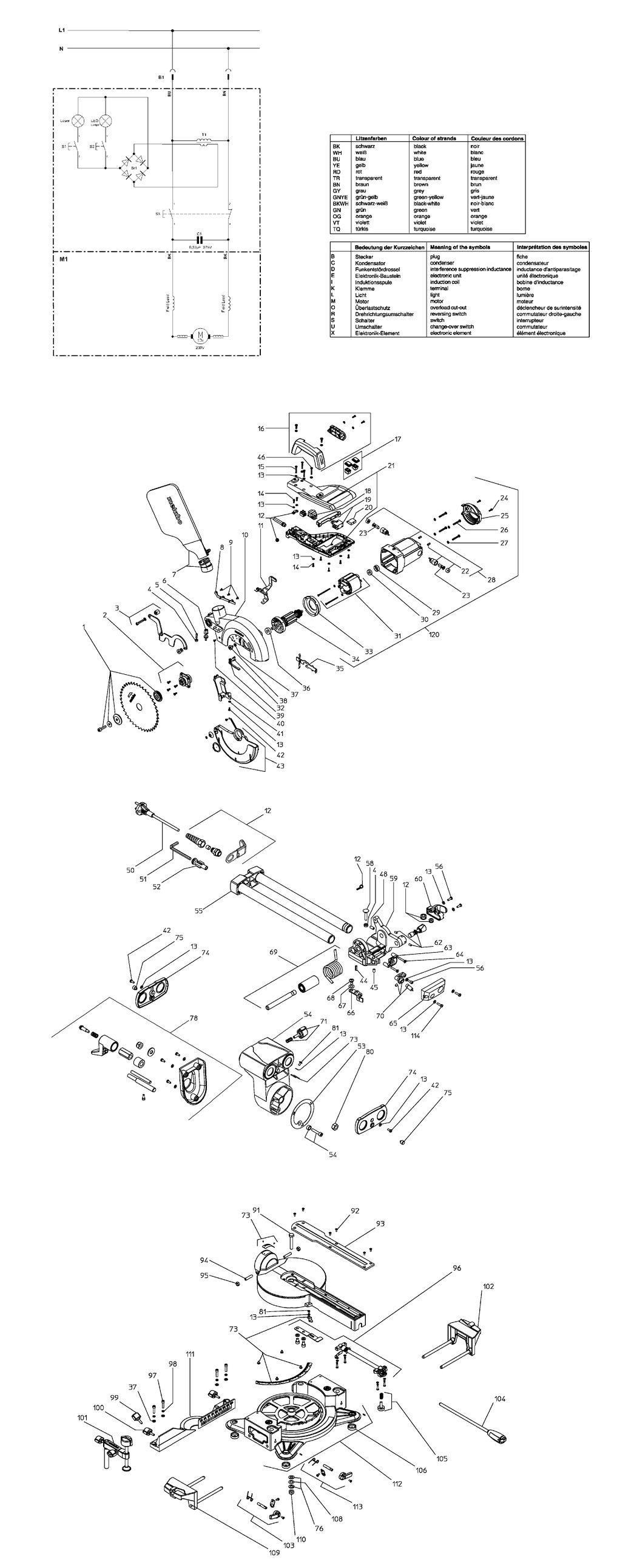

An exploded diagram and spare parts listing for the Metabo KGS 216 M / 0102160438 10 / GB 230V
Ex VAT Inc VAT
1 - FLANGE COMPL. MET-316060610.A16 316060610 £13.63 £16.36
2 - GEAR-BOX COMPL. MET-1010734602.A0 1010734602 -
3 - SWIVEL LEVER COMPL. MET-1010734130.A2 1010734130 £11.78 £14.13
4 - HEXAGONAL NUT MET-141130100.A201 141130100 £1.50 £1.80
5 - HEX. SOCKET SET SCREW FLAT PT M 6X20 VE MET-141124480.A0 141124480 £2.94 £3.53
6 - DEPTH STOP COMPL. MET-1010734564.A4 1010734564 £2.94 £3.53
7 - DUST ETRACTION KIT COMPL. MET-1010734572.A5 1010734572 -
10 - WHEEL GUARD COMPL. MET-1010734580.A2 1010734580 £54.94 £65.93
11 - UNLOCK LEVER COMPL. MET-1010734548.A2 1010734548 -
12 - STRAIN RELIEF COMPL. MET-1010734165.A5 1010734165 £5.62 £6.75
13 - WASHER MET-141150010.A86 141150010 £1.50 £1.80
14 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X13 MET-6172722847.A4 6172722847 -
15 - FILLISTER HEAD SCREW MET-141111420.A0 141111420 -
16 - HANDLE COMPL. MET-1010734190.A5 1010734190 £6.38 £7.65
17 - SWITCH SET MET-1010734203.A6 1010734203 £5.62 £6.75
18 - POWER SUPPLY PACK MET-8106734071.A0 8106734071 £11.78 £14.13
19 - SWITCH COMPL. MET-1010734084.A2 1010734084 £7.04 £8.45
20 - CONDENSER MET-8050734103.A9 8050734103 £2.94 £3.53
21 - HANDLE COMPL. MET-1010734173.A0 1010734173 £22.61 £27.13
22 - CARBON BRUSH HOLDER COMPL. MET-1010733983.A2 1010733983 £3.20 £3.84
23 - CARBON BRUSH MET-1388734023.A2 1388734023 £6.36 £7.63
24 - CROSS RECD PAN HEAD TAP.SCREW MET-6172015687.A0 6172015687 £1.50 £1.80
25 - MOTOR COVER MET-1381733960.A2 1381733960 £22.96 £27.55
26 - FILLISTER HEAD SCREW MET-141116770.A11 141116770 £2.60 £3.12
27 - WASHER MET-141150020.A24 141150020 £1.50 £1.80
28 - MOTOR HOUSING COMPL. MET-1010734009.A0 1010734009 -
29 - RUBBER BUSHING MET-7057734846.A6 7057734846 £1.50 £1.80
30 - BALL BEARING 8X22X7 MET-143115700.A81 143115700 £4.76 £5.71
31 - STATOR MET-8014734059.A2 8014734059 £42.65 £51.18
32 - COUNTERSUNK HEAD TAPPING SCREW MET-6174001900.A11 6174001900 £1.50 £1.80
33 - AIR GUIDE COVER MET-1331734868.A2 1331734868 £1.50 £1.80
34 - ARMATURE MET-8014734890.A2 8014734890 £48.88 £58.66
35 - SPINDLE LOCK COMPL. MET-1010734815.A6 1010734815 £1.50 £1.80
36 - DEEP GROOVE BALL BEARING MET-143115740.A14 143115740 £6.38 £7.65
37 - WASHER MET-141151940.A226 141151940 £1.50 £1.80
38 - BEARING COMPL. MET-1010734807.A0 1010734807 -
39 - COVER SPRING MET-1381735660.A11 1381735660 -
40 - COUNTERSUNK HEAD TAPPING SCREW ST 2 9X9 MET-6174188961.A11 6174188961 -
41 - EXTRACTION CHANNEL MET-1381734788.A2 1381734788 -
42 - RAISED CHEESE HEAD SCREW MET-141124560.A24 141124560 £2.94 £3.53
43 - SAFETY GUARD COMPL. MET-1010734629.A2 1010734629 -
44 - TIGHTENING PIN MET-141161150.A7 141161150 £1.50 £1.80
45 - HEX. SOCKET SET SCREW FLAT PT M 6X8 VER MET-141124510.A27 141124510 £2.94 £3.53
46 - CROSS RECD PAN HEAD TAP.SCREW ST 4 2X32 MET-6172006963.A8 6172006963 £1.50 £1.80
48 - GRUB SCREW MET-341701070.A14 341701070 £7.36 £8.83
50 - CABLE WITH PLUG MET-8402736268.A1 8402736268 -
51 - ALLEN HEXAGON KEY MET-9102689833.A21 9102689833 £6.38 £7.65
52 - TOOL HOLDER MET-1381734834.A7 1381734834 -
53 - SLIDING SHEET MET-1382735095.A7 1382735095 £1.50 £1.80
54 - PIVOT COMPL. MET-1010734424.A2 1010734424 £42.65 £51.18
55 - FEED ROD COMPL. MET-1010734513.A2 1010734513 £73.52 £88.23
56 - FILLISTER HEAD SCREW MET-141113040.A12 141113040 £1.51 £1.81
58 - HEXAGON HEAD SCREW MET-141110290.A74 141110290 £3.20 £3.84
59 - MOTOR BRACKET COMPL. MET-1010734491.A1 1010734491 £30.06 £36.07
60 - CABLE HOOK MET-1381734710.A4 1381734710 £1.50 £1.80
62 - TRANSPORT LOCK COMPL. MET-1010734530.A9 1010734530 £2.94 £3.53
63 - LED-LAMP MET-8602734766.A3 8602734766 -
64 - RAISED CHEESE HEAD SCREW M 4X20 VERZ. MET-6123084703.A18 6123084703 £1.50 £1.80
65 - COVER LIGHTING MET-1381734974.A3 1381734974 £1.50 £1.80
66 - STOP SHEET MET-1482734738.A7 1482734738 £1.50 £1.80
67 - LOCK WASHER MET-141150750.A5 141150750 £1.50 £1.80
68 - CUP SQUARE NECK SCREW M 8X16 VERZ. MET-6110000632.A15 6110000632 £1.50 £1.80
69 - MOTOR HEAD AXLE COMPL. MET-1010734661.A1 1010734661 £13.63 £16.36
70 - LASER WITH HOLDER MET-1010734467.A10 1010734467 £11.78 £14.13
71 - THUMBSCREW COMPL. MET-1010734742.A6 1010734742 -
73 - SCALE SET COMPL. MET-1010734408.A1 1010734408 £1.50 £1.80
74 - COVER PIVOT MET-1010734440.A1 1010734440 £3.20 £3.84
75 - PLUG IN BUFFER MET-7056734753.A4 7056734753 £2.94 £3.53
76 - WASHER MET-141150050.A98 141150050 £1.50 £1.80
78 - PIVOT MET-316056630.A0 316056630 £11.78 £14.13
80 - HEXAGONAL NUT MET-141130130.A1 141130130 £3.20 £3.84
81 - RAISED CHEESE HEAD SCREW M 4X8 VERZ. DUO MET-141113040.A3005 141113040 £1.51 £1.81
90 - TURNTABLE COMPL. MET-1010734386.A7 1010734386 £68.35 £82.02
91 - HEXAGON HEAD SCREW MET-141113440.A28 141113440 £3.20 £3.84
92 - COUNTERSUNK SCREW MET-141112180.A11 141112180 £1.50 £1.80
93 - TABLE INSERT MET-1381734966.A4 1381734966 £3.82 £4.59
94 - HEX. SOCKET SET SCREW FLAT PT MET-141124460.A1 141124460 £2.94 £3.53
95 - HEXAGONAL NUT MET-141131010.A72 141131010 £1.50 £1.80
96 - DETENT COMPL. MET-1010734211.A4 1010734211 £9.62 £11.54
97 - CAP SCREW MET-141113890.A36 141113890 £3.20 £3.84
98 - SERRATED LOCK WASHER MET-141150410.A36 141150410 £3.20 £3.84
99 - THUMBSCREW MET-341111630.A24 341111630 £3.20 £3.84
100 - THUMBSCREW M6 X 12 MET-341112750.A1 341112750 £2.94 £3.53
101 - WORKPIECE HOLDER COMPL. MET-1010734351.A3 1010734351 -
102 - TABLE SIDE EXTENSION RIGHT MET-1010734319.A1 1010734319 £30.06 £36.07
103 - CLAMPING LEVER COMPL. LEFT MET-1010734335.A3 1010734335 £3.20 £3.84
104 - CONTROL GRIP COMPL. MET-1010734238.A0 1010734238 -
105 - SET SCREW COMPL. MET-1010734912.A7 1010734912 £2.94 £3.53
106 - FOOT SET MET-1010734114.A1 1010734114 -
108 - LOCK WASHER MET-141150390.A24 141150390 £1.50 £1.80
109 - TABLE SIDE EXTENSION LEFT MET-1010734289.A1 1010734289 £32.88 £39.45
110 - HEX NUT MET-141132030.A144 141132030 £2.94 £3.53
111 - STOP COMPL. MET-1010734980.A0 1010734980 £30.06 £36.07
112 - TABLE COMPL. MET-1010734254.A1 1010734254 £73.52 £88.23
113 - CLAMPING LEVER COMPL. RIGHT MET-1010734343.A8 1010734343 £3.20 £3.84
114 - FILLISTER HEAD SCREW MET-141113200.A4 141113200 £1.50 £1.80
120 - MOTOR ASSEMBLY 230V KGS 216 MET-1010735609.A2 1010735609 £55.90 £67.08
