Metabo SPA 1702 W / 0130170100 11 / EU 230V Spare Parts

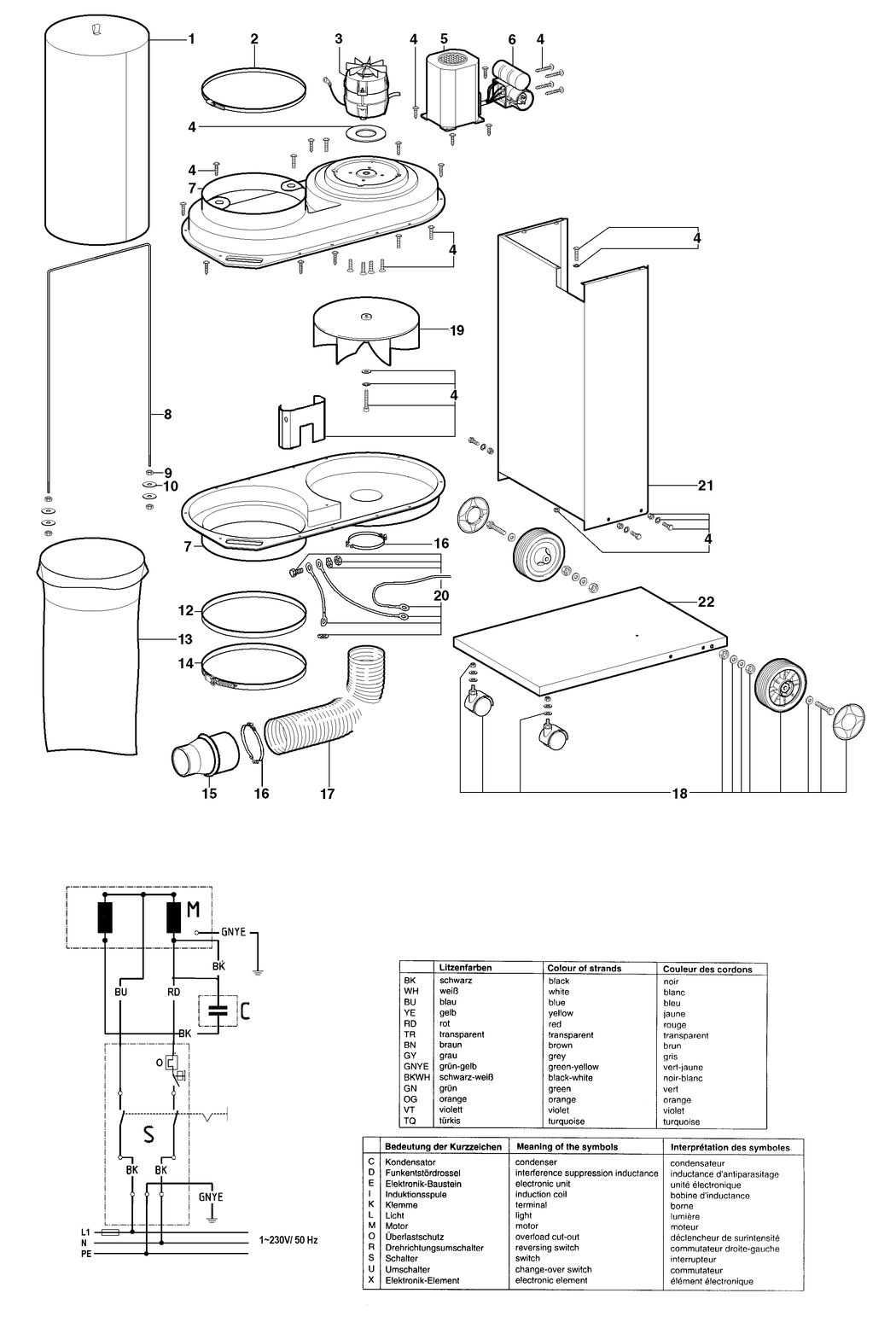

An exploded diagram and spare parts listing for the Metabo SPA 1702 W / 0130170100 11 / EU 230V

	Ex VAT	Inc VAT
1 - CHIP BAG KATEGORIE G SPA 1701 MET-1388690875.A0 1388690875	£64.30	£77.16
2 - TIGHTENING STRAP 1110 MM ET MET-7014690896.A1 7014690896	£36.59	£43.91
3 - ELECTRIC MOTOR 230/1/50 0 75KW ET MET-8012690917.A1 8012690917	-
4 - HARDWARE BAG SPA 1701 MET-1013691033.A0 1013691033	-
5 - COVER ET MET-1381690934.A0 1381690934	-
6 - SWITCH SSK KSVB 16A IP 44 ET MET-8131690925.A0 8131690925	-
7 - HOUSING SET ET MET-1381690942.A1 1381690942	-
8 - HOLDER FOR FILTER BAG RD 5 3 1604 MM ET MET-1382690881.A0 1382690881	-
9 - HEXAGONAL NUT MET-141130100.A135 141130100	£1.50	£1.80
10 - WASHER MET-141150130.A122 141150130	£1.50	£1.80
12 - PACKING RING RD 325 ET MET-1388691014.A1 1388691014	£6.38	£7.65
13 - DUST COLLECTION BAG SPA 1700/1701/1200 MET-0913017617.A1 0913017617	£17.49	£20.99
14 - TIGHTENING STRAP RD 325 /M.VERSCHLUSS ET MET-7014690900.A0 7014690900	£22.96	£27.55
15 - ADAPTER RING SPA MET-0913031300.A0 0913031300	-
16 - HOSE CLAMP RD 90-110 / 12 SKZ MET-7811036697.A15 7811036697	£5.62	£6.75
17 - SPIRAL HOSE RD 100X2500 0/+50 M. KUNSTST MET-7854018544.A0 7854018544	£53.32	£63.99
18 - CASTER SET ET MET-1013690991.A0 1013690991	-
19 - IMPELLER ET MET-1381690969.A1 1381690969	£75.74	£90.89
20 - EARTHING SYSTEM ET MET-1013691041.A1 1013691041	-
21 - FRONT PANEL ET MET-1382690989.A0 1382690989	-
22 - BOTTOM PLATE ET MET-1382690970.A1 1382690970	-
