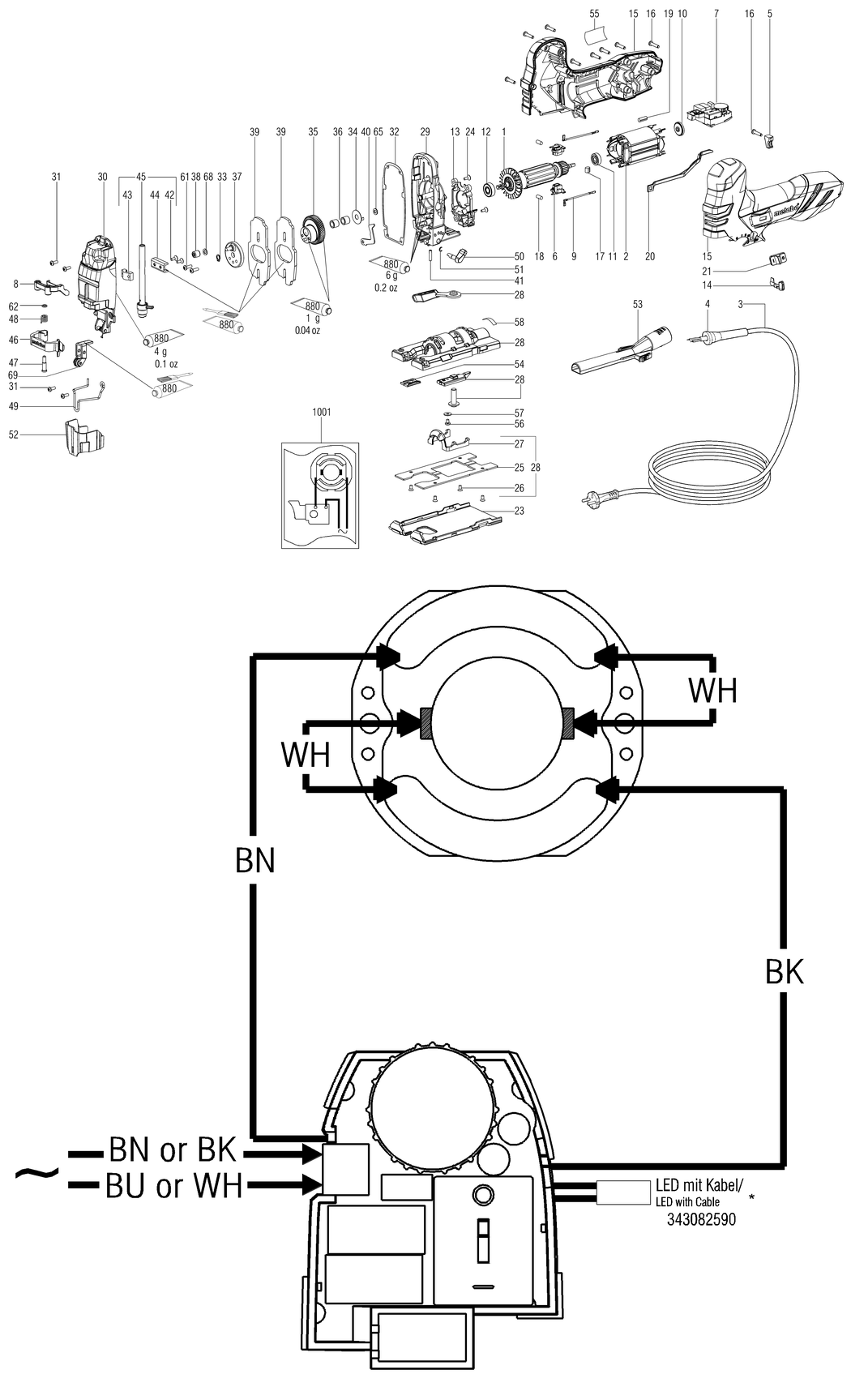

An exploded diagram and spare parts listing for the Metabo STE 140 Plus / 01403001 / EU 230V
Ex VAT Inc VAT
1 - ARMATURE COMPL. MET-310011930.A19 310011930 £73.52 £88.23
2 - FIELD COIL COMPL. 230V MET-311012510.A15 311012510 -
3 - CABLE WITH PLUG MET-344488530.A9 344488530 £30.06 £36.07
4 - CABLE SLEEVE MET-344101140.A67 344101140 £3.82 £4.59
5 - CABLE CLIP MET-343362490.A347 343362490 £3.20 £3.84
6 - BRUSH HOLDER SET MET-316049070.A22 316049070 £8.37 £10.04
7 - ELECTRONIC UNIT 230V 50-60HZ MET-343082920.A1 343082920 £63.36 £76.03
8 - LED WITH CABLE MET-343082590.A9 343082590 £11.78 £14.13
9 - STRAND COMPL. MET-344498890.A16 344498890 £1.50 £1.80
10 - TACHO DISC MET-343399750.A0 343399750 £3.20 £3.84
11 - BALL BEARING 6X19X6 MET-143115660.A117 143115660 £3.82 £4.59
12 - BALL BEARING 8X22X7 MET-143114880.A160 143114880 £9.62 £11.54
13 - BAFFLE MET-343430280.A23 343430280 £3.20 £3.84
14 - SHIFT LEVER MET-343399730.A3 343399730 £1.50 £1.80
15 - HOUSING MET-343399830.A8 343399830 -
16 - SELF-TAP FILL H SCREW MET-141116020.A1085 141116020 £3.20 £3.84
17 - RUBBER PLUG MET-344091420.A51 344091420 £1.50 £1.80
18 - RUBBER PLUG MET-344092220.A78 344092220 £1.50 £1.80
19 - RUBBER STOPPER MET-344092550.A16 344092550 £1.50 £1.80
20 - SWITCH ROD MET-343399720.A6 343399720 -
21 - SWITCH SLIDE MET-343430210.A2 343430210 -
23 - PROTECTIVE PLATE COMPL. MET-343430760.A0 343430760 £8.37 £10.04
24 - COUNTERSUNK SCREW MET-141122320.A4 141122320 £2.94 £3.53
25 - BASE PLATE MET-339134980.A6 339134980 £8.37 £10.04
26 - COUNTERSUNK SCREW MET-141122860.A23 141122860 £1.50 £1.80
27 - PLUG HOUSING MET-343430560.A20 343430560 £1.50 £1.80
28 - BASE PLATE W. CLAMPING MET-316065980.A21 316065980 £19.18 £23.02
29 - GEAR HOUSING CPL. MET-316050320.A20 316050320 £68.35 £82.02
30 - GEAR-BOX COVER COMPL. MET-316052910.A6 316052910 £60.03 £72.04
31 - FILLISTER HEAD SCREW MET-141110540.A11 141110540 £1.50 £1.80
32 - GASKET MET-339011920.A21 339011920 £1.50 £1.80
33 - RETAINING RING MET-141180020.A8 141180020 £1.50 £1.80
34 - BUTTING WASHER MET-339129470.A34 339129470 £1.50 £1.80
35 - GEAR WHEEL COMPL. MET-316055630.A10 316055630 £32.88 £39.45
36 - NEEDLE SLEEVE MET-143113930.A5 143113930 £4.76 £5.71
37 - ECCENTER COMPL. MET-316055640.A3 316055640 -
38 - NEEDLE BEARING MET-341002610.A62 341002610 £17.55 £21.06
39 - BALANCING PLATE MET-339160910.A21 339160910 £8.37 £10.04
40 - PRESSURE LEVER MET-339160920.A5 339160920 £2.94 £3.53
41 - CYLINDRICAL PIN MET-141162570.A29 141162570 £3.20 £3.84
42 - TIGHT-FIT SCREW MET-341705590.A10 341705590 -
43 - COVER PLATE MET-341070310.A39 341070310 £3.20 £3.84
44 - CONNECTING LINK MET-339129450.A27 339129450 £3.20 £3.84
45 - RAM COMPL. MET-316052920.A17 316052920 £30.06 £36.07
46 - CLAMPING LEVER QUICK MET-315417740.A25 315417740 £9.62 £11.54
47 - TIGHT-FIT SCREW MET-341704600.A6 341704600 £3.20 £3.84
48 - SPRING CLIP MET-342022260.A7 342022260 £1.50 £1.80
49 - PROTECTIVE STRAP MET-342200670.A7 342200670 £3.20 £3.84
50 - SHIFT LEVER COMPL. MET-316048510.A17 316048510 £9.62 £11.54
51 - RING MET-141156580.A9 141156580 £1.50 £1.80
52 - EYE SHIELD MET-344350470.A9 344350470 £3.82 £4.59
53 - NOZZLE MET-343399740.A9 343399740 £8.37 £10.04
54 - ANTI-SPLINTERING INSERT MET-343395480.A25 343395480 £2.94 £3.53
55 - RATING PLATE MET-338056980.A3 338056980 -
56 - SCREW MET-341704830.A0 341704830 £1.50 £1.80
58 - GRADUATION PLATE MET-338123510.A20 338123510 £2.94 £3.53
61 - FILLISTER HEAD SCREW MET-141111410.A12 141111410 £1.50 £1.80
62 - WASHER MET-339134390.A6 339134390 £1.50 £1.80
65 - WASHER MET-339007600.A19 339007600 £1.50 £1.80
68 - SHIM MET-339007660.A18 339007660 £1.50 £1.80
69 - SUPPORTING LEVER COMPL. MET-316069010.A16 316069010 -
880 - GREASE 50GR 1.8oz MET-344131280.A6 344131280 £22.61 £27.13
1001 - WIRING DIAGRAM MET-338505570.A6 338505570 -
