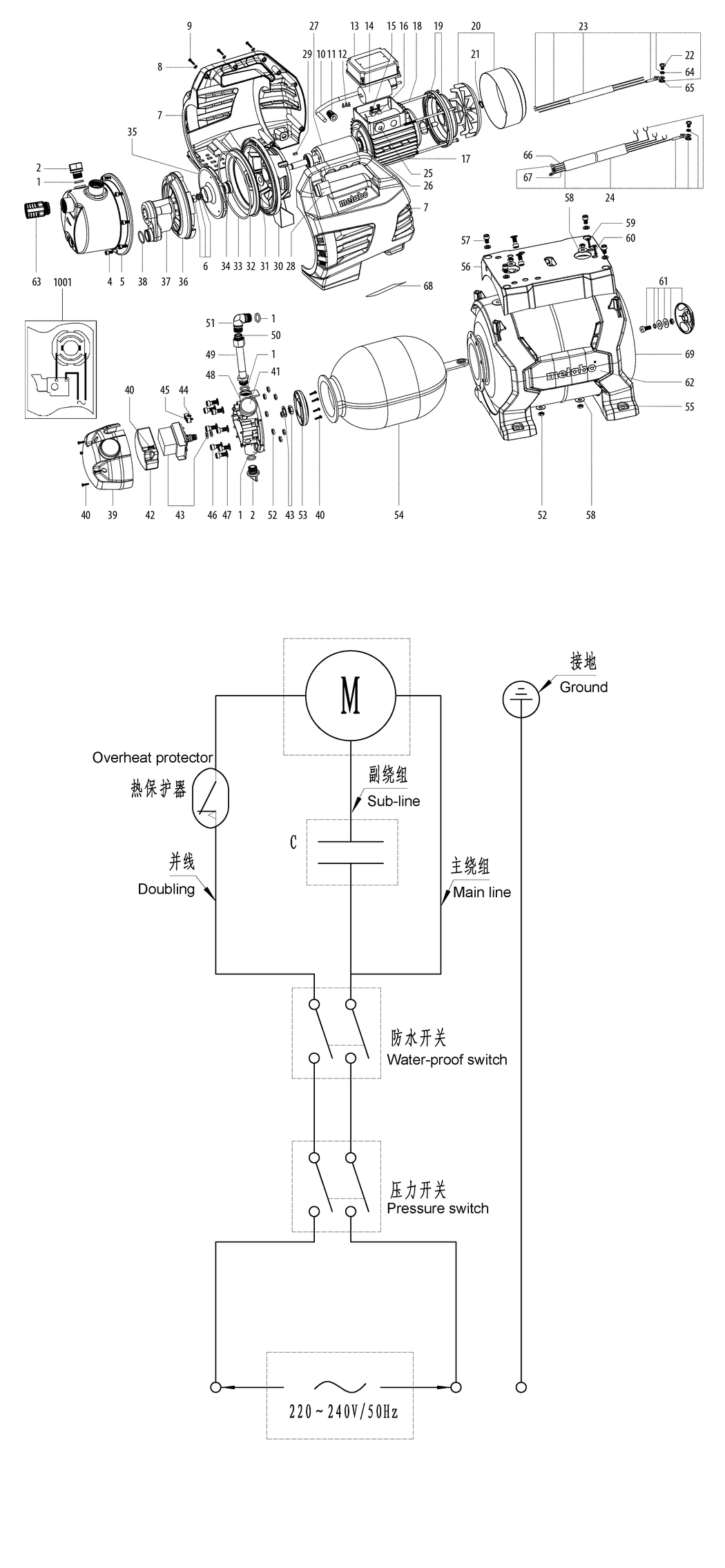

1 - O-RING
MET-143195620.A9
143195620
|
-
|
|
|
|
2 - THREADED PLUG
MET-341722140.A4
341722140
|
-
|
|
|
|
4 - SCREW
MET-341722060.A4
341722060
|
-
|
|
|
|
5 - PUMP HOUSING
MET-341165190.A4
341165190
|
-
|
|
|
|
6 - CLAMP KIT CPL. (IMPELLER)
MET-316060210.A8
316060210
|
-
|
|
|
|
7 - HOUSING COMPL.
MET-316060370.A3
316060370
|
£36.59
|
£43.91
|
|
|
8 - WASHER
MET-339009240.A2
339009240
|
-
|
|
|
|
9 - SCREW
MET-341722120.A3
341722120
|
-
|
|
|
|
10 - CABLE WITH PLUG
MET-344530020.A1
344530020
|
-
|
|
|
|
11 - CABLE SLEEVE
MET-344112900.A5
344112900
|
-
|
|
|
|
12 - CABLE BINDER
MET-341165220.A4
341165220
|
-
|
|
|
|
13 - LID TERMINAL BOX
MET-341165260.A5
341165260
|
-
|
|
|
|
14 - CONDENSER
MET-343254890.A3
343254890
|
-
|
|
|
|
15 - SCREW SELF-TAPPING
MET-341705150.A6
341705150
|
-
|
|
|
|
16 - CABLE CLIP
MET-343436720.A11
343436720
|
-
|
|
|
|
17 - STATOR COMPL.
MET-316060410.A2
316060410
|
-
|
|
|
|
18 - SCREW
MET-341722050.A7
341722050
|
-
|
|
|
|
19 - MOTOR FLANGE COMPL.
MET-316060240.A2
316060240
|
-
|
|
|
|
20 - FAN WITH FAN COVER
MET-316060300.A5
316060300
|
-
|
|
|
|
21 - CIRCLIP
MET-342024010.A2
342024010
|
-
|
|
|
|
22 - SCREW
MET-341722130.A9
341722130
|
-
|
|
|
|
23 - CABLE COMPL.
MET-344530010.A2
344530010
|
-
|
|
|
|
24 - CABLE COMPL.
MET-344112920.A4
344112920
|
-
|
|
|
|
25 - CABLE SLEEVE
MET-344112890.A7
344112890
|
-
|
|
|
|
26 - BALL BEARING
MET-320050840.A7
320050840
|
-
|
|
|
|
27 - ARMATURE
MET-310011370.A1
310011370
|
-
|
|
|
|
28 - SWITCH
MET-343410750.A0
343410750
|
-
|
|
|
|
29 - SLIDE BLOCK
MET-341161690.A10
341161690
|
-
|
|
|
|
30 - MOTOR FLANGE
MET-315419040.A7
315419040
|
-
|
|
|
|
31 - SEALING WASHER
MET-343435670.A10
343435670
|
-
|
|
|
|
32 - FLANGE
MET-341039610.A1
341039610
|
-
|
|
|
|
33 - O-RING
MET-143195550.A5
143195550
|
-
|
|
|
|
34 - GASKET
MET-344099860.A7
344099860
|
£13.63
|
£16.36
|
|
|
35 - WHEEL
MET-343436790.A4
343436790
|
-
|
|
|
|
36 - DIFFUSOR
MET-343440740.A4
343440740
|
-
|
|
|
|
37 - TUBE (F. VALVE)
MET-341161730.A2
341161730
|
-
|
|
|
|
38 - O-RING
MET-143195540.A13
143195540
|
-
|
|
|
|
39 - COVER OUTER
MET-344099940.A0
344099940
|
-
|
|
|
|
40 - SCREW
MET-341722090.A10
341722090
|
-
|
|
|
|
41 - MANOMETER
MET-341165230.A3
341165230
|
-
|
|
|
|
42 - SWITCH GUARD
MET-344099930.A5
344099930
|
-
|
|
|
|
43 - PRESSURE SWITCH COMPL.
MET-316060420.A0
316060420
|
-
|
|
|
|
44 - SCREW
MET-341705160.A1
341705160
|
-
|
|
|
|
45 - CABLE CLIPS
MET-343436880.A4
343436880
|
-
|
|
|
|
46 - HEXAGON HEAD SCREW
MET-141110320.A57
141110320
|
£3.20
|
£3.84
|
|
|
47 - WASHER
MET-339012060.A3
339012060
|
-
|
|
|
|
48 - COVER F. FLANGE
MET-343436980.A8
343436980
|
-
|
|
|
|
49 - PRESSURE HOSE
MET-344112930.A0
344112930
|
-
|
|
|
|
50 - GASKET
MET-339012940.A5
339012940
|
-
|
|
|
|
51 - ANGLE
MET-341165270.A2
341165270
|
-
|
|
|
|
52 - NUT
MET-341109010.A5
341109010
|
-
|
|
|
|
53 - FILTER (FLANGE)
MET-344112970.A4
344112970
|
-
|
|
|
|
54 - RUBBER BAG
MET-344099910.A3
344099910
|
£19.18
|
£23.02
|
|
|
55 - CONNECTOR (F. TANK)
MET-343440800.A0
343440800
|
-
|
|
|
|
56 - PUMP BASE
MET-344112950.A1
344112950
|
-
|
|
|
|
57 - SCREW
MET-341722070.A3
341722070
|
-
|
|
|
|
58 - WASHER
MET-339009260.A3
339009260
|
-
|
|
|
|
59 - WASHER
MET-339009290.A7
339009290
|
-
|
|
|
|
60 - SCREW
MET-341722080.A0
341722080
|
-
|
|
|
|
61 - VALVE COMPL.
MET-316057130.A4
316057130
|
-
|
|
|
|
62 - CONNECTOR (F. FRAME)
MET-343440790.A1
343440790
|
-
|
|
|
|
63 - CHECK VALVE 1 MALE THREAD X 1 FEMALE
MET-628803000.A2
628803000
|
-
|
|
|
|
64 - WASHER
MET-339009230.A1
339009230
|
-
|
|
|
|
65 - WASHER
MET-341722110.A1
341722110
|
-
|
|
|
|
66 - TUBE
MET-341165160.A0
341165160
|
-
|
|
|
|
67 - TUBE
MET-341165150.A3
341165150
|
-
|
|
|
|
68 - RATING PLATE
MET-338061210.A0
338061210
|
-
|
|
|
|
69 - TANK (STAINLESS) COMPL.
MET-316093770.A0
316093770
|
-
|
|
|
|
1001 - WIRING DIAGRAM
MET-338510410.A0
338510410
|
-
|
|
|
