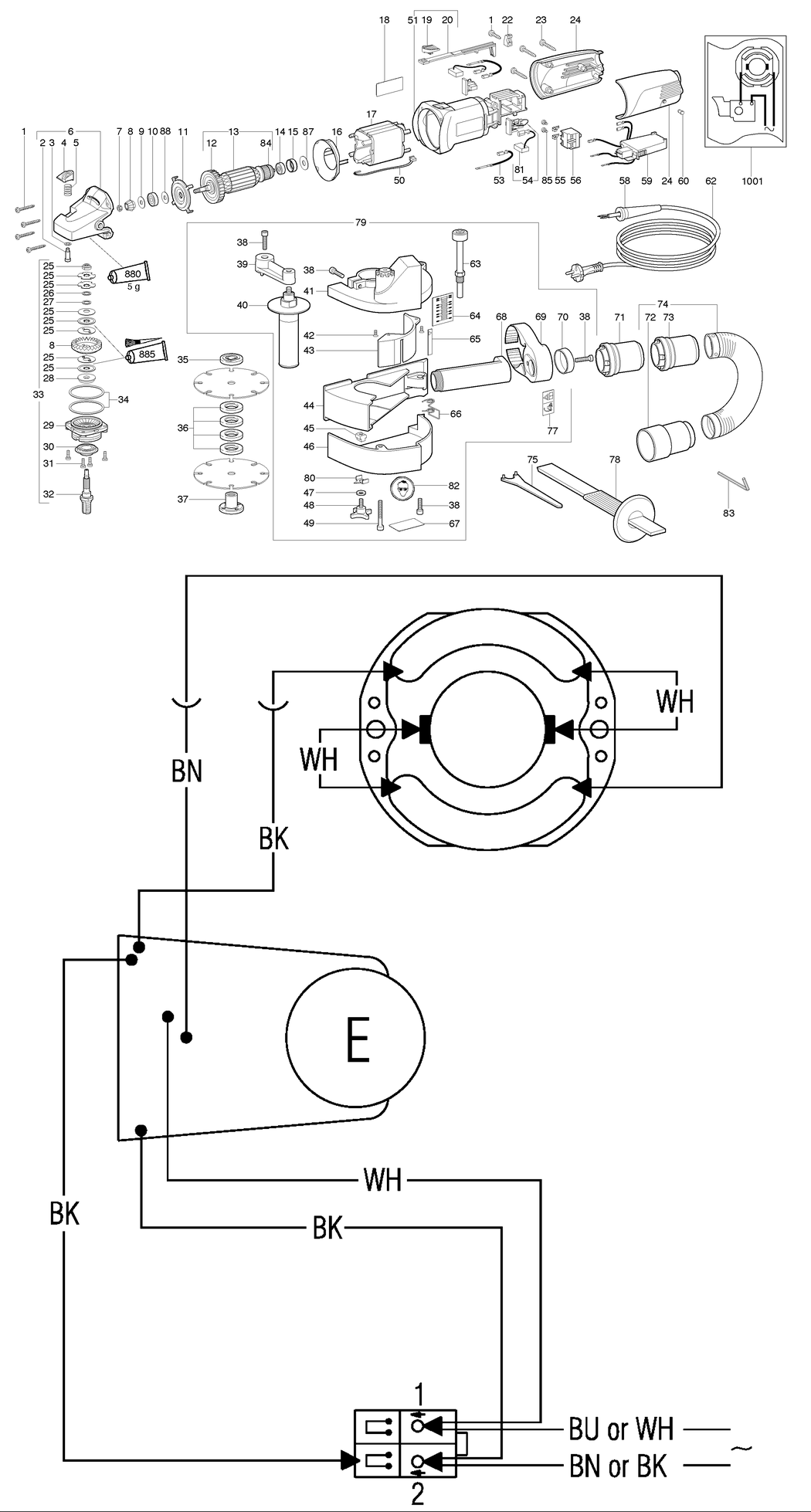

An exploded diagram and spare parts listing for the Metabo MFE 30 / 01119000 / EU 230V
Ex VAT Inc VAT
1 - SELF-TAP FILL H SCREW MET-141116020.A608 141116020 £3.20 £3.84
2 - BOLT MET-341513790.A19 341513790 £5.62 £6.75
3 - SEALING WASHER MET-339006520.A33 339006520 £1.50 £1.80
4 - PUSH BUTTON BLACK MET-343373720.A6 343373720 £1.50 £1.80
5 - PRESSURE SPRING MET-342001550.A19 342001550 £1.50 £1.80
6 - GEAR HOUSING CPL. MET-316029310.A5 316029310 £61.08 £73.30
7 - HEXAGON NUT W.RECESS MET-341100940.A24 341100940 £3.20 £3.84
8 - BEVEL GEAR MET-316030170.A3 316030170 £32.88 £39.45
9 - WASHER MET-339006390.A353 339006390 £1.50 £1.80
10 - BALL BEARING 8X 22X 7 MET-143115060.A2 143115060 £8.37 £10.04
11 - COVER MET-343373670.A13 343373670 £3.82 £4.59
12 - FAN W. PROT. GRID MET-316031210.A11 316031210 £13.63 £16.36
13 - ARMATURE 230 V ELECTRONIC MET-310007810.A1 310007810 £75.74 £90.89
14 - BALL BEARING 6X 19X 6 MET-143115810.A68 143115810 £7.04 £8.45
15 - RUBBER BUSHING MET-344095260.A2 344095260 £3.20 £3.84
16 - BAFFLE MET-339150890.A19 339150890 £3.20 £3.84
17 - FIELD COIL 230 V EL MET-311009890.A15 311009890 £68.35 £82.02
18 - RATING LABLE MET-338040950.A0 338040950 -
19 - SWITCH SLIDE MET-343394180.A18 343394180 £2.94 £3.53
20 - SWITCH ROD MET-343391880.A24 343391880 £2.94 £3.53
22 - CABLE CLIP MET-343362490.A57 343362490 £3.20 £3.84
23 - SELF-TAP. FILL. H. SCREW MET-141116990.A100 141116990 £3.20 £3.84
24 - HOUSING WITH COVER MET-343376710.A0 343376710 £6.38 £7.65
25 - FRICTION WASHER CPL. MET-316029480.A9 316029480 £15.41 £18.49
26 - WASHER 10 2 X 14 MET-141152300.A439 141152300 £3.20 £3.84
27 - WASHER MET-141155560.A5 141155560 £2.94 £3.53
28 - INTERMEDIATE PIECE MET-341051480.A10 341051480 £3.82 £4.59
29 - FLANGE COMPLETE MET-343373420.A2 343373420 £22.61 £27.13
30 - SEALING WASHER MET-343375540.A13 343375540 £1.50 £1.80
31 - FILLISTER HEAD SCREW MET-141119860.A3 141119860 £3.20 £3.84
32 - SPINDLE SHAFT MET-341161030.A13 341161030 £26.35 £31.62
33 - SAFETY CLUTCH MET-316030160.A2 316030160 £55.90 £67.08
34 - COMPENSATING WASHER MET-339060160.A0 339060160 £3.20 £3.84
35 - CLAMPING FLANGE MET-341031160.A428 341031160 £15.41 £18.49
36 - SPACER RING MET-341012140.A0 341012140 £4.76 £5.71
37 - CLAMPING NUT M14 MET-341101650.A1 341101650 £17.55 £21.06
38 - CAP SCREW MET-141113890.A3 141113890 £3.20 £3.84
39 - HOLDER MET-315415570.A5 315415570 £61.08 £73.30
40 - HANDLE CPL. MET-314000540.A171 314000540 £15.41 £18.49
41 - EXTRACTION HOOD MET-315415410.A5 315415410 £64.30 £77.16
42 - COUNTERSUNK SCREW MET-141112160.A0 141112160 £3.20 £3.84
43 - BAFFLE MET-315415440.A0 315415440 £6.38 £7.65
44 - SLIDE MET-315415430.A5 315415430 £64.30 £77.16
45 - SLIDE BLOCK MET-341147510.A4 341147510 £6.38 £7.65
46 - WHEEL GUARD MET-315415420.A0 315415420 £61.08 £73.30
47 - SPACER RING MET-341012410.A5 341012410 £6.38 £7.65
48 - STAR KNOB CPL. MET-316023560.A0 316023560 £11.78 £14.13
49 - CYLINDER HEAD SCREW MET-141113930.A1 141113930 -
50 - TEMPERATURE SENSOR MET-343077490.A1 343077490 £13.63 £16.36
51 - MOTOR HOUSING MET-316052200.A28 316052200 £22.96 £27.55
53 - CABLE STRAND MET-344493960.A67 344493960 £3.20 £3.84
54 - BRUSH HOLDER CPL. MET-316035480.A24 316035480 £15.41 £18.49
55 - FLAT PLUG MET-339080310.A5 339080310 £1.50 £1.80
56 - SWITCH MET-343406740.A25 343406740 £22.96 £27.55
58 - CABLE SLEEVE MET-344100970.A285 344100970 £3.20 £3.84
59 - ELECTRONIC UNIT MET-343078180.A2 343078180 £63.36 £76.03
60 - LIGHT TRANSMISSION MET-343077280.A21 343077280 £1.50 £1.80
62 - CABLE WITH PLUG MET-344493180.A119 344493180 £26.35 £31.62
63 - SUPPORTING ROLLER MET-316032150.A0 316032150 £22.61 £27.13
64 - INDICATION LABEL MET-338108760.A1 338108760 £4.76 £5.71
65 - INDICATION LABEL MET-338108780.A4 338108780 £4.76 £5.71
66 - SPRING CLIP MET-342021730.A0 342021730 £11.78 £14.13
67 - M-LABEL 56X25 MET-338122370.A3 338122370 £3.20 £3.84
68 - EXTRACTION TUBE MET-315415400.A0 315415400 £67.04 £80.45
69 - CLAMPING PIECE MET-316035170.A1 316035170 £51.54 £61.85
70 - HOSE COUPLING MET-343375000.A0 343375000 £48.88 £58.66
71 - EXTRACTION ADAPTOR MET-343376840.A5 343376840 £42.65 £51.18
72 - CONNECTOR MET-343363880.A5 343363880 £36.59 £43.91
73 - CONNESTOR MET-343361980.A1 343361980 £36.59 £43.91
74 - SUCTION HOSE MET-344094340.A1 344094340 £86.42 £103.71
75 - PIN SPANNER MET-344163920.A41 344163920 £4.76 £5.71
77 - INDICATION LABEL MET-338121250.A11 338121250 -
78 - POINT MET-344147650.A8 344147650 £54.94 £65.93
79 - WALL-CHASER MOUNT. SET MET-316035550.A0 316035550 £249.12 £298.94
80 - CUT INDICATOR MET-339131250.A5 339131250 £26.35 £31.62
81 - CARBON BRUSH MET-316035510.A57 316035510 £17.55 £21.06
82 - INDICATION LABEL MET-338116910.A5 338116910 £1.50 £1.80
83 - CRANKED WRENCH KEY MET-344161520.A23 344161520 £3.20 £3.84
84 - TACHO DISC MET-343391120.A5 343391120 £5.62 £6.75
85 - FILLISTER HEAD SCREW MET-141115780.A0 141115780 £1.50 £1.80
87 - WASHER MET-141153340.A22 141153340 £1.50 £1.80
88 - WASHER MET-339132280.A15 339132280 £1.50 £1.80
880 - SPECIAL GREASE 100GR 3.6oz MET-344130840.A19 344130840 £19.18 £23.02
885 - GREASE SF 011 50GR 1.8oz MET-344130560.A345 344130560 £19.18 £23.02
1001 - DIAGRAM MET-338504140.A11 338504140 -
