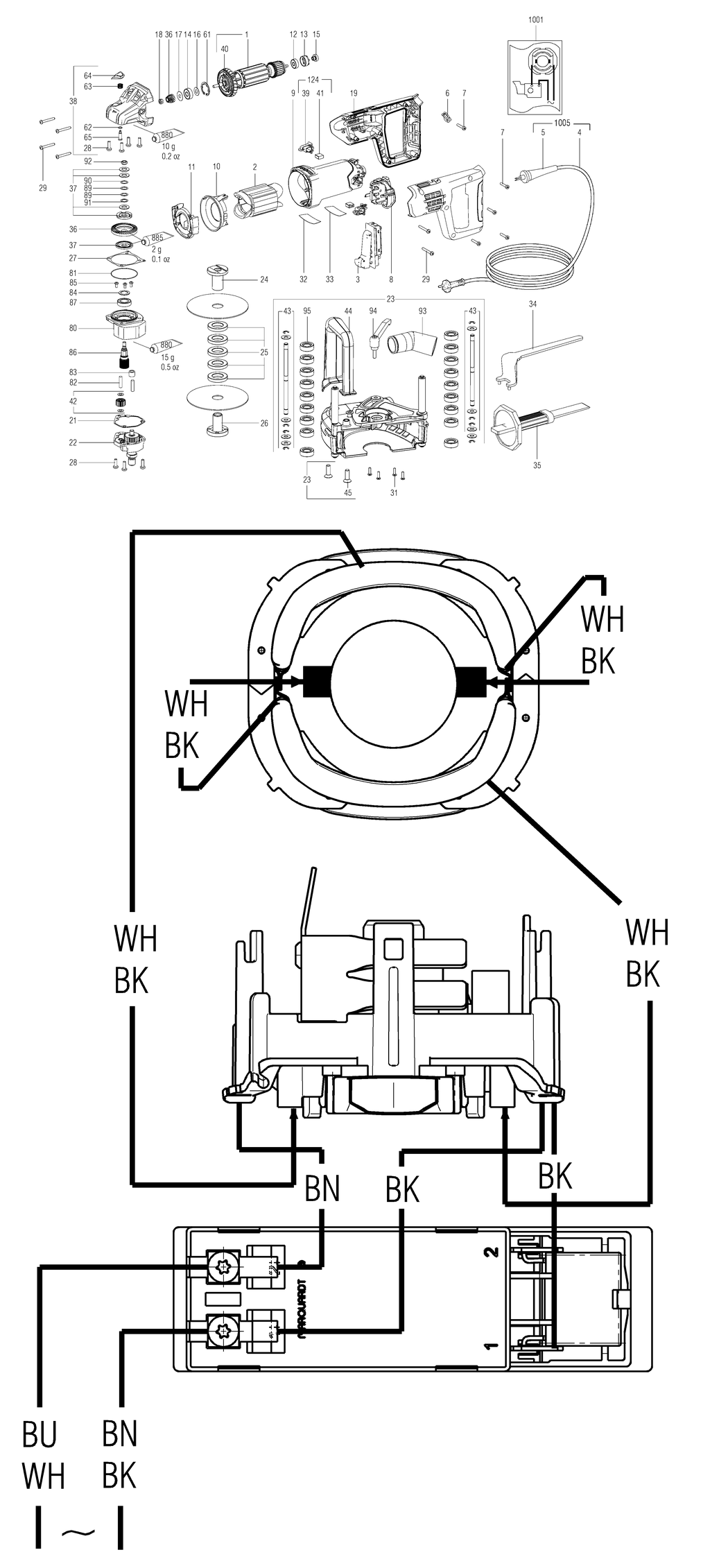

1 - ARMATURE COMPL. 230V
MET-310012230.A2
310012230
|
£64.30
|
£77.16
|
|
|
2 - FIELD COIL ASSEMBLY 230V
MET-311012980.A72
311012980
|
£42.65
|
£51.18
|
|
|
3 - SWITCH AC
MET-343411550.A3
343411550
|
£30.06
|
£36.07
|
|
|
4 - CABLE WITH PLUG
MET-344490850.A36
344490850
|
£26.35
|
£31.62
|
|
|
5 - CABLE SLEEVE
MET-344101220.A47
344101220
|
£3.20
|
£3.84
|
|
|
6 - CABLE CLIP
MET-343362490.A83
343362490
|
£3.20
|
£3.84
|
|
|
7 - SELF-TAP. FILL. H. SCREW
MET-141117060.A706
141117060
|
£3.20
|
£3.84
|
|
|
8 - ELECTRONIC UNIT 230V
MET-343086260.A1
343086260
|
£48.88
|
£58.66
|
|
|
9 - MOTOR HOUSING
MET-315013790.A15
315013790
|
£13.63
|
£16.36
|
|
|
10 - BAFFLE
MET-339151180.A38
339151180
|
£2.94
|
£3.53
|
|
|
11 - BAFFLE
MET-339151200.A75
339151200
|
£2.94
|
£3.53
|
|
|
12 - BALL BEARING 6X19X6
MET-143115690.A212
143115690
|
£3.82
|
£4.59
|
|
|
13 - RUBBER BUSHING
MET-344097870.A575
344097870
|
£1.50
|
£1.80
|
|
|
14 - BALL BEARING 8X22X7
MET-143115700.A183
143115700
|
£4.76
|
£5.71
|
|
|
15 - TACHO DISC
MET-343433060.A194
343433060
|
£3.82
|
£4.59
|
|
|
16 - WASHER
MET-339133060.A200
339133060
|
£1.50
|
£1.80
|
|
|
17 - WASHER
MET-339006390.A248
339006390
|
£1.50
|
£1.80
|
|
|
18 - HEXAGON NUT W.RECESS
MET-341102260.A11
341102260
|
-
|
|
|
|
19 - D-HANDLE 2 PART
MET-343445110.A0
343445110
|
£14.71
|
£17.65
|
|
|
21 - GASKET
MET-339012240.A0
339012240
|
£2.94
|
£3.53
|
|
|
22 - INTERMEDIATE FLANGE PRE-ASSEMBLED
MET-316066020.A1
316066020
|
£73.52
|
£88.23
|
|
|
23 - ROUTING ATTACHMENT COMPL.
MET-316066250.A1
316066250
|
£114.40
|
£137.28
|
|
|
24 - CLAMPING FLANGE
MET-341212440.A0
341212440
|
£26.35
|
£31.62
|
|
|
25 - SPACING WASHER
MET-341032380.A4
341032380
|
£4.76
|
£5.71
|
|
|
26 - CLAMPING NUT
MET-341212450.A5
341212450
|
£26.35
|
£31.62
|
|
|
27 - GASKET
MET-339011970.A307
339011970
|
£1.50
|
£1.80
|
|
|
28 - FILL. HEAD SCREW(DIN 7985)
MET-141121640.A8
141121640
|
£1.50
|
£1.80
|
|
|
29 - SELF-TAP. FILL. H. SCREW
MET-141116980.A307
141116980
|
£1.50
|
£1.80
|
|
|
31 - FILLISTER HEAD SCREW
MET-141124090.A19
141124090
|
£2.94
|
£3.53
|
|
|
32 - RATING PLATE
MET-338069120.A0
338069120
|
-
|
|
|
|
33 - PART NOT NEEDED
MET-399999990.A559
399999990
|
-
|
|
|
|
34 - PIN SPANNER OFFSET
MET-344160700.A21
344160700
|
-
|
|
|
|
35 - POINT
MET-344147650.A2
344147650
|
£54.94
|
£65.93
|
|
|
36 - BEVEL GEAR W.PINION
MET-316054980.A33
316054980
|
£22.61
|
£27.13
|
|
|
37 - FRICTION WASHER SET COMPL.
MET-316055080.A73
316055080
|
£17.55
|
£21.06
|
|
|
38 - GEAR HOUSING COMPL.
MET-316055100.A130
316055100
|
£54.94
|
£65.93
|
|
|
39 - BRUSH HOLDER SET
MET-316065420.A121
316065420
|
£17.55
|
£21.06
|
|
|
40 - FAN W. DUST GUARD
MET-316054850.A244
316054850
|
£5.62
|
£6.75
|
|
|
41 - CARBON BRUSH SET CUT-OFF
MET-316065450.A66
316065450
|
£15.41
|
£18.49
|
|
|
42 - GEAR WHEEL COMPL.
MET-316066270.A4
316066270
|
£36.59
|
£43.91
|
|
|
43 - SHAFT & WASHERS SET COMPL.
MET-316066280.A1
316066280
|
£22.96
|
£27.55
|
|
|
44 - HANDLE WELDED
MET-343445880.A4
343445880
|
£13.63
|
£16.36
|
|
|
45 - COUNTERSUNK SCREW
MET-141114740.A4
141114740
|
£3.20
|
£3.84
|
|
|
61 - RETAINING RING
MET-141156650.A3
141156650
|
£1.50
|
£1.80
|
|
|
62 - O-RING
MET-143196000.A169
143196000
|
-
|
|
|
|
63 - PRESSURE SPRING
MET-342003390.A290
342003390
|
£1.50
|
£1.80
|
|
|
64 - PUSH BUTTON
MET-343433640.A19
343433640
|
£1.50
|
£1.80
|
|
|
65 - BOLT
MET-341515640.A302
341515640
|
£2.94
|
£3.53
|
|
|
80 - GEAR FLANGE
MET-315203140.A1
315203140
|
£19.18
|
£23.02
|
|
|
81 - O-RING
MET-143195320.A15
143195320
|
£2.94
|
£3.53
|
|
|
82 - NEEDLE ROLLER
MET-143115460.A0
143115460
|
£3.20
|
£3.84
|
|
|
83 - NEEDLE SLEEVE
MET-143111460.A38
143111460
|
£5.62
|
£6.75
|
|
|
84 - WASHER
MET-141151280.A2
141151280
|
£3.20
|
£3.84
|
|
|
85 - FILL. HEAD SCREW(DIN 7985)
MET-141119570.A65
141119570
|
£1.50
|
£1.80
|
|
|
86 - INTERMEDIATE SHAFT
MET-341605410.A1
341605410
|
£32.88
|
£39.45
|
|
|
87 - BALL BEARING
MET-143115620.A11
143115620
|
£9.62
|
£11.54
|
|
|
89 - WASHER 10 2 X 14
MET-141151120.A206
141151120
|
£1.50
|
£1.80
|
|
|
90 - WASHER 10 2 X 14
MET-141152300.A428
141152300
|
£3.20
|
£3.84
|
|
|
91 - WASHER 10 2 X 14
MET-141153920.A116
141153920
|
£1.50
|
£1.80
|
|
|
92 - NUT
MET-341102460.A302
341102460
|
£3.82
|
£4.59
|
|
|
93 - EXTRACTION NOZZLE COMPL.
MET-343445920.A1
343445920
|
£5.62
|
£6.75
|
|
|
94 - CLAMPING LEVER M6X20
MET-341112930.A2
341112930
|
£11.78
|
£14.13
|
|
|
95 - ROLLER
MET-341212300.A1
341212300
|
£2.94
|
£3.53
|
|
|
124 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A91
316067170
|
£17.55
|
£21.06
|
|
|
880 - GREASE 100G
MET-344130920.A178
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A370
344130560
|
£19.18
|
£23.02
|
|
|
1001 - WIRING DIAGRAM
MET-338506370.A5
338506370
|
-
|
|
|
|
1005 - PART NOT NEEDED
MET-399999990.A554
399999990
|
-
|
|
|
