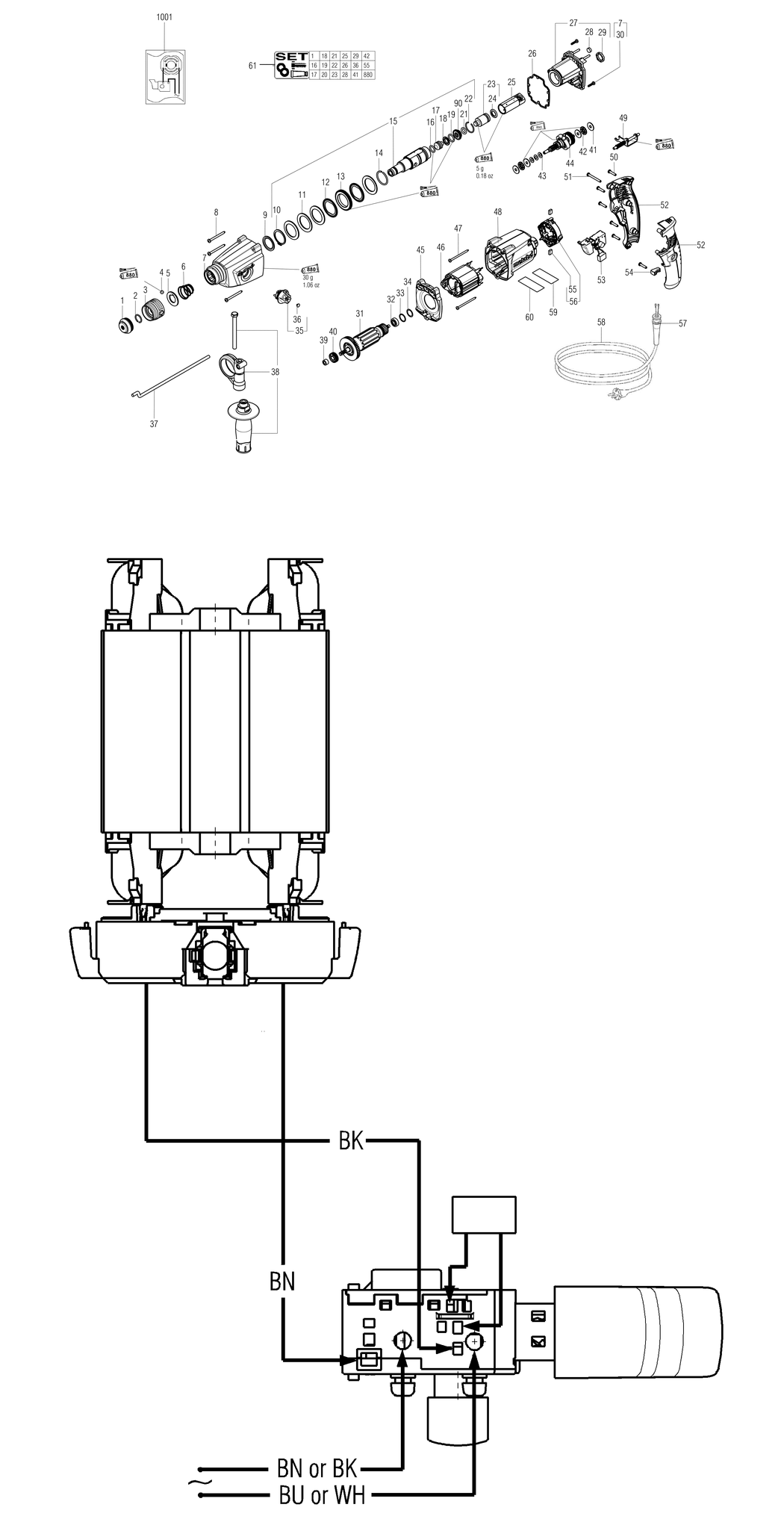

An exploded diagram and spare parts listing for the Metabo BHE 2643 / 18108311 / CN 220V
Ex VAT Inc VAT
1 - RUBBER CAP MET-344099390.A28 344099390 £2.94 £3.53
2 - CIRCLIP MET-342022340.A25 342022340 £1.50 £1.80
3 - ADJUSTING RING MET-343432920.A5 343432920 £3.82 £4.59
4 - BALL MET-143115330.A48 143115330 £1.50 £1.80
5 - WASHER MET-339007650.A26 339007650 £1.50 £1.80
6 - PRESSURE SPRING MET-342003890.A31 342003890 £1.50 £1.80
7 - GEAR HOUSING COMPL. MET-316045660.A5 316045660 -
8 - SELF-TAP. FILL. H. SCREW MET-141123610.A15 141123610 £1.50 £1.80
9 - SUPPORTING DISC MET-141153750.A9 141153750 £3.20 £3.84
10 - RETAINING RING MET-141180170.A12 141180170 £1.50 £1.80
11 - CUP SPRING MET-342070340.A11 342070340 £4.76 £5.71
12 - FRICTION WASHER MET-339004870.A48 339004870 £3.20 £3.84
13 - SPUR GEAR MET-340002750.A14 340002750 £26.35 £31.62
14 - CIRCLIP MET-141181290.A9 141181290 £1.50 £1.80
15 - DRILL DRIVING SLEEVE COMPL. MET-316052960.A4 316052960 -
16 - O-RING MET-143194790.A3 143194790 £1.50 £1.80
17 - PISTON COMPL. MET-316054870.A1 316054870 -
18 - DAMPING RING MET-341210600.A26 341210600 £3.82 £4.59
19 - O-RING MET-143194640.A9 143194640 £3.20 £3.84
20 - CATCHING SLEEVE COMPL. MET-316054880.A2 316054880 -
21 - O-RING MET-143193920.A10 143193920 £8.37 £10.04
22 - CIRCLIP MET-141181860.A8 141181860 £1.50 £1.80
23 - STRIKER COMPL. MET-316048010.A6 316048010 £17.55 £21.06
24 - SEALING RING MET-344093140.A81 344093140 £6.38 £7.65
25 - EXCITER SLEEVE COMPL. MET-341210790.A3 341210790 -
26 - SEALING RING MET-342022350.A10 342022350 £2.94 £3.53
27 - GEAR FLANGE COMPL. MET-316045680.A9 316045680 -
28 - FELT SEAL MET-344070670.A7 344070670 £1.50 £1.80
29 - RUBBER BUFFER MET-344095920.A160 344095920 £1.50 £1.80
30 - FILL. HEAD SCREW(DIN 7985) MET-141119440.A35 141119440 £1.50 £1.80
31 - ARMATURE COMPL. 230V MET-310012200.A20 310012200 £42.65 £51.18
32 - BALL BEARING 6X19X6 MET-143115660.A238 143115660 £3.82 £4.59
33 - WASHER MET-141153400.A65 141153400 £3.20 £3.84
34 - O-RING MET-143195230.A8 143195230 £1.50 £1.80
35 - CONTROL KNOB COMPL. MET-316052990.A1 316052990 £6.38 £7.65
36 - SEAL MET-343398340.A5 343398340 £1.50 £1.80
37 - DEPTH STOP MET-341511630.A174 341511630 £6.38 £7.65
38 - SUPPORT HANDLE CPL. MET-314000840.A4 314000840 £11.78 £14.13
39 - SEALING WASHER MET-343398310.A55 343398310 £1.50 £1.80
40 - BALL BEARING 8X 22X 7 MET-143115890.A45 143115890 £6.38 £7.65
41 - THRUST WASHER MET-143115300.A12 143115300 £1.50 £1.80
42 - AXIAL NEEDLE BEARING MET-143115310.A30 143115310 £4.76 £5.71
43 - CUP SPRING MET-141154920.A53 141154920 £3.20 £3.84
44 - PINION SHAFT COMPL. MET-316054890.A3 316054890 -
45 - FLANGE MET-343398300.A5 343398300 £4.76 £5.71
46 - FIELD COIL COMPL. 230V MET-311012630.A5 311012630 £32.88 £39.45
47 - SELF-TAP. FILL. H. SCREW MET-341722860.A34 341722860 -
48 - MOTOR HOUSING MET-343398290.A32 343398290 £15.41 £18.49
49 - SHIFT ELEMENT COMPL. MET-316045600.A6 316045600 -
50 - SELF-TAP FILL H SCREW MET-141116020.A69 141116020 £3.20 £3.84
51 - SELF-TAP. FILL. H. SCREW MET-141116990.A165 141116990 £3.20 £3.84
52 - PISTOL GRIP 2 PART MET-343398280.A4 343398280 £15.41 £18.49
53 - ELECTRONIC SWITCH WITHOUT DIAL 230V MET-343411660.A22 343411660 £22.61 £27.13
54 - CABLE CLIP MET-343362490.A773 343362490 £3.20 £3.84
55 - CARBON BRUSH SET 230 V MET-316046950.A62 316046950 £17.56 £21.07
56 - BRUSH HOLDER MODULE 230V - V-EL. 850W MET-316049160.A5 316049160 -
57 - CABLE SLEEVE MET-344101140.A141 344101140 £3.82 £4.59
58 - CABLE CHINESE MET-344493640.A0 344493640 £30.06 £36.07
59 - RATING PLATE MET-338055950.A1 338055950 -
61 - MAINTENANCE KIT MET-316057080.A0 316057080 -
90 - CATCHING SLEEVE MET-341059290.A8 341059290 -
880 - GREASE FG 126 MET-344130800.A95 344130800 £17.55 £21.06
890 - GREASE SF 011 50GR 1.8oz MET-344130560.A201 344130560 £19.18 £23.02
1001 - WIRING DIAGRAM 230 V MET-338505160.A50 338505160 -
