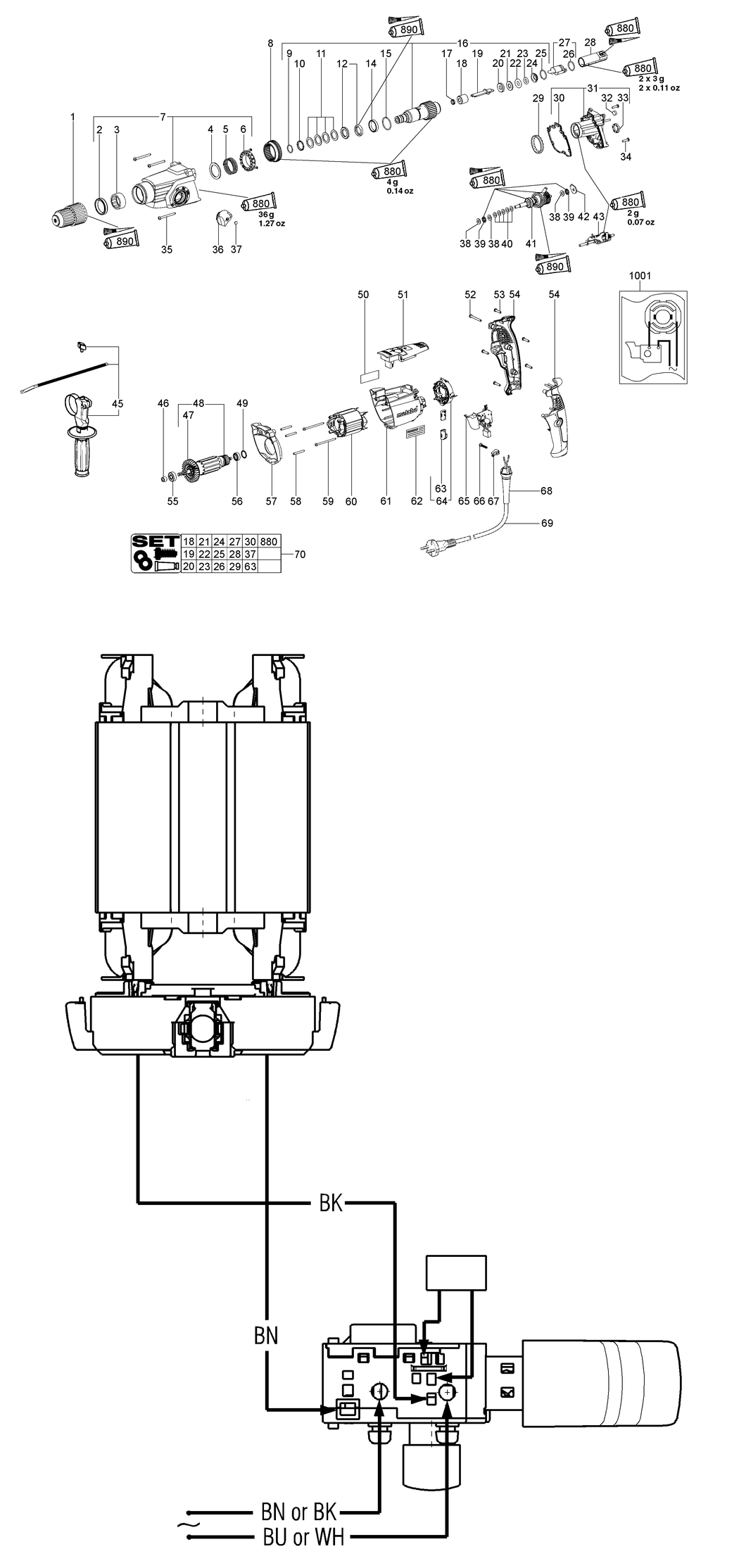

1 - ADAPTOR SDS -PLUS
MET-316051000.A23
316051000
|
£63.36
|
£76.03
|
|
|
2 - SHAFT SEALING RING
MET-143195160.A0
143195160
|
-
|
|
|
|
3 - NEEDLE SLEEVE 30X37X16
MET-143115090.A25
143115090
|
-
|
|
|
|
4 - WASHER
MET-339007150.A52
339007150
|
£3.20
|
£3.84
|
|
|
5 - PRESSURE SPRING
MET-342003490.A45
342003490
|
£1.50
|
£1.80
|
|
|
6 - RETAINING RING
MET-343397820.A25
343397820
|
£1.50
|
£1.80
|
|
|
7 - GEAR HOUSING COMPL.
MET-316047840.A0
316047840
|
£73.52
|
£88.23
|
|
|
8 - SLIDING BLOCK
MET-340004030.A0
340004030
|
£11.78
|
£14.13
|
|
|
9 - CIRCLIP
MET-141156380.A13
141156380
|
£1.50
|
£1.80
|
|
|
10 - SUPPORT RING
MET-341013060.A13
341013060
|
£6.38
|
£7.65
|
|
|
11 - CUP SPRING
MET-342070620.A25
342070620
|
£1.50
|
£1.80
|
|
|
12 - RATCHED WHEEL SET
MET-316064060.A13
316064060
|
£8.37
|
£10.04
|
|
|
14 - SUPPORT RING
MET-343431000.A11
343431000
|
£1.50
|
£1.80
|
|
|
15 - CIRCLIP
MET-141156360.A42
141156360
|
£1.50
|
£1.80
|
|
|
16 - DRILL DRIVING SLEEVE CPL.
MET-316050710.A7
316050710
|
£71.39
|
£85.67
|
|
|
17 - SHAFT SEALING RING
MET-143195200.A26
143195200
|
£3.82
|
£4.59
|
|
|
18 - BUSHING
MET-341006030.A16
341006030
|
-
|
|
|
|
19 - PISTON
MET-341210120.A8
341210120
|
£13.63
|
£16.36
|
|
|
20 - SUPPORT RING
MET-341013180.A15
341013180
|
£4.76
|
£5.71
|
|
|
21 - O-RING
MET-143195150.A55
143195150
|
£3.20
|
£3.84
|
|
|
22 - WASHER
MET-339007190.A29
339007190
|
£1.50
|
£1.80
|
|
|
23 - O-RING
MET-143195210.A15
143195210
|
£1.50
|
£1.80
|
|
|
24 - CATCHING SLEEVE
MET-341058950.A15
341058950
|
£5.62
|
£6.75
|
|
|
25 - CIRCLIP
MET-141181840.A31
141181840
|
£1.50
|
£1.80
|
|
|
26 - SEALING RING
MET-344093140.A11
344093140
|
£6.38
|
£7.65
|
|
|
27 - STRIKER COMPL.
MET-316043350.A24
316043350
|
£26.35
|
£31.62
|
|
|
28 - EXCITER SLEEVE COMPL.
MET-341058680.A35
341058680
|
£26.35
|
£31.62
|
|
|
29 - BALL HOLDER
MET-320050480.A28
320050480
|
£4.76
|
£5.71
|
|
|
30 - SEAL
MET-344098640.A12
344098640
|
£2.94
|
£3.53
|
|
|
31 - GEAR FLANGE CPL.
MET-316047860.A25
316047860
|
£48.88
|
£58.66
|
|
|
32 - FELT SEAL
MET-344070670.A64
344070670
|
£1.50
|
£1.80
|
|
|
33 - RUBBER BUFFER
MET-344095920.A46
344095920
|
£1.50
|
£1.80
|
|
|
34 - FILISTER HEAD SCREW
MET-141123400.A10
141123400
|
£2.94
|
£3.53
|
|
|
35 - SELF-TAP. FILL. H. SCREW
MET-141123610.A96
141123610
|
£1.50
|
£1.80
|
|
|
36 - CONTROL KNOB COMPL.
MET-316044470.A13
316044470
|
£8.37
|
£10.04
|
|
|
37 - SEAL
MET-343376750.A64
343376750
|
£3.20
|
£3.84
|
|
|
38 - WASHER
MET-339129610.A10
339129610
|
£1.50
|
£1.80
|
|
|
39 - AXIAL NEEDLE BEARING
MET-143114280.A2
143114280
|
£8.37
|
£10.04
|
|
|
40 - CUP SPRING
MET-141152550.A21
141152550
|
£3.20
|
£3.84
|
|
|
41 - PINION SHAFT COMPL.
MET-316047880.A0
316047880
|
£55.90
|
£67.08
|
|
|
42 - GUIDE SHEET
MET-339134350.A27
339134350
|
£2.94
|
£3.53
|
|
|
43 - SHIFT ELEMENT COMPL.
MET-316044460.A23
316044460
|
£22.61
|
£27.13
|
|
|
45 - SIDE SUPPORT HANDLE COMPL.
MET-316052270.A24
316052270
|
£32.88
|
£39.45
|
|
|
46 - SEALING RING
MET-343376040.A130
343376040
|
£3.20
|
£3.84
|
|
|
47 - FAN
MET-330001820.A34
330001820
|
£3.82
|
£4.59
|
|
|
48 - ARMATURE COMPL. 230 V
MET-310010280.A3
310010280
|
£68.35
|
£82.02
|
|
|
49 - O-RING
MET-143192430.A24
143192430
|
£3.20
|
£3.84
|
|
|
50 - RATING PLATE
MET-338056110.A1
338056110
|
-
|
|
|
|
51 - COVER W.O. ELECTRONIC
MET-343394070.A6
343394070
|
-
|
|
|
|
52 - SELF-TAP. FILL. H. SCREW
MET-141116990.A160
141116990
|
£3.20
|
£3.84
|
|
|
53 - SELF-TAP FILL H SCREW
MET-141116020.A74
141116020
|
£3.20
|
£3.84
|
|
|
54 - PISTOL GRIP 2-PART GUMMED
MET-343398530.A73
343398530
|
£13.63
|
£16.36
|
|
|
55 - BALL BEARING 8X22X7
MET-143114880.A52
143114880
|
£9.62
|
£11.54
|
|
|
56 - BALL BEARING 6X19X6
MET-143115690.A234
143115690
|
£3.82
|
£4.59
|
|
|
57 - INTERMEDIATE FLANGE
MET-343399780.A2
343399780
|
-
|
|
|
|
58 - CYLINDRICAL PIN
MET-341520230.A8
341520230
|
£1.50
|
£1.80
|
|
|
59 - SELF-TAP. FILL. H. SCREW
MET-141118260.A157
141118260
|
£1.50
|
£1.80
|
|
|
60 - FIELD COIL W.FIELD COIL 230 V
MET-311010790.A11
311010790
|
£22.61
|
£27.13
|
|
|
61 - MOTOR HOUSING
MET-315013250.A47
315013250
|
£17.55
|
£21.06
|
|
|
62 - PART NOT NEEDED
MET-399999990.A1496
399999990
|
-
|
|
|
|
63 - BRUSH HOLDER MODULE 230V - V-EL. 850W
MET-316051990.A4
316051990
|
£17.55
|
£21.06
|
|
|
64 - CARBON BRUSH SET 230 V
MET-316046970.A24
316046970
|
£17.55
|
£21.06
|
|
|
65 - ELECTRONIC SWITCH WITHOUT DIAL 230V
MET-343409230.A0
343409230
|
£22.61
|
£27.13
|
|
|
66 - SELF-TAP. FILL. H. SCREW
MET-141117060.A254
141117060
|
£3.20
|
£3.84
|
|
|
67 - CABLE CLIP
MET-343362490.A769
343362490
|
£3.20
|
£3.84
|
|
|
68 - CABLE SLEEVE
MET-343394300.A56
343394300
|
£3.20
|
£3.84
|
|
|
69 - CABLE WITH PLUG
MET-344486730.A21
344486730
|
£22.96
|
£27.55
|
|
|
70 - MAINTENANCE KIT
MET-316050740.A3
316050740
|
£63.44
|
£76.13
|
|
|
880 - GREASE FG 126
MET-344130800.A101
344130800
|
£17.55
|
£21.06
|
|
|
890 - TUBE GREASE 50G KLUEBER MICROLUBE GL 261
MET-344131210.A28
344131210
|
£19.18
|
£23.02
|
|
|
1001 - WIRING DIAGRAM 230 V
MET-338505160.A45
338505160
|
-
|
|
|
