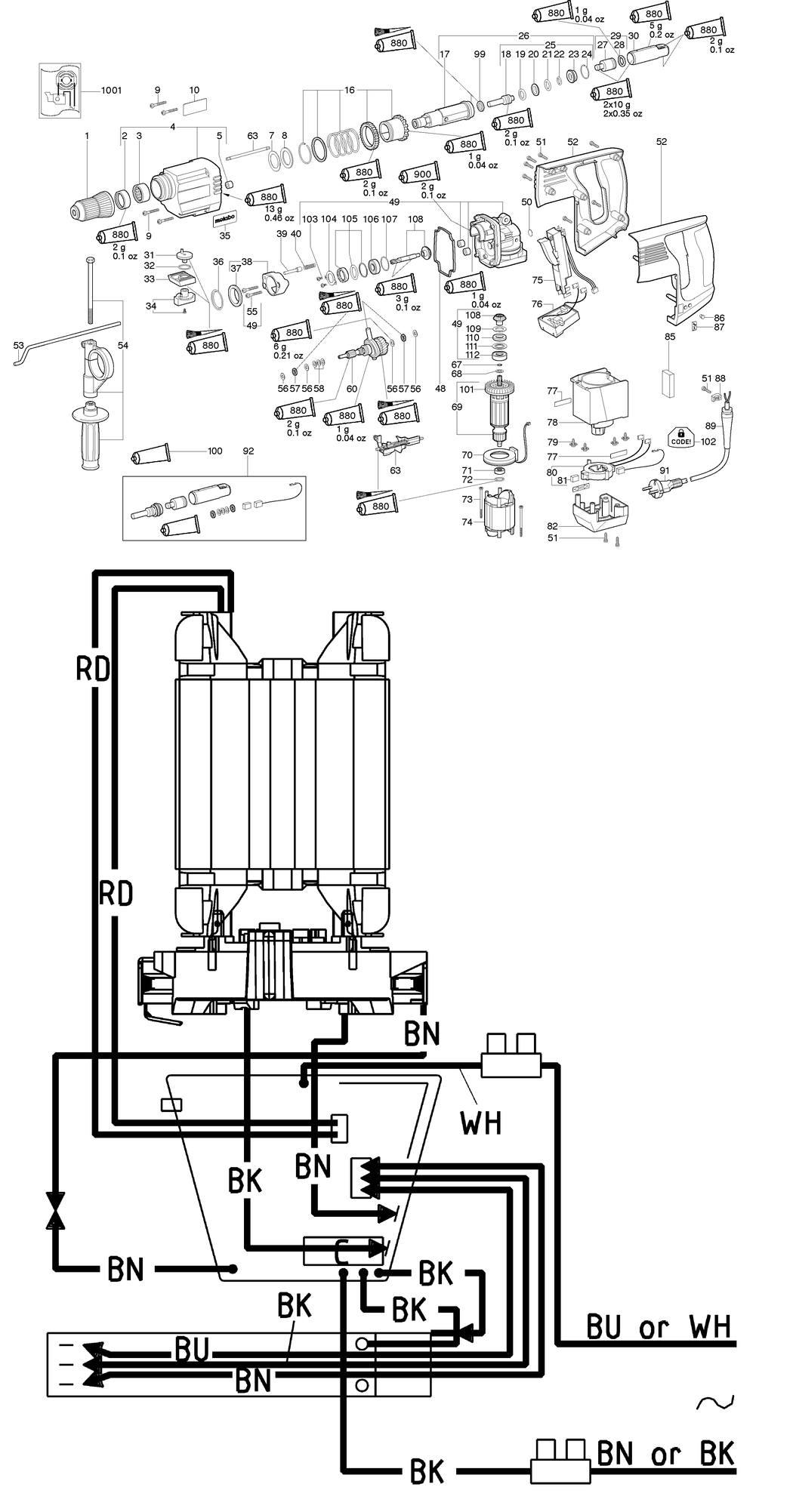

An exploded diagram and spare parts listing for the Metabo KHE 32 / 00332001 / EU 230V
Ex VAT Inc VAT
1 - ADAPTOR SDS -PLUS MET-316030980.A0 316030980 -
2 - OIL SEAL MET-143194780.A0 143194780 £9.62 £11.54
3 - NEEDLE SLEEVE MET-143114690.A2 143114690 £7.36 £8.83
4 - GEAR HOUSING CPL. MET-316031680.A1 316031680 £59.14 £70.97
5 - NEEDLE SLEEVE MET-143111430.A27 143111430 £7.36 £8.83
7 - SHIM MET-141155770.A2 141155770 £1.50 £1.80
8 - SUPPORTING DISC MET-141155590.A8 141155590 £1.50 £1.80
9 - FILLISTER HEAD SCREW MET-141111430.A38 141111430 £3.20 £3.84
10 - RATING PLATE MET-338045300.A1 338045300 £1.50 £1.80
16 - INTERMEDIATE GEAR CPL. MET-316036750.A1 316036750 £36.65 £43.98
17 - DRILL DRIVING SLEEVE MET-341057080.A1 341057080 £54.44 £65.33
18 - INTERMEDIATE STRIKER CPL. MET-316031620.A3 316031620 £17.07 £20.48
19 - O-RING MET-143194790.A13 143194790 £1.50 £1.80
20 - SUPPORTING RING MET-341012640.A3 341012640 £5.38 £6.45
21 - O-RING MET-143193910.A4 143193910 £3.20 £3.84
22 - O-RING MET-143193920.A46 143193920 £8.37 £10.04
23 - CATCHING SLEEVE MET-341054190.A3 341054190 £7.36 £8.83
24 - CIRCLIP MET-141181840.A50 141181840 £1.50 £1.80
25 - CATCHING SLEEVE CPL. MET-316031630.A0 316031630 £22.40 £26.88
26 - DRILL DRIVING SLEEVE CPL. MET-316036760.A0 316036760 £47.43 £56.92
27 - STRIKER MET-341056040.A1 341056040 £9.82 £11.79
28 - SEALING RING MET-344096110.A2 344096110 £4.76 £5.71
29 - STRIKER CPL. MET-316031700.A1 316031700 £17.95 £21.54
30 - EXCITER SLEEVE MET-341056050.A2 341056050 £20.12 £24.14
31 - EXCENTRIC MET-343375620.A2 343375620 £4.64 £5.57
32 - O-RING MET-143192260.A1 143192260 £3.20 £3.84
33 - SWITCH CUP MET-343375770.A1 343375770 £2.60 £3.12
34 - CONTROL LEVER CPL. MET-316032550.A2 316032550 £7.04 £8.45
35 - M-LABEL 56X25 MET-338122370.A9 338122370 £3.20 £3.84
36 - WASHER MET-339060330.A3 339060330 £3.11 £3.73
37 - BEARING BUSHING MET-341060250.A0 341060250 £5.62 £6.75
38 - BEARING RING MET-316030930.A2 316030930 -
39 - LOCKING PIN MET-341056030.A2 341056030 -
40 - PRESSURE SPRING MET-342001770.A20 342001770 £1.50 £1.80
48 - SEAL MET-344095730.A2 344095730 £2.60 £3.12
49 - BEARING FLANGE CPL. MET-316031650.A2 316031650 £128.14 £153.77
50 - FELT SEAL MET-344070670.A105 344070670 £1.50 £1.80
51 - SELF-TAP FILL H SCREW MET-141116020.A842 141116020 £3.20 £3.84
52 - HANDLE 2 PIECE ... MET-343378860.A1 343378860 £28.45 £34.14
53 - DEPTH STOP MET-341511630.A55 341511630 £6.38 £7.65
54 - SUPPORT HANDLE COMPL. MET-314001380.A7 314001380 £22.96 £27.55
55 - FILL. HEAD SCREW(DIN 7985) MET-141119890.A2 141119890 £1.50 £1.80
56 - WASHER MET-339129610.A31 339129610 £1.50 £1.80
57 - AXIAL NEEDLE BEARING MET-143114280.A13 143114280 £8.37 £10.04
58 - CUP SPRING MET-141154920.A21 141154920 £3.20 £3.84
60 - INTERMEDIATE SHAFT CPL. MET-316031690.A2 316031690 £50.13 £60.16
63 - SHIFT ELEMENT MET-316030940.A0 316030940 £22.61 £27.13
67 - O-RING MET-143193650.A43 143193650 £1.50 £1.80
68 - WASHER MET-141156000.A5 141156000 £1.50 £1.80
69 - ARMATURE CPL.230V (W. TACHO GEN.) MET-310007930.A1 310007930 £38.58 £46.30
70 - SPEED TRANSMITTER MET-343078040.A3 343078040 £9.82 £11.79
71 - BALL BEARING 6X19X6 MET-143115660.A190 143115660 £3.82 £4.59
72 - O-RING MET-143192430.A60 143192430 £3.20 £3.84
73 - SELF-TAP. FILL. H. SCREW MET-141118260.A55 141118260 £1.50 £1.80
74 - FIELD COIL 230V MET-311009810.A4 311009810 £22.96 £27.55
75 - POTI SWITCH MET-343406980.A3 343406980 £36.65 £43.98
76 - VTC ELECTRONIC SIGNAL 230V MET-343078800.A1 343078800 £41.44 £49.73
77 - INDICATION LABEL MET-338115410.A9 338115410 £1.50 £1.80
78 - MOTOR HOUSING MET-343375560.A3 343375560 £30.06 £36.07
79 - FILLISTER HEAD SCREW MET-141122790.A7 141122790 £1.50 £1.80
80 - BRUSH HOLDER MODULE MET-316030970.A1 316030970 £22.40 £26.88
81 - CARBON BRUSH SET MET-316032520.A1 316032520 £32.88 £39.45
82 - MOTOR CAP MET-343375580.A0 343375580 £9.82 £11.79
85 - INSERT MET-344103000.A7 344103000 £1.50 £1.80
86 - LIGHT TRANSMISSION MET-343370050.A0 343370050 £1.50 £1.80
87 - INDICATION LABLE MET-338115570.A3 338115570 £3.20 £3.84
88 - CABLE CLIP MET-343362490.A109 343362490 £3.20 £3.84
89 - CABLE SLEEVE MET-344100970.A205 344100970 £3.20 £3.84
91 - CABLE WITH PLUG MET-344486730.A7 344486730 £22.96 £27.55
92 - MAINTENANCE KIT MET-316032720.A3 316032720 £56.63 £67.96
99 - ABSORVER RING MET-341012650.A1 341012650 £3.89 £4.67
100 - GREASE KAJO-BIO GE2 MET-344131000.A0 344131000 £11.78 £14.13
101 - FAN W. PROT. GRID MET-316035740.A6 316035740 £15.41 £18.49
102 - STICKER MET-338117880.A2 338117880 £3.20 £3.84
103 - FILL. HEAD SCREW(DIN 7985) MET-141119570.A66 141119570 £1.50 £1.80
104 - BEARING COVER MET-339131220.A3 339131220 £2.60 £3.12
105 - SPACER RING COMPL. MET-316033110.A0 316033110 £14.71 £17.65
106 - BALL BEARING 12X28X8 MET-143114500.A3 143114500 £11.78 £14.13
107 - WASHER MET-141155730.A0 141155730 £1.50 £1.80
108 - INTERMEDIATE GEAR CPL. MET-316036220.A0 316036220 £35.57 £42.68
109 - WASHER MET-141153220.A4 141153220 £1.50 £1.80
110 - FELT RING MET-143194710.A3 143194710 -
111 - WASHER MET-339011340.A0 339011340 £1.50 £1.80
112 - BALL BEARING 12X28X8 MET-143114800.A4 143114800 £17.55 £21.06
880 - GREASE FG 126 MET-344130800.A155 344130800 £17.55 £21.06
900 - GREASE 50GR 1.8oz MET-344130970.A46 344130970 £15.41 £18.49
1001 - DIAGRAM MET-338504120.A1 338504120 -
