1 - CONTROL KNOB
MET-343394400.A6
343394400
|
£17.55
|
£21.06
|
|
|
2 - O-RING
MET-344098090.A95
344098090
|
£1.50
|
£1.80
|
|
|
3 - FILLISTER HEAD SCREW
MET-141123560.A2
141123560
|
£1.50
|
£1.80
|
|
|
4 - GEAR-BOX COVER
MET-315416320.A24
315416320
|
£73.52
|
£88.23
|
|
|
5 - RUBBER CAP
MET-344098250.A36
344098250
|
£9.62
|
£11.54
|
|
|
6 - SLIDING SLEEVE COMPL.
MET-343394410.A26
343394410
|
£17.55
|
£21.06
|
|
|
7 - CIRCLIP
MET-141155450.A46
141155450
|
£1.50
|
£1.80
|
|
|
8 - WASHER
MET-341012930.A16
341012930
|
£15.41
|
£18.49
|
|
|
9 - O-RING
MET-344098130.A18
344098130
|
£1.50
|
£1.80
|
|
|
10 - SLEEVE
MET-341058670.A4
341058670
|
£32.88
|
£39.45
|
|
|
11 - WASHER
MET-341012940.A28
341012940
|
£8.37
|
£10.04
|
|
|
12 - GUIDE SHEET
MET-339133290.A10
339133290
|
£15.41
|
£18.49
|
|
|
13 - PRESSURE SPRING
MET-342003510.A4
342003510
|
£3.82
|
£4.59
|
|
|
14 - GUIDE PLATE
MET-339133310.A34
339133310
|
£4.76
|
£5.71
|
|
|
15 - RETAINING RING
MET-141156340.A10
141156340
|
£3.82
|
£4.59
|
|
|
16 - HOLDER COMPL.
MET-316042700.A8
316042700
|
£26.35
|
£31.62
|
|
|
17 - RING
MET-341070590.A6
341070590
|
£11.78
|
£14.13
|
|
|
19 - SETTING RING
MET-343394390.A26
343394390
|
£22.96
|
£27.55
|
|
|
20 - RETAINING SHEET
MET-339133180.A18
339133180
|
-
|
|
|
|
21 - O-RING
MET-344098170.A12
344098170
|
£1.50
|
£1.80
|
|
|
22 - PISTON COMPL.
MET-316042620.A24
316042620
|
£48.88
|
£58.66
|
|
|
23 - GEAR SET
MET-316059770.A0
316059770
|
£157.18
|
£188.61
|
|
|
24 - WASHER
MET-341012950.A17
341012950
|
£5.62
|
£6.75
|
|
|
25 - NEEDLE ROLLER AND CAGE
MET-320050640.A57
320050640
|
£8.37
|
£10.04
|
|
|
26 - DAMPER
MET-344098670.A5
344098670
|
£7.36
|
£8.83
|
|
|
28 - CARRIER
MET-339133320.A10
339133320
|
£19.18
|
£23.02
|
|
|
29 - DRILL DRIVING SLEEVE
MET-341059150.A0
341059150
|
£121.97
|
£146.36
|
|
|
30 - BRAKE RING
MET-341012960.A28
341012960
|
£26.35
|
£31.62
|
|
|
32 - PISTON COMPL.
MET-316042660.A24
316042660
|
£68.35
|
£82.02
|
|
|
33 - STOP RING
MET-341012860.A12
341012860
|
£19.18
|
£23.02
|
|
|
34 - RUBBER RING
MET-344098260.A7
344098260
|
£5.62
|
£6.75
|
|
|
35 - WASHER
MET-341059110.A23
341059110
|
£19.18
|
£23.02
|
|
|
37 - STRIKER COMPL.
MET-316042610.A8
316042610
|
£36.59
|
£43.91
|
|
|
38 - WASHER
MET-341012880.A12
341012880
|
£3.82
|
£4.59
|
|
|
39 - SPINDLE
MET-316063830.A18
316063830
|
£238.25
|
£285.90
|
|
|
40 - METABO LABEL
MET-338121090.A16
338121090
|
-
|
|
|
|
41 - GEAR BOX CAP
MET-343394340.A24
343394340
|
£15.41
|
£18.49
|
|
|
42 - PRESSURE PLATE
MET-343394430.A0
343394430
|
£8.37
|
£10.04
|
|
|
43 - PRESSURE SPRING
MET-342003520.A41
342003520
|
£2.94
|
£3.53
|
|
|
44 - SEAL
MET-344098230.A41
344098230
|
£9.62
|
£11.54
|
|
|
45 - RETAINING SHEET
MET-339133220.A34
339133220
|
£9.62
|
£11.54
|
|
|
46 - FILLISTER HEAD SCREW
MET-141123580.A7
141123580
|
£1.50
|
£1.80
|
|
|
47 - BEVEL GEAR COMPL.
MET-316042590.A8
316042590
|
£60.03
|
£72.04
|
|
|
48 - WASHER
MET-341012910.A14
341012910
|
-
|
|
|
|
49 - BEARING BOLT
MET-341515310.A36
341515310
|
£26.35
|
£31.62
|
|
|
50 - BEARING
MET-320050680.A2
320050680
|
-
|
|
|
|
51 - GEAR HOUSING COMPL.
MET-315104730.A22
315104730
|
£93.30
|
£111.96
|
|
|
52 - CARBON BRUSH SET
MET-316042650.A14
316042650
|
£36.59
|
£43.91
|
|
|
53 - SHAFT SEALING RING
MET-339011650.A30
339011650
|
£19.18
|
£23.02
|
|
|
54 - LEAD WIRE (SWITCH)
MET-344497400.A54
344497400
|
£3.20
|
£3.84
|
|
|
55 - NAME PLATE
MET-338054690.A0
338054690
|
-
|
|
|
|
56 - O-RING
MET-344098090.A96
344098090
|
£1.50
|
£1.80
|
|
|
57 - MOTOR CAP CPL.
MET-343394320.A25
343394320
|
£32.88
|
£39.45
|
|
|
58 - FILLISTER HEAD SCREW
MET-141123550.A42
141123550
|
-
|
|
|
|
59 - FAN
MET-330001870.A12
330001870
|
£6.38
|
£7.65
|
|
|
60 - ARMATURE COMPL. 220-240 V
MET-310009310.A18
310009310
|
£108.01
|
£129.61
|
|
|
61 - DUST SEAL
MET-344098070.A37
344098070
|
£13.63
|
£16.36
|
|
|
62 - BALL BEARING
MET-320050650.A3
320050650
|
£15.41
|
£18.49
|
|
|
63 - TACHO DISC
MET-343394310.A12
343394310
|
£26.35
|
£31.62
|
|
|
64 - RUBBER BUSHING
MET-344098220.A1
344098220
|
£5.62
|
£6.75
|
|
|
65 - SCREW L5X35 T2025
MET-341704270.A26
341704270
|
£1.50
|
£1.80
|
|
|
66 - HANDLE 2 PART
MET-343394330.A12
343394330
|
£61.08
|
£73.30
|
|
|
67 - COVER CAP
MET-343394290.A18
343394290
|
£3.20
|
£3.84
|
|
|
68 - SEALING RING
MET-344098080.A7
344098080
|
£26.35
|
£31.62
|
|
|
69 - RETAINING RING
MET-342022070.A53
342022070
|
£2.94
|
£3.53
|
|
|
70 - BALL BEARING
MET-320050670.A69
320050670
|
£22.61
|
£27.13
|
|
|
71 - GEAR COVER
MET-315300630.A12
315300630
|
£61.08
|
£73.30
|
|
|
72 - ARMATURE W.FLANGE
MET-316042520.A17
316042520
|
£128.14
|
£153.77
|
|
|
73 - DAMPING RING
MET-339011640.A14
339011640
|
£19.18
|
£23.02
|
|
|
74 - ELECTRONIC UNIT 220-240 V
MET-343081350.A17
343081350
|
£51.54
|
£61.85
|
|
|
75 - PRESSURE PLATE
MET-343394350.A3
343394350
|
£7.36
|
£8.83
|
|
|
77 - ON-OFF SWITCH
MET-343407670.A15
343407670
|
£54.94
|
£65.93
|
|
|
78 - LIGHT TRANSMITTER
MET-343394380.A18
343394380
|
£7.36
|
£8.83
|
|
|
79 - BAFFLE
MET-339151110.A8
339151110
|
£9.62
|
£11.54
|
|
|
80 - SCREW 4X64
MET-341704210.A59
341704210
|
£1.50
|
£1.80
|
|
|
81 - FIELD COIL W.FIELD COIL 220-240 V
MET-311010850.A16
311010850
|
£61.08
|
£73.30
|
|
|
82 - MOTOR HOUSING
MET-315013260.A25
315013260
|
£48.88
|
£58.66
|
|
|
84 - FILLISTER HEAD SCREW
MET-141123540.A2
141123540
|
£2.94
|
£3.53
|
|
|
85 - SCREW
MET-341704240.A32
341704240
|
£1.50
|
£1.80
|
|
|
86 - BRUSH HOLDER
MET-343000920.A17
343000920
|
£9.62
|
£11.54
|
|
|
87 - SCREW
MET-341704240.A33
341704240
|
£1.50
|
£1.80
|
|
|
88 - CABLE CLIP
MET-343394210.A18
343394210
|
£1.50
|
£1.80
|
|
|
89 - CABLE SLEEVE
MET-344098210.A43
344098210
|
£5.62
|
£6.75
|
|
|
90 - CABLE W.CEE PLUG
MET-344497430.A19
344497430
|
£36.59
|
£43.91
|
|
|
91 - CLAMPING HOLDER
MET-339133190.A4
339133190
|
£19.18
|
£23.02
|
|
|
92 - SQUARE NUT
MET-141131020.A18
141131020
|
£3.20
|
£3.84
|
|
|
93 - SCREW K5X45 T20
MET-341704220.A51
341704220
|
£1.50
|
£1.80
|
|
|
94 - BODY COMPL.
MET-316042540.A4
316042540
|
£30.06
|
£36.07
|
|
|
95 - SIDE SUPPORT HANDLE COMPL.
MET-314001080.A0
314001080
|
£38.58
|
£46.30
|
|
|
96 - ANTI-VIBRATION HANDLE COMPL.
MET-314001070.A24
314001070
|
£61.08
|
£73.30
|
|
|
97 - DEPTH STOP
MET-331050750.A4
331050750
|
£11.78
|
£14.13
|
|
|
98 - SHIFT ELEMENT COMPL.
MET-316042630.A35
316042630
|
£8.37
|
£10.04
|
|
|
99 - MAINTENANCE KIT
MET-316045130.A7
316045130
|
£214.12
|
£256.95
|
|
|
100 - SCREW
MET-341704260.A44
341704260
|
£2.94
|
£3.53
|
|
|
101 - PART NOT NEEDED
MET-399999990.A1477
399999990
|
-
|
|
|
|
102 - PART NOT NEEDED
MET-399999990.A1478
399999990
|
-
|
|
|
|
103 - PIN
MET-341520220.A18
341520220
|
£3.20
|
£3.84
|
|
|
104 - CIRCLIP
MET-342200640.A5
342200640
|
£2.94
|
£3.53
|
|
|
105 - CARRIER
MET-341059160.A1
341059160
|
-
|
|
|
|
880 - TUBE GREASE 45 G URETHYN
MET-344131170.A42
344131170
|
£26.35
|
£31.62
|
|
|

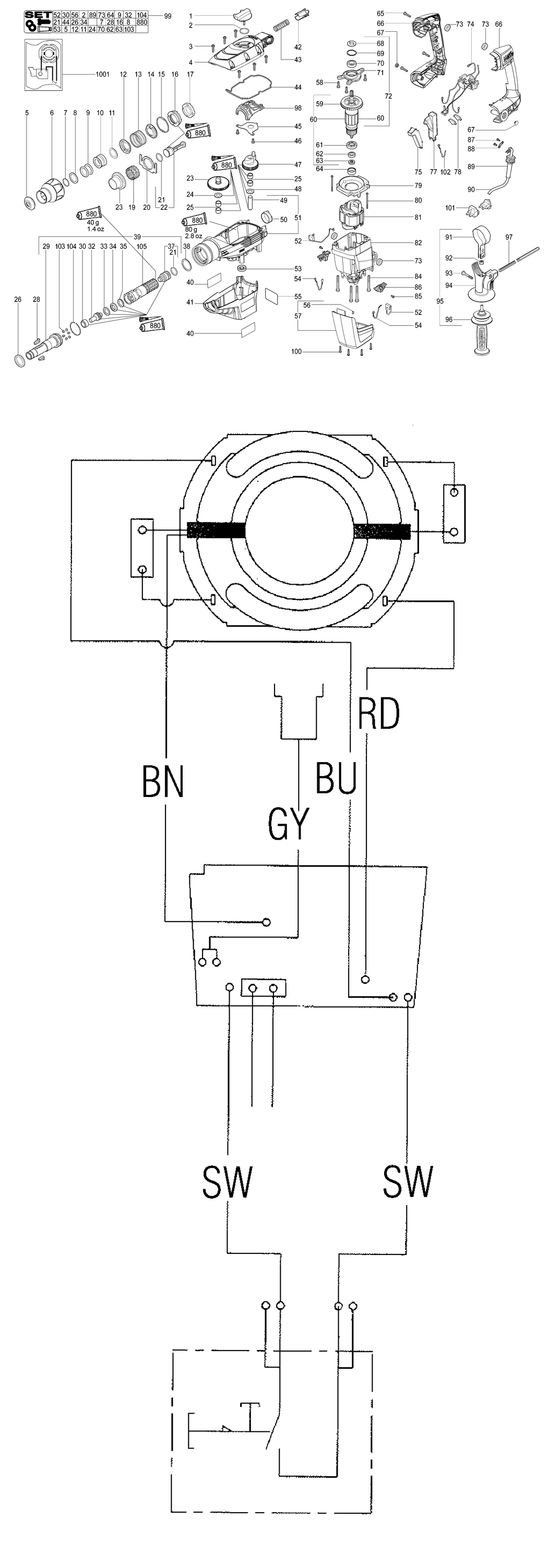

1001 - WIRING DIAGRAM
MET-338504740.A9
338504740
|
-
|
|
|
