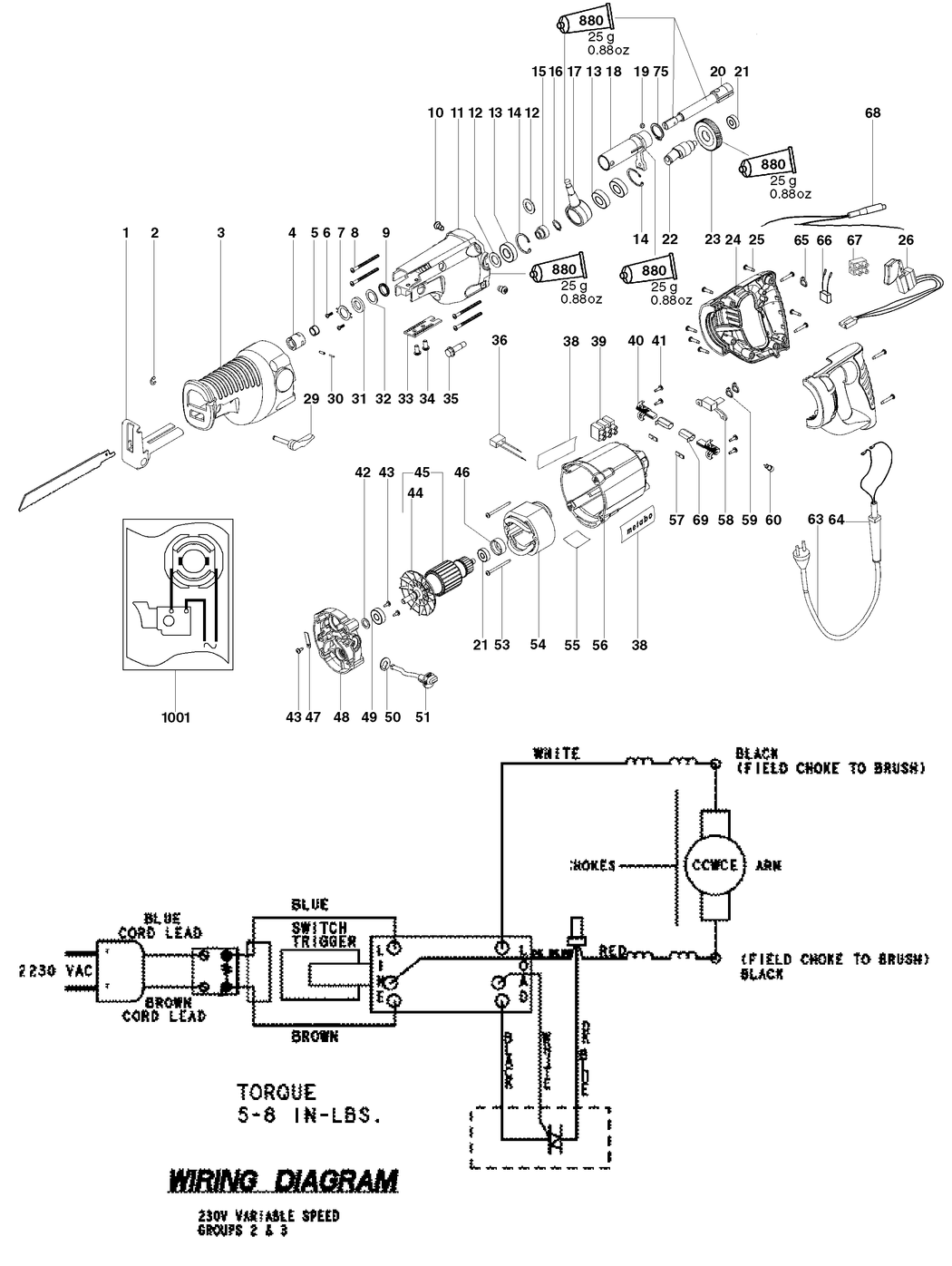

An exploded diagram and spare parts listing for the Metabo PSE 1200 / 01301180 / CH 230V
Ex VAT Inc VAT
1 - SAW GUIDE MET-316037790.A2 316037790 -
2 - CIRCLIP MET-339132250.A1 339132250 £1.50 £1.80
3 - INSULATION COVER MET-344096990.A2 344096990 £12.36 £14.83
4 - EXCENTRIC SETTING RING MET-341013280.A0 341013280 £26.85 £32.22
5 - TORSION SPRING MET-342022410.A2 342022410 £5.38 £6.45
6 - TAP TITE SCREW TORX 20 X 10 MET-341703770.A2 341703770 £1.50 £1.80
7 - RETRAINING SHEET MET-339132210.A2 339132210 £1.50 £1.80
8 - TIGHT FIT SREW TORX 20 X 58 MET-341703760.A0 341703760 £1.50 £1.80
9 - RUBBER PACKING MET-344097010.A0 344097010 £3.89 £4.67
10 - SCREW MET-341703720.A1 341703720 £6.19 £7.43
11 - GEAR COVER MET-315104370.A1 315104370 £49.88 £59.86
12 - FELT RING MET-344070820.A1 344070820 £3.89 £4.67
13 - BALL BEARING 15X32X9 MET-320050530.A1 320050530 £22.40 £26.88
14 - RETAINING RING MET-339132230.A2 339132230 £1.50 £1.80
15 - SPACER MET-341057510.A1 341057510 £1.50 £1.80
16 - RETAINING RING MET-339132240.A0 339132240 £1.50 £1.80
17 - WOBBLE ASSY MET-341090030.A1 341090030 £54.44 £65.33
18 - SUPPOR+D15097T SLEEVE MET-341057490.A0 341057490 £28.45 £34.14
19 - BALL W. RECESS MET-341006190.A2 341006190 £11.20 £13.44
20 - RAM MET-341210840.A0 341210840 £41.44 £49.73
21 - BALL BEARING 8X22X7 MET-320050520.A0 320050520 £14.71 £17.65
22 - DRIVE SHAFT MET-341057520.A1 341057520 £40.73 £48.88
23 - SPUR GEAR MET-340012450.A2 340012450 £45.80 £54.96
24 - HANDLE WITH COVER MET-343393850.A0 343393850 -
25 - SCREW TORX 20 X 18 MET-341703730.A2 341703730 £1.50 £1.80
26 - CONVERSION KIT + SWITCH 230 V MET-343407630.A2 343407630 £41.44 £49.73
29 - GUIDE LEVER MET-316037810.A0 316037810 £14.71 £17.65
30 - TIGTHENING PIN MET-341520090.A1 341520090 £2.94 £3.53
31 - FELT RING MET-344070810.A0 344070810 £1.50 £1.80
32 - WASHER MET-339006820.A0 339006820 £3.89 £4.67
33 - GUIDE LOCKING PLATE MET-339132220.A1 339132220 £4.64 £5.57
34 - ALLEN HEAD SCREW MET-341703550.A1 341703550 £1.50 £1.80
35 - SCREW W. BEARING PIN MET-341703710.A1 341703710 £7.04 £8.45
36 - CONDENSER MET-343254270.A2 343254270 -
38 - METABO PLATE MET-338118620.A0 338118620 £1.50 £1.80
39 - TERMINAL MET-343050230.A0 343050230 -
40 - BRUSH SET CPL. 120/230 V MET-316037840.A1 316037840 £22.61 £27.13
41 - PLASTITE SCREW TORX 20 X 18 MET-341703740.A0 341703740 -
42 - FELT RING MET-344070830.A0 344070830 £1.50 £1.80
43 - TAP TITE SCREW TORX 20 X 9 MET-341703780.A1 341703780 £1.50 £1.80
44 - FAN MET-330001660.A2 330001660 £12.36 £14.83
45 - ARMATURE CPL. 230 V MET-310008690.A0 310008690 £70.49 £84.59
46 - RUBBER BUSHING MET-344097040.A2 344097040 £1.50 £1.80
47 - SPRING MET-342050790.A2 342050790 -
48 - INTERMEDIATE FLANGE MET-315202250.A1 315202250 £26.85 £32.22
49 - BALL BEARING 10X26X8 MET-320050540.A0 320050540 £20.12 £24.14
50 - FELT RING MET-344070840.A2 344070840 £3.11 £3.73
51 - OSCILLATING SWITCH MET-316037800.A1 316037800 £7.04 £8.45
53 - SREW 5 3X50 TX 20 MET-341703680.A1 341703680 -
54 - FIELD COIL ASSEMBLY W.FIELD COIL 230V MET-311010330.A1 311010330 £49.88 £59.86
55 - RATING PLATE MET-338046220.A0 338046220 -
56 - MOTOR HOUSING MET-343390590.A1 343390590 £26.85 £32.22
57 - HOLDER INSULATION MET-339011470.A2 339011470 £3.11 £3.73
58 - FET HOLDER MET-343390690.A1 343390690 £5.38 £6.45
59 - PLASTIC STRIP MET-341147750.A0 341147750 -
60 - NUT MET-343050180.A2 343050180 £3.89 £4.67
63 - CABLE WITH PLUG MET-344491240.A0 344491240 £12.36 £14.83
64 - CABLE SLEEVE MET-344097030.A0 344097030 £8.62 £10.34
65 - PART NOT NEEDED MET-399999990.A495 399999990 -
66 - PART NOT NEEDED MET-399999990.A496 399999990 -
67 - PART NOT NEEDED MET-399999990.A497 399999990 -
68 - PART NOT NEEDED MET-399999990.A498 399999990 -
69 - BRUSH HOLDER MET-343000890.A0 343000890 £8.70 £10.44
75 - SNAP RING MET-141180090.A54 141180090 £3.20 £3.84
880 - SPECIAL GREASE MET-631800000.A17 631800000 £4.16 £4.99
1001 - DIAGRAM MET-338504220.A1 338504220 -
