Metabo W 1080-125 / 06722390 / GB 110V Spare Parts

Metabo W 1080-125 / 06722390 / GB 110V Spare Parts

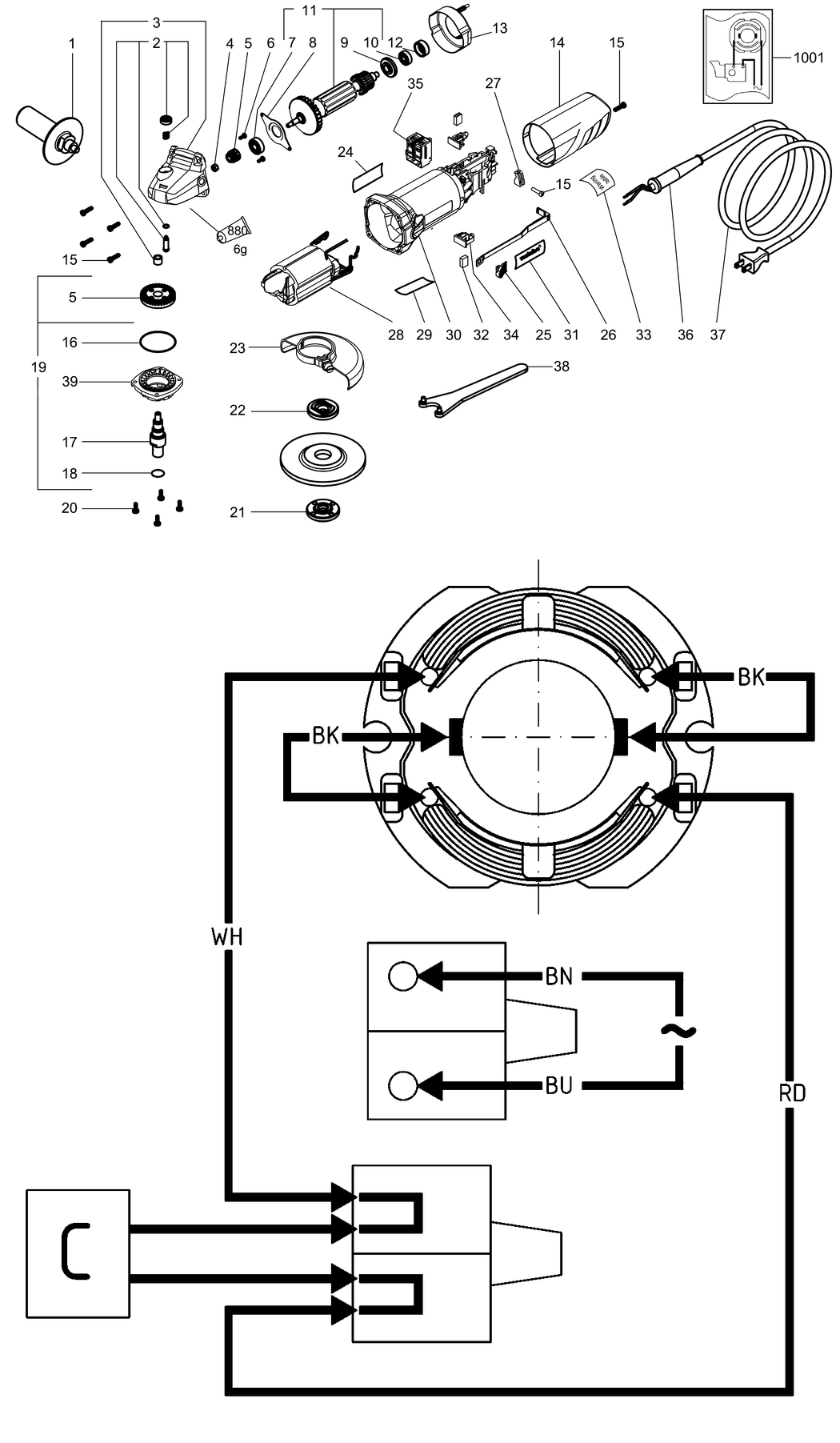

An exploded diagram and spare parts listing for the Metabo W 1080-125 / 06722390 / GB 110V
Ex VAT Inc VAT
1 - HANDLE CPL. MET-314000540.A125 314000540 £15.41 £18.49
2 - SPINDLE STOP COMPL. MET-316040610.A7 316040610 £4.76 £5.71
3 - GEAR HOUSING COMPL. MET-316049660.A11 316049660 £32.88 £39.45
4 - HEXAGON NUT W.RECESS MET-341100940.A51 341100940 £3.20 £3.84
5 - BEVEL GEAR AND PINION MET-316049650.A25 316049650 £26.35 £31.62
6 - FILLISTER HEAD SCREW MET-141110460.A77 141110460 £1.50 £1.80
7 - BALL BEARING 8X22X7 MET-143115420.A83 143115420 £8.37 £10.04
8 - COVER PLATE MET-339135750.A40 339135750 -
9 - SEALING WASHER MET-343392740.A149 343392740 £6.38 £7.65
10 - BALL BEARING 6X19X6 MET-143115870.A67 143115870 £5.62 £6.75
11 - ARMATURE COMPL. 110V MET-310010380.A5 310010380 £60.03 £72.04
12 - RUBBER BUSHING MET-344095260.A43 344095260 £3.20 £3.84
13 - BAFFLE MET-343430250.A29 343430250 -
14 - MOTOR CAP MET-343430240.A5 343430240 -
15 - SELF-TAP FILL H SCREW MET-141116020.A889 141116020 £3.20 £3.84
16 - O-RING 48 X 1 MET-344097550.A36 344097550 £1.50 £1.80
17 - SPINDLE M14 MET-341161150.A41 341161150 -
18 - O-RING MET-143192540.A72 143192540 £1.50 £1.80
19 - FLANGE COMPL. MET-341032160.A2 341032160 £42.65 £51.18
20 - FILL. HEAD SCREW MET-141120070.A73 141120070 £1.50 £1.80
21 - FLANGE NUT MET-341106900.A38 341106900 £11.78 £14.13
22 - CLAMPING FLANGE MET-341031160.A472 341031160 £15.41 £18.49
23 - WHEEL GUARD COMPL. dia125 MET-339203970.A6 339203970 £26.35 £31.62
24 - M-LABEL 08 52X22 MET-338122160.A283 338122160 £1.50 £1.80
25 - SWITCH SLIDE MET-343409660.A10 343409660 £2.94 £3.53
26 - SWITCH ROD MET-343430220.A6 343430220 £1.50 £1.80
27 - CABLE CLIP MET-343362490.A132 343362490 £3.20 £3.84
28 - FIELD COIL COMPL. 120V MET-311011700.A3 311011700 £61.08 £73.30
29 - RATING PLATE MET-338056680.A0 338056680 -
30 - MOTOR HOUSING MET-343430230.A16 343430230 £13.63 £16.36
31 - METABO PLATE MET-338122540.A13 338122540 £1.50 £1.80
32 - CARBON BRUSH SET 120 V MET-316051680.A13 316051680 £13.63 £16.36
33 - PART NOT NEEDED MET-399999990.A481 399999990 -
34 - BRUSH HOLDER MET-343000870.A3 343000870 £4.76 £5.71
35 - SWITCH MET-343409760.A3 343409760 £13.63 £16.36
36 - CABLE SLEEVE MET-344097360.A117 344097360 £2.94 £3.53
37 - CABLE W. UK PLUG 110 V MET-344498500.A7 344498500 £48.88 £58.66
38 - PIN SPANNER MET-344163920.A68 344163920 £4.76 £5.71
39 - FLANGE MET-343430260.A8 343430260 £11.78 £14.13
880 - GREASE 100G MET-344130910.A327 344130910 £19.18 £23.02
1001 - DIAGRAM MET-338504470.A31 338504470 -
