Metabo W 1100-115 / 03613000 / EU 230V Spare Parts

Metabo W 1100-115 / 03613000 / EU 230V Spare Parts

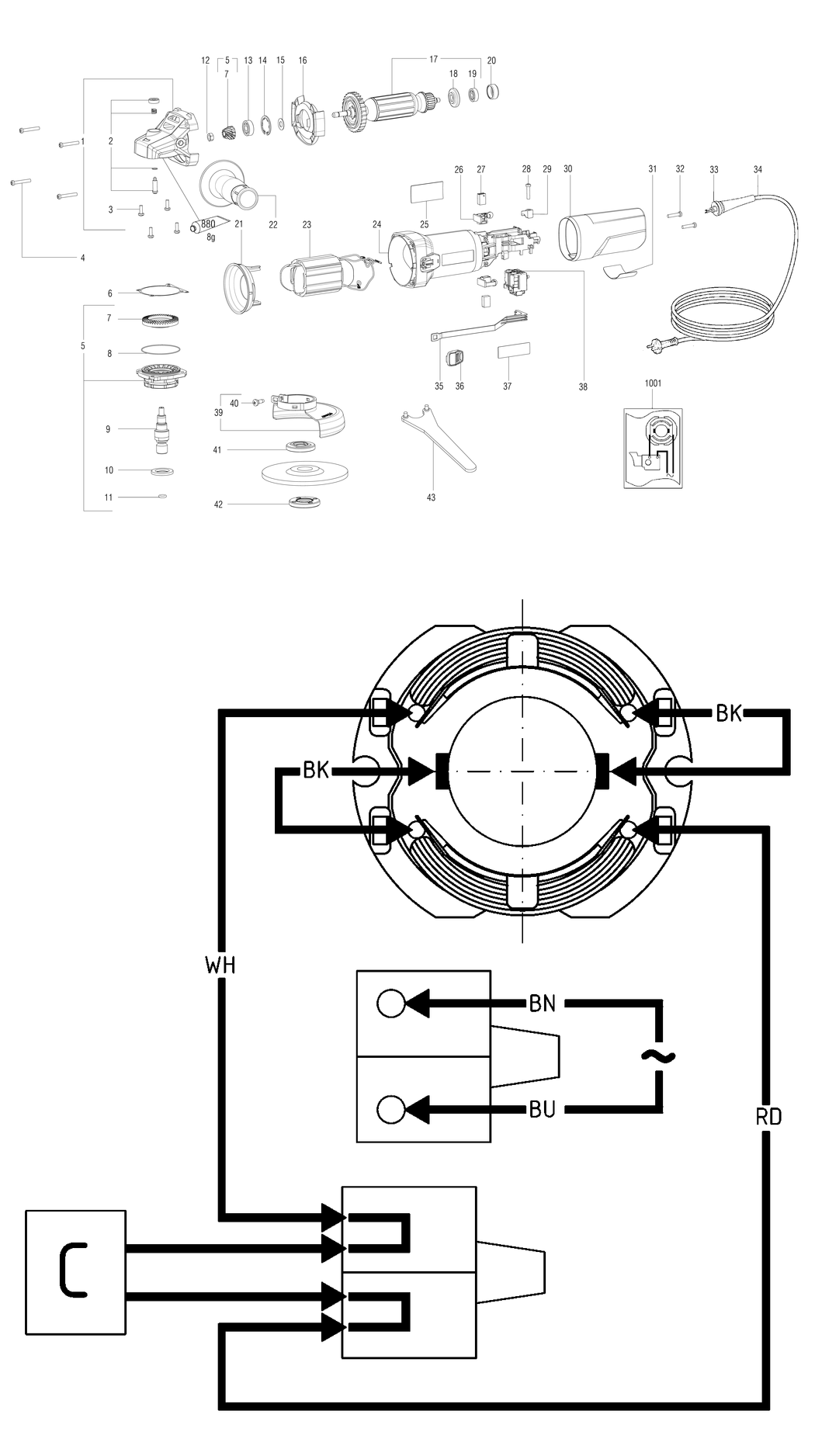

An exploded diagram and spare parts listing for the Metabo W 1100-115 / 03613000 / EU 230V
Ex VAT Inc VAT
1 - GEAR HOUSING COMPL. MET-316097440.A6 316097440 -
2 - SPINDLE STOP COMPL. MET-316040610.A209 316040610 £4.76 £5.71
3 - FILL. HEAD SCREW MET-141120070.A218 141120070 £1.50 £1.80
4 - SELF-TAP. FILL. H. SCREW MET-141123940.A28 141123940 -
5 - FLANGE COMPL. MET-316097430.A0 316097430 -
6 - COMPENSATING WASHER MET-339013130.A0 339013130 -
7 - BEVEL GEAR AND PINION MET-316097550.A1 316097550 -
8 - O-RING 48 X 1 MET-344097550.A131 344097550 £1.50 £1.80
9 - SPINDLE MET-341166740.A5 341166740 -
10 - WASHER MET-339007790.A6 339007790 -
11 - O-RING MET-143192540.A1 143192540 £1.50 £1.80
12 - HEX NUT M7 MET-341102660.A8 341102660 -
13 - BALL BEARING 8X 22X 7 MET-143116020.A13 143116020 -
14 - RETAINING RING MET-141156650.A156 141156650 £1.50 £1.80
15 - WASHER MET-339007940.A35 339007940 -
16 - BAFFLE MET-339153550.A15 339153550 -
17 - ARMATURE COMPL. 230V MET-310012720.A5 310012720 -
18 - SEALING WASHER MET-343392740.A64 343392740 £6.38 £7.65
19 - BALL BEARING 6X19X6 MET-143115870.A138 143115870 £5.62 £6.75
20 - RUBBER BUSHING MET-344095260.A176 344095260 £3.20 £3.84
21 - BAFFLE MET-339151290.A10 339151290 -
22 - HANDLE CPL. MET-314000540.A55 314000540 £15.41 £18.49
23 - FIELD COIL COMPL. 230V MET-311012800.A4 311012800 -
24 - MOTOR HOUSING MET-315013930.A5 315013930 -
25 - RATING PLATE MET-338070250.A0 338070250 -
26 - BRUSH HOLDER COMPL. MET-316097600.A3 316097600 -
27 - CARBON BRUSH 230V MET-343013500.A1 343013500 £9.62 £11.54
28 - SELF-TAP FILL H SCREW MET-141116020.A535 141116020 £3.20 £3.84
29 - CABLE CLIP MET-343362490.A1113 343362490 £3.20 £3.84
30 - MOTOR CAP WITH EU MET-343447070.A2 343447070 -
32 - SELF-TAP. FILL. H. SCREW MET-141118730.A46 141118730 £1.50 £1.80
33 - CABLE SLEEVE MET-343446380.A31 343446380 -
34 - CABLE W.CEE PLUG MET-344499540.A32 344499540 £17.55 £21.06
35 - SWITCH ROD MET-343446480.A12 343446480 -
36 - SWITCH SLIDE MET-343437100.A214 343437100 £2.94 £3.53
37 - METABO PLATE MET-338122540.A117 338122540 £1.50 £1.80
38 - SWITCH FPCE 230 V MET-343411110.A23 343411110 £22.96 £27.55
39 - WHEEL GUARD COMPL. dia115 MET-339209540.A1 339209540 -
40 - FILLISTER HEAD SCREW MET-141124060.A24 141124060 -
41 - CLAMPING FLANGE MET-341031160.A40 341031160 £15.41 £18.49
42 - FLANGE NUT MET-341106900.A175 341106900 £11.78 £14.13
43 - PIN SPANNER MET-344164240.A13 344164240 -
880 - GREASE 100G MET-344130910.A126 344130910 £19.18 £23.02
1001 - DIAGRAM MET-338504470.A108 338504470 -
