1 - HANDLE CPL.
MET-314000540.A202
314000540
|
£15.41
|
£18.49
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A90
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316046070.A79
316046070
|
£30.06
|
£36.07
|
|
|
4 - HEXAGON NUT W.RECESS
MET-341100940.A226
341100940
|
£3.20
|
£3.84
|
|
|
5 - BEVEL GEAR AND PINION
MET-316051030.A24
316051030
|
£22.61
|
£27.13
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A10
141110460
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143115420.A131
143115420
|
£8.37
|
£10.04
|
|
|
8 - FIXED BEARING COVER
MET-315417490.A117
315417490
|
-
|
|
|
|
9 - SEALING WASHER
MET-343392740.A111
343392740
|
£6.38
|
£7.65
|
|
|
10 - BALL BEARING 6X19X6
MET-143115870.A27
143115870
|
£5.62
|
£6.75
|
|
|
11 - ARMATURE CPL. 230 V
MET-310010720.A0
310010720
|
-
|
|
|
|
12 - RUBBER BUSHING
MET-344095260.A116
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-343399200.A2
343399200
|
-
|
|
|
|
14 - MOTOR CAP
MET-343399190.A21
343399190
|
-
|
|
|
|
15 - SELF-TAP FILL H SCREW
MET-141116020.A949
141116020
|
£3.20
|
£3.84
|
|
|
16 - O-RING 48 X 1
MET-344097550.A21
344097550
|
£1.50
|
£1.80
|
|
|
17 - SPINDLE M14
MET-341161150.A0
341161150
|
-
|
|
|
|
18 - O-RING
MET-143192540.A99
143192540
|
£1.50
|
£1.80
|
|
|
19 - FLANGE COMPL.
MET-341032230.A10
341032230
|
£42.65
|
£51.18
|
|
|
20 - FILL. HEAD SCREW
MET-141120070.A34
141120070
|
£1.50
|
£1.80
|
|
|
21 - FLANGE NUT
MET-341106900.A99
341106900
|
£11.78
|
£14.13
|
|
|
22 - CLAMPING FLANGE
MET-341031160.A382
341031160
|
£15.41
|
£18.49
|
|
|
23 - FILLISTER HEAD SCREW
MET-141124060.A51
141124060
|
-
|
|
|
|
24 - WHEEL GUARD COMPL. dia115
MET-339203660.A15
339203660
|
£11.78
|
£14.13
|
|
|
25 - M-LABEL 08 52X22
MET-338122160.A224
338122160
|
£1.50
|
£1.80
|
|
|
26 - SWITCH SLIDE
MET-343392080.A12
343392080
|
£2.94
|
£3.53
|
|
|
27 - SWITCH ROD
MET-343399170.A31
343399170
|
£1.50
|
£1.80
|
|
|
28 - CABLE CLIP
MET-343362490.A501
343362490
|
£3.20
|
£3.84
|
|
|
29 - FIELD COIL
MET-311011820.A0
311011820
|
-
|
|
|
|
30 - RATING PLATE
MET-338058440.A1
338058440
|
-
|
|
|
|
31 - MOTOR HOUSING
MET-343399180.A5
343399180
|
£11.78
|
£14.13
|
|
|
32 - METABO PLATE
MET-338122540.A46
338122540
|
£1.50
|
£1.80
|
|
|
33 - CARBON BRUSH SET CUT-OFF
MET-316047440.A23
316047440
|
£6.38
|
£7.65
|
|
|
34 - PART NOT NEEDED
MET-399999990.A831
399999990
|
-
|
|
|
|
35 - BRUSH HOLDER
MET-343012950.A38
343012950
|
£3.82
|
£4.59
|
|
|
36 - CONDENSER
MET-343254290.A18
343254290
|
£2.94
|
£3.53
|
|
|
37 - SWITCH
MET-343408260.A85
343408260
|
£7.36
|
£8.83
|
|
|
38 - CABLE SLEEVE
MET-344097360.A175
344097360
|
£2.94
|
£3.53
|
|
|
39 - CABLE WITH PLUG
MET-344498420.A4
344498420
|
-
|
|
|
|
40 - PIN SPANNER
MET-344163920.A31
344163920
|
£4.76
|
£5.71
|
|
|
41 - CARBON BRUSH
MET-316049670.A47
316049670
|
£13.63
|
£16.36
|
|
|
880 - GREASE 100G
MET-344130910.A367
344130910
|
£19.18
|
£23.02
|
|
|

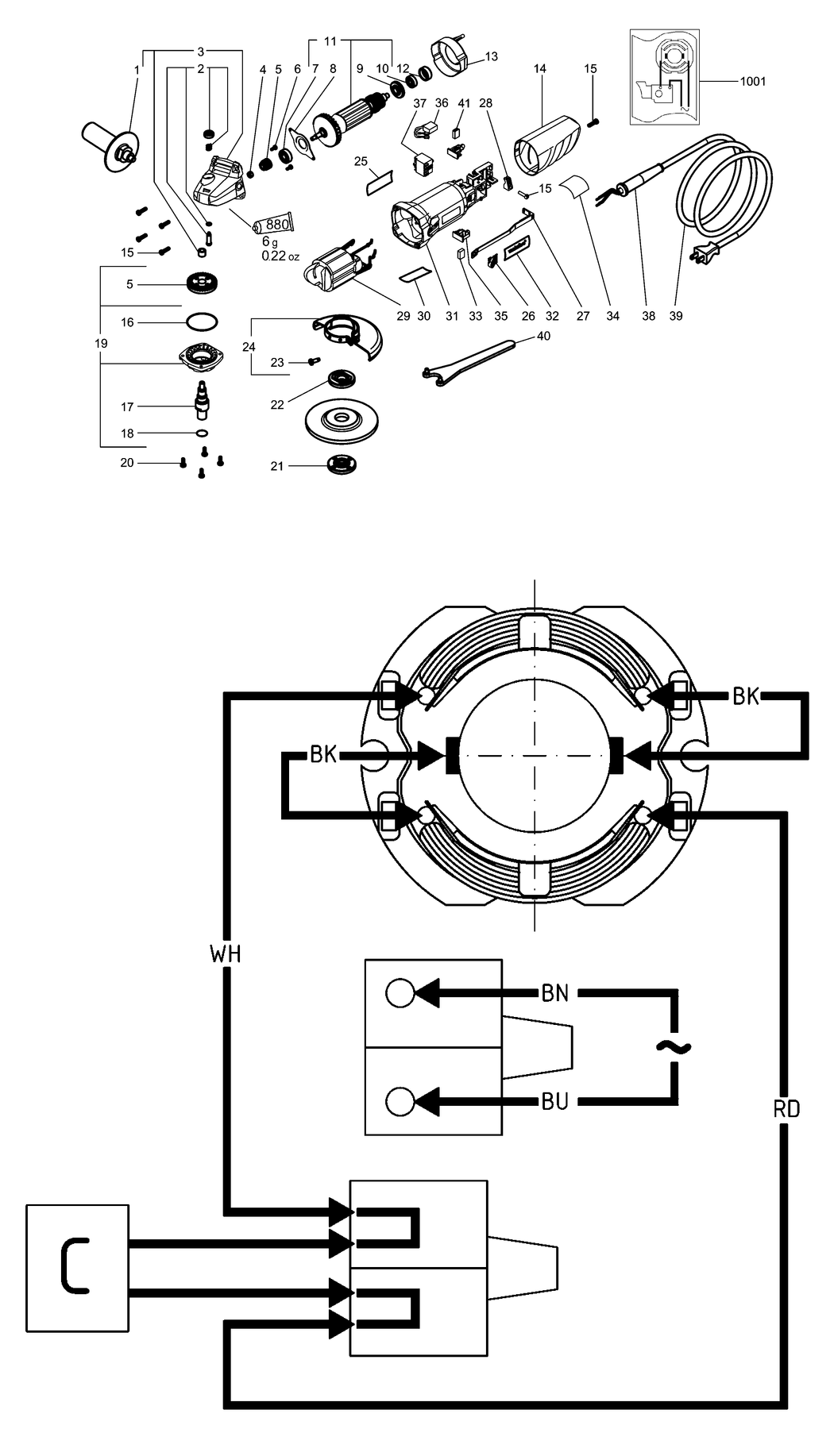

1001 - DIAGRAM
MET-338504470.A52
338504470
|
-
|
|
|
