1 - ARMATURE COMPL. 230V
MET-310011140.A1
310011140
|
£55.90
|
£67.08
|
|
|
2 - FIELD COIL W.FIELD COIL 230 V
MET-311012180.A29
311012180
|
£54.94
|
£65.93
|
|
|
3 - SWITCH 2-POLE
MET-343410280.A48
343410280
|
£11.78
|
£14.13
|
|
|
4 - PART NOT NEEDED
MET-399999990.A677
399999990
|
-
|
|
|
|
5 - PART NOT NEEDED
MET-399999990.A678
399999990
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A601
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013710.A27
315013710
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151210.A51
339151210
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 230V / 50/60HZ
MET-343084780.A3
343084780
|
-
|
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A577
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A428
344097870
|
£1.50
|
£1.80
|
|
|
17 - SHIFT LEVER
MET-343434570.A25
343434570
|
£4.76
|
£5.71
|
|
|
18 - MOTOR CAP 2 PARTS BLACK
MET-316070220.A51
316070220
|
£15.41
|
£18.49
|
|
|
19 - LIGHT GUIDE
MET-343435170.A67
343435170
|
£2.94
|
£3.53
|
|
|
21 - STRAP
MET-343435950.A27
343435950
|
£2.94
|
£3.53
|
|
|
23 - WHEEL GUARD D 150
MET-339204600.A6
339204600
|
£54.94
|
£65.93
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A193
314000970
|
£19.18
|
£23.02
|
|
|
25 - BAFFLE
MET-339151200.A150
339151200
|
£2.94
|
£3.53
|
|
|
26 - CLAMPING FLANGE
MET-341031160.A347
341031160
|
£15.41
|
£18.49
|
|
|
27 - RETAINER COMPL. D150
MET-316061250.A10
316061250
|
£32.88
|
£39.45
|
|
|
28 - EXTENSION
MET-341210700.A18
341210700
|
£7.36
|
£8.83
|
|
|
29 - BRAKE DISC
MET-341012810.A25
341012810
|
£30.06
|
£36.07
|
|
|
30 - INTERMEDIATE SHAFT COMPL.
MET-316064980.A0
316064980
|
£48.88
|
£58.66
|
|
|
31 - SUPPORTING PLATE
MET-343433710.A4
343433710
|
£2.94
|
£3.53
|
|
|
32 - SHIFT LEVER
MET-339136010.A20
339136010
|
£3.20
|
£3.84
|
|
|
33 - SHIFT ELEMENT
MET-343433700.A97
343433700
|
£2.94
|
£3.53
|
|
|
34 - PRESSURE SPRING
MET-342003420.A113
342003420
|
£1.50
|
£1.80
|
|
|
35 - PRESSURE SPRING
MET-342003930.A40
342003930
|
£2.94
|
£3.53
|
|
|
36 - INTERMEDIATE FLANGE
MET-343435920.A40
343435920
|
£7.36
|
£8.83
|
|
|
37 - FLANGE
MET-315203030.A7
315203030
|
£11.78
|
£14.13
|
|
|
39 - O-RING
MET-143192490.A14
143192490
|
£3.20
|
£3.84
|
|
|
41 - QUICKNUT M14
MET-316064680.A30
316064680
|
£13.63
|
£16.36
|
|
|
49 - SELF-TAP. FILL. H. SCREW
MET-141117060.A498
141117060
|
£3.20
|
£3.84
|
|
|
50 - RETAINING RING
MET-141156650.A109
141156650
|
£1.50
|
£1.80
|
|
|
51 - BALL BEARING 8X22X7
MET-143115560.A63
143115560
|
£8.37
|
£10.04
|
|
|
52 - RI.KU.LA. 6X 19X 6
MET-143114790.A71
143114790
|
£5.62
|
£6.75
|
|
|
54 - WASHER
MET-339006390.A432
339006390
|
£1.50
|
£1.80
|
|
|
55 - BALL BEARING 8X22X7
MET-143114740.A39
143114740
|
£15.41
|
£18.49
|
|
|
56 - SPACER RING
MET-341071890.A6
341071890
|
-
|
|
|
|
57 - SPACER SLEEVE
MET-341071640.A14
341071640
|
-
|
|
|
|
58 - BALL BEARING 8X24X8
MET-143115950.A4
143115950
|
£6.38
|
£7.65
|
|
|
59 - WASHER
MET-141152720.A14
141152720
|
£3.20
|
£3.84
|
|
|
60 - COMPENSATING WASHER
MET-143115490.A33
143115490
|
£1.50
|
£1.80
|
|
|
61 - RETAINING RING
MET-141181010.A18
141181010
|
£2.94
|
£3.53
|
|
|
62 - COMPENSATING WASHER
MET-339012160.A14
339012160
|
£2.94
|
£3.53
|
|
|
63 - COUNTERSUNK SCREW
MET-141120200.A36
141120200
|
£1.50
|
£1.80
|
|
|
64 - SELF-TAP. FILL. H. SCREW
MET-341701470.A90
341701470
|
£1.50
|
£1.80
|
|
|
65 - SELF-TAP. FILL. H. SCREW
MET-141116980.A378
141116980
|
£1.50
|
£1.80
|
|
|
66 - FILLISTER HEAD SCREW
MET-141124090.A27
141124090
|
£2.94
|
£3.53
|
|
|
67 - COUNTERSUNK SCREW
MET-141121710.A64
141121710
|
£1.50
|
£1.80
|
|
|
68 - RATING PLATE
MET-338064580.A0
338064580
|
-
|
|
|
|
70 - TACHO DISC
MET-343433060.A161
343433060
|
£3.82
|
£4.59
|
|
|
71 - BRUSH HOLDER SET
MET-316065420.A93
316065420
|
£17.55
|
£21.06
|
|
|
72 - BEVEL GEAR AND BEVEL GEAR
MET-316062410.A15
316062410
|
£42.65
|
£51.18
|
|
|
73 - FAN W. DUST GUARD
MET-316054850.A289
316054850
|
£5.62
|
£6.75
|
|
|
74 - CARBON BRUSH SET CUT-OFF
MET-316065450.A83
316065450
|
£15.41
|
£18.49
|
|
|
75 - PART NOT NEEDED
MET-399999990.A669
399999990
|
-
|
|
|
|
76 - PART NOT NEEDED
MET-399999990.A670
399999990
|
-
|
|
|
|
78 - GEAR HOUSING COMPL.
MET-316062330.A7
316062330
|
£68.35
|
£82.02
|
|
|
79 - SPINDLE LOCK COMPL.
MET-316062340.A21
316062340
|
£19.18
|
£23.02
|
|
|
80 - BUTTING PLATE
MET-339011590.A51
339011590
|
£9.62
|
£11.54
|
|
|
81 - SPINDLE COMPL. WBF M14
MET-316069040.A2
316069040
|
-
|
|
|
|
82 - WASHER
MET-339006810.A30
339006810
|
£1.50
|
£1.80
|
|
|
86 - BALL BEARING 8X22X7
MET-143115560.A66
143115560
|
£8.37
|
£10.04
|
|
|
87 - SPACER SLEEVE
MET-341210710.A18
341210710
|
£6.38
|
£7.65
|
|
|
90 - PART NOT NEEDED
MET-399999990.A667
399999990
|
-
|
|
|
|
91 - PART NOT NEEDED
MET-399999990.A668
399999990
|
-
|
|
|
|
124 - CARBONBRUSH WITH BRUSHOLDER SET 230V
MET-316067170.A139
316067170
|
£17.55
|
£21.06
|
|
|
880 - GREASE 100G
MET-344130920.A137
344130920
|
£19.18
|
£23.02
|
|
|

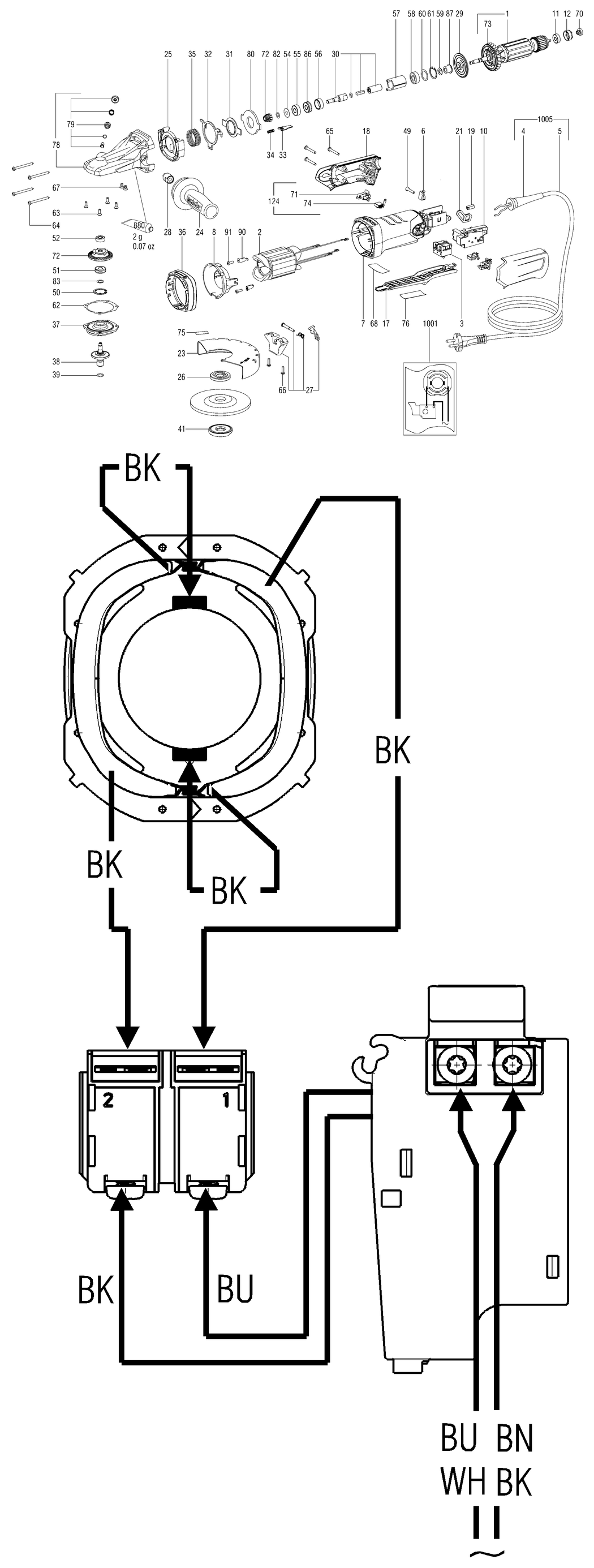

1001 - DIAGRAM
MET-338505950.A21
338505950
|
-
|
|
|
|
1005 - CABLE WITH SLEEVE
MET-316067340.A21
316067340
|
£26.35
|
£31.62
|
|
