1 - ARMATURE COMPL. 120V
MET-310011020.A2
310011020
|
£68.35
|
£82.02
|
|
|
2 - FIELD COIL W.FIELD COIL 120 V
MET-311012270.A0
311012270
|
£48.88
|
£58.66
|
|
|
3 - SWITCH 2-POLE
MET-343410180.A13
343410180
|
-
|
|
|
|
4 - CABLE SLEEVE
MET-344101220.A140
344101220
|
£3.20
|
£3.84
|
|
|
5 - CABLE WITH UL-CSA-PLUG
MET-344499690.A12
344499690
|
-
|
|
|
|
6 - CABLE CLIP
MET-343362490.A1257
343362490
|
£3.20
|
£3.84
|
|
|
7 - MOTOR HOUSING
MET-315013710.A93
315013710
|
£13.63
|
£16.36
|
|
|
8 - BAFFLE
MET-339151180.A204
339151180
|
£2.94
|
£3.53
|
|
|
10 - ELECTRONIC UNIT 120V / 50/60HZ
MET-343084790.A7
343084790
|
£54.94
|
£65.93
|
|
|
11 - BALL BEARING 6X19X6
MET-143115690.A586
143115690
|
£3.82
|
£4.59
|
|
|
12 - RUBBER BUSHING
MET-344097870.A102
344097870
|
£1.50
|
£1.80
|
|
|
17 - SHIFT LEVER COMPL.
MET-316053950.A19
316053950
|
£8.37
|
£10.04
|
|
|
18 - MOTOR CAP 2 PARTS BLACK
MET-316070220.A1
316070220
|
£15.41
|
£18.49
|
|
|
19 - LIGHT GUIDE
MET-343435170.A45
343435170
|
£2.94
|
£3.53
|
|
|
23 - WHEEL GUARD D 150
MET-339204600.A18
339204600
|
£54.94
|
£65.93
|
|
|
24 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A241
314000970
|
£19.18
|
£23.02
|
|
|
25 - BAFFLE
MET-339151200.A287
339151200
|
£2.94
|
£3.53
|
|
|
26 - CLAMPING FLANGE
MET-341031290.A140
341031290
|
£9.62
|
£11.54
|
|
|
27 - RETAINER COMPL. D150
MET-316061250.A15
316061250
|
£32.88
|
£39.45
|
|
|
28 - EXTENSION
MET-341210700.A37
341210700
|
£7.36
|
£8.83
|
|
|
33 - INTERMEDIATE SHAFT COMPL.
MET-316064980.A14
316064980
|
£48.88
|
£58.66
|
|
|
37 - FLANGE
MET-315203030.A25
315203030
|
£11.78
|
£14.13
|
|
|
39 - O-RING
MET-143192150.A52
143192150
|
£1.50
|
£1.80
|
|
|
41 - QUICKNUT
MET-316064690.A9
316064690
|
-
|
|
|
|
49 - SELF-TAP. FILL. H. SCREW
MET-141117060.A106
141117060
|
£3.20
|
£3.84
|
|
|
50 - RETAINING RING
MET-141156650.A207
141156650
|
£1.50
|
£1.80
|
|
|
51 - BALL BEARING 8X22X7
MET-143115560.A18
143115560
|
£8.37
|
£10.04
|
|
|
52 - RI.KU.LA. 6X 19X 6
MET-143114790.A19
143114790
|
£5.62
|
£6.75
|
|
|
54 - WASHER
MET-339006390.A26
339006390
|
£1.50
|
£1.80
|
|
|
55 - BALL BEARING 8X22X7
MET-143114740.A2
143114740
|
£15.41
|
£18.49
|
|
|
56 - SPACER RING
MET-341071890.A15
341071890
|
-
|
|
|
|
57 - SPACER SLEEVE
MET-341071640.A5
341071640
|
-
|
|
|
|
58 - BALL BEARING 8X24X8
MET-143115950.A16
143115950
|
£6.38
|
£7.65
|
|
|
59 - WASHER
MET-141151040.A22
141151040
|
£3.20
|
£3.84
|
|
|
60 - COMPENSATING WASHER
MET-143115490.A72
143115490
|
£1.50
|
£1.80
|
|
|
61 - RETAINING RING
MET-141181010.A1
141181010
|
£2.94
|
£3.53
|
|
|
62 - COMPENSATING WASHER
MET-339012160.A37
339012160
|
£2.94
|
£3.53
|
|
|
63 - COUNTERSUNK SCREW
MET-141120200.A15
141120200
|
£1.50
|
£1.80
|
|
|
64 - SELF-TAP. FILL. H. SCREW
MET-141116980.A55
141116980
|
£1.50
|
£1.80
|
|
|
66 - FILLISTER HEAD SCREW
MET-141124090.A67
141124090
|
£2.94
|
£3.53
|
|
|
67 - COUNTERSUNK SCREW
MET-141121710.A25
141121710
|
£1.50
|
£1.80
|
|
|
68 - RATING PLATE
MET-338064570.A1
338064570
|
-
|
|
|
|
70 - TACHO DISC
MET-343433060.A137
343433060
|
£3.82
|
£4.59
|
|
|
72 - BEVEL GEAR AND BEVEL GEAR
MET-316062410.A22
316062410
|
£42.65
|
£51.18
|
|
|
73 - FAN W. DUST GUARD
MET-316054850.A154
316054850
|
£5.62
|
£6.75
|
|
|
74 - CARBONBRUSH WITH BRUSHOLDER SET 110V
MET-316066670.A68
316066670
|
£17.55
|
£21.06
|
|
|
75 - INDICATION LABEL
MET-338122010.A13
338122010
|
-
|
|
|
|
76 - WARNING LABEL 52X22
MET-338122090.A130
338122090
|
-
|
|
|
|
78 - GEAR HOUSING COMPL.
MET-316062330.A26
316062330
|
£68.35
|
£82.02
|
|
|
79 - SPINDLE LOCK COMPL.
MET-316062340.A2
316062340
|
£19.18
|
£23.02
|
|
|
81 - SPINDLE COMPL.
MET-316069030.A4
316069030
|
-
|
|
|
|
82 - WASHER
MET-339006810.A15
339006810
|
£1.50
|
£1.80
|
|
|
86 - BALL BEARING 8X22X7
MET-143115560.A19
143115560
|
£8.37
|
£10.04
|
|
|
90 - CLAMPING PIECE
MET-339137160.A2
339137160
|
-
|
|
|
|
91 - CROSS REC. SELF-DRILLING SCREW 3 5X13 VE
MET-6144027270.A3
6144027270
|
£1.50
|
£1.80
|
|
|
880 - GREASE 100G
MET-344130920.A534
344130920
|
£19.18
|
£23.02
|
|
|

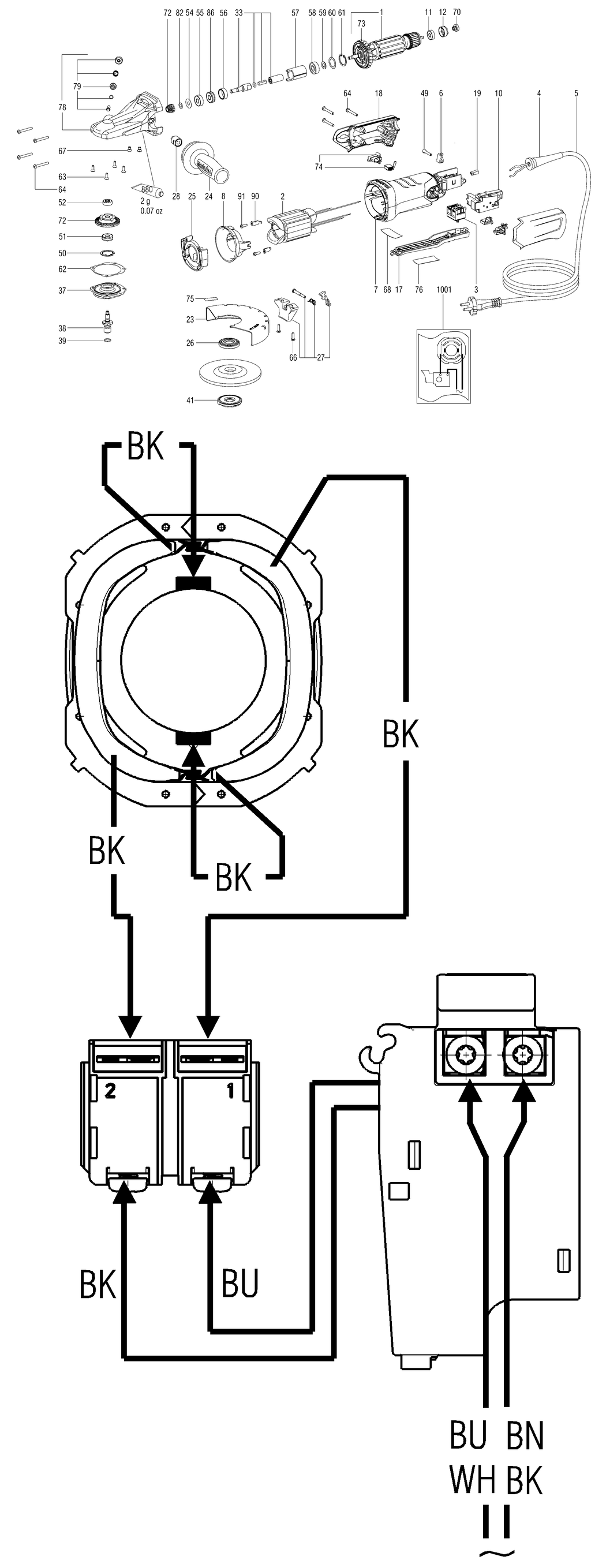

1001 - DIAGRAM
MET-338505950.A67
338505950
|
-
|
|
|
