1 - HEXAGON NUT W.RECESS
MET-341100940.A294
341100940
|
£3.20
|
£3.84
|
|
|
2 - BEVEL GEAR W.PINION
MET-316041660.A23
316041660
|
£22.61
|
£27.13
|
|
|
3 - WASHER
MET-339006390.A23
339006390
|
£1.50
|
£1.80
|
|
|
4 - BALL BEARING 8X22X7
MET-143115700.A296
143115700
|
£4.76
|
£5.71
|
|
|
5 - WASHER
MET-339133060.A137
339133060
|
£1.50
|
£1.80
|
|
|
6 - FAN W. PROT. GRID
MET-316041450.A49
316041450
|
£7.36
|
£8.83
|
|
|
7 - ARMATURE COMPL. 230V
MET-310009040.A11
310009040
|
£30.06
|
£36.07
|
|
|
8 - BALL BEARING 6X19X6
MET-143115690.A653
143115690
|
£3.82
|
£4.59
|
|
|
9 - RUBBER BUSHING
MET-344097870.A81
344097870
|
£1.50
|
£1.80
|
|
|
10 - PUSH BUTTON RED
MET-343393650.A21
343393650
|
£1.50
|
£1.80
|
|
|
11 - PRESSURE SPRING
MET-342003390.A218
342003390
|
£1.50
|
£1.80
|
|
|
12 - O-RING
MET-143193650.A123
143193650
|
£1.50
|
£1.80
|
|
|
13 - BOLT
MET-341515280.A69
341515280
|
£1.50
|
£1.80
|
|
|
14 - FILLISTER HEAD SCREW
MET-141123660.A28
141123660
|
£1.50
|
£1.80
|
|
|
15 - GEAR HOUSING COMPL.
MET-316041620.A14
316041620
|
£32.88
|
£39.45
|
|
|
16 - SELF-TAP FILL H SCREW
MET-141116020.A471
141116020
|
£3.20
|
£3.84
|
|
|
17 - FRICTION WASHER CPL.
MET-316041650.A87
316041650
|
£17.55
|
£21.06
|
|
|
18 - WASHER 10 2 X 14
MET-141151120.A372
141151120
|
£1.50
|
£1.80
|
|
|
19 - FLANGE W.CLAMPING LEVER CPL.
MET-316041720.A27
316041720
|
£32.88
|
£39.45
|
|
|
20 - SPRING CLIP
MET-342022040.A4
342022040
|
£1.50
|
£1.80
|
|
|
21 - LEVER
MET-341070440.A10
341070440
|
£4.76
|
£5.71
|
|
|
22 - CIRCLIP
MET-141181810.A24
141181810
|
£1.50
|
£1.80
|
|
|
23 - SPINDLE SHAFT
MET-341161030.A57
341161030
|
£26.35
|
£31.62
|
|
|
24 - SAFETY CLUTCH W.PINION 230V
MET-316041680.A12
316041680
|
£68.35
|
£82.02
|
|
|
25 - COMPRESSION SPRING
MET-342050840.A83
342050840
|
£2.94
|
£3.53
|
|
|
26 - GASKET
MET-339011570.A27
339011570
|
£1.50
|
£1.80
|
|
|
27 - WASHER 10 2 X 14
MET-141152300.A66
141152300
|
£3.20
|
£3.84
|
|
|
28 - WASHER 10 2 X 14
MET-141153920.A364
141153920
|
£1.50
|
£1.80
|
|
|
29 - FLAT HEADED SCREW
MET-341702650.A0
341702650
|
£1.50
|
£1.80
|
|
|
30 - CLAMPING NUT COMPL. M14
MET-316023660.A68
316023660
|
£22.61
|
£27.13
|
|
|
31 - CLAMPING FLANGE
MET-341031160.A127
341031160
|
£15.41
|
£18.49
|
|
|
32 - WHEEL GUARD D125
MET-339204500.A268
339204500
|
£11.78
|
£14.13
|
|
|
33 - ANTI-VIBRATION HANDLE M 8
MET-314000970.A226
314000970
|
£19.18
|
£23.02
|
|
|
34 - FIELD COIL ASSEMBLY W.FIELD COIL 230V
MET-311011590.A1
311011590
|
£73.52
|
£88.23
|
|
|
35 - RATING PLATE
MET-338052510.A0
338052510
|
-
|
|
|
|
36 - MOTOR HOUSING
MET-315013390.A1
315013390
|
£15.41
|
£18.49
|
|
|
37 - CARBON BRUSH SET
MET-316046800.A5
316046800
|
£11.78
|
£14.13
|
|
|
38 - BRUSH HOLDER COMPL. CUT OUT
MET-316046890.A97
316046890
|
£15.42
|
£18.51
|
|
|
39 - HOUSING COVER
MET-343397190.A1
343397190
|
£8.37
|
£10.04
|
|
|
40 - M-LABEL 08 49-51X25 WP 8-125 QUICKPROTEC
MET-338123000.A0
338123000
|
-
|
|
|
|
41 - CABLE CLIP
MET-343362490.A1279
343362490
|
£3.20
|
£3.84
|
|
|
42 - BAFFLE
MET-339151050.A17
339151050
|
£1.50
|
£1.80
|
|
|
44 - PART NOT NEEDED
MET-399999990.A2174
399999990
|
-
|
|
|
|
45 - SWITCH TRIGGER COMPL.
MET-316044040.A2
316044040
|
£8.37
|
£10.04
|
|
|
46 - SWITCH
MET-343409430.A0
343409430
|
£13.63
|
£16.36
|
|
|
47 - HOUSING
MET-343398510.A3
343398510
|
-
|
|
|
|
48 - FILLISTER HEAD SCREW
MET-141123490.A112
141123490
|
£1.50
|
£1.80
|
|
|
49 - CABLE SLEEVE
MET-344100970.A22
344100970
|
£3.20
|
£3.84
|
|
|
50 - CABLE W.SOCKET
MET-344497950.A7
344497950
|
£19.18
|
£23.02
|
|
|
880 - GREASE 100G
MET-344130920.A515
344130920
|
£19.18
|
£23.02
|
|
|
885 - GREASE SF 011 50GR 1.8oz
MET-344130560.A76
344130560
|
£19.18
|
£23.02
|
|
|

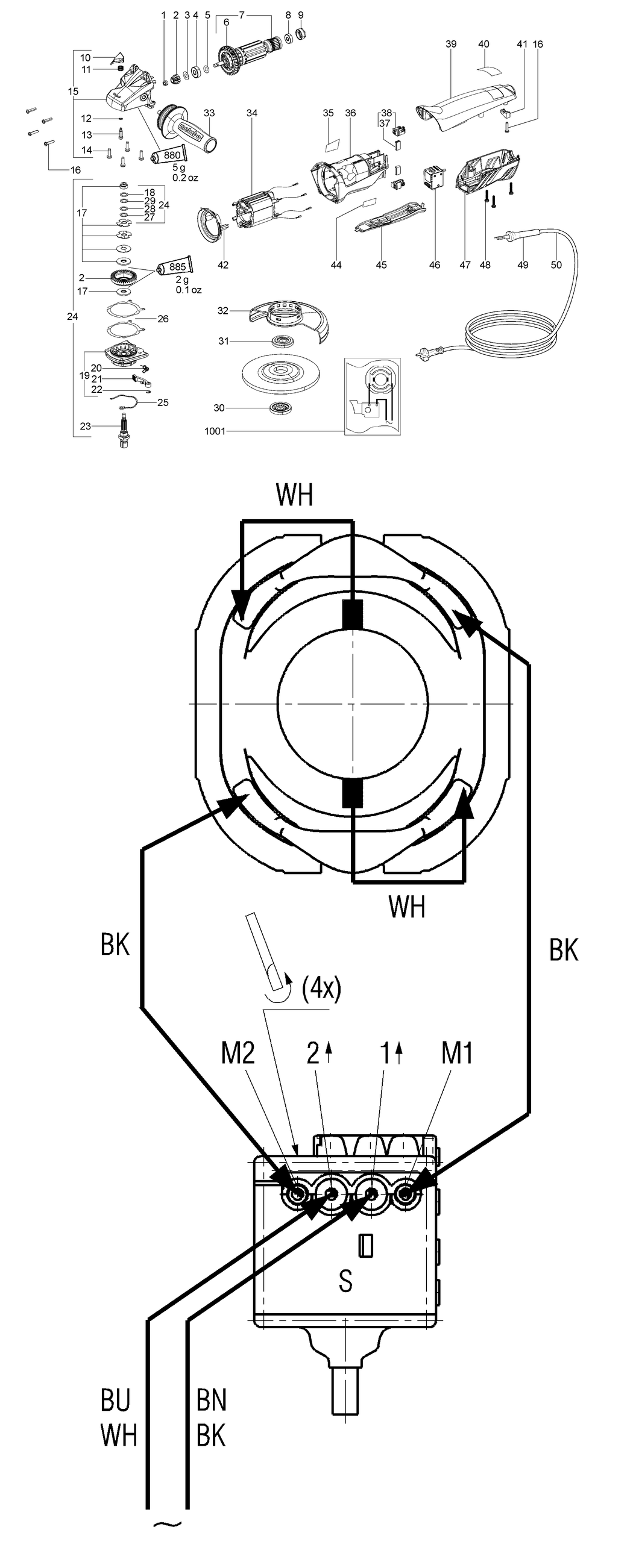

1001 - WIRING DIAGRAM
MET-338504650.A18
338504650
|
-
|
|
|
