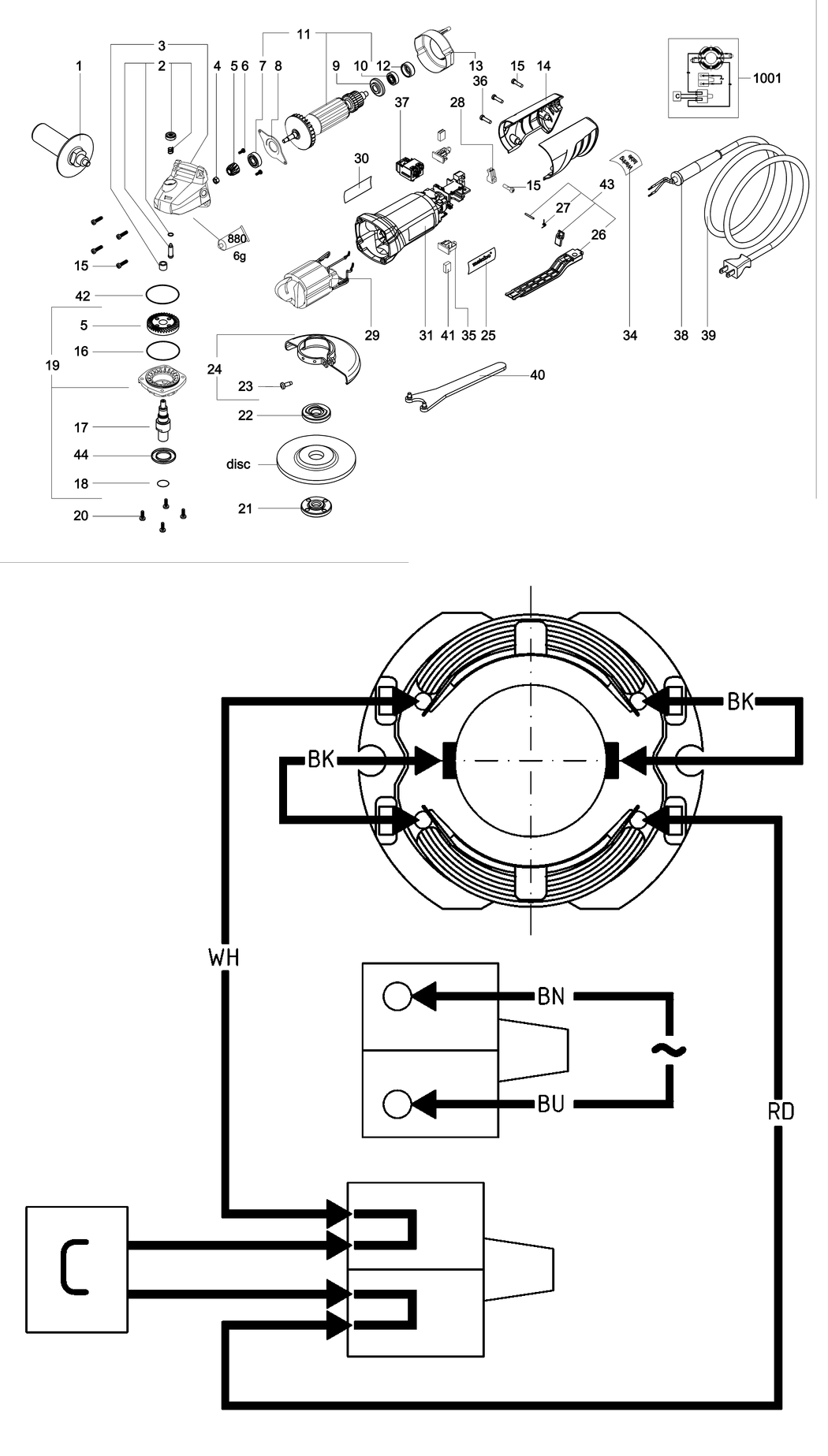

1 - HANDLE CPL.
MET-314000540.A69
314000540
|
£15.41
|
£18.49
|
|
|
2 - SPINDLE STOP COMPL.
MET-316040610.A170
316040610
|
£4.76
|
£5.71
|
|
|
3 - GEAR HOUSING COMPL.
MET-316063640.A14
316063640
|
£32.88
|
£39.45
|
|
|
4 - HEXAGON NUT W.RECESS
MET-341100940.A302
341100940
|
£3.20
|
£3.84
|
|
|
5 - BEVEL GEAR AND PINION
MET-316057810.A2
316057810
|
£26.35
|
£31.62
|
|
|
6 - FILLISTER HEAD SCREW
MET-141110460.A131
141110460
|
£1.50
|
£1.80
|
|
|
7 - BALL BEARING 8X22X7
MET-143115420.A22
143115420
|
£8.37
|
£10.04
|
|
|
8 - FIXED BEARING COVER
MET-315417490.A58
315417490
|
-
|
|
|
|
9 - SEALING WASHER
MET-343392740.A29
343392740
|
£6.38
|
£7.65
|
|
|
10 - BALL BEARING 6X19X6
MET-143115870.A129
143115870
|
£5.62
|
£6.75
|
|
|
11 - ARMATURE CPL. 230V
MET-316066580.A14
316066580
|
-
|
|
|
|
12 - RUBBER BUSHING
MET-344095260.A231
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-343399270.A13
343399270
|
£2.94
|
£3.53
|
|
|
14 - COVER
MET-339011850.A11
339011850
|
-
|
|
|
|
15 - SELF-TAP FILL H SCREW
MET-141116020.A452
141116020
|
£3.20
|
£3.84
|
|
|
16 - O-RING
MET-143195920.A20
143195920
|
-
|
|
|
|
17 - SPINDLE M14
MET-341161150.A81
341161150
|
-
|
|
|
|
18 - O-RING
MET-143192540.A24
143192540
|
£1.50
|
£1.80
|
|
|
19 - FLANGE COMPL.
MET-316063780.A17
316063780
|
£36.59
|
£43.91
|
|
|
20 - FILL. HEAD SCREW
MET-141120070.A267
141120070
|
£1.50
|
£1.80
|
|
|
21 - FLANGE NUT
MET-341106900.A225
341106900
|
£11.78
|
£14.13
|
|
|
22 - CLAMPING FLANGE
MET-341031160.A115
341031160
|
£15.41
|
£18.49
|
|
|
23 - FILLISTER HEAD SCREW
MET-141124060.A21
141124060
|
-
|
|
|
|
24 - WHEEL GUARD COMPL. D 125
MET-339204770.A5
339204770
|
£22.96
|
£27.55
|
|
|
25 - M-LABEL 08 52X22
MET-338122160.A146
338122160
|
£1.50
|
£1.80
|
|
|
26 - PADDLE SWITCH
MET-343409420.A13
343409420
|
-
|
|
|
|
27 - TORSION SPRING
MET-342003720.A2
342003720
|
-
|
|
|
|
28 - CABLE CLIP
MET-343362490.A1270
343362490
|
£3.20
|
£3.84
|
|
|
29 - FIELD COIL
MET-311011840.A0
311011840
|
-
|
|
|
|
30 - RATING PLATE 01235000 WP 850-125
MET-338065940.A0
338065940
|
-
|
|
|
|
31 - MOTOR HOUSING
MET-315013440.A10
315013440
|
-
|
|
|
|
35 - BRUSH HOLDER
MET-343012950.A59
343012950
|
£3.82
|
£4.59
|
|
|
36 - SELF-TAP. FILL. H. SCREW
MET-141123940.A17
141123940
|
-
|
|
|
|
37 - SWITCH
MET-343409200.A1
343409200
|
£4.76
|
£5.71
|
|
|
38 - CABLE SLEEVE
MET-344097360.A8
344097360
|
£2.94
|
£3.53
|
|
|
39 - CABLE W.CEE PLUG
MET-344499540.A29
344499540
|
£17.55
|
£21.06
|
|
|
40 - PIN SPANNER
MET-344163920.A123
344163920
|
£4.76
|
£5.71
|
|
|
41 - CARBON BRUSH
MET-316049670.A28
316049670
|
£13.63
|
£16.36
|
|
|
42 - COMPENSATING WASHER
MET-339060160.A93
339060160
|
£3.20
|
£3.84
|
|
|
43 - SWITCH COMPL. PADDLE
MET-343409480.A0
343409480
|
£5.62
|
£6.75
|
|
|
44 - WASHER
MET-339007790.A30
339007790
|
-
|
|
|
|
880 - GREASE 100G
MET-344130910.A63
344130910
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338504470.A82
338504470
|
-
|
|
|
