1 - SEALING SET
MET-316053430.A14
316053430
|
£13.63
|
£16.36
|
|
|
2 - GEAR FLANGE CPL.
MET-316039120.A2
316039120
|
£71.39
|
£85.67
|
|
|
4 - SPURWHEEL
MET-340012470.A5
340012470
|
£30.06
|
£36.07
|
|
|
5 - GEAR FLANGE CPL.
MET-316056500.A4
316056500
|
£68.35
|
£82.02
|
|
|
7 - FAN W. PROT. GRID
MET-316031210.A30
316031210
|
£13.63
|
£16.36
|
|
|
8 - TACHO DISC
MET-343391120.A14
343391120
|
£5.62
|
£6.75
|
|
|
9 - ARMATURE 230 V
MET-310008780.A1
310008780
|
£55.90
|
£67.08
|
|
|
10 - BALL BEARING 6X 19X 6
MET-143115810.A123
143115810
|
£7.04
|
£8.45
|
|
|
11 - WASHER
MET-141153340.A29
141153340
|
£1.50
|
£1.80
|
|
|
12 - RUBBER BUSHING
MET-344095260.A164
344095260
|
£3.20
|
£3.84
|
|
|
13 - BAFFLE
MET-339150890.A1
339150890
|
£3.20
|
£3.84
|
|
|
14 - GEAR HOUSING CPL.
MET-316056490.A8
316056490
|
£64.30
|
£77.16
|
|
|
15 - PUSH BUTTON BLACK
MET-343435890.A2
343435890
|
£4.76
|
£5.71
|
|
|
16 - PRESSURE SPRING
MET-342001550.A64
342001550
|
£1.50
|
£1.80
|
|
|
17 - SEALING WASHER
MET-339006520.A5
339006520
|
£1.50
|
£1.80
|
|
|
18 - BOLT
MET-341513790.A62
341513790
|
£5.62
|
£6.75
|
|
|
19 - SELF-TAP. FILL. H. SCREW
MET-341701470.A14
341701470
|
£1.50
|
£1.80
|
|
|
20 - COMPENSATING WASHER
MET-339060160.A169
339060160
|
£3.20
|
£3.84
|
|
|
21 - FILLISTER HEAD SCREW
MET-141119860.A40
141119860
|
£3.20
|
£3.84
|
|
|
22 - BEARING BOLT
MET-341515490.A2
341515490
|
£9.62
|
£11.54
|
|
|
23 - BOLT
MET-341515480.A6
341515480
|
£13.63
|
£16.36
|
|
|
24 - SPRING CLIP
MET-342022230.A2
342022230
|
£4.76
|
£5.71
|
|
|
25 - SWIVEL ARM
MET-315417440.A1
315417440
|
£61.08
|
£73.30
|
|
|
26 - HEXAGONAL NUT
MET-141131010.A60
141131010
|
£1.50
|
£1.80
|
|
|
27 - SHAFT
MET-341059450.A2
341059450
|
£30.06
|
£36.07
|
|
|
28 - GUIDE ROLLER COMPL.
MET-316047040.A2
316047040
|
£13.63
|
£16.36
|
|
|
30 - RETAINING RING
MET-141180040.A53
141180040
|
£1.50
|
£1.80
|
|
|
31 - DRIVING ROLLER
MET-341201060.A3
341201060
|
£48.88
|
£58.66
|
|
|
32 - SIDE SUPPORT HANDLE COMPL.
MET-316046590.A32
316046590
|
£11.78
|
£14.13
|
|
|
33 - CAP SCREW
MET-141113620.A1
141113620
|
£3.20
|
£3.84
|
|
|
34 - FILLISTER HEAD SCREW
MET-141113220.A37
141113220
|
£1.50
|
£1.80
|
|
|
35 - PUSH-FIT PROTECTIVE PLATE
MET-339160880.A6
339160880
|
£22.40
|
£26.88
|
|
|
36 - BASE PLATE
MET-315417430.A7
315417430
|
£73.52
|
£88.23
|
|
|
37 - SPINDLE SHAFT
MET-341603920.A2
341603920
|
£30.06
|
£36.07
|
|
|
38 - FLANGE
MET-315202480.A1
315202480
|
£36.59
|
£43.91
|
|
|
39 - FILL. HEAD SCREW(DIN 7985)
MET-141119570.A45
141119570
|
£1.50
|
£1.80
|
|
|
40 - SPACER SLEEVE
MET-341012770.A7
341012770
|
£15.41
|
£18.49
|
|
|
41 - INSERT
MET-343390900.A7
343390900
|
£2.94
|
£3.53
|
|
|
42 - SEALING RING
MET-343378120.A5
343378120
|
£8.37
|
£10.04
|
|
|
43 - FIELD COIL 230 V EL
MET-311009890.A5
311009890
|
£68.35
|
£82.02
|
|
|
44 - CABLE STRAND
MET-344493960.A24
344493960
|
£3.20
|
£3.84
|
|
|
45 - RATING PLATE
MET-338053580.A1
338053580
|
-
|
|
|
|
46 - FOAM RUBBER CORD
MET-344097440.A10
344097440
|
-
|
|
|
|
47 - FLAT PLUG
MET-339080310.A17
339080310
|
£1.50
|
£1.80
|
|
|
48 - FILLISTER HEAD SCREW
MET-141115780.A23
141115780
|
£1.50
|
£1.80
|
|
|
49 - SWITCH SLIDE
MET-343394180.A36
343394180
|
£2.94
|
£3.53
|
|
|
50 - SWITCH ROD
MET-343391880.A7
343391880
|
£2.94
|
£3.53
|
|
|
51 - SELF-TAP FILL H SCREW
MET-141116020.A82
141116020
|
£3.20
|
£3.84
|
|
|
52 - CABLE CLIP
MET-343362490.A964
343362490
|
£3.20
|
£3.84
|
|
|
53 - SWITCH
MET-343406740.A3
343406740
|
£22.96
|
£27.55
|
|
|
54 - SELF-TAP. FILL. H. SCREW
MET-141116990.A154
141116990
|
£3.20
|
£3.84
|
|
|
55 - 2 PART MOTOR CAP
MET-343375710.A11
343375710
|
£8.37
|
£10.04
|
|
|
56 - LIGHT TRANSMISSION
MET-343077280.A3
343077280
|
£1.50
|
£1.80
|
|
|
57 - CABLE SLEEVE
MET-344100970.A156
344100970
|
£3.20
|
£3.84
|
|
|
58 - CABLE WITH PLUG
MET-344489580.A36
344489580
|
£17.55
|
£21.06
|
|
|
59 - TEMPERATURE SENSOR
MET-343077490.A31
343077490
|
£13.63
|
£16.36
|
|
|
60 - MOTOR HOUSING
MET-316052200.A7
316052200
|
£22.96
|
£27.55
|
|
|
62 - M-LABEL 08 52X22
MET-338122160.A44
338122160
|
£1.50
|
£1.80
|
|
|
63 - CARBON BRUSH
MET-316035510.A7
316035510
|
£17.55
|
£21.06
|
|
|
64 - BRUSH HOLDER CPL.
MET-316035480.A5
316035480
|
£15.41
|
£18.49
|
|
|
65 - ELECTRONIC UNIT 230V 50-60HZ
MET-343082120.A5
343082120
|
£54.94
|
£65.93
|
|
|
67 - WASHER
MET-141150010.A19
141150010
|
£1.50
|
£1.80
|
|
|
880 - SPECIAL GREASE 100GR 3.6oz
MET-344130840.A32
344130840
|
£19.18
|
£23.02
|
|
|

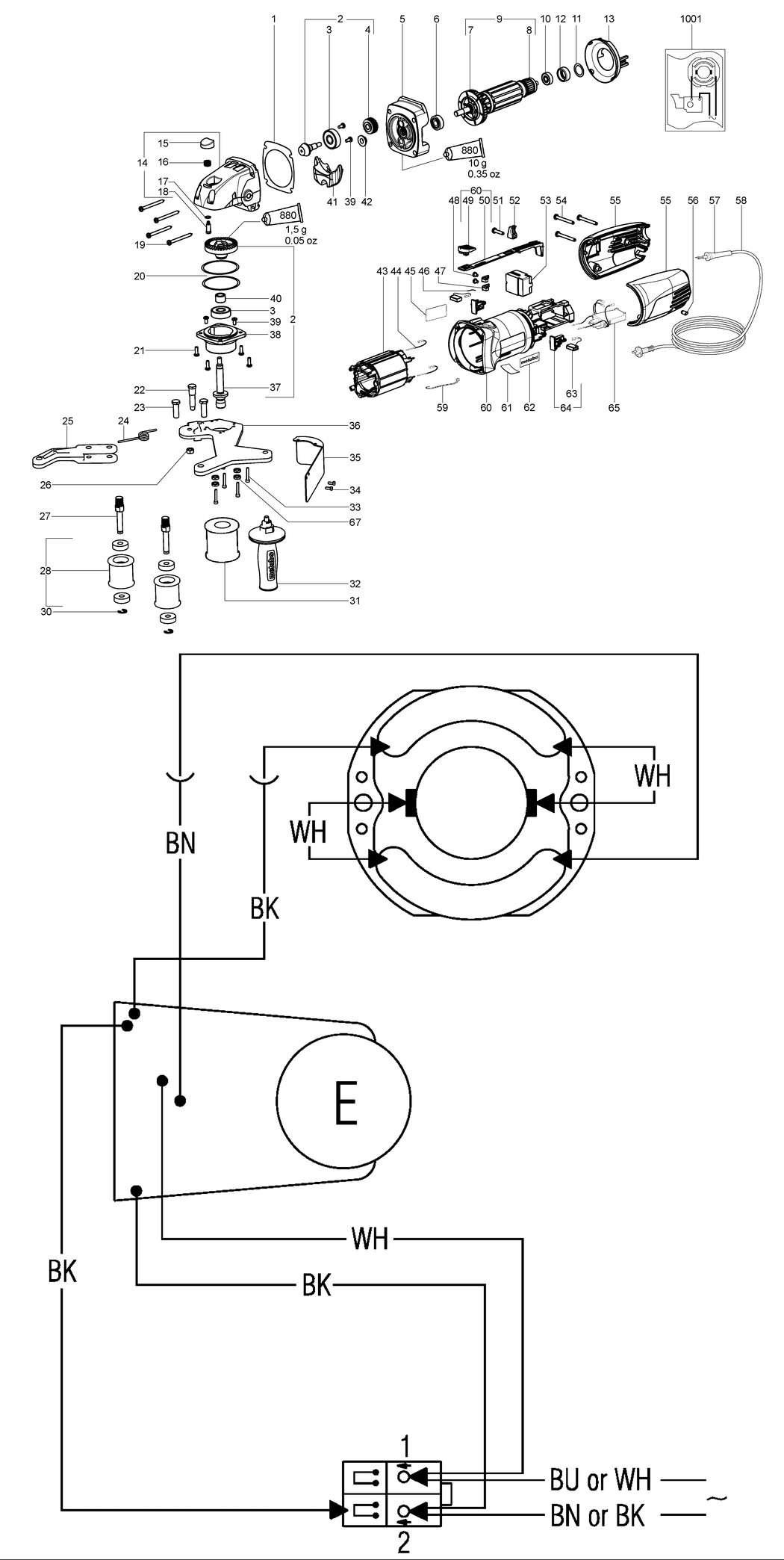

1001 - DIAGRAM
MET-338504140.A5
338504140
|
-
|
|
|
