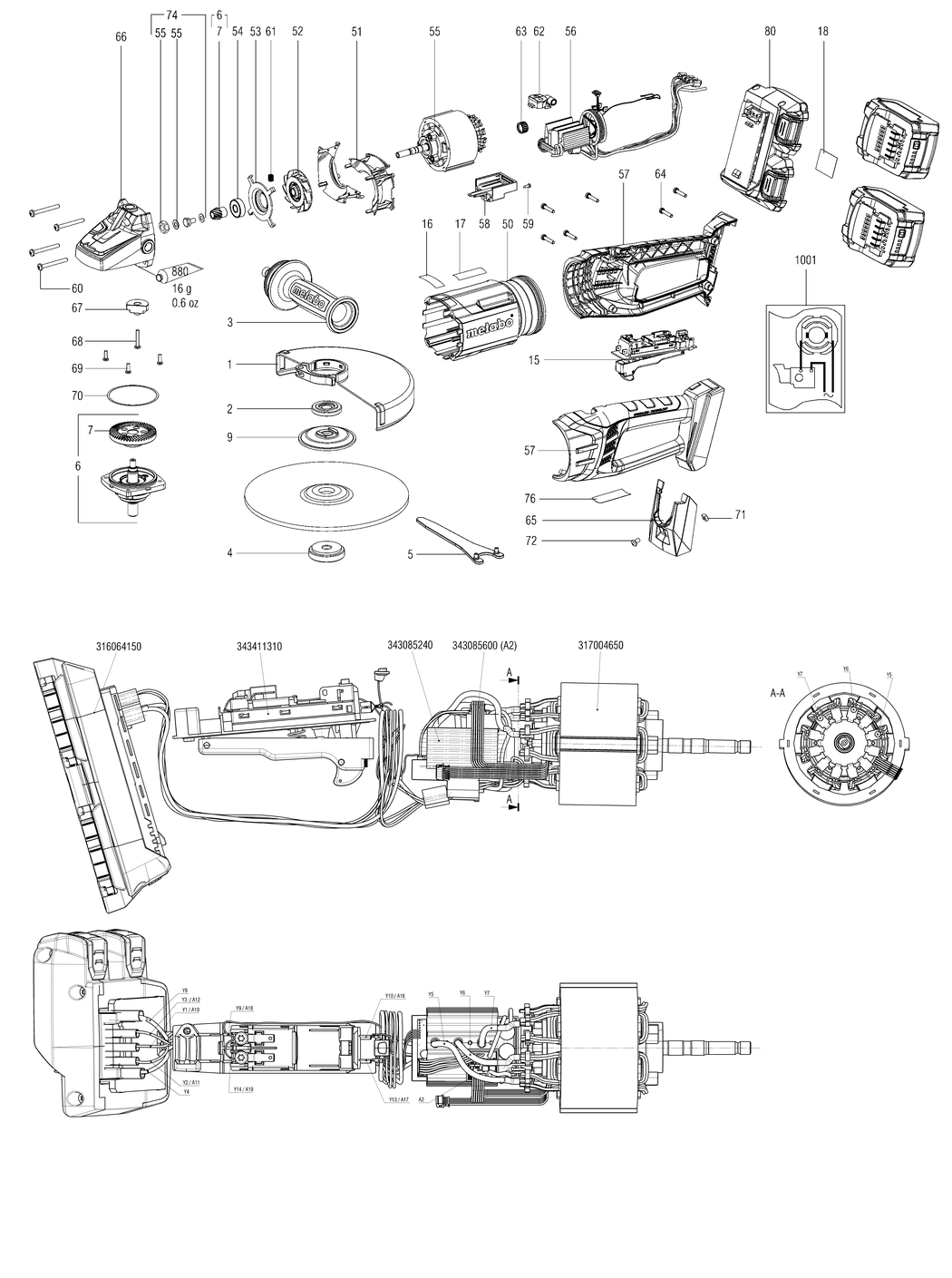

1 - WHEEL GUARD COMPL.
MET-316065160.A0
316065160
|
£36.59
|
£43.91
|
|
|
2 - CLAMPING FLANGE
MET-341031160.A300
341031160
|
£15.41
|
£18.49
|
|
|
3 - ANTI-VIBRATION HANDLE M 14
MET-314001470.A3
314001470
|
-
|
|
|
|
4 - FLANGE NUT
MET-341106900.A128
341106900
|
£11.78
|
£14.13
|
|
|
5 - PIN SPANNER
MET-344160840.A90
344160840
|
£7.36
|
£8.83
|
|
|
6 - FLANGE COMPL.
MET-316063580.A0
316063580
|
£67.04
|
£80.45
|
|
|
7 - BEVEL GEAR AND BEVEL GEAR
MET-316049840.A10
316049840
|
-
|
|
|
|
9 - PART NOT NEEDED
MET-399999990.A1170
399999990
|
-
|
|
|
|
15 - SWITCH
MET-343411310.A2
343411310
|
£61.08
|
£73.30
|
|
|
16 - HINWEISSCHILD FAST BRAKE
MET-338127740.A10
338127740
|
-
|
|
|
|
17 - INDICATION LABEL FEATURES
MET-338128180.A0
338128180
|
-
|
|
|
|
18 - RATING PLATE
MET-338067640.A0
338067640
|
-
|
|
|
|
50 - MOTOR HOUSING
MET-315013780.A3
315013780
|
-
|
|
|
|
51 - BAFFLE
MET-343438540.A4
343438540
|
-
|
|
|
|
52 - FAN CPL.
MET-330002290.A3
330002290
|
£5.62
|
£6.75
|
|
|
53 - BEARING COVER
MET-339130880.A33
339130880
|
£4.76
|
£5.71
|
|
|
54 - BALL BEARING 9X26X8
MET-143114990.A44
143114990
|
£19.18
|
£23.02
|
|
|
55 - MOTOR COMPL. 36 V
MET-316065990.A2
316065990
|
£238.25
|
£285.90
|
|
|
56 - ELECTRONIC UNIT 36 V
MET-343085240.A4
343085240
|
£79.10
|
£94.92
|
|
|
57 - HANDLE 2 PART
MET-343438560.A0
343438560
|
£48.88
|
£58.66
|
|
|
58 - HOLDER
MET-343438720.A3
343438720
|
£6.38
|
£7.65
|
|
|
59 - SELF-TAPP. FILL. H. SCREW
MET-141119900.A63
141119900
|
£1.50
|
£1.80
|
|
|
60 - SELF-TAP. FILL. H. SCREW
MET-141120560.A26
141120560
|
£1.50
|
£1.80
|
|
|
61 - PRESSURE SPRING
MET-342004070.A16
342004070
|
£2.94
|
£3.53
|
|
|
62 - LOCKING CATCH
MET-343438570.A4
343438570
|
£7.36
|
£8.83
|
|
|
63 - COVER
MET-343438590.A1
343438590
|
£4.76
|
£5.71
|
|
|
64 - SELF-TAP. FILL. H. SCREW
MET-141117060.A396
141117060
|
£3.20
|
£3.84
|
|
|
65 - SPARK PROTECTION
MET-315419950.A1
315419950
|
-
|
|
|
|
66 - GEAR HOUSING COMPL.
MET-316063190.A3
316063190
|
£68.35
|
£82.02
|
|
|
67 - STOP RING
MET-341212240.A2
341212240
|
£11.78
|
£14.13
|
|
|
68 - FILLISTER HEAD SCREW
MET-141124100.A7
141124100
|
-
|
|
|
|
69 - FILLISTER HEAD SCREW
MET-141119860.A21
141119860
|
£3.20
|
£3.84
|
|
|
70 - COMPENSATING WASHER
MET-339060320.A15
339060320
|
£3.20
|
£3.84
|
|
|
71 - SQUARE NUT
MET-141130660.A10
141130660
|
£1.50
|
£1.80
|
|
|
72 - FILLISTER HEAD SCREW
MET-141110580.A3
141110580
|
£1.50
|
£1.80
|
|
|
74 - FIXING SET
MET-316066000.A2
316066000
|
-
|
|
|
|
76 - PART NOT NEEDED
MET-399999990.A1169
399999990
|
-
|
|
|
|
80 - ADAPTOR COMPL.
MET-316064150.A0
316064150
|
£79.10
|
£94.92
|
|
|
880 - GREASE 100G
MET-344130920.A20
344130920
|
£19.18
|
£23.02
|
|
|
1001 - DIAGRAM
MET-338506200.A1
338506200
|
-
|
|
|
