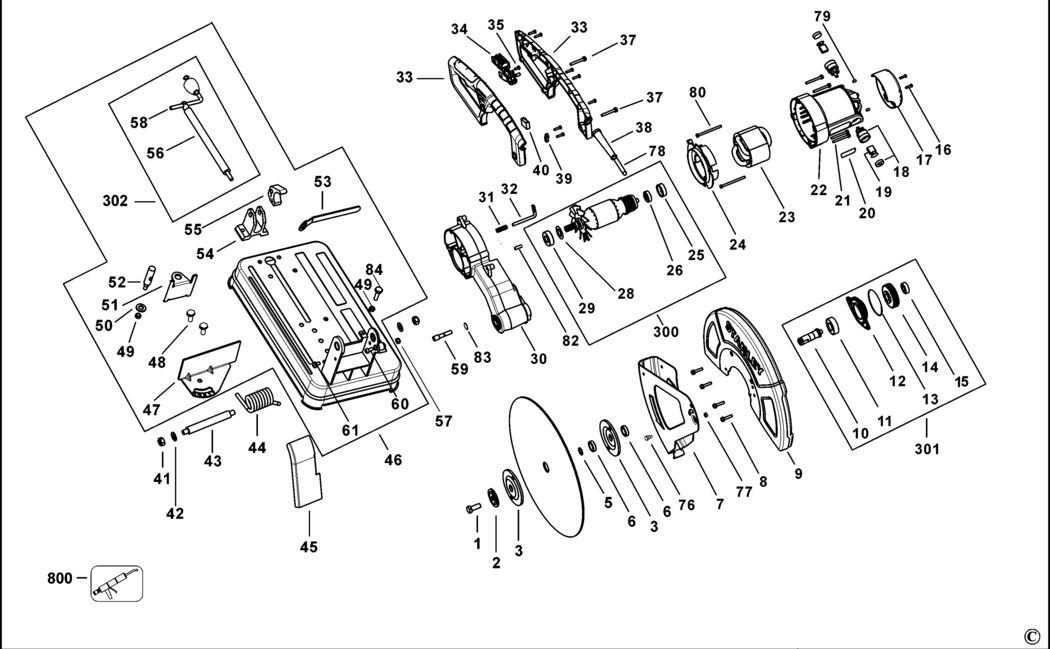

1 - SCREW
BDE-49202013.A1
49202013
|
£1.50
|
£1.80
|
|
|
2 - WASHER CLAMP
BDE-N483746.A1
N483746
|
£1.50
|
£1.80
|
|
|
3 - WASHER
BDE-N483622.A0
N483622
|
£3.70
|
£4.44
|
|
|
5 - O RING
BDE-4141003001.A0
4141003001
|
£1.50
|
£1.80
|
|
|
6 - SEAL
BDE-N472364.A1
N472364
|
£1.50
|
£1.80
|
|
|
7 - GUARD LOWER
BDE-N488889
N488889
|
£16.03
|
£19.24
|
|
|
8 - SCREW
BDE-N485436.A0
N485436
|
£1.50
|
£1.80
|
|
|
9 - GUARD UPPER
BDE-N488888
N488888
|
£30.08
|
£36.10
|
|
|
10 - SPINDLE
BDE-N474958
N474958
|
£5.88
|
£7.06
|
|
|
11 - BEARING BALL
BDE-49106230.A0
49106230
|
£3.80
|
£4.56
|
|
|
12 - GEARCASE COVER
BDE-N483595
N483595
|
£3.30
|
£3.96
|
|
|
13 - O RING
BDE-4140703001.A1
4140703001
|
£1.50
|
£1.80
|
|
|
14 - GEAR
BDE-N474946.A0
N474946
|
£16.03
|
£19.24
|
|
|
15 - BEARING
BDE-49106019.A1
49106019
|
£2.78
|
£3.34
|
|
|
16 - SCREW
BDE-49206618.A1
49206618
|
£1.50
|
£1.80
|
|
|
17 - COVER-TOP
BDE-N470107.A1
N470107
|
£3.30
|
£3.96
|
|
|
18 - BRUSH HOLDER
BDE-N476505.A1
N476505
|
£3.80
|
£4.56
|
|
|
19 - BRUSH
BDE-N485672.A0
N485672
|
£12.17
|
£14.60
|
|
|
21 - SCREW
BDE-N484229.A0
N484229
|
£1.50
|
£1.80
|
|
|
22 - FIELD CASE
BDE-N467679.A1
N467679
|
£17.48
|
£20.97
|
|
|
23 - FIELD SA
BDE-60313008.A0
60313008
|
£51.90
|
£62.28
|
|
|
24 - BAFFLE FAN
BDE-N473612.A0
N473612
|
£1.50
|
£1.80
|
|
|
25 - RUBBER BOOT
BDE-N473164.A1
N473164
|
£1.50
|
£1.80
|
|
|
26 - BEARING
BDE-49111024.A1
49111024
|
£2.26
|
£2.71
|
|
|
28 - WASHER
BDE-4240304003.A0
4240304003
|
£1.50
|
£1.80
|
|
|
29 - BEARING
BDE-49111036.A2
49111036
|
£2.78
|
£3.34
|
|
|
30 - ACTUATION ARM
BDE-N491254
N491254
|
£41.24
|
£49.49
|
|
|
31 - SPRING
BDE-N488257.A0
N488257
|
£1.50
|
£1.80
|
|
|
32 - LOCK PIN
BDE-N476548.A0
N476548
|
£1.50
|
£1.80
|
|
|
33 - HANDLE SIDE SA
BDE-N470697.A1
N470697
|
£14.57
|
£17.48
|
|
|
33 - HANDLE SIDE SA
BDE-N599862
N599862
|
-
|
|
|
|
34 - SWITCH SA
BDE-N473310.A0
N473310
|
£16.03
|
£19.24
|
|
|
35 - SCREW
BDE-49206015.A1
49206015
|
£1.50
|
£1.80
|
|
|
37 - SCREW
BDE-49203615.A0
49203615
|
£1.50
|
£1.80
|
|
|
38 - CORD PROTECTOR
BDE-N476106.A0
N476106
|
£1.50
|
£1.80
|
|
|
39 - CORD CLAMP
BDE-4240201013.A16
4240201013
|
£1.50
|
£1.80
|
|
|
40 - CAPACITOR
BDE-494014.A1
494014
|
£1.50
|
£1.80
|
|
|
41 - NUT
BDE-N475789.A0
N475789
|
£1.50
|
£1.80
|
|
|
42 - PLATE
BDE-N475790.A1
N475790
|
£1.50
|
£1.80
|
|
|
43 - PIVOT SHAFT
BDE-N475319.A0
N475319
|
£3.30
|
£3.96
|
|
|
44 - SPRING
BDE-N473579.A1
N473579
|
£10.85
|
£13.02
|
|
|
45 - GUARD
BDE-N476118.A1
N476118
|
£1.50
|
£1.80
|
|
|
46 - BASE SA
BDE-N483749
N483749
|
£74.15
|
£88.98
|
|
|
47 - FENCE
BDE-N539848.A0
N539848
|
£3.30
|
£3.96
|
|
|
48 - SCREW
BDE-49202013.A0
49202013
|
£1.50
|
£1.80
|
|
|
49 - NUT
BDE-N542478.A0
N542478
|
£1.50
|
£1.80
|
|
|
50 - WASHER
BDE-N542479.A1
N542479
|
£1.50
|
£1.80
|
|
|
51 - CLAMP
BDE-N539847.A1
N539847
|
£3.80
|
£4.56
|
|
|
52 - SHAFT
BDE-N539846.A0
N539846
|
£1.50
|
£1.80
|
|
|
53 - S.T.WRENCH
BDE-N539842.A0
N539842
|
£1.50
|
£1.80
|
|
|
54 - SEAT
BDE-N539841.A1
N539841
|
£4.69
|
£5.63
|
|
|
55 - NUT
BDE-N539844.A1
N539844
|
£3.80
|
£4.56
|
|
|
56 - PIVOT SHAFT
BDE-N570199.A1
N570199
|
£9.41
|
£11.29
|
|
|
56 - NO LONGER AVAILABLE No. 302
BDE-000000-00.A130856
000000-00
|
-
|
|
|
|
57 - NUT
BDE-N476115.A0
N476115
|
£1.50
|
£1.80
|
|
|
58 - NO LONGER AVAILABLE No. 302
BDE-000000-00.A130857
000000-00
|
-
|
|
|
|
58 - PIVOT SHAFT
BDE-N570199.A0
N570199
|
£9.41
|
£11.29
|
|
|
59 - DOWEL
BDE-N476113.A1
N476113
|
£1.50
|
£1.80
|
|
|
60 - SCREW
BDE-N476116.A1
N476116
|
£1.50
|
£1.80
|
|
|
61 - SCREW
BDE-N476117.A0
N476117
|
£1.50
|
£1.80
|
|
|
76 - SCREW
BDE-N541165
N541165
|
£1.50
|
£1.80
|
|
|
77 - NUT
BDE-N542481
N542481
|
£1.50
|
£1.80
|
|
|
78 - CORDSET
BDE-N544157
N544157
|
£14.57
|
£17.48
|
|
|
79 - SCREW
BDE-49201012.A0
49201012
|
£1.50
|
£1.80
|
|
|
80 - SCREW
BDE-49206056.A1
49206056
|
£1.50
|
£1.80
|
|
|
82 - PIN
BDE-N509275.A0
N509275
|
£1.50
|
£1.80
|
|
|
83 - O RING
BDE-N508284.A0
N508284
|
£1.50
|
£1.80
|
|
|
84 - SCREW
BDE-N542483.A0
N542483
|
£1.50
|
£1.80
|
|
|
300 - ARMATURE 230V
BDE-N534363.A0
N534363
|
£80.98
|
£97.18
|
|
|
301 - SPINDLE SA
BDE-N534360
N534360
|
£30.08
|
£36.10
|
|
|
302 - PIVOT SHAFT
BDE-N570199.A2
N570199
|
£9.41
|
£11.29
|
|
|
800 - GREASE 50 GMS
BDE-583534-00.A146
583534-00
|
£144.10
|
£172.92
|
|
