Fein KBH 25 (50/60Hz 220/230V) / 72710100230 Spare Parts

Fein KBH 25 ⡐/60Hz 220/230V) / 72710100230 Spare Parts

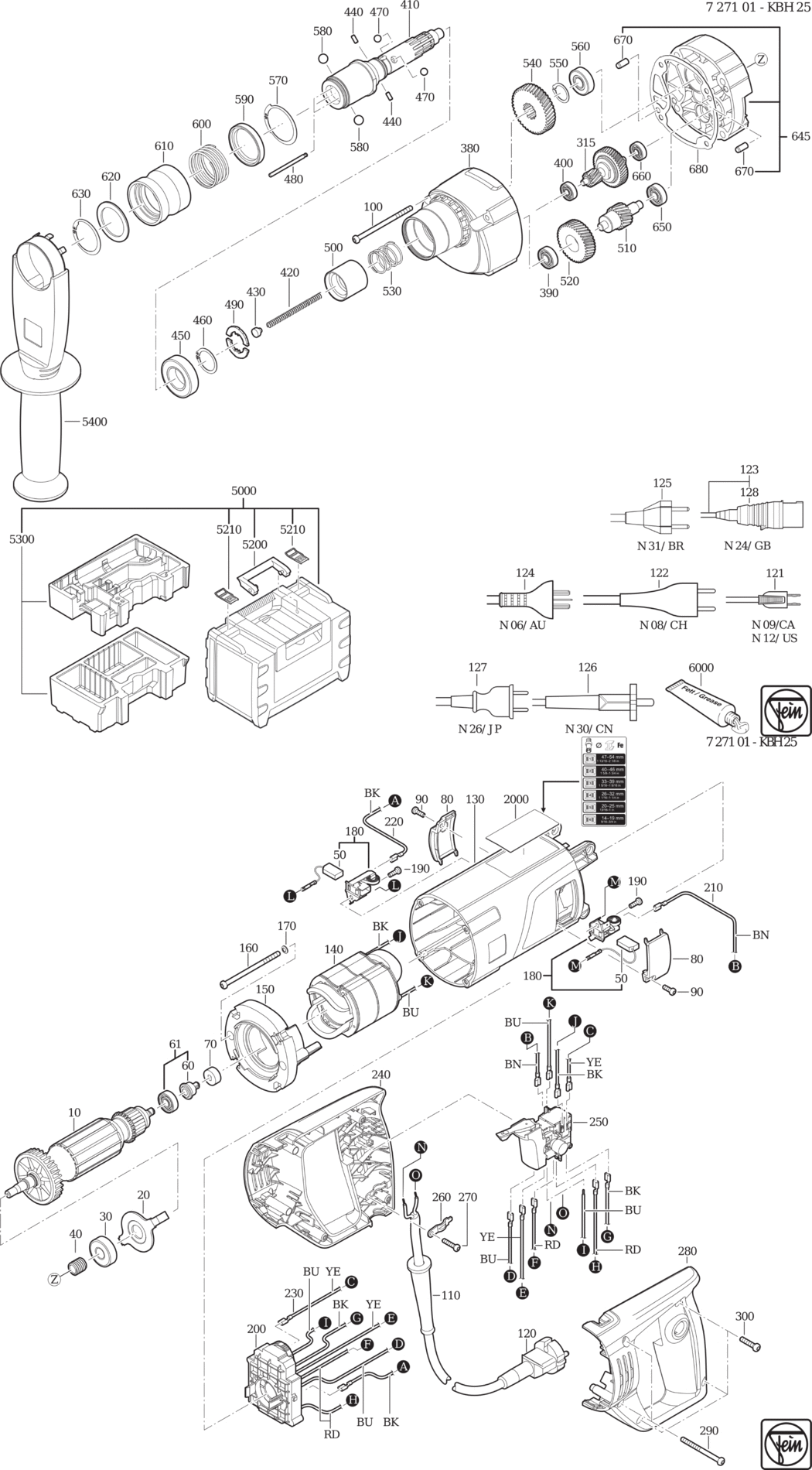

An exploded diagram and spare parts listing for the Fein KBH 25 (50/60Hz 220/230V) / 72710100230

	Ex VAT	Inc VAT
10 - ARMATURE 50HZ230V Z=6 FEI-53273010230.A0 53273010230	£144.01	£172.81
20 - PLATE FEI-32416098005.A55 32416098005	£1.60	£1.92
30 - GROOVED BALL BEARING FEI-41701007050.A6 41701007050	£15.15	£18.18
40 - SEALING RING FEI-32612135000.A3 32612135000	£9.45	£11.34
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A39 30711132003	£10.52	£12.63
50 - GROOVED BALL BEARING FEI-41701001260.A228 41701001260	£7.11	£8.53
60 - SLEEVE FEI-31406053007.A15 31406053007	£3.42	£4.10
61 - SLEEVE SET FEI-31406053010.A3 31406053010	-
70 - RING MAGNET FEI-32172010005.A2 32172010005	£22.34	£26.81
80 - COVER FEI-32424029000.A24 32424029000	-
90 - SCREW FEI-43074013000.A27 43074013000	-
100 - SCREW FEI-43072012001.A25 43072012001	-
110 - CABLE GROMMET FEI-31413233000.A73 31413233000	£2.60	£3.12
120 - CABLE WITH PLUG FEI-30707419010.A4 30707419010	-
130 - MOTOR HOUSING FEI-31903219000.A8 31903219000	-
140 - STATOR 50HZ 230V FEI-51273006230.A1 51273006230	-
150 - AIR GUIDE RING FEI-31428168000.A17 31428168000	-
180 - BRUSH HOLDER FEI-30712088013.A38 30712088013	£17.61	£21.13
190 - SCREW FEI-43074013000.A24 43074013000	-
200 - ELECTRONICS FEI-30762431990.A1 30762431990	£143.83	£172.60
210 - CONNECTING CABLE FEI-30719815010.A5 30719815010	-
220 - CONNECTING CABLE FEI-30719816010.A3 30719816010	-
230 - CONNECTING CABLE FEI-30719814010.A3 30719814010	-
240 - HANDLE HALF SHELL FEI-31204187000.A5 31204187000	-
250 - SWITCH FEI-30701292010.A6 30701292010	£51.11	£61.33
260 - CABLE CLAMPING PIECE FEI-32431043002.A183 32431043002	£1.60	£1.92
270 - SCREW FEI-43074010000.A26 43074010000	£1.60	£1.92
280 - HANDLE HALF SHELL FEI-31204188000.A3 31204188000	£13.94	£16.73
290 - SCREW FEI-43072013005.A26 43072013005	£1.60	£1.92
300 - SCREW FEI-43074008000.A46 43074008000	£1.60	£1.92
315 - CLUTCH FEI-33761001010.A3 33761001010	-
380 - GEARBOX HOUSING FEI-31508296000.A1 31508296000	-
390 - GROOVED BALL BEARING FEI-41701001172.A129 41701001172	£9.63	£11.56
400 - GROOVED BALL BEARING FEI-41701202018.A29 41701202018	£6.92	£8.30
410 - SHAFT FEI-33403114000.A1 33403114000	£108.31	£129.97
420 - SPIRAL SPRING FEI-30901382000.A0 30901382000	£5.60	£6.72
430 - BOLT FEI-30216150000.A4 30216150000	£20.63	£24.76
440 - BOLT FEI-30216151000.A1 30216151000	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701109051.A26 41701109051	£23.72	£28.46
460 - CIRCLIP FEI-42616009003.A9 42616009003	£1.60	£1.92
470 - BALL FEI-41708019004.A31 41708019004	£1.60	£1.92
480 - BOLT FEI-30216152000.A1 30216152000	£6.44	£7.73
490 - CIRCLIP FEI-30235025000.A1 30235025000	£1.60	£1.92
500 - SLEEVE FEI-30503160000.A1 30503160000	£43.45	£52.14
510 - SHAFT TOOTHED Z=17 FEI-33763064000.A36 33763064000	-
520 - GEAR-WHEEL Z=36 FEI-33661002000.A2 33661002000	-
530 - SPIRAL SPRING FEI-30901381000.A2 30901381000	-
540 - GEAR-WHEEL Z=39 FEI-33663174000.A7 33663174000	-
550 - CIRCLIP FEI-42616007001.A5 42616007001	£1.60	£1.92
560 - GROOVED BALL BEARING FEI-41701006034.A20 41701006034	£11.83	£14.20
570 - CIRCLIP FEI-42644013000.A1 42644013000	£1.60	£1.92
580 - BALL FEI-41708025004.A57 41708025004	£1.60	£1.92
590 - RING FEI-32602091000.A0 32602091000	-
600 - SPIRAL SPRING FEI-30901383000.A6 30901383000	-
610 - SLEEVE FEI-30503161000.A1 30503161000	-
620 - DISC FEI-32408436000.A0 32408436000	£1.60	£1.92
630 - CIRCLIP FEI-42643009005.A24 42643009005	£3.40	£4.08
645 - INTERMEDIATE GEAR BOX FEI-31506383010.A4 31506383010	-
650 - GROOVED BALL BEARING FEI-41701001172.A128 41701001172	£9.63	£11.56
660 - GROOVED BALL BEARING FEI-41701202018.A30 41701202018	£6.92	£8.30
670 - PIN FEI-40242058004.A20 40242058004	-
680 - SEAL FEI-30610048000.A10 30610048000	-
2000 - INFORMATION SIGN FEI-32217448990.A2 32217448990	-
5000 - TOOL CASE FEI-33901122120.A4 33901122120	£114.52	£137.43
5200 - HANDLE FEI-32119122000.A144 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A221 30232050000	£10.78	£12.94
5300 - EPP INSERT KBH25 FEI-33904428010.A2 33904428010	-
5400 - HANDLE FEI-32119078030.A4 32119078030	£28.63	£34.36
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A131 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A635 34130054061	-
