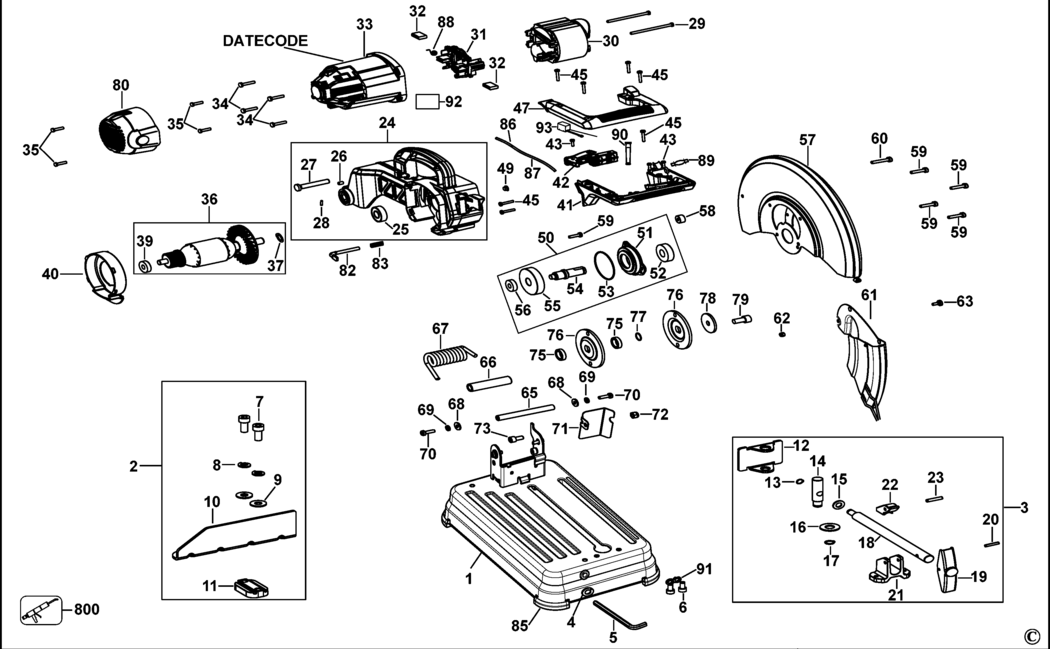

An exploded drawing and spare parts listing for the Dewalt D28730 Type 1 Chop Saw
Ex VAT Inc VAT
4 - HOLDER TOOL BDE-386765-00.A14 386765-00 £1.50 £1.80
5 - WRENCH BDE-384717-00.A3 384717-00 £1.50 £1.80
6 - SCREW BDE-098123-16.A14 098123-16 £1.50 £1.80
7 - SCREW BDE-383450-00.A3 383450-00 £1.50 £1.80
8 - WASHER LOCK M10 BDE-N468716.A1 N468716 £1.50 £1.80
9 - WASHER BDE-323753-18.A6 323753-18 £1.50 £1.80
11 - MOUNTING BRACKET BDE-N462688.A0 N462688 £2.78 £3.34
13 - CIRCLIP BDE-383169-00.A10 383169-00 £1.50 £1.80
14 - PIN BDE-N447547.A1 N447547 £4.69 £5.63
15 - WASHER BDE-384365-00.A2 384365-00 £1.50 £1.80
16 - WASHER BDE-607592-00.A11 607592-00 £1.50 £1.80
17 - CIRCLIP BDE-144803-00.A101 144803-00 £1.50 £1.80
18 - ROD BDE-N447550.A0 N447550 £14.57 £17.48
19 - LOCK HANDLE BDE-912020-00.A3 912020-00 £1.50 £1.80
20 - PIN BDE-N127232.A3 N127232 £1.50 £1.80
21 - MOUNT BDE-N449677.A0 N449677 £7.18 £8.62
22 - LOCK BDE-N447568.A1 N447568 £9.41 £11.29
23 - ROLL PIN BDE-562254-00.A2 562254-00 -
25 - BEARING BDE-605040-27.A4 605040-27 £4.69 £5.63
26 - PLUG BDE-623092-00.A3 623092-00 £1.50 £1.80
27 - PIN BDE-621104-00.A6 621104-00 £1.82 £2.19
28 - PIN BDE-330036-00.A6 330036-00 £1.50 £1.80
29 - SCREW BDE-330019-33.A2 330019-33 £1.50 £1.80
31 - BRUSH HOLDER BDE-385582-00.A1 385582-00 £104.31 £125.17
32 - BRUSH PAIR 230V BDE-N505712.A0 N505712 £5.88 £7.06
34 - SCREW BDE-330045-16.A7 330045-16 £1.50 £1.80
35 - SCREW BDE-330019-13.A139 330019-13 £1.50 £1.80
37 - CIRCLIP BDE-144803-00.A100 144803-00 £1.50 £1.80
39 - BEARING BDE-330003-17.A38 330003-17 £3.80 £4.56
40 - BAFFLE FAN BDE-N484130.A1 N484130 £5.88 £7.06
43 - SCREW BDE-330019-02.A102 330019-02 £1.50 £1.80
45 - SCREW BDE-330019-14.A190 330019-14 £1.50 £1.80
49 - RUBBER PAD BDE-N467523.A0 N467523 £1.50 £1.80
51 - GEARCASE COVER BDE-621076-00.A1 621076-00 £104.31 £125.17
52 - BEARING BDE-605040-31.A1 605040-31 £5.88 £7.06
53 - O RING BDE-099180-46.A0 099180-46 £1.50 £1.80
54 - SPINDLE BDE-N447579.A0 N447579 £7.85 £9.42
55 - GEAR BDE-621078-00.A0 621078-00 £18.91 £22.69
56 - BEARING BDE-605040-52.A1 605040-52 £104.31 £125.17
57 - GUARD UPPER BDE-639967-00.A3 639967-00 £41.24 £49.49
58 - SPACER BDE-629619-00.A1 629619-00 £1.50 £1.80
59 - SCREW BDE-330045-15.A120 330045-15 £1.50 £1.80
60 - SCREW BDE-330045-16.A6 330045-16 £1.50 £1.80
62 - NUT BDE-330021-02.A25 330021-02 £1.50 £1.80
63 - SCREW.SPECIAL BDE-384844-00.A5 384844-00 £1.50 £1.80
65 - PIVOT SHAFT BDE-N388906.A1 N388906 £2.78 £3.34
66 - SPRING GUIDE BDE-N467337.A0 N467337 £2.26 £2.71
67 - SPRING TORSION BDE-N447533.A1 N447533 £7.85 £9.42
68 - WASHER BDE-330016-18.A8 330016-18 £1.50 £1.80
69 - WASHER LOCK BDE-098197-10.A8 098197-10 £1.50 £1.80
70 - SCREW BDE-153778-01.A3 153778-01 £1.50 £1.80
72 - NUT BDE-330021-02.A24 330021-02 £1.50 £1.80
73 - SCREW BDE-098123-16.A15 098123-16 £1.50 £1.80
75 - BUSH BDE-N447525.A0 N447525 £1.50 £1.80
76 - WASHER CLAMP BDE-N447529.A1 N447529 £4.69 £5.63
77 - O RING BDE-N447530.A0 N447530 £1.50 £1.80
78 - WASHER SPECIAL BDE-383246-01.A3 383246-01 £1.50 £1.80
79 - SCREW BDE-383286-00.A7 383286-00 £1.50 £1.80
80 - END CAP BDE-392284-00.A2 392284-00 £3.80 £4.56
82 - SPINDLE LOCK BDE-621087-00.A3 621087-00 £2.26 £2.71
83 - SPRING BDE-621088-00.A3 621088-00 £1.50 £1.80
86 - LEADWIRE BLACK BDE-N457282.A0 N457282 £1.50 £1.80
87 - LEADWIRE WHITE BDE-N457283.A1 N457283 £1.50 £1.80
88 - SPRING BDE-384612-00.A9 384612-00 £1.50 £1.80
89 - CORD CLAMP BDE-386540-00.A10 386540-00 £1.50 £1.80
91 - WASHER BDE-098197-09.A2 098197-09 £1.50 £1.80
800 - GREASE BDE-5140061-28.A59 5140061-28 £51.90 £62.28
