Dewalt DW703 Type 2 Mitre Saw Spare Parts

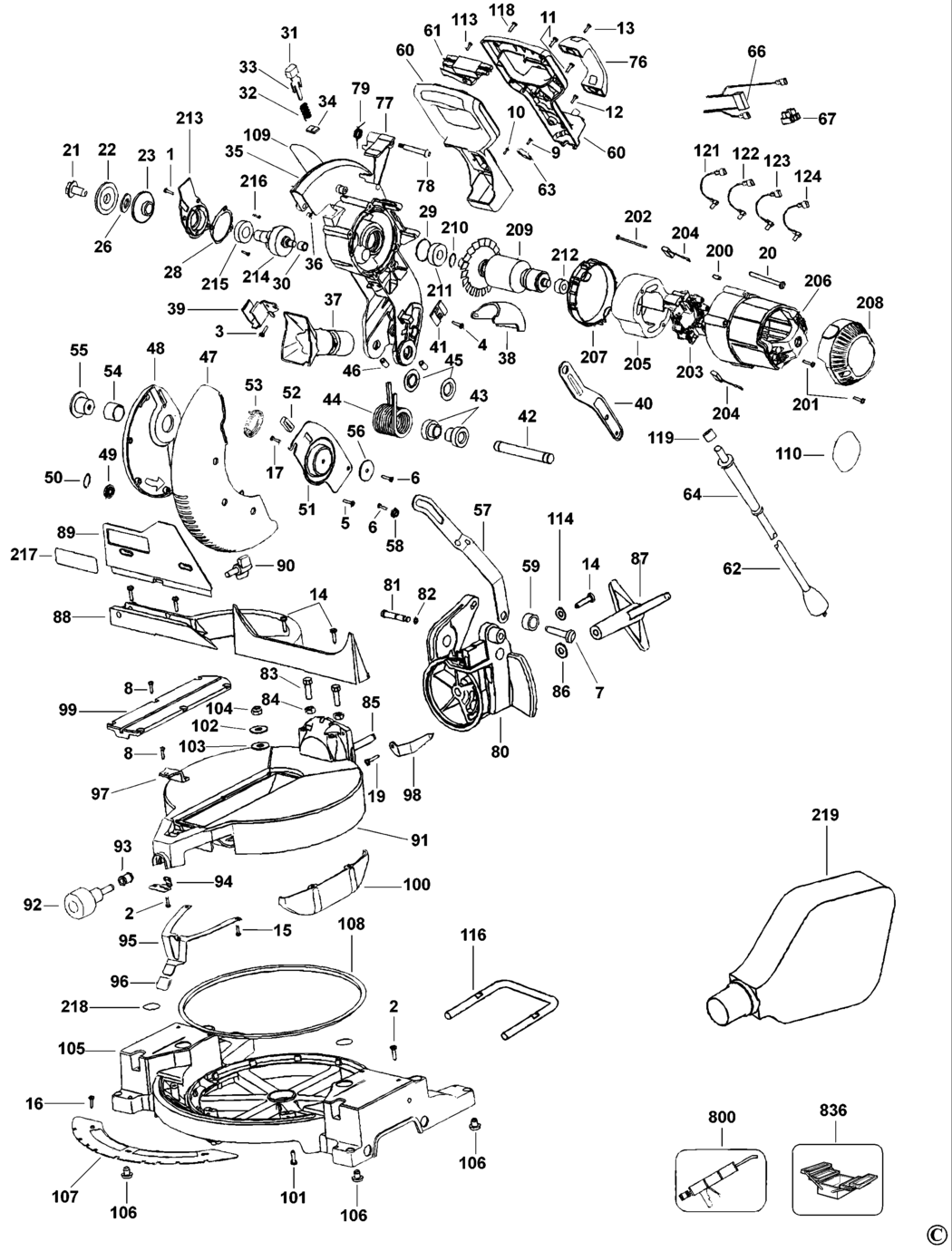

An exploded drawing and spare parts listing for the Dewalt DW703 Type 2 Mitre Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330045-14.A27 330045-14	£1.50	£1.80
2 - SCREW.SPECIAL BDE-330045-23.A94 330045-23	£1.50	£1.80
3 - SCREW BDE-330045-13.A72 330045-13	£1.50	£1.80
4 - SCREW BDE-098102-08.A13 098102-08	£1.42	£1.70
5 - SCREW BDE-394211-00.A10 394211-00	£1.42	£1.70
6 - SCREW BDE-151891-00.A6 151891-00	£1.50	£1.80
7 - SCREW BDE-330045-32.A68 330045-32	£1.50	£1.80
8 - SCREW BDE-330045-05.A45 330045-05	£1.50	£1.80
9 - SCREW BDE-330019-02.A120 330019-02	£1.50	£1.80
10 - SCREW BDE-330045-44.A27 330045-44	£1.50	£1.80
11 - SCREW BDE-330019-32.A194 330019-32	£1.50	£1.80
12 - SCREW BDE-330045-08.A54 330045-08	£1.50	£1.80
13 - SCREW BDE-330019-22.A32 330019-22	£1.50	£1.80
14 - SCREW BDE-330045-33.A1 330045-33	£1.50	£1.80
15 - SCREW BDE-330045-22.A3 330045-22	£1.50	£1.80
16 - SCREW BDE-604410-00.A18 604410-00	£1.50	£1.80
17 - SCREW BDE-394589-01.A26 394589-01	£1.50	£1.80
19 - SCREW BDE-153460-00.A26 153460-00	£1.50	£1.80
20 - SCREW BDE-98094-55.A9 98094-55	£1.50	£1.80
21 - BLADE BOLT BDE-869245-00.A42 869245-00	£3.54	£4.25
22 - CLAMP OUTER BDE-151962-01.A4 151962-01	£3.80	£4.56
23 - WASHER INNER CLAMP BDE-141987-06.A2 141987-06	£10.85	£13.02
26 - ADAPTOR BDE-393868-00.A7 393868-00	£5.88	£7.06
28 - GASKET BDE-391632-00.A2 391632-00	£1.50	£1.80
29 - SEAL BDE-701297-00.A45 701297-00	£1.50	£1.80
30 - BEARING NEEDLE BDE-330004-06.A11 330004-06	£1.50	£1.80
31 - BUTTON BDE-145350-03.A2 145350-03	£1.50	£1.80
32 - SPRING BDE-398736-00.A10 398736-00	£1.50	£1.80
33 - LOCK BDE-146714-00.A23 146714-00	£1.50	£1.80
34 - WIPER BDE-146710-00.A1 146710-00	£1.50	£1.80
35 - NO LONGER AVAILABLE BDE-000000-00.A59039 000000-00	-
36 - INSERT BDE-148608-00.A28 148608-00	£1.50	£1.80
37 - CHUTE BDE-394496-00.A2 394496-00	£5.88	£7.06
38 - DEFLECTOR BDE-148520-00.A0 148520-00	£1.66	£1.99
39 - GUARD BDE-393731-00.A8 393731-00	£2.78	£3.34
40 - WRENCH BDE-145378-01.A3 145378-01	£1.50	£1.80
41 - CLIP BDE-147190-01.A1 147190-01	£1.78	£2.13
42 - SHAFT BDE-146751-00.A19 146751-00	£3.30	£3.96
43 - SPACER BDE-398251-00.A6 398251-00	£1.50	£1.80
44 - SPRING BDE-391606-00.A0 391606-00	£24.39	£29.27
45 - WASHER BDE-148296-00.A83 148296-00	£1.50	£1.80
46 - SCREW BDE-150075-00.A31 150075-00	£1.50	£1.80
47 - GUARD BDE-391612-01.A4 391612-01	-
48 - NO LONGER AVAILABLE BDE-000000-00.A59040 000000-00	-
49 - ROLLER BDE-146774-00.A38 146774-00	£1.82	£2.19
50 - CIRCLIP BDE-603232-00.A12 603232-00	£1.50	£1.80
51 - PIVOT BDE-399139-00.A6 399139-00	£12.17	£14.60
52 - BUMPER BDE-146768-00.A22 146768-00	£1.66	£1.99
53 - SPRING BDE-398735-00.A0 398735-00	£1.78	£2.13
54 - SLEEVE BDE-148295-00.A7 148295-00	£1.66	£1.99
55 - RETAINING PLATE BDE-146750-01.A1 146750-01	£9.41	£11.29
56 - WASHER BDE-148612-00.A8 148612-00	-
57 - LINK BDE-391630-00.A2 391630-00	£16.03	£19.24
58 - BUSH BDE-146740-01.A19 146740-01	£3.80	£4.56
59 - BUSHING BDE-399042-00.A10 399042-00	£3.80	£4.56
60 - HANDLE SA BDE-393960-00.A3 393960-00	£25.70	£30.84
61 - SWITCH BDE-391926-01.A4 391926-01	£25.70	£30.84
62 - NO LONGER AVAILABLE GB BDE-000000-00.A59041 000000-00	-
63 - CORD CLAMP BDE-003618-00.A26 003618-00	£1.50	£1.80
64 - CORD PROTECTOR BDE-445338-00.A22 445338-00	£1.50	£1.80
66 - NO LONGER AVAILABLE BDE-000000-00.A59042 000000-00	-
67 - TERMINAL BLOCK BDE-393520-00.A18 393520-00	£5.88	£7.06
76 - HANDLE BDE-396375-00.A2 396375-00	£3.30	£3.96
77 - LEVER BDE-392363-00.A5 392363-00	-
78 - BOLT BDE-152852-00.A7 152852-00	£1.82	£2.19
79 - SPRING BDE-386196-00.A49 386196-00	£1.66	£1.99
80 - TRUNNION BDE-391578-01.A12 391578-01	£65.52	£78.62
81 - LOCKING PIN BDE-387130-00.A39 387130-00	£4.69	£5.63
82 - SEAL BDE-34158-00.A17 34158-00	£1.50	£1.80
83 - SCREW BDE-149368-00.A3 149368-00	£1.82	£2.19
84 - NUT BDE-99368-04.A15 99368-04	£1.50	£1.80
85 - STUD BDE-146760-02.A10 146760-02	£1.50	£1.80
86 - WASHER BDE-330016-04.A46 330016-04	£1.50	£1.80
87 - HANDLE BDE-604634-00.A0 604634-00	£14.57	£17.48
88 - NO LONGER AVAILABLE BDE-000000-00.A59043 000000-00	-
89 - NO LONGER AVAILABLE BDE-000000-00.A59044 000000-00	-
90 - KNOB LOWER BDE-147107-02.A29 147107-02	£2.26	£2.71
91 - NO LONGER AVAILABLE BDE-000000-00.A59045 000000-00	-
92 - KNOB BDE-145439-10.A4 145439-10	£3.80	£4.56
93 - BUSHING BDE-398256-00.A3 398256-00	-
94 - CLAMP BDE-391357-00.A1 391357-00	-
95 - SPRING BDE-146745-00.A15 146745-00	-
96 - COVER BDE-148611-00.A19 148611-00	£1.50	£1.80
97 - POINTER BDE-391634-00.A7 391634-00	£2.78	£3.34
98 - POINTER BDE-391631-00.A5 391631-00	£1.50	£1.80
99 - PLATE BDE-146726-02.A7 146726-02	£7.85	£9.42
100 - GUARD BDE-391994-00.A0 391994-00	£2.26	£2.71
101 - SCREW BDE-98025-25.A7 98025-25	£1.50	£1.80
102 - WASHER BDE-153792-00.A38 153792-00	£1.50	£1.80
103 - WASHER BDE-153781-00.A29 153781-00	£1.50	£1.80
104 - NUT BDE-330021-02.A28 330021-02	£1.50	£1.80
105 - NO LONGER AVAILABLE BDE-000000-00.A59046 000000-00	-
106 - FOOT BDE-153612-00.A28 153612-00	£1.50	£1.80
107 - NO LONGER AVAILABLE BDE-000000-00.A59047 000000-00	-
108 - RING BDE-391635-00.A3 391635-00	-
109 - LABEL BDE-395021-00.A15 395021-00	£3.30	£3.96
110 - NO LONGER AVAILABLE BDE-000000-00.A59048 000000-00	-
113 - SCREW BDE-330019-03.A108 330019-03	£1.50	£1.80
114 - WASHER BDE-330016-13.A2 330016-13	£1.42	£1.70
116 - STABILISER LEG BDE-399110-00.A2 399110-00	£10.57	£12.68
118 - SCREW BDE-90611830.A55 90611830	£1.50	£1.80
119 - BUSH BDE-388414-01.A11 388414-01	£1.50	£1.80
121 - LEAD YELLOW BDE-398562-00.A2 398562-00	£1.42	£1.70
122 - LEAD BLACK BDE-398563-00.A0 398563-00	£1.42	£1.70
123 - LEAD WHITE BDE-398564-00.A2 398564-00	£1.78	£2.13
124 - NO LONGER AVAILABLE BDE-000000-00.A59049 000000-00	-
200 - PLUG BDE-145312-00.A64 145312-00	£1.50	£1.80
201 - SCREW BDE-330019-13.A221 330019-13	£1.50	£1.80
202 - SCREW BDE-330019-19.A70 330019-19	£1.50	£1.80
203 - BRUSH PLATE BDE-389512-01.A17 389512-01	£16.03	£19.24
204 - BRUSH & LEAD GB BDE-381028-08.A7 381028-08	£7.18	£8.62
205 - FIELD GB BDE-391318-01SV.A10 391318-01SV	-
206 - FIELD CASE BDE-391317-04.A7 391317-04	£16.03	£19.24
207 - BAFFLE FAN BDE-391375-00.A29 391375-00	-
208 - END CAP BDE-391933-00.A42 391933-00	£4.69	£5.63
209 - ARMATURE GB BDE-604290-00SV.A0 604290-00SV	-
210 - CIRCLIP BDE-144803-00.A87 144803-00	£1.50	£1.80
211 - BEARING BDE-868768-07.A36 868768-07	£7.85	£9.42
212 - BEARING BDE-330003-60.A26 330003-60	£2.78	£3.34
213 - GEARCASE COVER BDE-391573-00.A1 391573-00	£7.85	£9.42
214 - NO LONGER AVAILABLE BDE-000000-00.A59050 000000-00	-
215 - BEARING BALL BDE-330003-29.A12 330003-29	£16.03	£19.24
216 - SCREW BDE-330045-13.A70 330045-13	£1.50	£1.80
217 - LABEL BDE-395301-00.A22 395301-00	£1.50	£1.80
218 - LABEL BDE-394976-00.A13 394976-00	£1.82	£2.19
219 - DUSTBAG BDE-147734-06.A17 147734-06	£16.03	£19.24
800 - GREASE BDE-93488-00.A60 93488-00	£17.48	£20.97
800 - GREASE BDE-5140061-28.A46 5140061-28	£51.90	£62.28
836 - S.T.SQUARE BDE-559606-99.A2 559606-99	£74.15	£88.98
