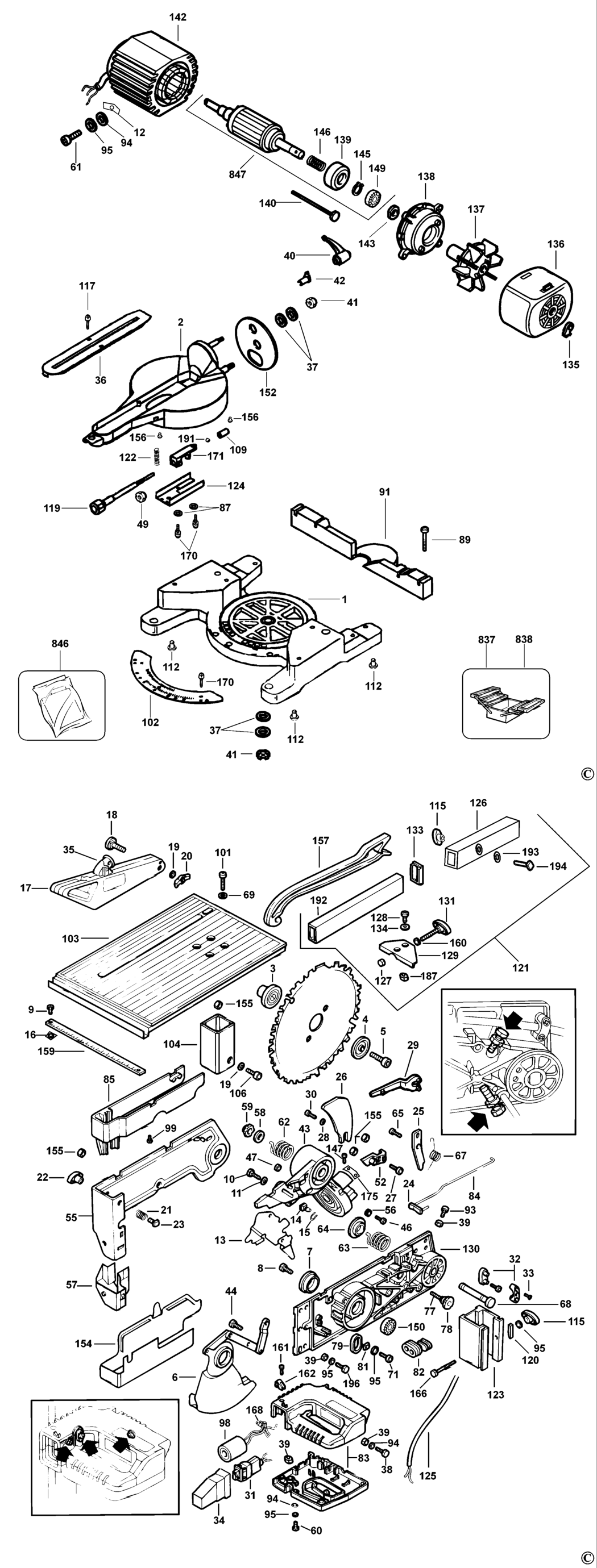

An exploded drawing and spare parts listing for the Dewalt DW711 Type 2 Table Saw
Ex VAT Inc VAT
1 - TABLE SA BDE-N283746.A6 N283746 £251.60 £301.92
2 - ROTARY TABLE BDE-869234-00.A2 869234-00 -
3 - INNER FLANGE BDE-861057-01.A13 861057-01 £4.69 £5.63
4 - OUTER FLANGE BDE-861056-00.A0 861056-00 £3.30 £3.96
5 - BOLT BDE-949886-21.A10 949886-21 £1.82 £2.19
6 - GUARD SA BDE-864693-04.A5 864693-04 £34.00 £40.80
7 - HUB BDE-863039-02.A4 863039-02 £1.50 £1.80
8 - SCREW BDE-330045-49.A44 330045-49 £1.50 £1.80
9 - SCREW BDE-930085-00.A3 930085-00 £1.50 £1.80
10 - SCREW BDE-860093-14.A2 860093-14 £1.50 £1.80
11 - WASHER M8 BDE-860073-03.A664 860073-03 £1.50 £1.80
12 - WASHER BDE-949761-01.A5 949761-01 £1.50 £1.80
13 - GUARD BDE-861918-04.A8 861918-04 £10.85 £13.02
14 - NO LONGER AVAILABLE BDE-000000-00.A59619 000000-00 -
15 - CIRCLIP BDE-860079-03.A11 860079-03 £1.50 £1.80
16 - PLATE BDE-943025-00.A12 943025-00 £1.50 £1.80
17 - GUARD BDE-941844-04.A0 941844-04 -
18 - SCREW BDE-931462-00.A3 931462-00 £1.50 £1.80
19 - WASHER M8 BDE-860073-03.A665 860073-03 £1.50 £1.80
20 - NUT BDE-860655-01.A3 860655-01 -
21 - SPRING BDE-868082-00.A22 868082-00 £1.50 £1.80
22 - KNOB BDE-861464-00.A9 861464-00 £1.82 £2.19
23 - LOCKING PIN BDE-861963-00.A1 861963-00 £1.82 £2.19
24 - CAP BDE-861953-00.A7 861953-00 £1.50 £1.80
25 - PLATE BDE-863610-00.A1 863610-00 £1.50 £1.80
26 - RIVING KNIFE BDE-861919-00.A1 861919-00 -
27 - SCREW BDE-949886-16.A10 949886-16 £1.50 £1.80
28 - WASHER BDE-860074-03.A437 860074-03 £1.50 £1.80
29 - SPANNER BDE-939072-00.A6 939072-00 £9.41 £11.29
30 - SCREW BDE-860093-00.A64 860093-00 £1.50 £1.80
31 - SWITCH GB BDE-N060327.A6 N060327 £18.91 £22.69
31 - SWITCH SA LX BDE-868319-03.A0 868319-03 -
32 - CLAMP BDE-861692-00.A6 861692-00 £1.50 £1.80
33 - SCREW BDE-949889-02.A13 949889-02 £1.50 £1.80
34 - COVER BDE-868320-00.A12 868320-00 £5.88 £7.06
35 - SUCTION PIPE BDE-943582-01.A16 943582-01 £4.69 £5.63
36 - INSERT BDE-868688-01.A11 868688-01 £3.80 £4.56
37 - WASHER BDE-949705-01.A0 949705-01 £1.50 £1.80
38 - SCREW.TEMP BDE-860085-09.A25 860085-09 £1.50 £1.80
39 - NUT M6 BDE-860083-12.A139 860083-12 £1.50 £1.80
40 - LEVER BDE-861840-03.A18 861840-03 £7.29 £8.75
41 - NUT BDE-860092-07.A8 860092-07 £1.50 £1.80
42 - INSERT BDE-868680-00.A12 868680-00 £4.79 £5.75
43 - NO LONGER AVAILABLE BDE-000000-00.A59620 000000-00 -
44 - SCREW BDE-863262-00.A3 863262-00 £1.82 £2.19
46 - SCREW BDE-860093-07.A24 860093-07 £1.50 £1.80
47 - NUT BDE-860083-04.A26 860083-04 £1.50 £1.80
49 - LOCKING DEVICE BDE-868943-02.A3 868943-02 £24.39 £29.27
52 - SPACER BDE-862075-01.A9 862075-01 £7.18 £8.62
55 - FRAME BDE-861890-00.A0 861890-00 £15.63 £18.76
56 - SPACER BDE-863599-02.A30 863599-02 £1.50 £1.80
57 - SPACER BDE-861920-00.A4 861920-00 £1.82 £2.19
58 - SHIM BDE-949761-02.A9 949761-02 £1.50 £1.80
59 - LOCK NUT BDE-949759-01.A5 949759-01 £2.78 £3.34
60 - SCREW BDE-860085-07.A45 860085-07 £1.50 £1.80
61 - SCREW BDE-930076-00.A62 930076-00 £1.50 £1.80
62 - SPRING LH BDE-863606-00.A10 863606-00 £10.85 £13.02
63 - SPRING RH BDE-863590-00.A10 863590-00 £10.85 £13.02
64 - SHIM BDE-863611-00.A13 863611-00 £1.50 £1.80
65 - SCREW BDE-863602-00.A10 863602-00 £1.50 £1.80
67 - SPRING BDE-863604-00.A2 863604-00 £1.42 £1.70
68 - PIN BDE-863607-00.A6 863607-00 £14.57 £17.48
69 - WASHER BDE-860074-01.A165 860074-01 £1.50 £1.80
71 - SCREW BDE-860094-02.A23 860094-02 £1.50 £1.80
77 - PIN BDE-863605-00.A3 863605-00 £1.82 £2.19
78 - KNOB BDE-946469-00.A2 946469-00 £1.50 £1.80
79 - GASKET BDE-863026-00.A15 863026-00 £1.50 £1.80
81 - WASHER SPRING BDE-944650-00.A4 944650-00 £1.50 £1.80
82 - INLET BDE-863573-00.A12 863573-00 £1.50 £1.80
83 - HANDLE & COVER BDE-862429-05.A6 862429-05 £16.03 £19.24
84 - ROD BDE-863613-01.A7 863613-01 £7.18 £8.62
85 - GUARD UPPER BDE-402803-01.A3 402803-01 -
87 - WASHER SPRING BDE-860074-00.A3 860074-00 £1.50 £1.80
89 - SCREW BDE-330045-26.A11 330045-26 £1.82 £2.19
91 - FENCE BDE-868687-00.A2 868687-00 -
93 - SCREW BDE-860084-09.A21 860084-09 £1.50 £1.80
94 - SHEATH BDE-863025-00.A4 863025-00 £1.50 £1.80
95 - WASHER BDE-860075-00.A211 860075-00 £1.50 £1.80
98 - CAPACITOR 115V XW BDE-949772-48.A7 949772-48 £9.41 £11.29
98 - CAPACITOR GB BDE-949772-23.A4 949772-23 £14.57 £17.48
99 - SCREW BDE-860094-03.A239 860094-03 £1.50 £1.80
101 - SCREW BDE-860084-22.A8 860084-22 £1.50 £1.80
102 - SCALE BDE-868677-00.A14 868677-00 £18.91 £22.69
103 - TABLE SA BDE-869189-02.A5 869189-02 £80.98 £97.18
104 - BRACKET BDE-402801-00.A1 402801-00 £4.69 £5.63
106 - SCREW BDE-949886-16.A8 949886-16 £1.50 £1.80
109 - BUSH BDE-868707-01.A16 868707-01 £1.66 £1.99
112 - FOOT BDE-868777-00.A1 868777-00 £1.50 £1.80
115 - KNOB BDE-861464-00.A8 861464-00 £1.82 £2.19
117 - SCREW BDE-860205-08.A2 860205-08 £1.50 £1.80
119 - LOCKING DEVICE BDE-868943-02.A6 868943-02 £24.39 £29.27
120 - PLASTIC INSERT BDE-861748-00.A1 861748-00 £1.50 £1.80
121 - FENCE SA BDE-861982-00.A10 861982-00 £44.14 £52.97
122 - SPRING BDE-868778-00.A24 868778-00 £1.50 £1.80
123 - BRACKET BDE-402800-01.A6 402800-01 £10.85 £13.02
124 - PLATE BDE-868737-00.A0 868737-00 -
125 - NO LONGER AVAILABLE 115V XW BDE-000000-00.A59621 000000-00 -
125 - CORDSET GB BDE-868313-01.A1 868313-01 -
125 - CORDSET LX BDE-868313-03.A2 868313-03 -
126 - FENCE BDE-861422-02.A5 861422-02 £10.85 £13.02
127 - SPACER BDE-861453-00.A10 861453-00 £1.50 £1.80
128 - SCREW BDE-949886-11.A28 949886-11 £1.50 £1.80
129 - SUPPORT BDE-861421-01.A5 861421-01 £12.17 £14.60
130 - SUPPORT BRACKET BDE-862180-08.A10 862180-08 £41.24 £49.49
131 - KNOB BDE-861452-00.A6 861452-00 £2.78 £3.34
133 - END CAP BDE-861423-00.A8 861423-00 £3.30 £3.96
134 - WASHER BDE-860073-14.A93 860073-14 £1.50 £1.80
135 - CAP BDE-863112-00.A63 863112-00 £1.50 £1.80
136 - COVER BDE-860445-00.A5 860445-00 £7.18 £8.62
137 - FAN BDE-945841-00.A39 945841-00 £2.78 £3.34
138 - HOUSING SA BDE-861345-00.A8 861345-00 £17.48 £20.97
139 - BRAKE BDE-861336-02.A9 861336-02 £9.41 £11.29
140 - TIE ROD BDE-863015-00.A17 863015-00 £1.50 £1.80
142 - STATOR SA 230V GB BDE-868412-04.A7 868412-04 £183.42 £220.10
142 - STATOR 115V 115V XW BDE-868412-02.A4 868412-02 £192.14 £230.57
143 - RING BDE-860080-02.A2 860080-02 £1.50 £1.80
145 - CIRCLIP BDE-861349-00.A9 861349-00 £1.50 £1.80
146 - SPRING BDE-861338-00.A9 861338-00 £1.50 £1.80
147 - SCREW BDE-949894-12.A23 949894-12 £1.50 £1.80
149 - BEARING BDE-868768-07.A35 868768-07 £7.85 £9.42
150 - BEARING BDE-861721-12.A32 861721-12 £7.85 £9.42
152 - PLATE BDE-947614-00.A29 947614-00 £2.08 £2.50
154 - GUARD BDE-861917-00.A0 861917-00 -
155 - NUT BDE-860083-04.A30 860083-04 £1.50 £1.80
156 - INSERT BDE-760298-01.A46 760298-01 £1.66 £1.99
157 - PUSHROD BDE-860610-01.A77 860610-01 £7.85 £9.42
159 - SCALE BDE-861923-00.A4 861923-00 £5.88 £7.06
160 - NUT BDE-941535-00.A14 941535-00 £1.50 £1.80
161 - SCREW BDE-860084-03.A9 860084-03 £1.50 £1.80
162 - STRAP BDE-123106-00.A7 123106-00 £1.50 £1.80
166 - SCREW BDE-949702-42.A0 949702-42 £1.50 £1.80
168 - CONNECTOR BDE-861257-00.A10 861257-00 £1.50 £1.80
170 - SCREW BDE-330045-05.A41 330045-05 £1.50 £1.80
171 - LOCKING DEVICE BDE-868943-02.A7 868943-02 £24.39 £29.27
175 - SCALE BDE-946862-01.A1 946862-01 £10.85 £13.02
187 - NUT BDE-860083-13.A20 860083-13 £1.50 £1.80
191 - BALL BDE-868708-00.A10 868708-00 £1.50 £1.80
192 - FENCE BDE-861978-00.A0 861978-00 £12.17 £14.60
193 - WASHER BDE-860073-08.A1 860073-08 £1.50 £1.80
194 - SCREW BDE-931997-00.A16 931997-00 £1.50 £1.80
196 - SCREW BDE-949743-02.A21 949743-02 £1.66 £1.99
837 - SOCKET BDE-559506-99.A0 559506-99 £47.08 £56.49
838 - SOCKET BDE-559570-99.A12 559570-99 £47.08 £56.49
846 - PARTS PACK BDE-868980-00.A1 868980-00 -
847 - ROTOR SA BDE-868411-01.A10 868411-01 £74.15 £88.98
