Dewalt DW718XPS Type 2 Mitre Saw Spare Parts

Dewalt DW718XPS Type 2 Mitre Saw Spare Parts

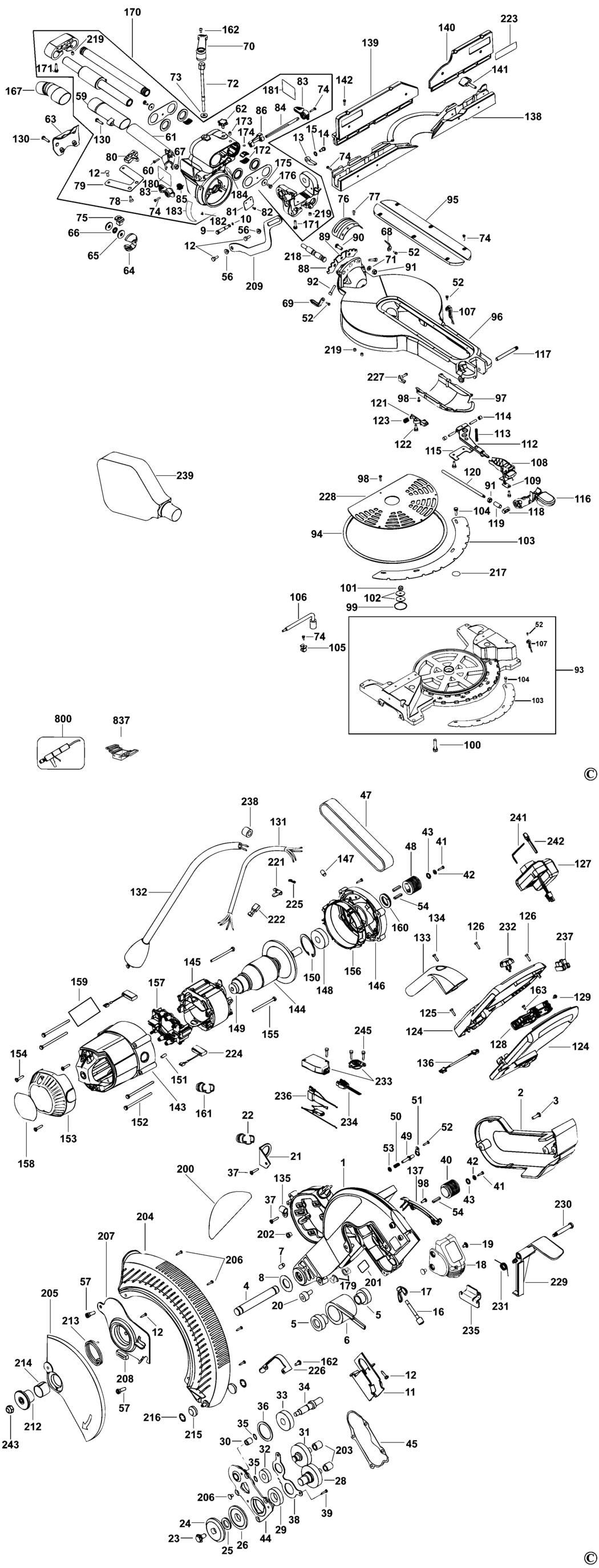

An exploded drawing and spare parts listing for the Dewalt DW718XPS Type 2 Mitre Saw
Ex VAT Inc VAT
1 - ARM LX BDE-618175-01SV.A2 618175-01SV -
1 - ARM GB BDE-618175-01SV.A3 618175-01SV -
2 - BELT COVER BDE-618193-00.A11 618193-00 £14.57 £17.48
3 - SCREW BDE-330045-14.A82 330045-14 £1.50 £1.80
4 - SHAFT BDE-146751-00.A3 146751-00 £3.30 £3.96
5 - SPACER BDE-146732-00.A4 146732-00 £1.50 £1.80
6 - SPRING BDE-N039404.A13 N039404 £17.48 £20.97
7 - SCREW BDE-150075-00.A12 150075-00 £1.50 £1.80
8 - WASHER BDE-148296-00.A47 148296-00 £1.50 £1.80
9 - LOCKING PIN BDE-387130-00.A58 387130-00 £4.69 £5.63
10 - SEAL BDE-34158-00.A39 34158-00 £1.50 £1.80
11 - GUARD REAR LX BDE-618190-00.A12 618190-00 £7.18 £8.62
11 - GUARD REAR GB BDE-618190-00.A13 618190-00 £7.18 £8.62
12 - SCREW.SPECIAL BDE-330045-23.A69 330045-23 £1.50 £1.80
13 - PAWL BDE-153603-01.A15 153603-01 £1.82 £2.19
14 - SCREW BDE-153639-00.A40 153639-00 £1.50 £1.80
15 - WASHER BDE-153655-00.A50 153655-00 £1.50 £1.80
16 - SCREW BDE-N185664.A3 N185664 £3.30 £3.96
17 - NUT WING BDE-150718-00.A0 150718-00 £1.50 £1.80
18 - LED & POWER SUPPLY KIT GB BDE-DWS7085.A8 DWS7085 £114.00 £136.80
18 - LED & POWER SUPPLY KIT LX BDE-DWS7085.A9 DWS7085 £114.00 £136.80
19 - SCREW BDE-385915-02.A7 385915-02 £1.50 £1.80
20 - SCREW BDE-618198-00.A20 618198-00 £1.50 £1.80
21 - BRACKET BDE-624195-01.A10 624195-01 £1.50 £1.80
22 - BUSHING BDE-615851-00.A23 615851-00 £1.50 £1.80
23 - BLADE BOLT BDE-869245-00.A66 869245-00 £3.54 £4.25
24 - CLAMP OUTER LX BDE-604765-00.A5 604765-00 £5.88 £7.06
24 - CLAMP OUTER GB BDE-604765-00.A6 604765-00 £5.88 £7.06
25 - ADAPTOR LX BDE-604770-00.A20 604770-00 £3.80 £4.56
25 - ADAPTOR GB BDE-604770-00.A21 604770-00 £3.80 £4.56
26 - WASHER INNER CLAMP LX BDE-645000-00.A0 645000-00 £14.57 £17.48
26 - WASHER INNER CLAMP GB BDE-645000-00.A1 645000-00 £14.57 £17.48
28 - SPINDLE & GEAR BDE-N086159.A15 N086159 £25.70 £30.84
29 - BEARING BALL BDE-330003-66.A8 330003-66 £14.57 £17.48
30 - BEARING NEEDLE BDE-391616-00.A6 391616-00 £4.69 £5.63
31 - GEAR SA BDE-NA135793.A4 NA135793 £44.14 £52.97
32 - BEARING BDE-605040-59.A22 605040-59 £3.30 £3.96
33 - BEARING BDE-605040-33.A15 605040-33 £5.88 £7.06
34 - PULLEY SA BDE-N105443.A13 N105443 £51.90 £62.28
35 - RETAINER BDE-153752-00.A23 153752-00 £1.50 £1.80
36 - RETAINING PLATE BDE-618244-00.A0 618244-00 £1.50 £1.80
37 - SCREW BDE-330045-49.A1 330045-49 £1.50 £1.80
38 - BEARING PLATE BDE-391310-00.A18 391310-00 £1.82 £2.19
39 - SCREW BDE-98094-13.A20 98094-13 £1.50 £1.80
40 - PULLEY LX BDE-153796-00.A12 153796-00 £10.85 £13.02
40 - PULLEY GB BDE-153796-00.A13 153796-00 £10.85 £13.02
41 - SCREW BDE-153778-00.A11 153778-00 £1.50 £1.80
42 - WASHER BDE-098198-05.A9 098198-05 £1.50 £1.80
43 - WASHER BDE-153782-00.A6 153782-00 £1.50 £1.80
44 - GEARCASE LX BDE-653809-01.A3 653809-01 £12.17 £14.60
44 - GEARCASE GB BDE-653809-01.A4 653809-01 £12.17 £14.60
45 - GASKET BDE-391315-00.A32 391315-00 £2.78 £3.34
47 - BELT BDE-153555-00.A5 153555-00 £19.90 £23.88
48 - DRIVE PULLEY BDE-153554-00.A14 153554-00 £10.85 £13.02
49 - LOCKING PIN BDE-153561-00.A42 153561-00 £1.50 £1.80
50 - SPRING BDE-448176-00.A7 448176-00 £1.50 £1.80
51 - PLATE BDE-393071-00.A44 393071-00 £1.50 £1.80
52 - SCREW BDE-330045-45.A75 330045-45 £1.50 £1.80
53 - WASHER BDE-153559-00.A24 153559-00 £1.50 £1.80
54 - KEY BDE-153638-00.A0 153638-00 £1.82 £2.19
56 - SLEEVE BDE-146740-00.A15 146740-00 £1.66 £1.99
57 - SCREW BDE-394589-01.A10 394589-01 £1.50 £1.80
59 - DUCT BDE-618157-00.A2 618157-00 -
60 - SCREW BDE-330045-15.A42 330045-15 £1.50 £1.80
61 - DUCT BDE-624719-00.A0 624719-00 £12.17 £14.60
62 - LOCK KNOB BDE-618156-00.A9 618156-00 £3.80 £4.56
63 - SUPPORT PLATE BDE-618238-00.A8 618238-00 -
64 - BUSHING BDE-618145-00.A6 618145-00 £3.30 £3.96
65 - WASHER THRUST BDE-153769-01.A6 153769-01 £1.50 £1.80
66 - BEARING THRUST BDE-153451-00.A41 153451-00 £1.82 £2.19
67 - LOCK NUT BDE-625393-00.A10 625393-00 £1.50 £1.80
68 - POINTER BDE-618211-00.A2 618211-00 £1.42 £1.70
69 - POINTER BDE-618235-00.A8 618235-00 £1.42 £1.70
70 - HANDLE BDE-618236-00.A0 618236-00 £3.80 £4.56
71 - WASHER BDE-330016-03.A40 330016-03 £1.50 £1.80
72 - ROD BDE-618148-00.A9 618148-00 £3.80 £4.56
73 - WASHER THRUST BDE-603636-00.A14 603636-00 £1.50 £1.80
74 - SCREW BDE-330045-06.A81 330045-06 £1.50 £1.80
75 - BLOCK BDE-618160-00.A12 618160-00 £3.80 £4.56
76 - SPRING BDE-626440-00.A3 626440-00 £3.80 £4.56
77 - SCREW BDE-098103-18.A2 098103-18 £1.50 £1.80
78 - SCREW BDE-98104-17.A1 98104-17 £1.50 £1.80
79 - SPRING BDE-641466-00.A14 641466-00 £3.80 £4.56
80 - PAWL BDE-641467-00.A0 641467-00 £7.18 £8.62
81 - COVER BDE-618162-00.A1 618162-00 £1.50 £1.80
82 - SCREW BDE-330045-44.A2 330045-44 £1.50 £1.80
83 - LEVER SA BDE-N019349.A3 N019349 £1.50 £1.80
84 - ROD BDE-618153-00.A15 618153-00 £7.18 £8.62
85 - SPRING TORSION BDE-618259-00.A3 618259-00 £1.50 £1.80
86 - CAM BDE-618232-00.A8 618232-00 -
88 - PLATE BDE-641471-00.A9 641471-00 -
89 - PLATE BDE-641468-00.A10 641468-00 -
90 - CARRIAGE BOLT BDE-98130-25.A10 98130-25 £1.50 £1.80
91 - NUT BDE-330015-03.A86 330015-03 £1.50 £1.80
92 - SCREW BDE-391346-00.A6 391346-00 £1.50 £1.80
93 - BASE SA LX BDE-645751-00SV.A2 645751-00SV £336.69 £404.03
93 - BASE SA GB BDE-645751-00SV.A3 645751-00SV £336.69 £404.03
94 - PLATE BDE-N528183.A9 N528183 £7.18 £8.62
95 - PLATE BDE-618199-00.A2 618199-00 £3.80 £4.56
96 - TABLE SA GB BDE-630711-03.A1 630711-03 £192.14 £230.57
96 - TABLE SA LX BDE-630711-03.A2 630711-03 £192.14 £230.57
97 - COVER BDE-N401778.A3 N401778 £7.18 £8.62
98 - SCREW BDE-330045-05.A137 330045-05 £1.50 £1.80
99 - RING BDE-49787-00.A31 49787-00 £1.50 £1.80
100 - SCREW BDE-98025-35.A23 98025-35 £1.50 £1.80
101 - LOCK NUT BDE-N044739.A4 N044739 £1.50 £1.80
102 - WASHER BDE-153792-00.A21 153792-00 £1.50 £1.80
103 - PLATE BDE-618168-00.A2 618168-00 £24.39 £29.27
104 - SCREW BDE-604410-00.A40 604410-00 £1.50 £1.80
105 - HOLDER BDE-391358-01.A26 391358-01 £1.50 £1.80
106 - WRENCH SPECIAL BDE-608563-01.A25 608563-01 £7.18 £8.62
107 - POINTER BDE-618209-00.A6 618209-00 £1.42 £1.70
108 - ACTUATOR BDE-618169-00.A6 618169-00 £4.69 £5.63
109 - PLATE BDE-618243-00.A8 618243-00 -
112 - DETENT BDE-N488468.A11 N488468 £41.24 £49.49
113 - SPRING COMPRESSION BDE-618176-00.A0 618176-00 £1.50 £1.80
114 - BEARING NEEDLE BDE-093128-00.A85 093128-00 £1.50 £1.80
115 - RETAINER BDE-618254-00.A10 618254-00 £1.50 £1.80
116 - LEVER BDE-N082785.A1 N082785 £5.88 £7.06
117 - PIN BDE-618187-00.A8 618187-00 £3.30 £3.96
118 - PIN BDE-624460-00.A15 624460-00 £1.50 £1.80
119 - SLEEVE BDE-624461-00.A4 624461-00 £1.50 £1.80
120 - ROD BDE-618186-00.A0 618186-00 £5.88 £7.06
121 - BLOCK BDE-618185-00.A12 618185-00 £5.88 £7.06
122 - SCREW BDE-385915-03.A8 385915-03 £1.50 £1.80
123 - SPRING COMPRESSION BDE-618253-00.A4 618253-00 £1.50 £1.80
124 - HANDLE SA GB BDE-N502790.A16 N502790 £25.70 £30.84
124 - HANDLE SA LX BDE-N502790.A17 N502790 £25.70 £30.84
125 - SCREW BDE-330045-18.A34 330045-18 £1.50 £1.80
126 - SCREW BDE-330019-32.A27 330019-32 £1.50 £1.80
127 - SA POWER SUPPLY GB BDE-DWS7085.A28 DWS7085 £114.00 £136.80
127 - SA POWER SUPPLY LX BDE-DWS7085.A29 DWS7085 £114.00 £136.80
128 - SWITCH BDE-N548978V.A38 N548978V £19.90 £23.88
129 - SCREW BDE-384127-01.A8 384127-01 £1.50 £1.80
130 - SCREW.TEMP BDE-330045-25.A5 330045-25 £1.50 £1.80
131 - MOTOR CABLE BDE-618276-00.A0 618276-00 £16.03 £19.24
132 - CORDSET GB BDE-604807-03.A6 604807-03 £60.94 £73.13
132 - CORDSET LX BDE-N045585.A1 N045585 £59.41 £71.29
133 - HANDLE BDE-N083060.A16 N083060 £7.85 £9.42
134 - SCREW BDE-330019-22.A1 330019-22 £1.50 £1.80
135 - CABLE CLAMP BDE-398443-00.A0 398443-00 £1.50 £1.80
136 - CABLE SA BDE-N467585.A24 N467585 £9.41 £11.29
137 - COVER BDE-618269-00.A13 618269-00 £1.42 £1.70
138 - FENCE LX BDE-618202-01.A6 618202-01 -
138 - FENCE GB BDE-618202-01.A7 618202-01 -
139 - FENCE LH GB BDE-618203-01.A2 618203-01 -
139 - FENCE LH LX BDE-618203-01.A3 618203-01 -
140 - FENCE RH GB BDE-N024409.A0 N024409 -
140 - FENCE RH LX BDE-N024409.A1 N024409 -
141 - KNOB LOWER BDE-147107-02.A4 147107-02 £2.26 £2.71
142 - SCREW BDE-098105-03.A33 098105-03 £3.80 £4.56
143 - FIELDCASE LX BDE-391317-00.A1 391317-00 £12.17 £14.60
143 - FIELDCASE GB BDE-391317-00.A2 391317-00 £12.17 £14.60
144 - ARMATURE SA GB BDE-N093107.A18 N093107 £157.49 £188.99
144 - NO LONGER AVAILABLE LX BDE-000000-00.A129043 000000-00 -
145 - FIELD 115V LX BDE-391318-00SV.A12 391318-00SV -
145 - FIELD GB BDE-391318-01SV.A5 391318-01SV -
146 - MOUNTING BRACKET BDE-391282-00.A30 391282-00 £16.03 £19.24
147 - SCREW BDE-394034-00.A3 394034-00 £1.50 £1.80
148 - BEARING BALL BDE-605040-32.A4 605040-32 £7.92 £9.50
149 - BEARING BDE-330003-60.A185 330003-60 £2.78 £3.34
150 - CIRCLIP BDE-144803-00.A11 144803-00 £1.50 £1.80
151 - PLUG BDE-145312-00.A25 145312-00 £1.50 £1.80
152 - SCREW BDE-98094-55.A64 98094-55 £1.50 £1.80
153 - END CAP BDE-391933-00.A0 391933-00 £4.69 £5.63
154 - SCREW BDE-330019-13.A502 330019-13 £1.50 £1.80
155 - SCREW BDE-330019-19.A194 330019-19 £1.50 £1.80
156 - BAFFLE FAN BDE-391375-00.A49 391375-00 £1.82 £2.19
157 - BRUSH PLATE BDE-389512-01.A25 389512-01 £16.03 £19.24
158 - NO LONGER AVAILABLE BDE-000000-00.A129044 000000-00 -
159 - RATING PLATE GB BDE-N020636 N020636 £1.42 £1.70
159 - RATING PLATE LX BDE-N020633 N020633 £1.42 £1.70
160 - RING BDE-153783-00.A18 153783-00 £1.50 £1.80
161 - BUSHING BDE-605155-00.A43 605155-00 £1.66 £1.99
162 - SCREW BDE-330045-13.A26 330045-13 £1.50 £1.80
163 - SCREW BDE-330019-12.A4 330019-12 £1.50 £1.80
167 - ADAPTOR BDE-618240-00.A0 618240-00 -
170 - TRUNION BDE-650852-00.A1 650852-00 -
171 - SCREW BDE-603390-00.A24 603390-00 £1.50 £1.80
172 - GUIDE BDE-397118-00.A35 397118-00 £3.30 £3.96
173 - SCREW BDE-153576-04.A9 153576-04 £1.50 £1.80
174 - THRUST PLATE BDE-613497-00.A12 613497-00 £1.50 £1.80
175 - WASHER BDE-153586-00.A8 153586-00 £1.50 £1.80
176 - SCREW BDE-616001-00.A3 616001-00 £1.50 £1.80
179 - BUSHING BDE-645746-00.A13 645746-00 £1.66 £1.99
180 - LABEL PIVOT BDE-618278-00.A1 618278-00 £1.50 £1.80
181 - LABEL PIVOT BDE-618277-00.A13 618277-00 £1.50 £1.80
182 - RIVET BDE-147439-07.A0 147439-07 £1.42 £1.70
183 - SCALE LH BDE-618262-00.A1 618262-00 £1.42 £1.70
184 - SCALE RH BDE-618261-00.A6 618261-00 £1.42 £1.70
200 - LABEL BDE-393706-00.A12 393706-00 £1.50 £1.80
201 - WARNING LABEL BDE-662575-00.A2 662575-00 £7.85 £9.42
202 - INSERT BDE-148608-00.A48 148608-00 £1.50 £1.80
203 - BEARING BDE-386780-00.A43 386780-00 £2.26 £2.71
204 - GUARD LOWER LX BDE-618231-01.A1 618231-01 £24.39 £29.27
204 - GUARD LOWER GB BDE-618231-01.A2 618231-01 £24.39 £29.27
205 - PLATE BDE-N020822.A8 N020822 £12.17 £14.60
206 - SCREW BDE-385915-01.A31 385915-01 £1.50 £1.80
207 - PLATE BDE-621037-00.A3 621037-00 £7.18 £8.62
208 - BUMPER BDE-146768-00.A48 146768-00 £1.66 £1.99
209 - LINK BDE-N142523.A3 N142523 £17.48 £20.97
212 - FSO KIT BDE-N390418.A12 N390418 £7.85 £9.42
213 - SPRING BDE-661454-00.A0 661454-00 £1.50 £1.80
214 - SLEEVE BDE-148295-00.A36 148295-00 £1.66 £1.99
215 - ROLLER BDE-625825-00.A12 625825-00 £1.66 £1.99
216 - RING BDE-142273-00.A0 142273-00 £1.50 £1.80
217 - LABEL BDE-394976-00.A56 394976-00 £1.82 £2.19
218 - STUD BDE-618234-00.A0 618234-00 £7.18 £8.62
219 - SCREW BDE-153666-00.A30 153666-00 £1.50 £1.80
221 - TERMINAL BDE-145332-00.A12 145332-00 £1.50 £1.80
222 - TERMINAL BDE-450212-00.A25 450212-00 £2.78 £3.34
223 - LABEL BDE-395301-00.A28 395301-00 £1.50 £1.80
224 - BRUSH & LEAD LX BDE-381028-08.A59 381028-08 £7.18 £8.62
224 - BRUSH & LEAD GB BDE-381028-08.A60 381028-08 £7.18 £8.62
225 - TERMINAL BDE-395716-00.A0 395716-00 £1.50 £1.80
226 - GUARD LX BDE-623957-00.A1 623957-00 £3.80 £4.56
226 - GUARD GB BDE-623957-00.A2 623957-00 £3.80 £4.56
227 - NO LONGER AVAILABLE GB BDE-000000-00.A129045 000000-00 -
227 - NO LONGER AVAILABLE LX BDE-000000-00.A129046 000000-00 -
228 - COVER GB BDE-391355-00.A2 391355-00 £15.63 £18.76
228 - COVER LX BDE-391355-00.A3 391355-00 £15.63 £18.76
229 - LEVER LOCK LX BDE-624399-00.A7 624399-00 -
229 - LEVER LOCK GB BDE-624399-00.A8 624399-00 -
230 - BOLT GB BDE-152852-00.A60 152852-00 £1.82 £2.19
230 - BOLT LX BDE-152852-00.A61 152852-00 £1.82 £2.19
231 - SPRING GB BDE-386196-00.A13 386196-00 £1.66 £1.99
231 - SPRING LX BDE-386196-00.A14 386196-00 £1.66 £1.99
232 - KNOB LX BDE-392131-00.A23 392131-00 £1.50 £1.80
232 - KNOB GB BDE-392131-00.A24 392131-00 £1.50 £1.80
233 - CONTROL MODULE SA STATIC SENSATIVE GB BDE-N033994.A3 N033994 £93.62 £112.35
233 - CONTROL MODULE SA STATIC SENSATIVE LX BDE-628744-01.A12 628744-01 £76.16 £91.39
234 - LEAD SA LX BDE-622950-00.A0 622950-00 £34.00 £40.80
234 - LEAD SA GB BDE-622950-00.A1 622950-00 £34.00 £40.80
235 - PLATE GB BDE-393791-00.A0 393791-00 £1.50 £1.80
235 - PLATE LX BDE-393791-00.A1 393791-00 £1.50 £1.80
236 - LEAD SA GB BDE-618159-00.A11 618159-00 £17.48 £20.97
236 - LEAD SA LX BDE-618159-00.A12 618159-00 £17.48 £20.97
237 - TERMINAL BLOCK BDE-393520-00.A41 393520-00 £5.88 £7.06
238 - BUSH BDE-388414-01.A46 388414-01 £1.50 £1.80
239 - DUSTBAG BDE-147734-06.A32 147734-06 £16.03 £19.24
241 - HEX KEY 2.5 MM BDE-604407-01.A5 604407-01 £3.30 £3.96
242 - SWITCH LOCK OFF BDE-627271-00.A15 627271-00 £1.50 £1.80
243 - FSO KIT BDE-N390418.A13 N390418 £7.85 £9.42
245 - SCREW BDE-330019-03.A320 330019-03 £1.50 £1.80
800 - GREASE BDE-429698-00.A103 429698-00 £84.42 £101.30
800 - GREASE BDE-93488-00.A5 93488-00 £17.48 £20.97
837 - S.T.SQUARE BDE-559626-99.A13 559626-99 £108.20 £129.84

Carry On Shopping

Try these categories

Mitre Saws

Recently Viewed

Dewalt DW718XPS Type 2 Mitre Saw Spare Parts

x
Powered by kartris
