Fein KBH 25 (50/60Hz 110/120V) / 72710124110 Spare Parts

Fein KBH 25 ⡐/60Hz 110/120V) / 72710124110 Spare Parts

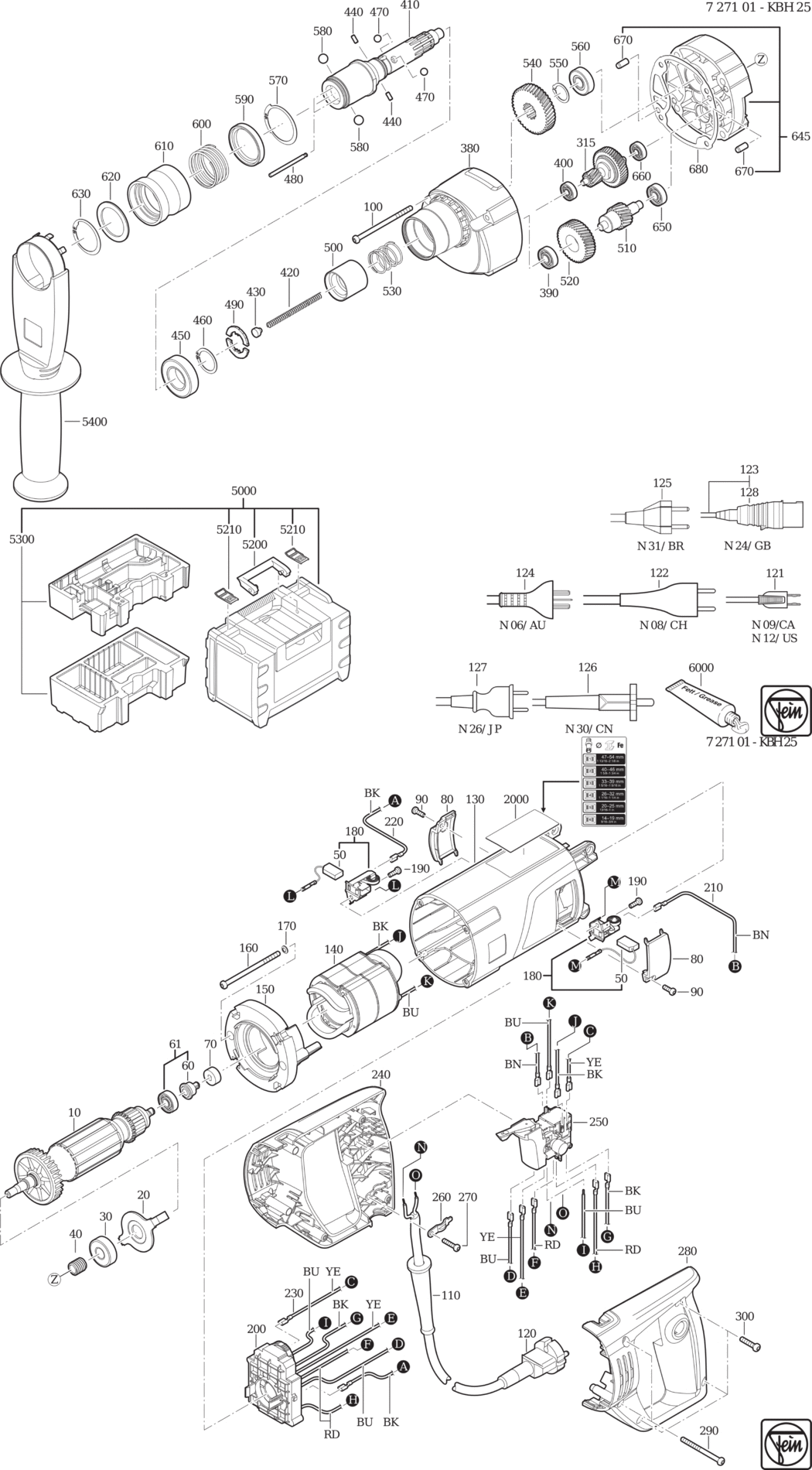

An exploded diagram and spare parts listing for the Fein KBH 25 (50/60Hz 110/120V) / 72710124110

	Ex VAT	Inc VAT
10 - ARMATURE 50/60HZ 110-120V Z=6 FEI-53273010110.A14 53273010110	£139.87	£167.84
20 - PLATE FEI-32416098005.A53 32416098005	£1.60	£1.92
30 - GROOVED BALL BEARING FEI-41701007050.A5 41701007050	£15.15	£18.18
40 - SEALING RING FEI-32612135000.A5 32612135000	£9.45	£11.34
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711136002.A1 30711136002	£13.10	£15.72
50 - GROOVED BALL BEARING FEI-41701001260.A232 41701001260	£7.11	£8.53
60 - SLEEVE FEI-31406053007.A12 31406053007	£3.42	£4.10
61 - SLEEVE SET FEI-31406053010.A6 31406053010	-
70 - RING MAGNET FEI-32172010005.A0 32172010005	£22.34	£26.81
80 - COVER FEI-32424029000.A22 32424029000	-
90 - SCREW FEI-43074013000.A28 43074013000	-
100 - SCREW FEI-43072012001.A22 43072012001	-
110 - CABLE GROMMET FEI-31413233000.A74 31413233000	£2.60	£3.12
123 - CABLE WITH PLUG FEI-30707404015.A2 30707404015	-
130 - MOTOR HOUSING FEI-31903219000.A7 31903219000	-
140 - STATOR 50/60HZ 110-120V FEI-51273006110.A0 51273006110	-
150 - AIR GUIDE RING FEI-31428168000.A16 31428168000	-
180 - BRUSH HOLDER FEI-30712088029.A5 30712088029	£17.88	£21.45
190 - SCREW FEI-43074013000.A26 43074013000	-
200 - ELECTRONICS FEI-30762431990.A2 30762431990	£143.83	£172.60
210 - CONNECTING CABLE FEI-30719815010.A6 30719815010	-
220 - CONNECTING CABLE FEI-30719816010.A2 30719816010	-
230 - CONNECTING CABLE FEI-30719814010.A2 30719814010	-
240 - HANDLE HALF SHELL FEI-31204187000.A6 31204187000	-
250 - SWITCH FEI-30701292010.A5 30701292010	£51.11	£61.33
260 - CABLE CLAMPING PIECE FEI-32431043002.A182 32431043002	£1.60	£1.92
270 - SCREW FEI-43074010000.A25 43074010000	£1.60	£1.92
280 - HANDLE HALF SHELL FEI-31204188000.A2 31204188000	£13.94	£16.73
290 - SCREW FEI-43072013005.A25 43072013005	£1.60	£1.92
300 - SCREW FEI-43074008000.A47 43074008000	£1.60	£1.92
315 - CLUTCH FEI-33761001010.A2 33761001010	-
380 - GEARBOX HOUSING FEI-31508296000.A0 31508296000	-
390 - GROOVED BALL BEARING FEI-41701001172.A131 41701001172	£9.63	£11.56
400 - GROOVED BALL BEARING FEI-41701202018.A27 41701202018	£6.92	£8.30
410 - SHAFT FEI-33403114000.A2 33403114000	£108.31	£129.97
420 - SPIRAL SPRING FEI-30901382000.A1 30901382000	£5.60	£6.72
430 - BOLT FEI-30216150000.A3 30216150000	£20.63	£24.76
440 - BOLT FEI-30216151000.A2 30216151000	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701109051.A27 41701109051	£23.72	£28.46
460 - CIRCLIP FEI-42616009003.A8 42616009003	£1.60	£1.92
470 - BALL FEI-41708019004.A32 41708019004	£1.60	£1.92
480 - BOLT FEI-30216152000.A0 30216152000	£6.44	£7.73
490 - CIRCLIP FEI-30235025000.A0 30235025000	£1.60	£1.92
500 - SLEEVE FEI-30503160000.A2 30503160000	£43.45	£52.14
510 - SHAFT TOOTHED Z=17 FEI-33763064000.A37 33763064000	-
520 - GEAR-WHEEL Z=36 FEI-33661002000.A1 33661002000	-
530 - SPIRAL SPRING FEI-30901381000.A1 30901381000	-
540 - GEAR-WHEEL Z=39 FEI-33663174000.A8 33663174000	-
550 - CIRCLIP FEI-42616007001.A6 42616007001	£1.60	£1.92
560 - GROOVED BALL BEARING FEI-41701006034.A21 41701006034	£11.83	£14.20
570 - CIRCLIP FEI-42644013000.A0 42644013000	£1.60	£1.92
580 - BALL FEI-41708025004.A56 41708025004	£1.60	£1.92
590 - RING FEI-32602091000.A1 32602091000	-
600 - SPIRAL SPRING FEI-30901383000.A5 30901383000	-
610 - SLEEVE FEI-30503161000.A0 30503161000	-
620 - DISC FEI-32408436000.A1 32408436000	£1.60	£1.92
630 - CIRCLIP FEI-42643009005.A25 42643009005	£3.40	£4.08
645 - INTERMEDIATE GEAR BOX FEI-31506383010.A5 31506383010	-
650 - GROOVED BALL BEARING FEI-41701001172.A130 41701001172	£9.63	£11.56
660 - GROOVED BALL BEARING FEI-41701202018.A28 41701202018	£6.92	£8.30
670 - PIN FEI-40242058004.A19 40242058004	-
680 - SEAL FEI-30610048000.A11 30610048000	-
2000 - INFORMATION SIGN FEI-32217448990.A1 32217448990	-
5000 - TOOL CASE FEI-33901122120.A5 33901122120	£114.52	£137.43
5200 - HANDLE FEI-32119122000.A145 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A222 30232050000	£10.78	£12.94
5300 - EPP INSERT KBH25 FEI-33904428010.A1 33904428010	-
5400 - HANDLE FEI-32119078030.A3 32119078030	£28.63	£34.36
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A130 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A636 34130054061	-
