Dremel 750 / F013075032 / EU 230 Volt Spare Parts

Dremel 750 / F013075032 / EU 230 Volt Spare Parts
Home Details Reviews Delivery

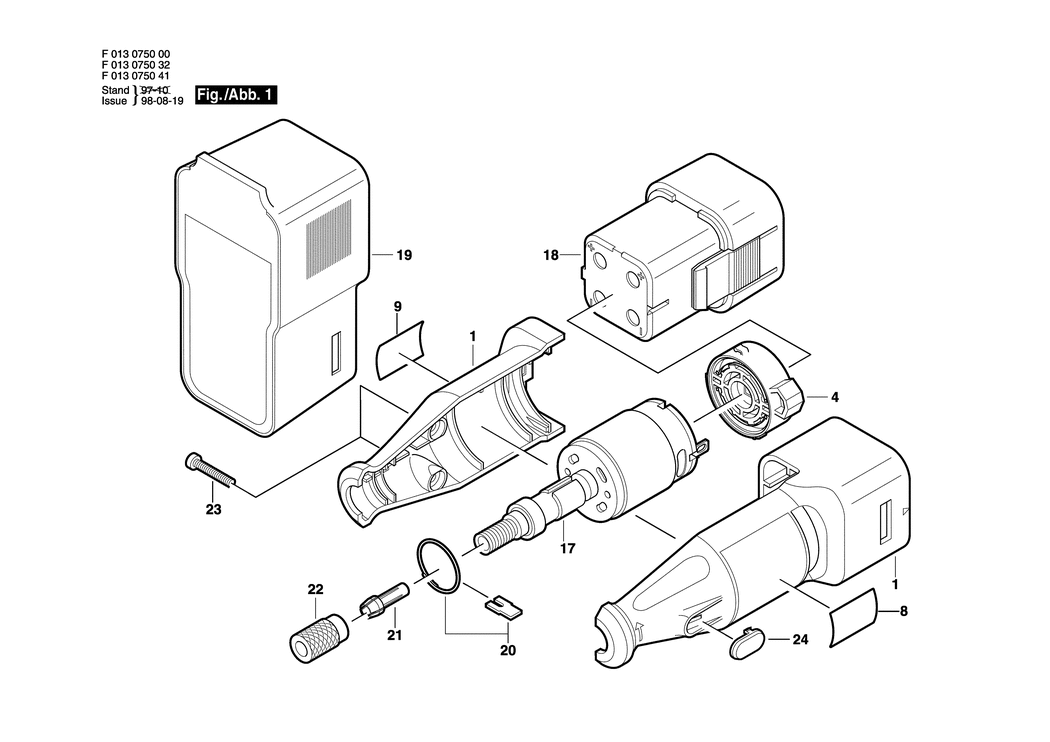

An exploded drawing and listing for the Dremel 750 / F013075032 / EU 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2615298770.A0 2615298770 -
4 - SWITCH BSD-2615296558.A7 2615296558 £8.67 £10.41
8 - NAMEPLATE BSD-2615297636.A0 2615297636 -
9 - STICKER BSD-2615296637.A1 2615296637 -
17 - MOTOR BSD-2615296562.A1 2615296562 £14.72 £17.67
18 - BATTERY PACK BSD-2615075532.A0 2615075532 -
19 - BATTERY CHARGER EU 230/4.8V. 3h BSD-2615075632.A0 2615075632 -
20 - PARTS SET BSD-2615296587.A2 2615296587 -
21 - CONTOUR SLEEVE 1/8 BSD-2615110480.A10 2615110480 £3.72 £4.47
21 - CONTOUR SLEEVE 3/32 BSD-2615000481.A8 2615000481 -
21 - CONTOUR SLEEVE 1/16 BSD-2615000482.A11 2615000482 -
21 - CONTOUR SLEEVE 1/32 BSD-2615000483.A8 2615000483 -
22 - CLAMPING NUT BSD-2615296573.A1 2615296573 -
23 - SCREW BSD-2610347948.A19 2610347948 £1.75 £2.10
24 - SEALING CAP BSD-2610967952.A3 2610967952 -
