Bostitch N66C-1 Type REV F Nailer Spare Parts

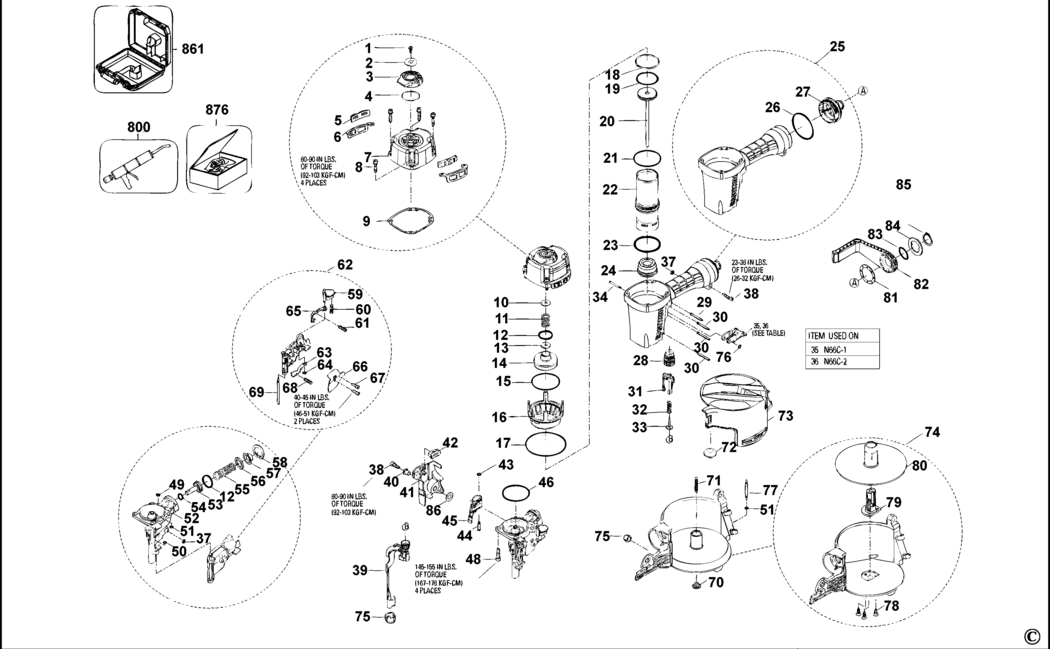

An exploded drawing and spare parts listing for the Bostitch N66C-1 Type REV F Nailer

	Ex VAT	Inc VAT
2 - SPACER BDE-174042.A2 174042	£1.50	£1.80
3 - COVER BDE-174043.A4 174043	£1.50	£1.80
4 - O RING BDE-174044.A1 174044	£1.50	£1.80
5 - RUBBER PAD BDE-174045.A5 174045	£1.50	£1.80
6 - BRACKET BDE-174046.A3 174046	£1.50	£1.80
7 - DEFLECTOR BDE-G5400700.A1 G5400700	£24.39	£29.27
8 - SCREW BDE-175554.A11 175554	£1.50	£1.80
9 - GASKET BDE-174050.A3 174050	£3.80	£4.56
10 - SEAL BDE-174049.A10 174049	£1.50	£1.80
11 - SPRING COMPRESSION BDE-174051.A10 174051	£1.50	£1.80
12 - O RING BDE-174053.A10 174053	£1.50	£1.80
13 - WASHER SPECIAL BDE-174052.A3 174052	£1.50	£1.80
14 - VALVE BDE-174054.A3 174054	£3.30	£3.96
15 - O RING BDE-174055.A10 174055	£1.50	£1.80
16 - COLLAR BDE-174057.A5 174057	£1.50	£1.80
17 - O RING BDE-174056.A2 174056	£1.50	£1.80
18 - SEAL BDE-P2320006600.A4 P2320006600	£1.50	£1.80
19 - O RING BDE-S06S003600.A5 S06S003600	£1.50	£1.80
20 - DRIVER BDE-G0209200.A0 G0209200	£24.39	£29.27
21 - O RING BDE-174058.A2 174058	£1.50	£1.80
22 - CYLINDER BDE-9R213301.A1 9R213301	£9.41	£11.29
23 - O RING BDE-86460.A3 86460	£7.85	£9.42
24 - BUMPER BDE-174075.A7 174075	£9.41	£11.29
25 - FRAME BDE-P3490000600.A0 P3490000600	£47.08	£56.49
26 - O RING BDE-174067.A10 174067	£1.50	£1.80
27 - END CAP BDE-9R209578.A0 9R209578	£7.85	£9.42
28 - VALVE BDE-TVA6.A11 TVA6	£16.03	£19.24
29 - PIN BDE-174070.A15 174070	£1.50	£1.80
30 - PIN BDE-174071.A0 174071	£1.50	£1.80
31 - GUIDE BDE-9R199740.A8 9R199740	£1.50	£1.80
32 - SPRING BDE-P2325202662.A1 P2325202662	£1.50	£1.80
33 - HOLDER BDE-P2845203062.A6 P2845203062	£3.30	£3.96
34 - PIN BDE-174062.A12 174062	£1.50	£1.80
35 - KIT BDE-CNTK1.A21 CNTK1	£5.88	£7.06
36 - KIT SA BDE-SEQ4.A15 SEQ4	£7.18	£8.62
37 - LOCK-NUT BDE-174065.A1 174065	£1.50	£1.80
38 - SCREW BDE-9R199720.A6 9R199720	£1.50	£1.80
39 - CONTACT PLATE BDE-G4007600.A0 G4007600	£14.57	£17.48
40 - SPACER BDE-P2325205662.A7 P2325205662	£1.50	£1.80
41 - GUARD BDE-P2320005500.A1 P2320005500	£2.26	£2.71
42 - RUBBER PAD BDE-P2320005400.A7 P2320005400	£1.50	£1.80
43 - O RING BDE-S06A000500.A7 S06A000500	£1.50	£1.80
44 - ROLLPIN BDE-P2325207562.A8 P2325207562	£1.50	£1.80
45 - JAW BDE-G7600200.A4 G7600200	£17.48	£20.97
46 - O RING BDE-851483-S.A4 851483-S	£1.50	£1.80
48 - SCREW BDE-9R195545.A0 9R195545	£1.50	£1.80
49 - O RING BDE-S06P000400.A1 S06P000400	£1.50	£1.80
50 - O RING BDE-184434.A1 184434	£1.50	£1.80
51 - O RING BDE-S06P000300.A7 S06P000300	£2.26	£2.71
52 - NOSE BDE-P2840001065.A3 P2840001065	£104.31	£125.17
53 - O RING BDE-S06P000900.A10 S06P000900	£1.50	£1.80
54 - PISTON BDE-P2325504962.A1 P2325504962	£5.88	£7.06
55 - SPRING BDE-P2325205062.A7 P2325205062	£1.50	£1.80
56 - BUMPER BDE-P2322005100.A8 P2322005100	£1.50	£1.80
57 - COVER BDE-P2325205262.A2 P2325205262	£1.50	£1.80
58 - RING BDE-S15202800.A6 S15202800	£1.50	£1.80
59 - LATCH BDE-P2320004400.A6 P2320004400	£1.50	£1.80
60 - SPRING BDE-P2820004162.A6 P2820004162	£1.50	£1.80
61 - SPRING BDE-188566.A2 188566	£1.50	£1.80
62 - DOOR BDE-188721.A1 188721	£37.35	£44.82
63 - STOP BDE-P2325204062.A4 P2325204062	£1.50	£1.80
64 - GROMMET BDE-P2840004100.A5 P2840004100	£1.50	£1.80
65 - STOP BDE-P2325204262.A0 P2325204262	£10.85	£13.02
66 - COVER BDE-P2325203862.A0 P2325203862	£2.78	£3.34
67 - SCREW BDE-9R199448.A1 9R199448	£1.50	£1.80
68 - SPRING BDE-9R188713 9R188713	£1.50	£1.80
69 - PIVOT BDE-P2325203662.A7 P2325203662	£1.50	£1.80
70 - CAP BDE-195013.A5 195013	£1.50	£1.80
71 - SPRING BDE-191794.A2 191794	£1.50	£1.80
72 - CAP BDE-P1960004866.A4 P1960004866	£1.50	£1.80
73 - COVER BDE-P2840002566.A6 P2840002566	£7.85	£9.42
74 - MAGAZINE SA BDE-P2840003200.A2 P2840003200	£24.39	£29.27
75 - SLEEVE BDE-P2840003732.A0 P2840003732	£1.50	£1.80
76 - O RING BDE-174073.A3 174073	£1.50	£1.80
77 - PIN BDE-P2845202662.A2 P2845202662	£1.50	£1.80
78 - SCREW BDE-184455.A1 184455	£1.50	£1.80
79 - ADJUSTER BDE-P2840002466.A0 P2840002466	£1.50	£1.80
80 - HOLDER BDE-P2840002366.A6 P2840002366	£3.30	£3.96
81 - SEAL BDE-175582.A13 175582	£1.50	£1.80
82 - HOOK BDE-175583.A0 175583	£1.50	£1.80
83 - O RING BDE-175557.A11 175557	£1.50	£1.80
84 - CAP BDE-175585.A13 175585	£1.50	£1.80
85 - RING BDE-175586.A0 175586	£1.50	£1.80
86 - WASHER BDE-P3490000200.A1 P3490000200	£1.50	£1.80
800 - GREASE BDE-100679.A0 100679	£78.12	£93.74
800 - GREASE BDE-100653.A13 100653	£2.26	£2.71
861 - CASE BDE-B284102001 B284102001	£30.08	£36.10
876 - SERVICE KIT BDE-N66C-RK.A1 N66C-RK	-
