Bostitch N89C-2K-E Type Rev 1 Nailer Spare Parts

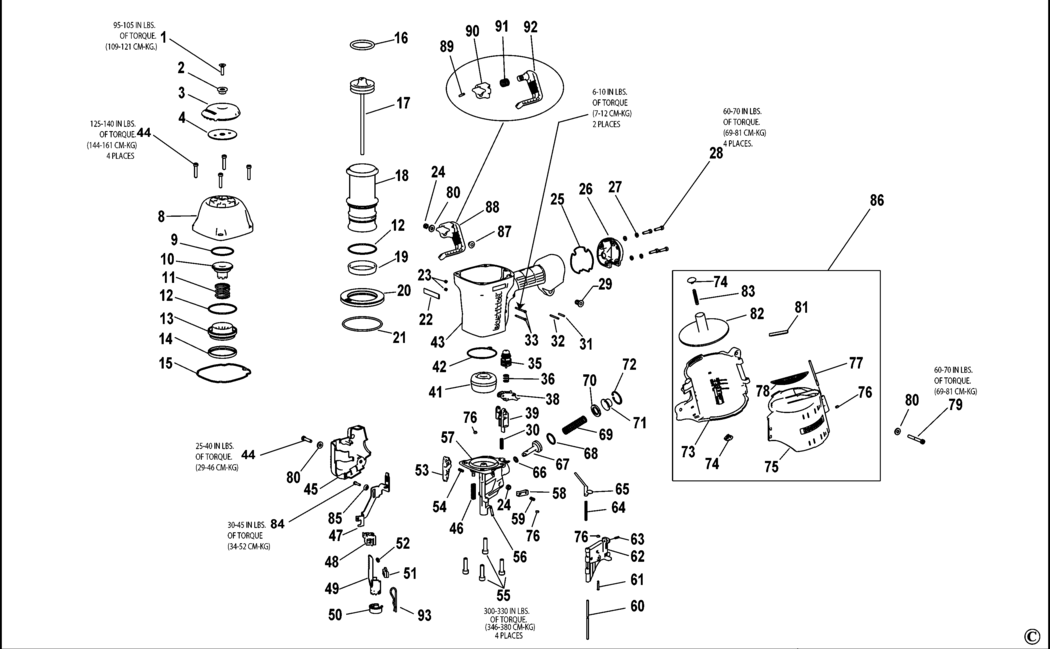

An exploded drawing and spare parts listing for the Bostitch N89C-2K-E Type Rev 1 Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A14 MSF6100-25	£1.50	£1.80
2 - BUSHING BDE-163859.A8 163859	£2.78	£3.34
3 - EXHAUST BDE-163818.A10 163818	£3.30	£3.96
4 - PLATE BDE-163830.A11 163830	£1.50	£1.80
9 - O RING BDE-105814.A16 105814	£10.85	£13.02
10 - BUMPER BDE-163820.A3 163820	£2.26	£2.71
11 - SPRING BDE-163844.A11 163844	£1.50	£1.80
12 - O RING BDE-163822.A3 163822	£3.80	£4.56
13 - VALVE BODY BDE-163821.A11 163821	£1.50	£1.80
14 - SEAL BDE-163823.A11 163823	£1.50	£1.80
15 - SEAL BDE-163845.A3 163845	£1.50	£1.80
16 - O RING BDE-851606-S.A4 851606-S	£1.50	£1.80
17 - PISTON SA BDE-163816.A1 163816	£113.07	£135.68
18 - SLEEVE BDE-163824.A3 163824	£30.08	£36.10
19 - SEAL BDE-175520.A0 175520	£1.50	£1.80
20 - RING BDE-163855.A6 163855	£2.78	£3.34
21 - O RING BDE-108718.A11 108718	£1.50	£1.80
22 - LABEL BDE-163881 163881	£1.50	£1.80
23 - NUT BDE-MHE3050-100.A8 MHE3050-100	£1.50	£1.80
24 - NUT BDE-MHE6100-100.A69 MHE6100-100	£1.50	£1.80
25 - SEAL BDE-163856.A8 163856	£1.50	£1.80
26 - END CAP BDE-163843.A3 163843	£10.85	£13.02
27 - WASHER BDE-T50118.A20 T50118	£1.50	£1.80
28 - SCREW BDE-MSC5080-20.A58 MSC5080-20	£1.50	£1.80
29 - BUSHING BDE-123859.A8 123859	£1.50	£1.80
30 - SPRING BDE-166781.A3 166781	£1.50	£1.80
31 - PIN BDE-MPP030020.A78 MPP030020	£1.50	£1.80
32 - PIN BDE-100298.A11 100298	£1.50	£1.80
33 - SCREW BDE-108562.A12 108562	£1.50	£1.80
35 - VALVE BDE-TVA6.A46 TVA6	£16.03	£19.24
36 - SPRING BDE-100387.A17 100387	£1.50	£1.80
38 - SWITCH KIT BDE-SEQ7.A2 SEQ7	£5.88	£7.06
39 - GUIDE BDE-163883.A6 163883	£1.50	£1.80
41 - BUMPER BDE-107231.A15 107231	£14.57	£17.48
42 - SEAL BDE-163884.A2 163884	£1.50	£1.80
44 - BOLT BDE-MSC6100-25.A16 MSC6100-25	£1.50	£1.80
45 - COVER BDE-166766.A0 166766	£5.88	£7.06
46 - SPRING BDE-116970.A8 116970	£1.50	£1.80
47 - ARM BDE-163908.A1 163908	£2.78	£3.34
48 - HOUSING BDE-163906.A1 163906	£7.18	£8.62
49 - ARM Lower Contact BDE-163907.A1 163907	£10.85	£13.02
50 - FOOT BDE-166765.A2 166765	£3.30	£3.96
51 - CASTING BDE-188703.A4 188703	£5.88	£7.06
52 - SPRING BDE-115230.A10 115230	£1.50	£1.80
53 - PAWL BDE-166773.A2 166773	£10.85	£13.02
54 - SPRING BDE-166774.A1 166774	£1.50	£1.80
55 - SCREW BDE-MSC8125-30.A6 MSC8125-30	£1.50	£1.80
56 - PIN BDE-166787.A2 166787	£1.50	£1.80
57 - NOSE SA BDE-166763.A1 166763	£131.46	£157.75
58 - PAWL BDE-N70149.A8 N70149	£3.80	£4.56
59 - SPRING COMPRESSION BDE-854011.A24 854011	£1.50	£1.80
60 - PIN BDE-N80125.A8 N80125	£1.50	£1.80
61 - PIN BDE-N70140.A3 N70140	£1.50	£1.80
62 - DOOR BDE-166760.A2 166760	£25.70	£30.84
63 - PIN BDE-MPG030012.A6 MPG030012	£1.50	£1.80
64 - SPRING COMPRESSION BDE-854013.A0 854013	£1.50	£1.80
65 - LATCH BDE-N70150.A12 N70150	£5.88	£7.06
66 - O RING BDE-88999.A2 88999	£3.30	£3.96
67 - PISTON BDE-163894.A1 163894	£16.03	£19.24
68 - O RING BDE-87112.A5 87112	£5.88	£7.06
69 - SPRING BDE-163930.A1 163930	£1.50	£1.80
70 - STOP BDE-163897.A2 163897	£1.50	£1.80
71 - COLLAR BDE-163895.A2 163895	£1.50	£1.80
72 - RETAINER BDE-163896.A1 163896	£1.50	£1.80
73 - HOUSING FRONT BDE-163892.A0 163892	£25.70	£30.84
74 - CAP BDE-149910.A1 149910	£1.50	£1.80
75 - CANISTER BDE-163910.A0 163910	£12.17	£14.60
76 - WASHER BDE-854004.A2 854004	£1.50	£1.80
77 - PIN BDE-166771.A0 166771	£1.50	£1.80
78 - WARNING LABEL Pallet BDE-165358 165358	£1.50	£1.80
79 - BOLT BDE-MSC6100-50.A1 MSC6100-50	£1.50	£1.80
80 - WASHER BDE-MPW6.2.A16 MPW6.2	£1.50	£1.80
81 - LABEL BDE-120927.A1 120927	£1.50	£1.80
82 - HOUSING LOWER BDE-180545.A0 180545	£9.41	£11.29
83 - SPRING TORSION BDE-166768.A1 166768	£1.50	£1.80
84 - SCREW BDE-MSC4070-16.A16 MSC4070-16	£1.50	£1.80
85 - BUSHING BDE-163876.A1 163876	£1.50	£1.80
86 - CANISTER BDE-166807 166807	£47.08	£56.49
87 - WASHER BDE-171342.A2 171342	£1.50	£1.80
88 - HOOK BDE-171354.A3 171354	£12.17	£14.60
89 - SPIROL PIN BDE-UB3811.2.A4 UB3811.2	£1.50	£1.80
90 - MOUNT BDE-171340.A2 171340	£3.80	£4.56
91 - SPRING BDE-171341.A4 171341	£1.50	£1.80
92 - HOOK BDE-171339.A4 171339	£4.69	£5.63
93 - SPRING CLIP BDE-175798.A2 175798	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
